EUROLITE Set LED PLL-480 CW/WW + Stand

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

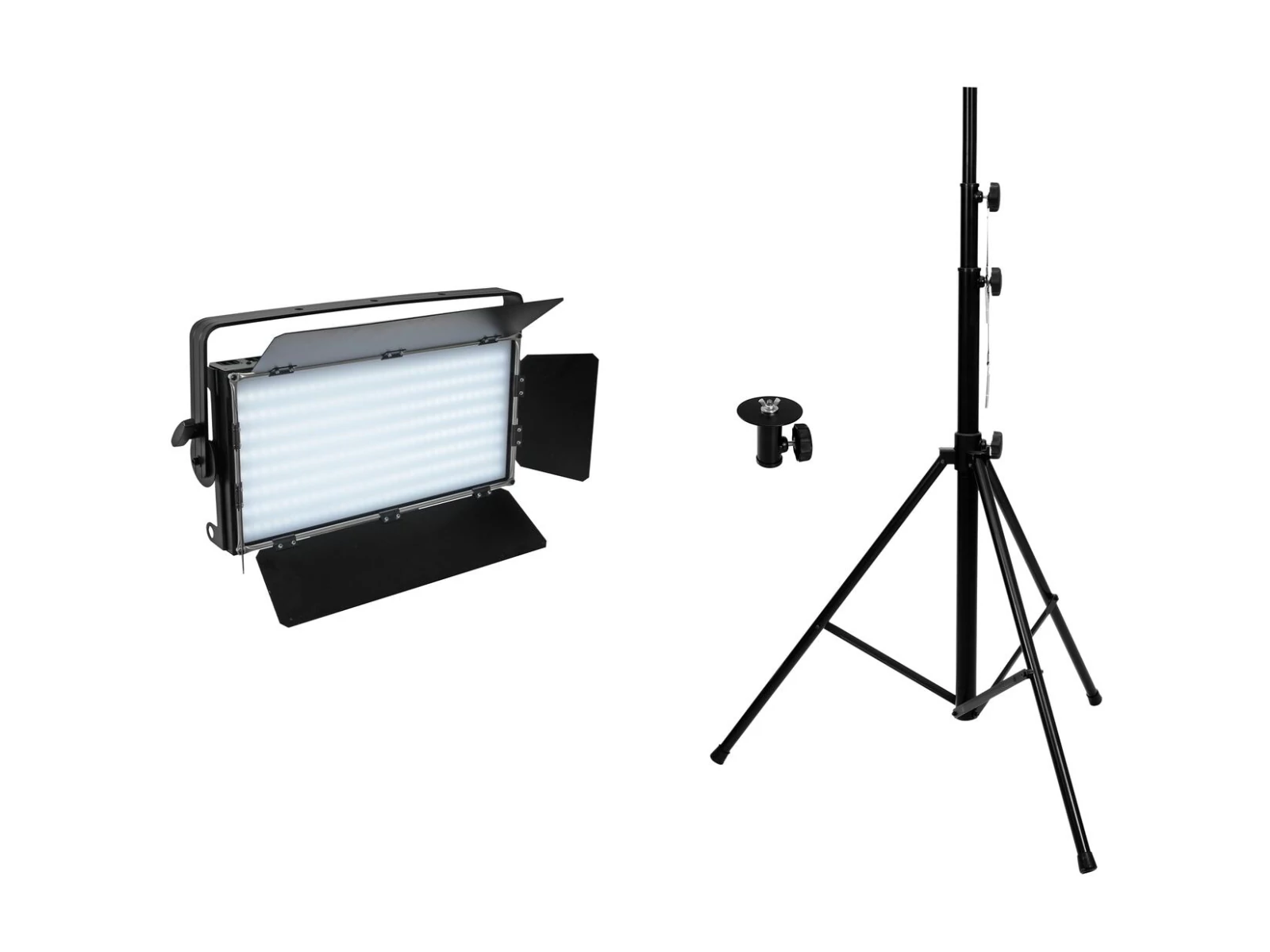

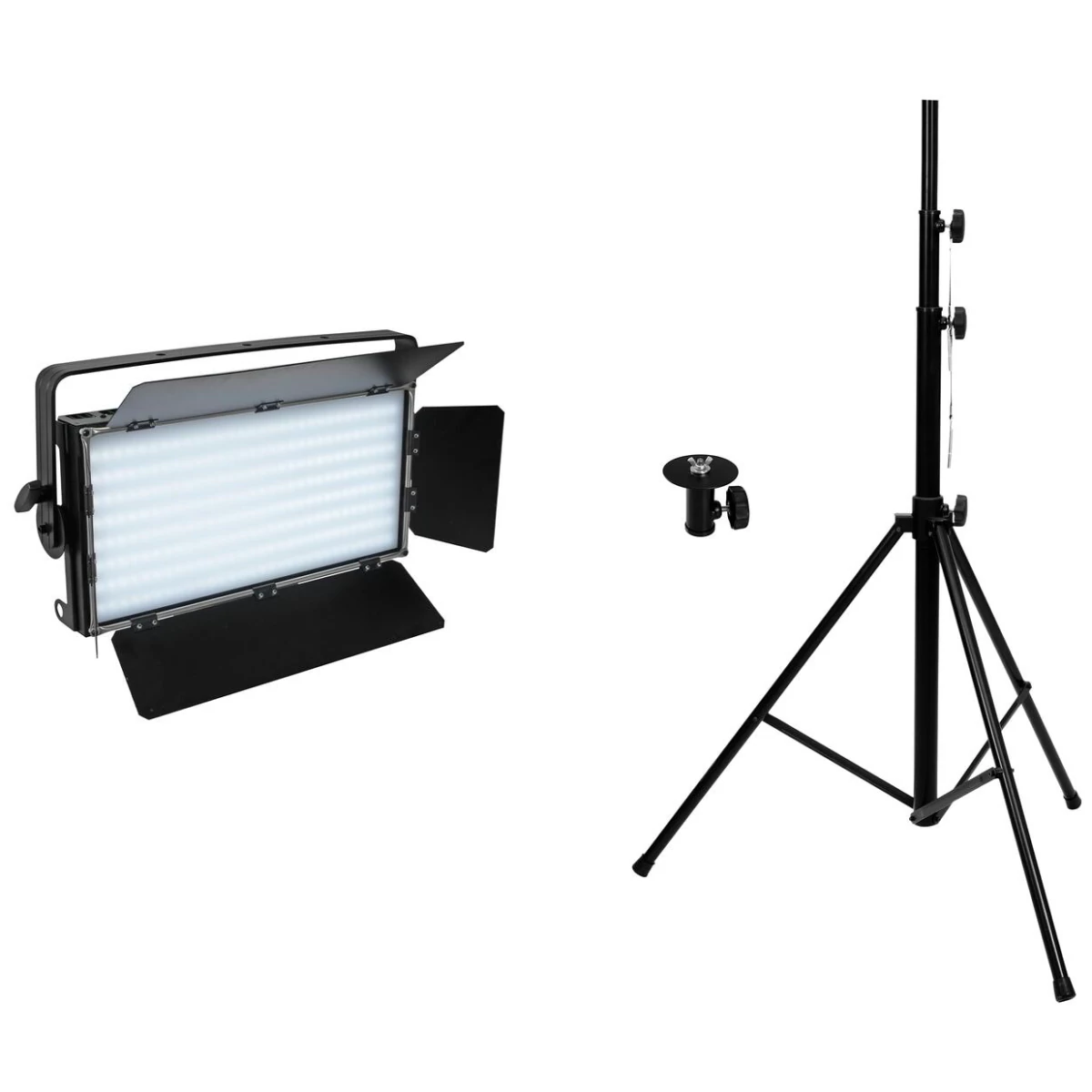

DMX-controlled surface light with 240 cold white and 240 warm white LEDs incl. steel stand

EUROLITE LED PLL-480 CW/WW Panel

DMX controlled surface light with 240 cold white and 240 warm white LEDs

Energy-saving, durable and environmentally friendly
Frost filter provides a soft, homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Stand or truss installation
Slim, rugged metal housing
480 LEDs 0.5 W SMD 2835 CW/WW (homogenous color mix)
Dimmer electronic; Dimmer speed (step response) adjustable
Strobe effect
The device is cooled by passive convection cooling
Control via DMX; master/slave function
Fixtures available for Light´J; Light Captain
Flicker-free
With a beam angle of 120°
Variable color temperature 3200 K - 5600 K
Very high color rendering index (CRI)
With mounting bracket
LCD display
Rugged carrying handle
Mains input and output for power linking up to 8 units
For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
Silent operation
Application possibility: Suspended; on stand

EUROLITE LS-1 EU Steel Stand

Lighting stand made in EU, without crossbeam, maximum load 30 kg, height 145-315 cm

Stable lighting stand for mobile use
Adjustable height
Made in Europe

EUROLITE LS-1A1 Adapter for LS-1

Universal adapter for lighting stands LS-1 and LS-1T

Universal adapter allowing to mount a single spotlight
Made in Europe

Scope of delivery

1 x EUROLITE LED PLL-480 CW/WW Panel

1 x spotlight
1 x user manual
1 x power cord
1 x plug (male)

1 x EUROLITE LS-1 EU Steel Stand

1 x stand
1 x user manual

Paraméterek

Weight	18.16 kg
EUROLITE LED PLL-480 CW/WW Panel
Power supply	100-240 V AC, 50/60 Hz
Power consumption	205 W
IP classification	IP20
Protection class	Protection class I
Power connection	Via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output	P-Con (gray), mounting version
Lamp type	LED lamp
LED type	480 x 0.5 W SMD 2835 CW/WW (homogenous color mix)
Flash rate	3.5 - 28 Hz
DMX channels	5
DMX input	3-pin XLR (M) mounting version
DMX output	3-pin XLR (F) mounting version
Cooling	Passive convection cooling
Control	DMX; master/slave function
Fixtures available for	Light´J; Light Captain
Projection	Flicker-free
PWM frequency	47000 Hz
Beam angle (1/2 peak)	120°
Color temperature	3200K - 5600K adjustable
Color rendering index (CRI)	96 Ra
Illuminance in Lux (lx)	Cold white (CW) 1m:3048 lx, 3m:394 lx, 6m:116 lx
Warm white (WW) 1m	2697 lx, 3m:375 lx, 6m:111 lx
All 1m	6147 lx, 3m:764 lx, 6m:224 lx
Lamp life	50000 h
Luminous flux	17470 lm
Housing color	Black matte
Attachment system	Mounting bracket
Display type	LCD display
Carrying handle	1 pc/pcs
Material	Metal
Dimensions	Width:64 cm
Depth	12.5 cm
Height	33 cm
Weight	12.60 kg
Noise classification	Class 0 (no noise at all)
Energy efficiency class (A - G)	F
EPREL-Nr	1066973
Mounting bracket
Diameter mounting holes	3 x Ø12mm
Material	Metal, 3 mm
Power cord
Cable construction	3 x 1.5 mm² H05VV-F
Cable length	Approx. 1.2 m
EUROLITE LS-1 EU Steel Stand
Maximum carrying capacity	30 kg
Height	Maximum:315 cm
Minimum	145 cm
Attachment system	Ø 28mm
Type (general stands)	Light stand/manual
Material	Steel/magnesium
Color	Black
Transport dimensions	120 cm x 16 cm x 14 cm
Base area	Ø 108 cm
Weight	5.30 kg
EUROLITE LS-1A1 Adapter for LS-1
Maximum carrying capacity	30 kg
Attachment system	Ø 29mm
M8 thread
Type (general stands)	Accessory
Material	Steel
Color	Black, powder-coated
Dimensions	Width:11 cm
Depth	9 cm
Height	10 cm
Weight	0.26 kg
