Leírás

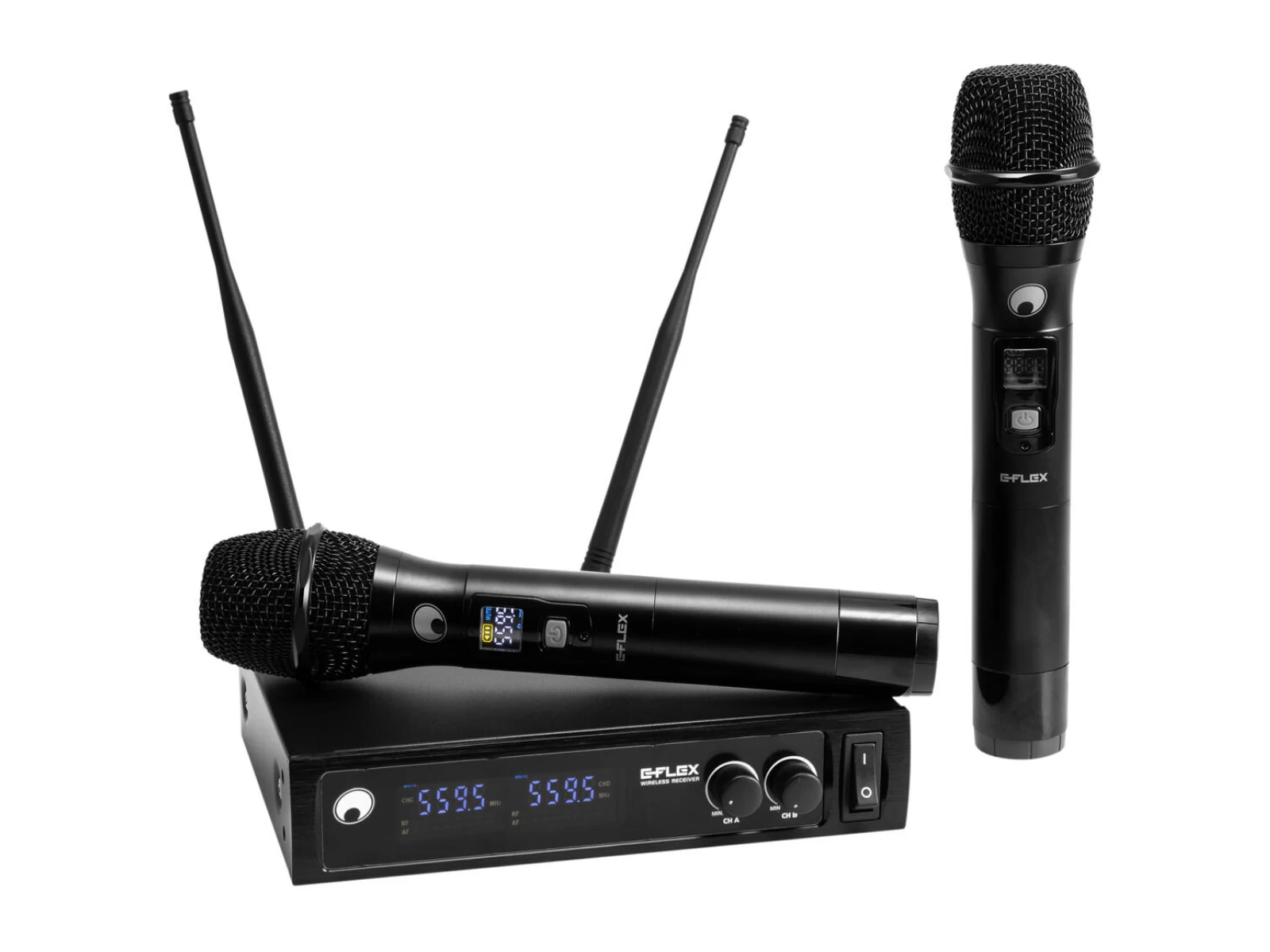

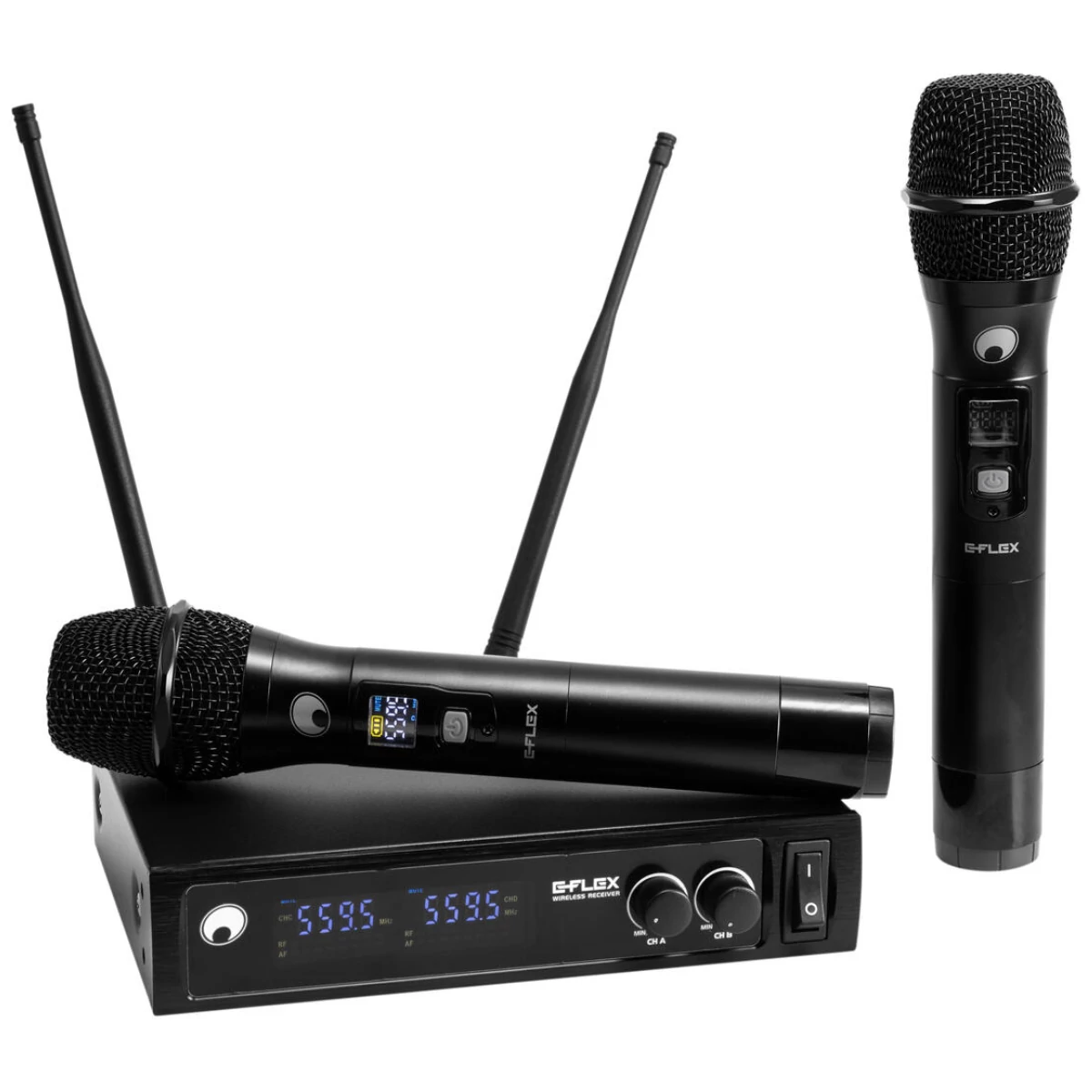

License-free 2-channel microphone system (UHF 559 - 575 MHz) with auto sync, incl. rack kit
- 2-channel receiver and 2 hand-held microphones with UHF PLL technology
- Quick and easy frequency adjustment at hand-held transmitter
- 16 channels selectable
- 2 separate channels with volume controls
- Balanced XLR output per channel
- 6.3 mm jack for mixed signal output
- Detachable BNC antennas
- Operating range up to 30m with line-of-sight
receiver
- Multicolor 4 digit 7-segment LED display
- Desktop console housing
- (19") 48.3 cm rack installation possible
microphone
- Polar pattern: Cardioid
- Multicolor 4 digit 7-segment LED display
- Charge status indicator
Package contents
- 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x microphone, 1 x jack cable, 2 x mounting bracket, 6 x screw, 4 x foot, 1 x user manual, 1 x declaration of conformity
Manuals
Manuals
Paraméterek
| Type | Wireless set |
| Protection class | Protection class III |
| Number of channels | 2 |
| Frequency range | 50 - 15000 Hz |
| Range | Range up to 30m with line-of-sight |
| Frequency band | UHF 559 - 575 MHz |
| Modulation | FM |
| Frequency selection | 16 switchable frequencies |
| In 2 groups | |
| Weight | 1,87 kg |
| Receiver | |
| Power supply | 100-240 V AC, 50/60 Hz |
| 12V DC 500 mA | |
| Power consumption | Max. 3,1 W |
| Power connection | Mains input via coaxial power connector (M) power supply cord with AC unit (provided) |
| S/N ratio | >90 dB |
| THD | <0,05 % at 1 kHz |
| Housing color | Black |
| Display type | Multicolor 4 digit 7-segment LED display |
| Display | Mute; channel , frequency , AF audio level , RF signal level |
| Control elements | Power switch, level control per channel |
| Connections | Input:antenna via 2 x BNC (F) |
| Output | microphone via 1 x 6.3 mm plug (unbal.) |
| Output | microphone via 2 x 3-pin XLR (M) mounting version |
| Material | Metal |
| Housing design | Desktop console housing |
| (19") 48.3 cm rack installation possible | |
| Mounting depth | 18,5 cm |
| Dimensions | Width:21,1 cm |
| Depth | 14,4 cm |
| Height | 4,2 cm |
| Weight | 0,970 kg |
| Microphone | |
| Type | Hand-held transmitter |
| Power supply | 3V DC |
| Capsule type | Dynamic |
| Polar pattern | Cardioid |
| Battery | Mignon (AA) (not included) |
| Sensitivity | -54 dB |
| RF power output | 10 mW |
| Housing color | Black |
| Display type | Multicolor 4 digit 7-segment LED display |
| Display | Frequency , channel , charge status indicator , Mute |
| Switch | On/off/mute switch |
| Material | Metal |
| Dimensions | Length:24,3 cm |
| Diameter | Ø 5,5 cm |
| Weight | 0,270 kg |
