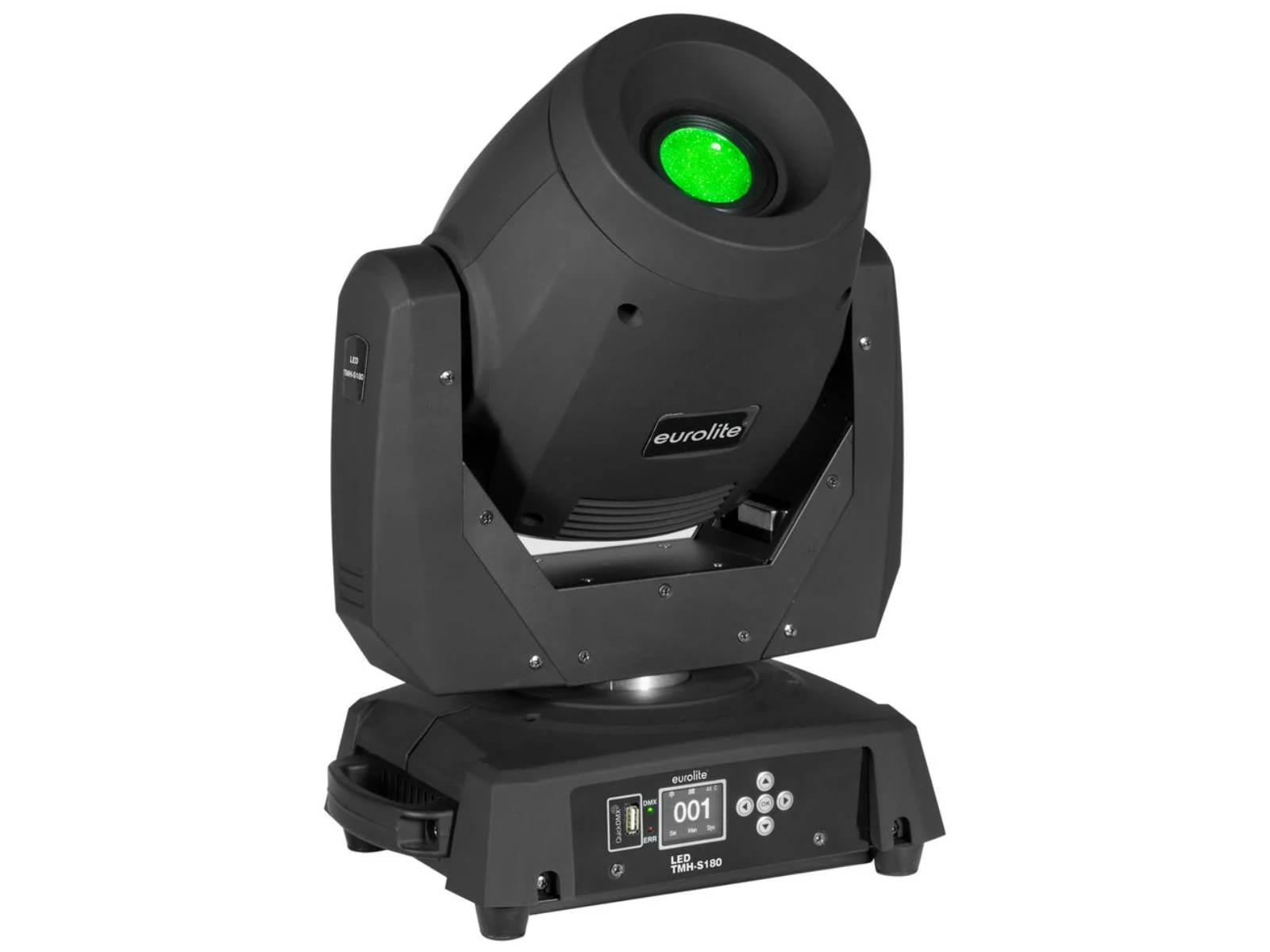

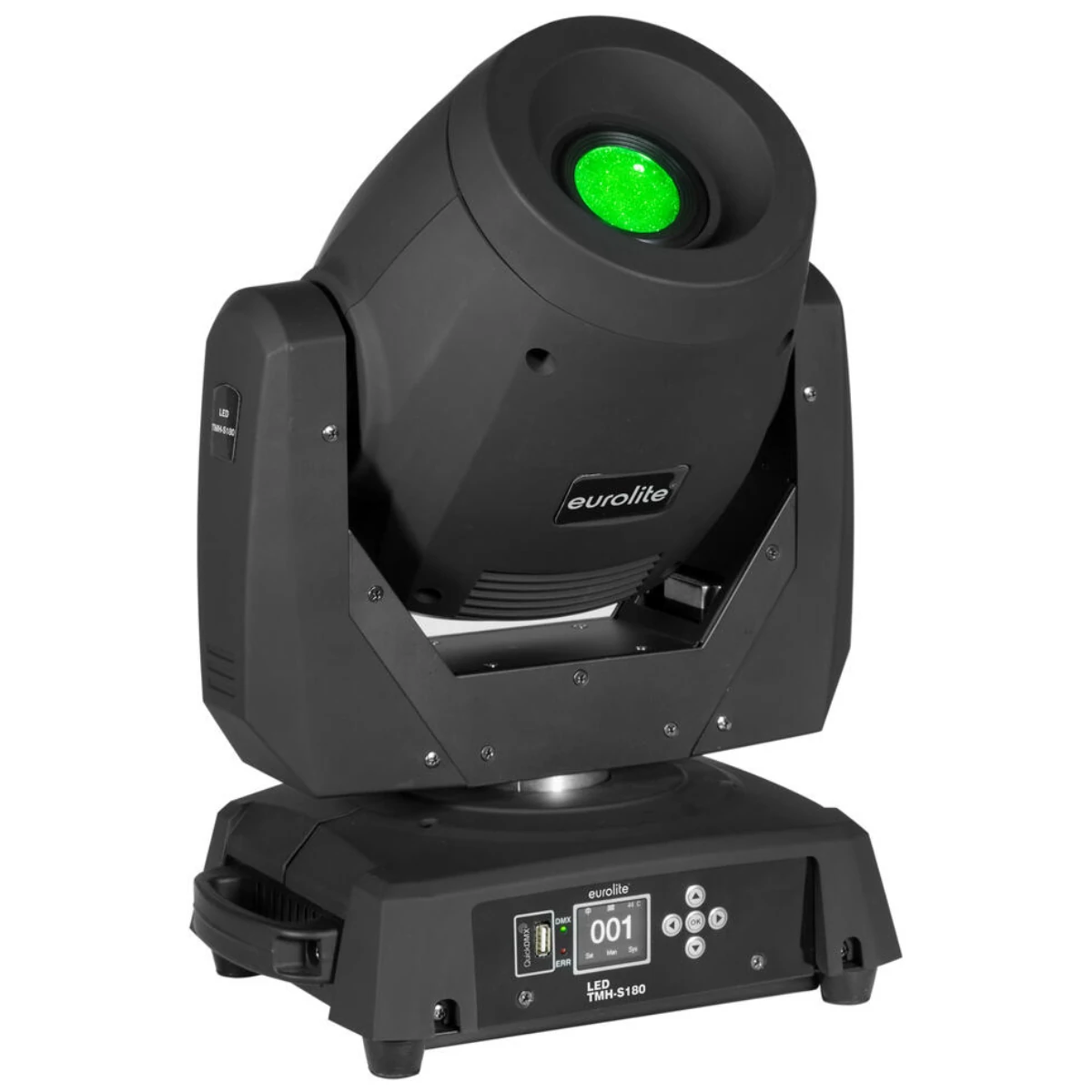

LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port
- Rotating 3-facet prism
- Electronic dimmer
- Mains input and output for power linking up to 8 units
- 1 powerful LED 200 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN and 270° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- Integrated Showprograms
- Can be operated in 13; 15 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- Flicker-free
- Effect: Multi beam effect; gobo effect
- With a beam angle of 10°
- LCD display
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 265 W |
IP classification | IP20 |
Protection class | Class I |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output | P-Con (gray), mounting version |
Fuse | 5 x 20 mm, T 3,15 A Fuse replaceable |
Lamp type | LED lamp |
LED | 1 x 200 W COB (chip-on-board) cold white (CW) |
Max. TILT movement | 270° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Max. PAN movement | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Flash rate | 0 - 18 Hz |
Equipment | Gobo wheel with rotating gobos; Prism 3-fold; Focus motor-driven |
Color generation | Color wheel with 8 dichroic filters plus open |
Gobos | Gobo wheel with rotating gobos, 7 gobos and open |
Outside diameter 23,5mm | |
Image diameter 15mm | |
Shake effect | |
Gobos changeable | |
Slot-in gobo system for easy gobo replacement | |
DMX channels | 13; 15 |
DMX input | 3-pin XLR (M) mounting version |
DMX output | 3-pin XLR (F) mounting version |
Cooling | Cooling fan |
Control | Stand-alone; DMX; Sound to light via Microphone; Light´J; LED PC-Control 512; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Light Captain |
Beam angle | 10° |
Beam angle (1/2 peak) | 10° |
Illuminance in Lux (lx) | Cold white (CW) 3m:20700 lx, 6m:5273 lx |
Housing color | Black |
Display type | LCD display |
Dimensions | Width:32,5 cm |
Depth | 27,0 cm |
Height | 45,5 cm |
Weight | 11,35 kg |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
