Leírás

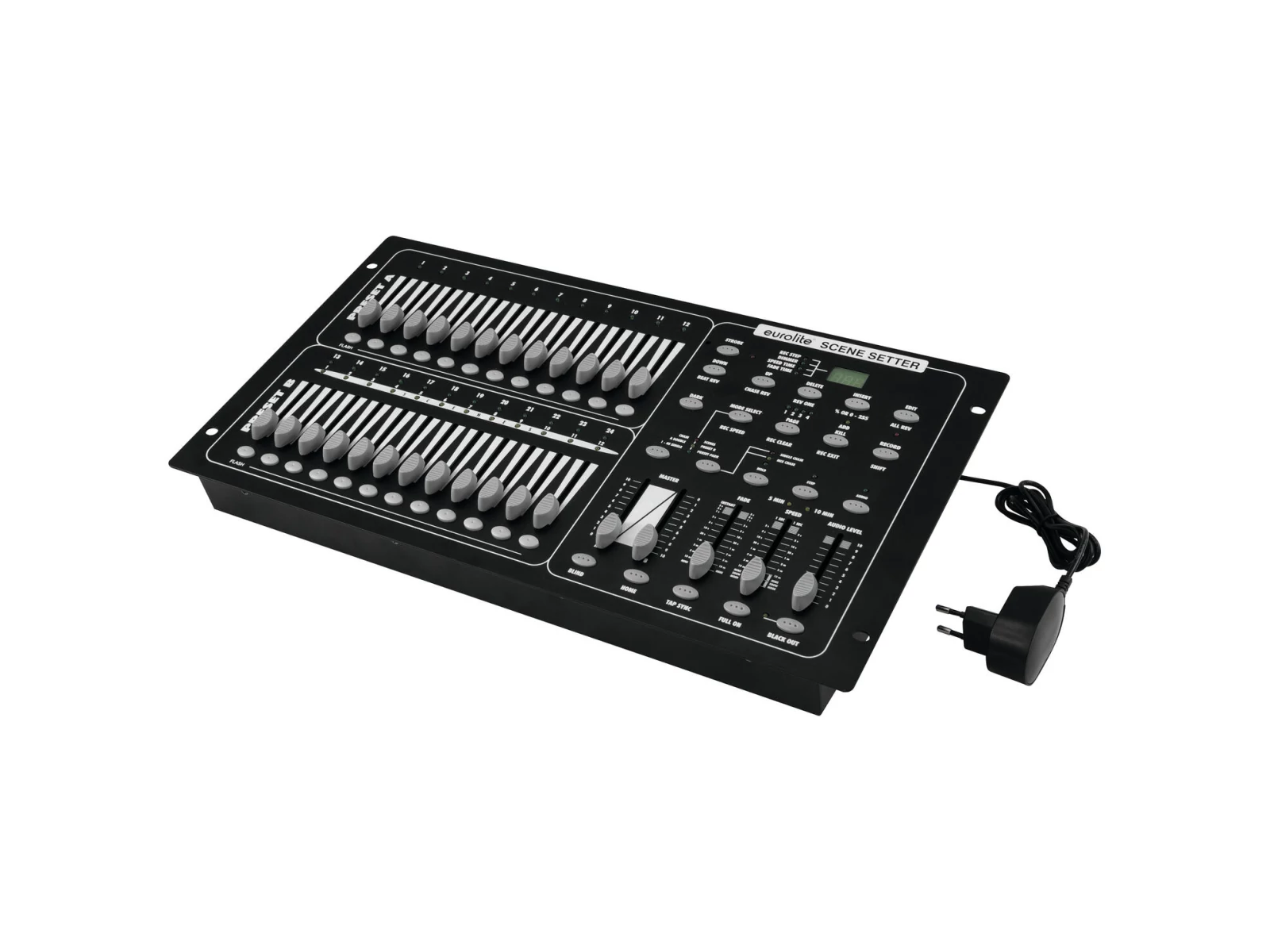

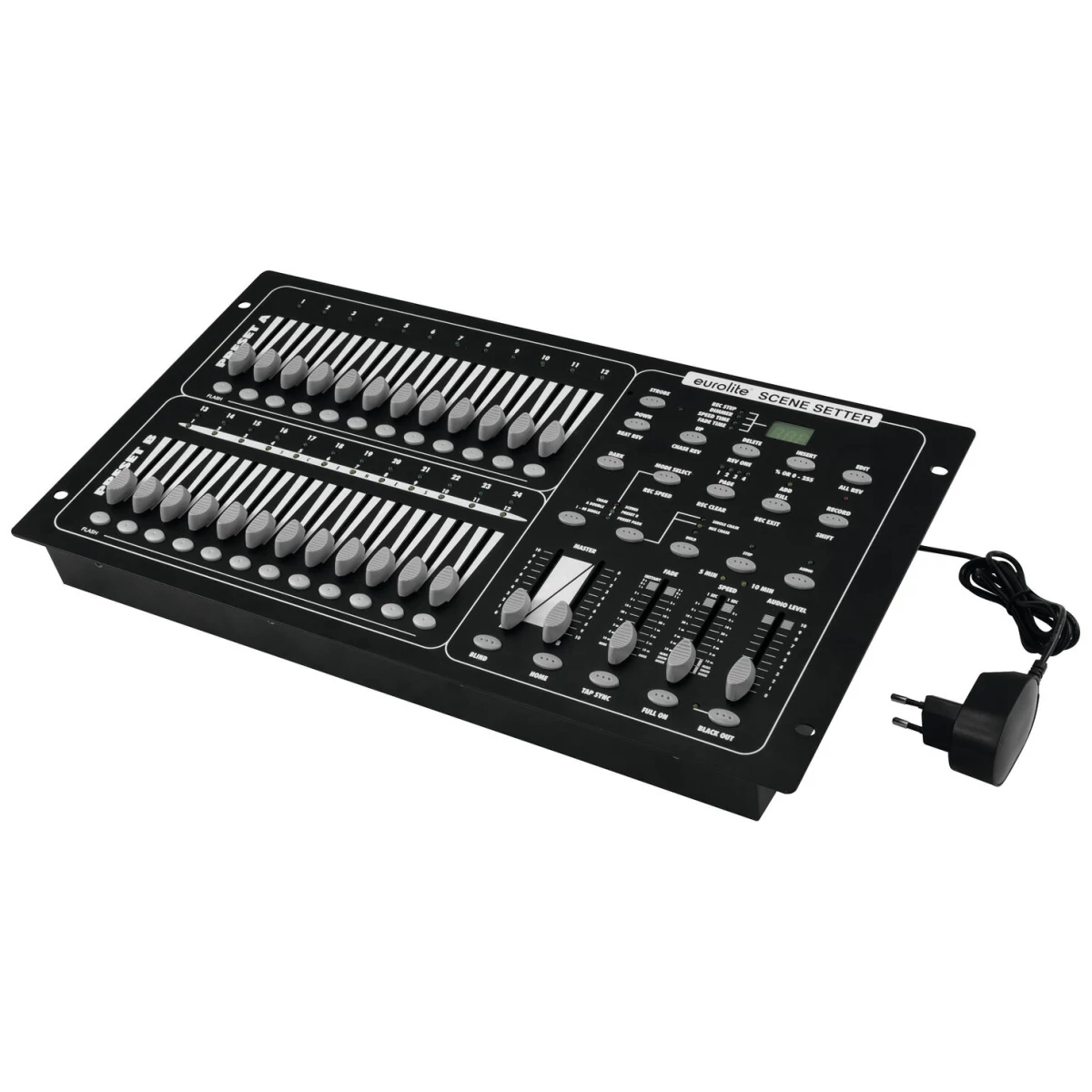

Theater light console for 24 DMX channels, brightness control for each scene
- 12 scenes can be called up directly via the faders
- Blackout function
- Mix and single chase function
- Blind/home function
- Supports standard MIDI
- Can transmit up to 24 DMX channels
- (19") 48.3 cm rack installation 6 U
- Programmable 48 scenes/chases distributed over 4 page/s
- Control via DMX; sound to light via microphone; sound to light via RCA (F) mounting version
- Desktop console housing
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; theater; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| 12V DC 500 mA | |
| Pin configuration | Inside + / outside - |
| Power consumption | 4,00 W |
| IP classification | IP20 |
| Protection class | Protection class III |
| Power connection | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs | Programmable 48 scenes/chases distributed over 4 page/s |
| DMX channels | Output 24 |
| DMX output | 1 x 3-pin XLR (F) mounting version |
| Control | DMX; sound to light via microphone; sound to light via RCA (F) mounting version |
| Housing color | Black |
| Control elements | DMX polarity selector, power switch |
| Color | Black |
| Mounting depth | 80 mm |
| Housing design | (19") 48.3 cm rack installation 6 U |
| Desktop console housing | |
| Dimensions | Width:48,3 cm |
| Depth | 26,4 cm |
| Height | 8,9 cm |
| Weight | 4,05 kg |
| Noise classification | Class 0 (no noise at all) |
