Leírás

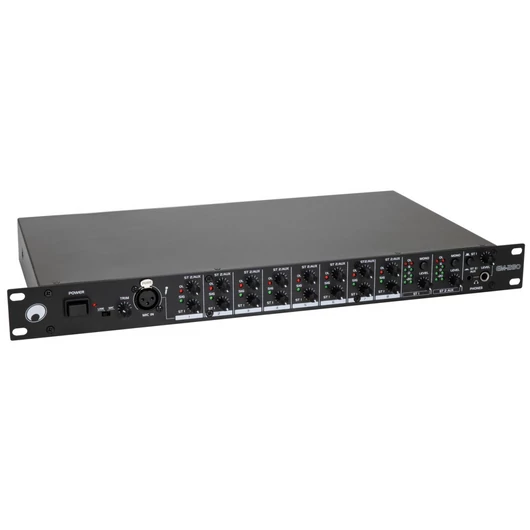

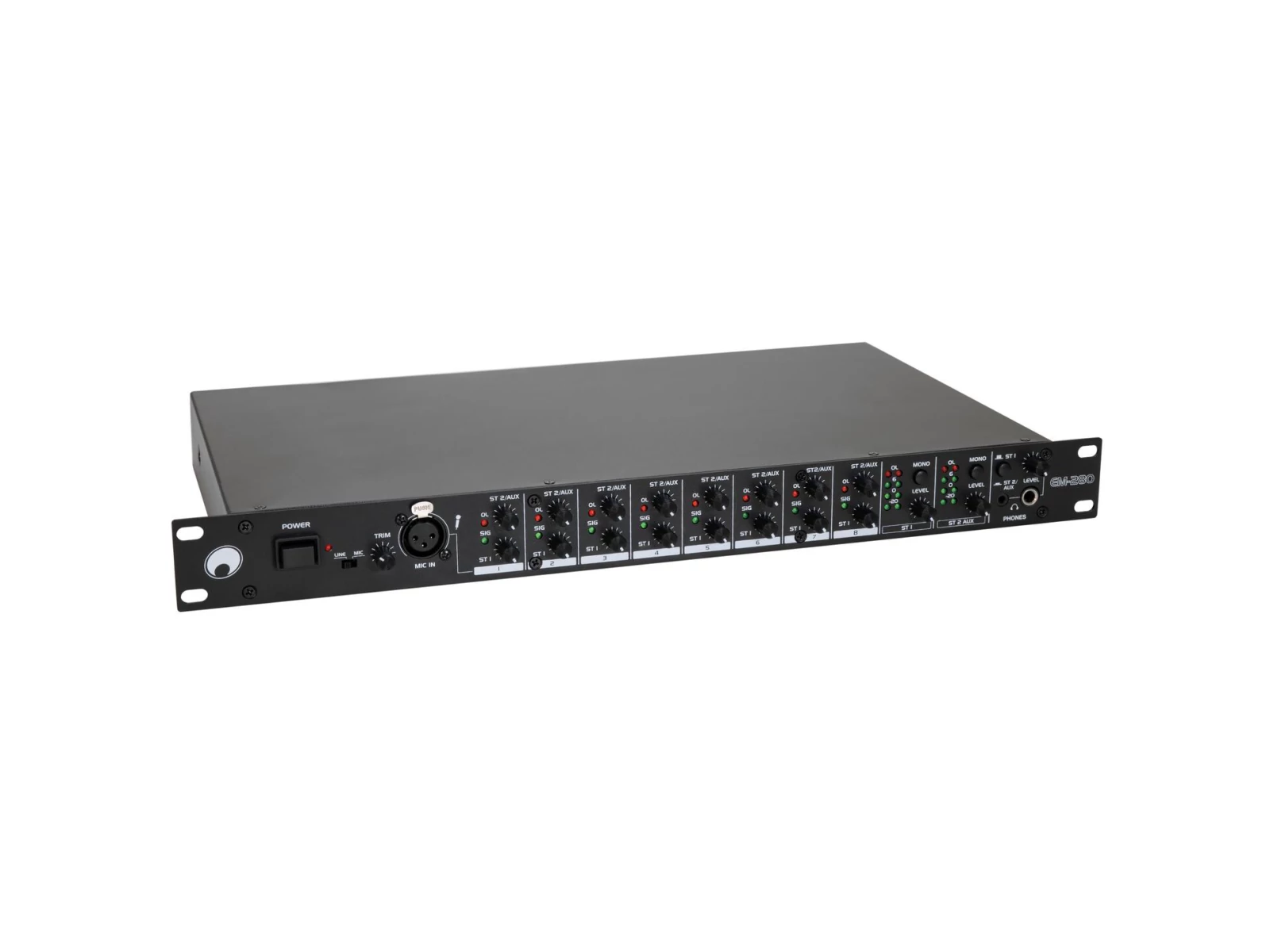

8-channel stereo mixer with 2 adjustable zone outputs, 19"
- 1 additional XLR microphone input in channel 1
- Nominal input level switchable between +4dBu and -10 dBV
- Signal and overload indicators in each channel
- 4-digit stereo level meter for each bus output
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable
Manuals
ManualsParaméterek
| Power supply | 115/230 V AC, 50/60 Hz |
| Power consumption | 15 W |
| Protection class | Protection class I |
| Power connection | Power supply cord with safety plug (provided) |
| Device fuse | 5 x 20 mm, T 1 A fuse replaceable |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >92 dB line |
| >65 dB microphone | |
| THD | Line <0,9 % at 1 kHz |
| Gain | Mic/line 18 dB |
| Housing color | Black |
| Control elements | Groundlift selector |
| Status LED | Power, master level meter, signal, clip |
| Connections | Input:line via 8 x 6.3-mm-jack (bal.) |
| Input | microphone via 1 x 3-pin XLR |
| Output | master via 2 x 6.3-mm-jack (bal.) |
| Output | AUX via 1 x 6.3-mm-jack (bal.) |
| Output | headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Output | headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Channels | Input chanel:1 x mono + stereo with mic-line switch via XLR or jack, channel control via rotary dial, pre-post switch, gain control |
| Input chanel | 7 x stereo via jack, channel control via rotary dial, pre-post switch |
| Master bus input | 2 x stereo via jack, routing master bus switch |
| Master output | 2 x mono + stereo via XLR or RCA, channel control via rotary dial, stereo/mono switch |
| Master bus output | 1 x stereo via jack |
| Headphones output | 1 x stereo via jack, channel control via rotary dial, routing master bus switch |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 28,0 cm |
| Height | 4,4 cm |
| Weight | 3,06 kg |
Microphone line mixer, 6 mono channels + 3 stereo channels
Multifunctional 5+2-channel installation mixer, black
Multifunctional 5+2-channel mixer with 3 zones, black
