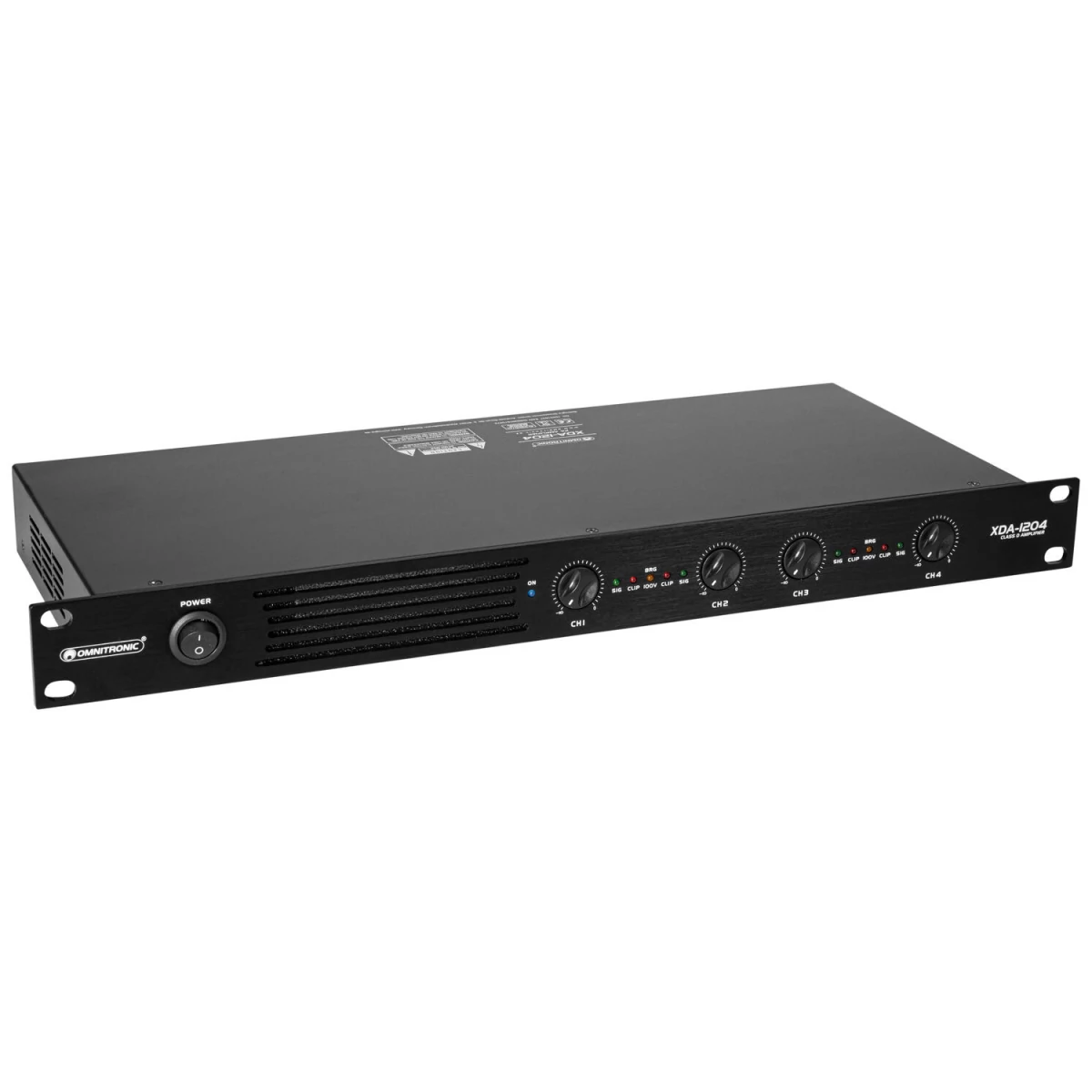

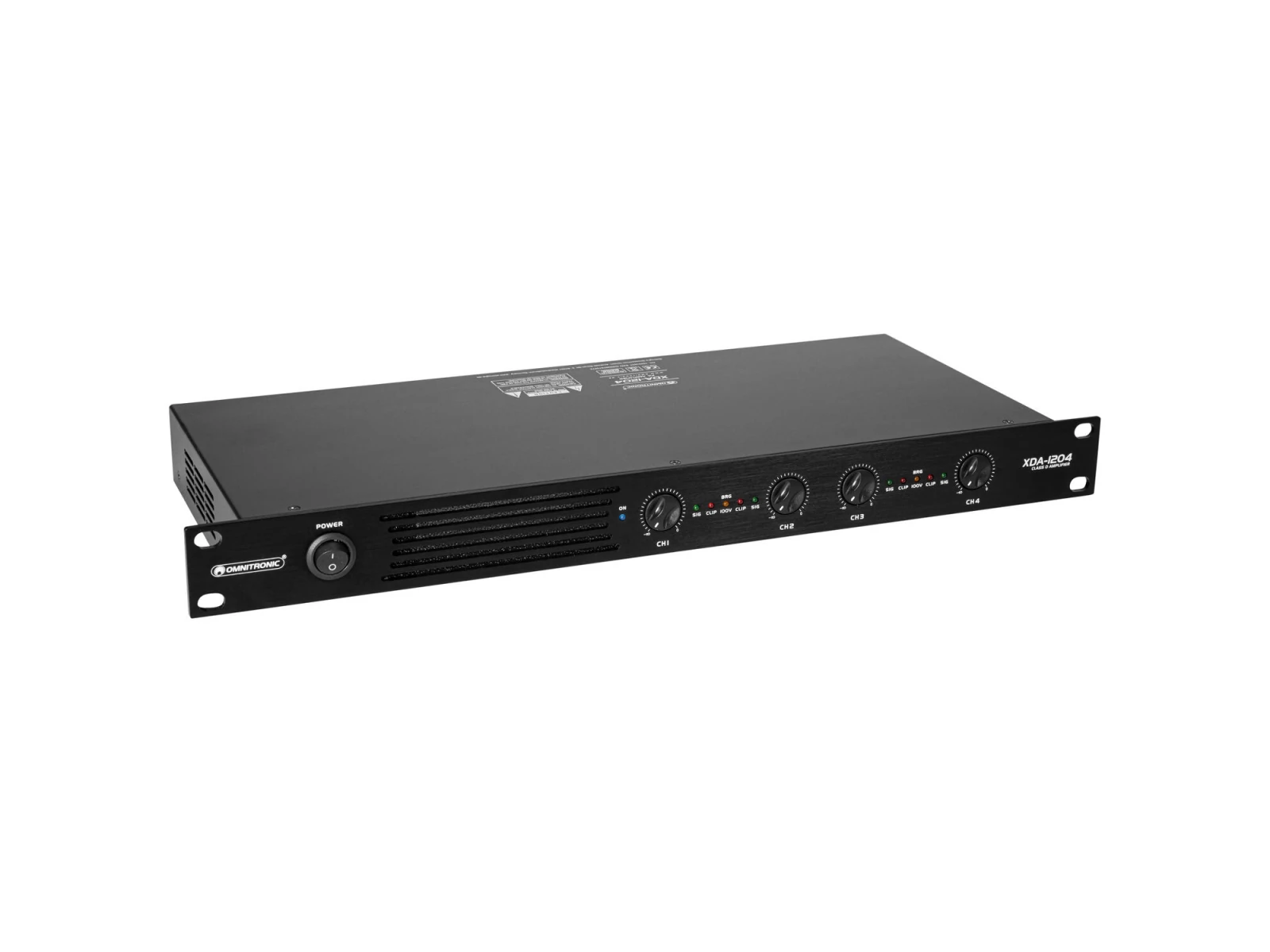

OMNITRONIC XDA-1204 4-channel Class D Amplifier

185.900 Ft 155.900 Ft (122.756 Ft + ÁFA)

Menny.:db

~~3.490 Ft~~ 3.090 Ft

Mutass Többet

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Class D multi-channel PA amplifier with SMPS, 4 x 300 W RMS (4 ohms), 4 x 180 W RMS (8 ohms)

Extremely low weight and height due to integrated switch mode power supply
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
(19") 48.3 cm rack installation 1 U
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms

Scope of delivery

Power supply	230 V AC, 50 Hz
Power consumption	1440 W
Protection class	Protection class I
Output power	4 x 300 W RMS (4 ohms)
4 x 180 W RMS (8 ohms)
2 x 600 W RMS bridged (8 ohms)
2 x 600 W RMS bridged (100 V)
Power connection	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Device fuse	5 x 20 mm, T 8 A fuse replaceable
Frequency range	20 - 20000 Hz
S/N ratio	>100 dB
THD	<0.05 % at 1 kHz
Impedance	Input:20 kOhm , bal.
Input	10 kOhm , unbal.
Gain	31 dB/ 0.775 V
Housing color	Black matte
Circuitry	Class D
Slew rate	>20 V/µs
Damping factor	>300
Control elements	Power switch, mode switch (stereo/parallel/bridged), level control per channel
Controls	Softstart; overheat; overload; short-circuit; DC voltage
Status LED	Power, signal, clip, bridged
Connections	Input:line via 4 x 3-pin XLR
Output	line via 4 x 3-pin XLR
Output	speaker via 4 x speaker built-in socket (F)
Output	speaker via 4 x screw plug-in terminal
Input	line via 4 x screw plug-in terminal
Input sensitivity	0.775 V
Housing design	(19") 48.3 cm rack installation 1 U
Dimensions	Width:48.3 cm
Depth	20.5 cm
Height	4.4 cm
Weight	3.33 kg
