Leírás
DMX-controlled surface light with 480 4in1 RGBW LEDs
EUROLITE LED PLL-480 QCL Panel
- Energy-saving, durable and environmentally friendly
- frost filter provides a soft, homogeneous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Variable PWM frequency (pulse-width modulation)
- Slim, rugged metal housing
- Stand or truss installation
- Mains input and output for power linking up to 8 units
- 480 powerful LEDs SMD 5050 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 6; 4 CH mode
- The device is cooled by passive convection cooling
- Controlling by DMX; stand-alone; Master/slave function
- Preprogrammed in Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- With a beam angle of 120°
- With Mounting bracket
- LCD display
- 1 hinged, chromium plated case handle
- For application areas such as: Video- and Photographic; Stage
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x plug (male)

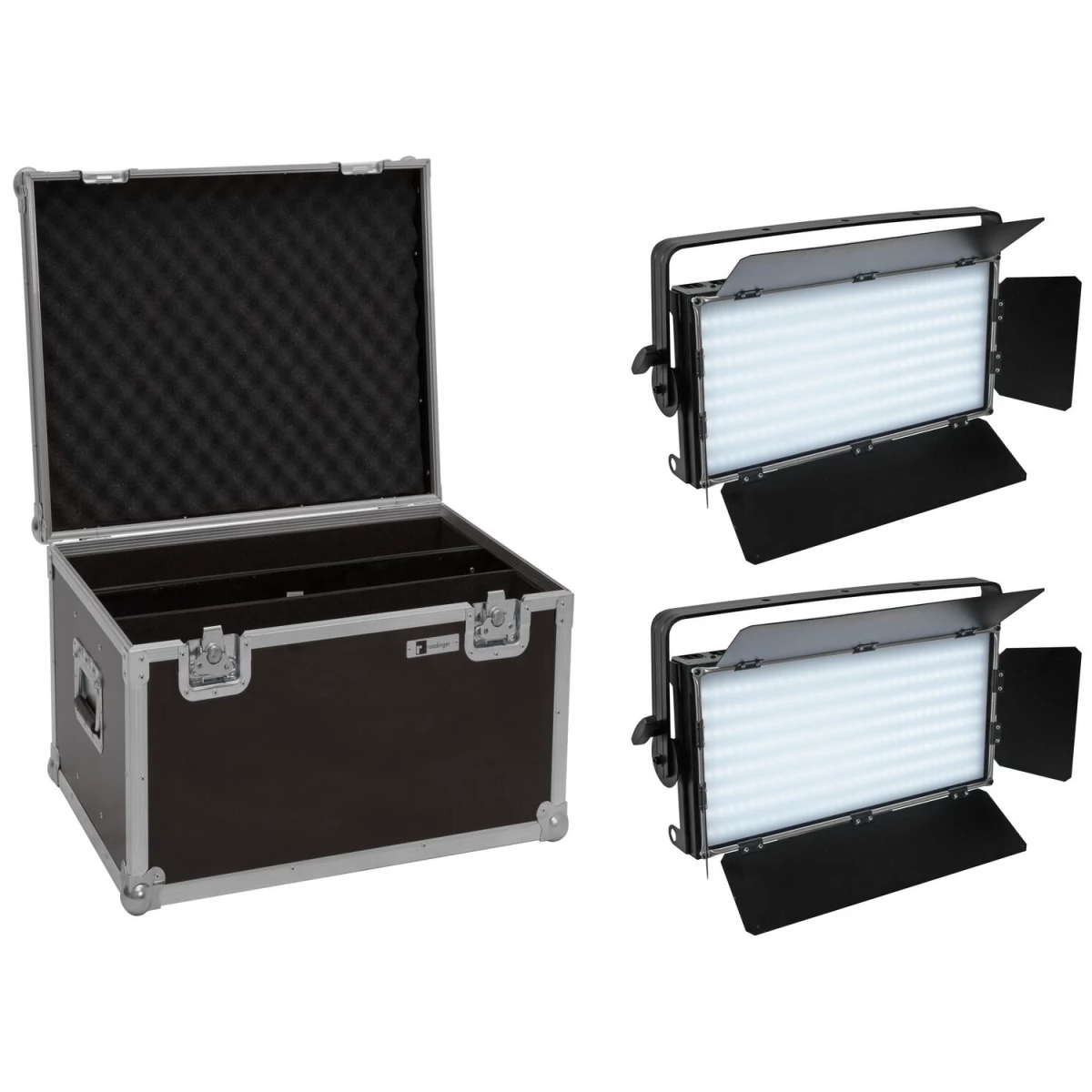

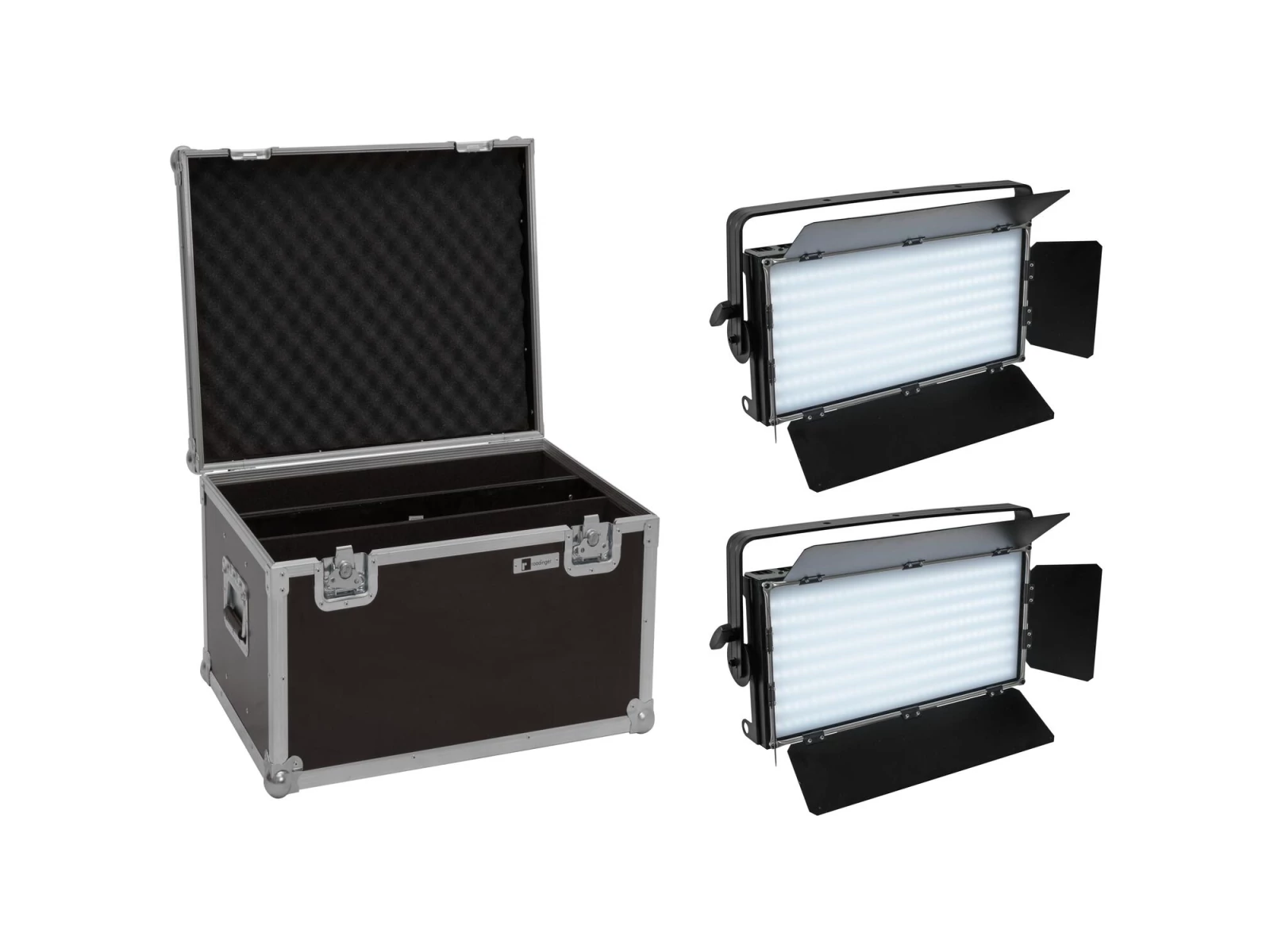

ROADINGER Flightcase 2x LED PLL-480
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Paraméterek
| Weight | 37,50 kg |
| EUROLITE LED PLL-480 QCL Panel | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 205 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output | P-Con (gray), mounting version |
| Lamp type | LED lamp |

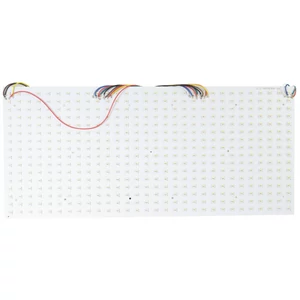

| LED | 480 x SMD 5050 4in1 QCL RGBW (homogenous color mix) |
| DMX channels | 6; 4 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | Passive convection cooling |
| Control | DMX; Light´J; stand-alone; Master/slave function; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3 |
| Beam angle | 120° |
| Beam angle (1/2 peak) | 120° |
| Illuminance in Lux (lx) | Red (R) 1m:438 lx, 3m:61 lx, 6m:18 lx |
| Green (G) 1m | 633 lx, 3m:88 lx, 6m:25 lx |
| Blue (B) 1m | 209 lx, 3m:29 lx, 6m:8 lx |
| Cold white (CW) 1m | 2130 lx, 3m:296 lx, 6m:87 lx |
| All 1m | 2696 lx, 3m:380 lx, 6m:112 lx |
| Lamp life | 50000 h |
| Luminous flux | 17103 lm |
| Housing color | Black |
| Attachment system | Mounting bracket |
| Display type | LCD display |
| Case handles | 1 pc/pcs |
| Dimensions | Width:64 cm |
| Depth | 13 cm |
| Height | 33,5 cm |
| Weight | 12,60 kg |
| Noise classification | Class 0 (no noise at all) |
| Energy efficiency class (A - G) | F |
| ROADINGER Flightcase 2x LED PLL-480 | |
| Maximum load | 50 kg |
| Material | Birch multiplex, 7 mm |
| Color | Dark brown, laminated |
| Inside dimensions | 64 cm x 38,5 cm x 29 cm |
| Device compartment | 64 cm x 14 cm x 29 cm |
| Accessory compartment | 64 cm x 10,5 cm x 29 cm |
| Dimensions | Length:70 cm |
| Width | 47 cm |
| Height | 39 cm |
| Weight | 12,30 kg |
