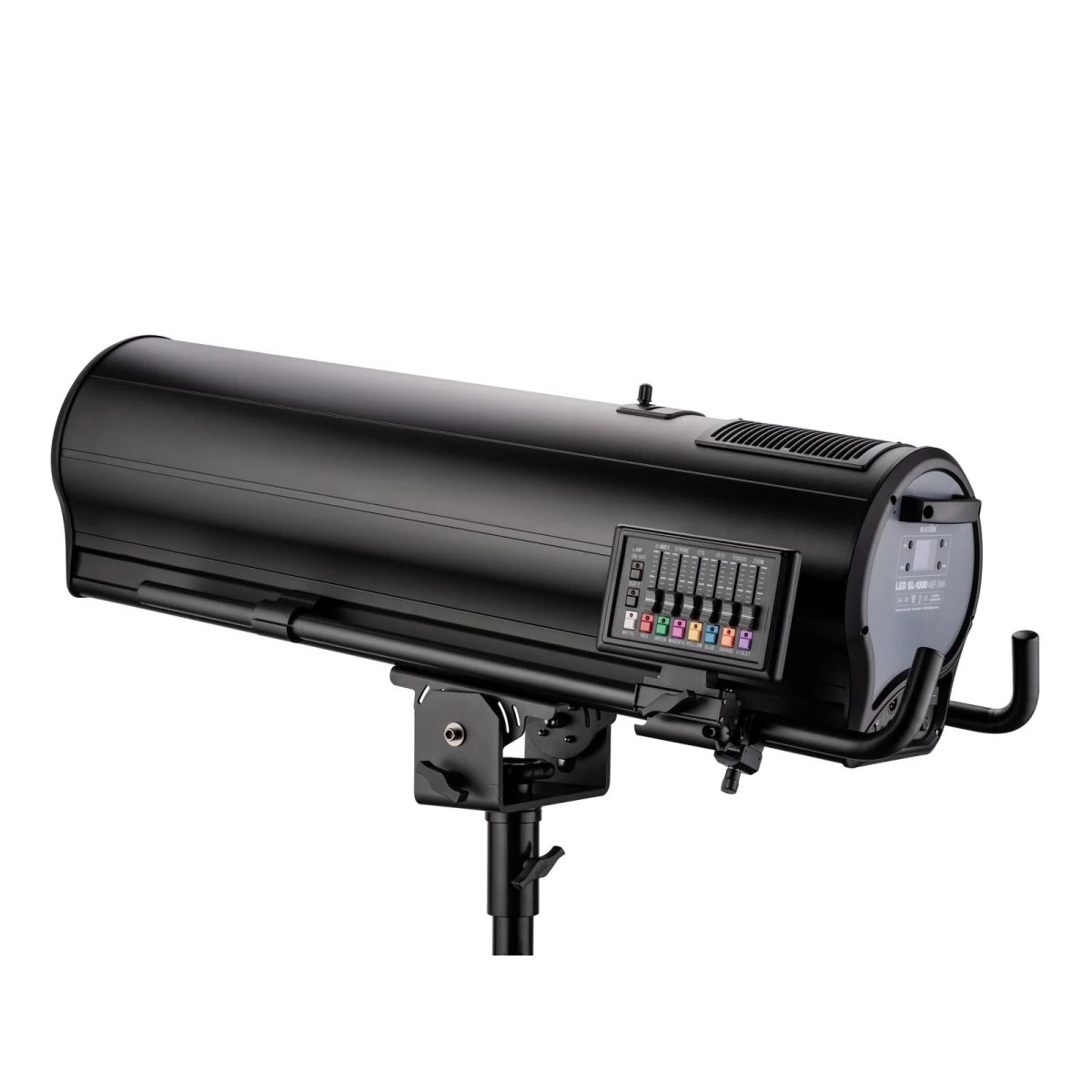

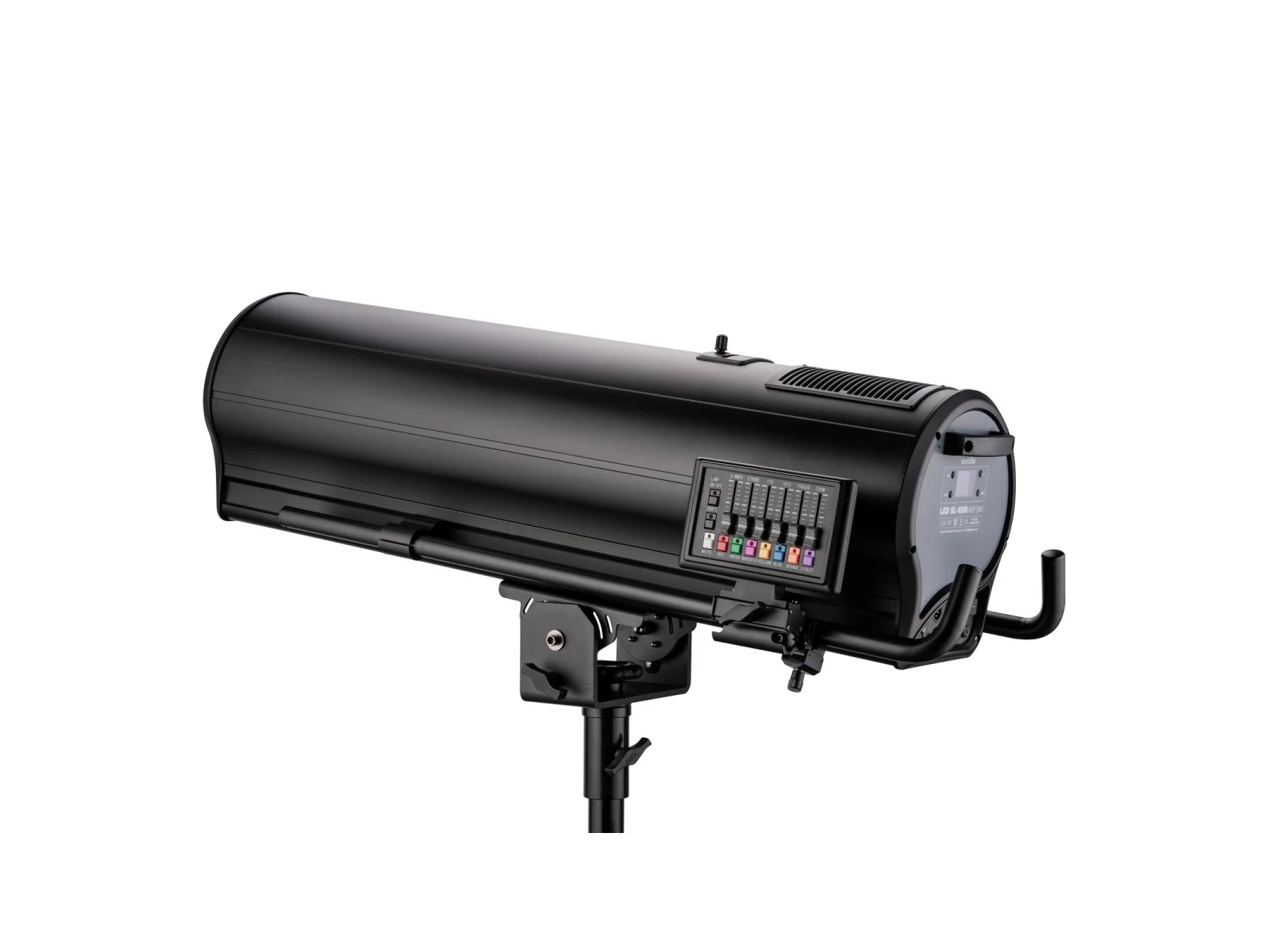

Motorized DMX follow spot with cold white 1000 W LED, zoom & focus for long distances
- Manual control via movable control panel with buttons and faders
- 1 LED 1000 W COB (chip-on-board) cold white (CW)
- Color wheel; iris stepless; frost filter; zoom motor driven; focus motor-driven
- Dimmer electronic
- Strobe effect
- Color wheel with 7 dichroic filters plus open
half colors selectable - The device is cooled by cooling fan
- Control via stand-alone; master/slave function; DMX
- Flicker-free
- Direct color temperature selection for 4 preset values
- With mounting bracket
- Monochrome LCD display
- Suitable for a range of use from 75 to 200 meters
- For application areas such as: Wedding/gala/events; stage; theater; rental
- Application possibility: On stand
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x spotlight
- 1 x controller
- 1 x user manual
- 1 x power cord
- 1 x gobo holder
- 1 x case
- 1 x XLR cable
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz | |
| Power consumption | 1000 W | |
| IP classification | IP20 | |
| Power connection | Mains input via IP T-Con (M) mounting version power supply cord with safety plug | |
| Device fuse | 5 x 20 mm, T 8 A fuse replaceable | |
| Lamp type | LED lamp | |
| LED type | 1 x 1000 W COB (chip-on-board) cold white (CW) | |
| Flash rate | 0.8 - 12 Hz | |
| Equipment | Color wheel; iris stepless; frost filter; zoom motor driven; focus motor-driven | |
| Color generation | Color wheel with 7 dichroic filters plus open | |
| Half colors selectable | ||
| DMX channels | 8 | |
| DMX input | 3-pin XLR (M) mounting version | |
| DMX output | 3-pin XLR (F) mounting version | |
| Cooling | Cooling fan | |
| Control | Stand-alone; master/slave function; DMX | |
| Projection | Flicker-free | |
| PWM frequency | 16800 Hz | |
| Beam angle (1/2 peak) | 2 - 7° | |
| Beam angle (1/10 peak) | 2 - 7° | |
| Housing color | Black | |
| Attachment system | Mounting bracket | |
| Display type | Monochrome LCD display | |
| Range of use | 75m - 200m | |
| Dimensions | Length:113.0 cm | |
| Width | 32.0 cm | |
| Height | 46.0 cm | |
| Weight | 82.65 kg | |
| Noise classification | Class 2 (slight noise) | |
| Spotlight | ||
| Weight | 34 kg | |
| Gobo holder | ||
| Gobos | Outside diameter 39.8mm | |
| Image diameter 23.5mm | ||
| Legal specifications | ||
| Special product | Not designed for household room illumination | |
| Intended use | Show effect lighting | |
