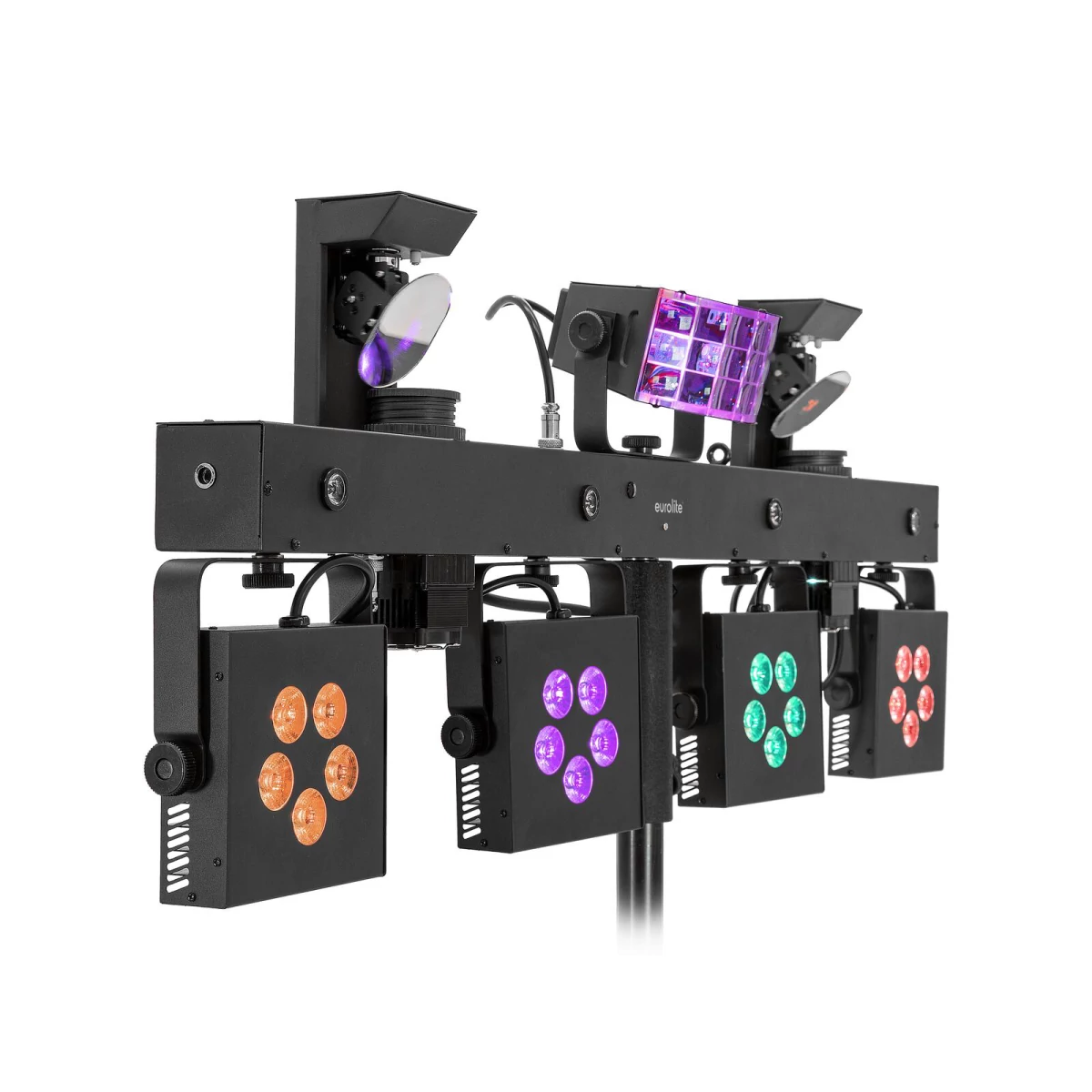

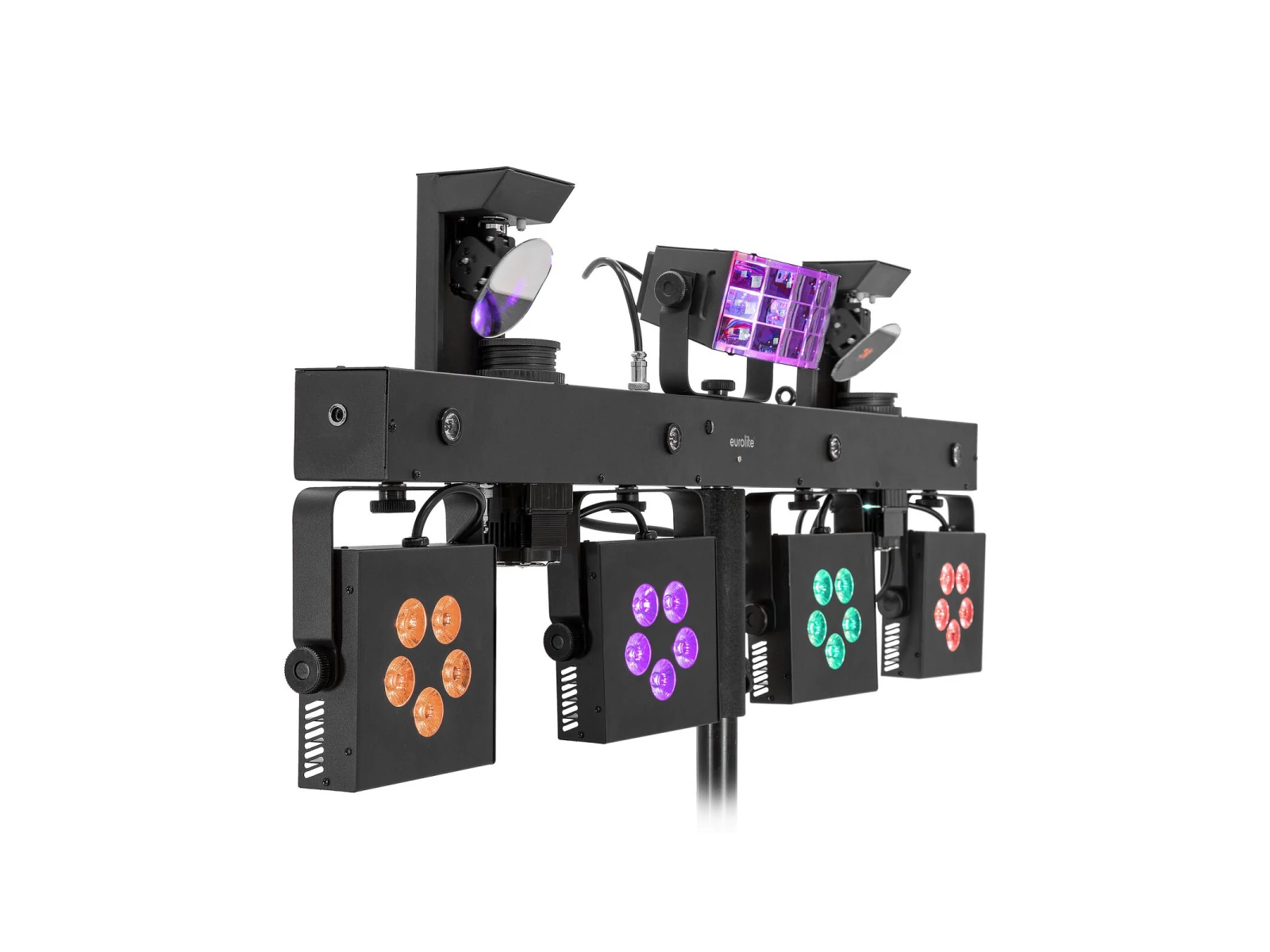

EUROLITE LED KLS Scan Pro Next FX Compact Light Set

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

Heart gobo for romantic occasions
Positioning within
Color wheel; gobo wheel with static gobos
Program selection; Dimmer electronic; color blend stepless
Strobe effect; multi beam effect; UV effect
Color wheel with 7 dichroic filters plus open
Gobo wheel with static gobos, 7 gobos and open
20 integrated show programs
The device is cooled by cooling fan
Control via stand-alone; sound to light via microphone; master/slave function; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional); quick select potentiometer for brightness
Fixtures available for Light Captain; EASY SHOW 2; EASY SHOW 3
Flicker-free
The article is delivered with practical transport bag
The article is delivered pre-assembled
With mounting bracket
OLED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer; restaurants, bars and hotels
Application possibility: Suspended; on stand

spotlight

5 LEDs 7 W SMD 9080 4in1 QCL RGB/WW (homogenous color mix)
4 spots controlled separately
With a beam angle of 15°

light effect

2 LEDs 3 W R/G/B

moving light

1 LED 37.5 W cold white (CW)

bar

4 LEDs 1 W SMD 8072 ultra violet (UV)
LEDs controlled separately

Scope of delivery

1 x device
1 x user manual
1 x power cord
1 x declaration of conformity
2 x mounting bracket
1 x remote control
1 x battery
1 x bag
2 x knurled screw
2 x washer

Manuals

Paraméterek

Power supply	100-240 V AC, 50/60 Hz
Power consumption	265 W
IP classification	IP20
Protection class	Protection class I
Power connection	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction	H05VV-F
Power output	1 x P-Con (gray), mounting version
Fuse	5 x 20 mm, T 5 A fuse replaceable
Equipment	Color wheel; gobo wheel with static gobos
Color generation	Color wheel with 7 dichroic filters plus open
Gobos	Gobo wheel with static gobos, 7 gobos and open
DMX channels	3; 7; 13; 14; 15; 18; 19; 30; 32; 39
DMX input	1 x 3-pin XLR (M) mounting version
DMX output	1 x 3-pin XLR (F) mounting version
Cooling	Cooling fan
Control	Stand-alone; sound to light via microphone; master/slave function; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional); quick select potentiometer for brightness
Fixtures available for	Light Captain; EASY SHOW 2; EASY SHOW 3
Projection	Flicker-free
Housing color	Black
Attachment system	Tube:Ø 35mm
2x mounting bracket
Display type	OLED display
Dimensions	Length:112 cm
Depth	10 cm
Height	42 cm
Weight	13.30 kg
Noise classification	Class 3 (clearly perceptible sounds)
Remote control
Battery	1 x button cell 3.0 V CR2025 lithium manganese built-in
Bar
LED type	4 x 1 W SMD 8072 ultra violet (UV)
Illuminance in Lux (lx)	Ultra violet (UV) 1m:30 lx, 3m:4 lx, 6m:1 lx
Light effect
LED type	2 x 3 W R/G/B
Spotlight
LED type	5 x 7 W SMD 9080 4in1 QCL RGB/WW (homogenous color mix)
Beam angle (1/2 peak)	15°
Beam angle (1/10 peak)	30°
Illuminance in Lux (lx)	Spot red (R) 1m:2300 lx, 3m:235 lx, 6m:58 lx
Spot green (G) 1m	4187 lx, 3m:422 lx, 6m:107 lx
Spot blue (B) 1m	760 lx, 3m:78 lx, 6m:20 lx
Spot warm white (WW) 1m	3290 lx, 3m:325 lx, 6m:85 lx
Spot all 1m	10283 lx, 3m:1010 lx, 6m:259 lx
Moving light
LED type	Each with 1 x 37.5 W cold white (CW)
Legal specifications
Special product	Not designed for household room illumination
Intended use	Show effect lighting
