Leírás

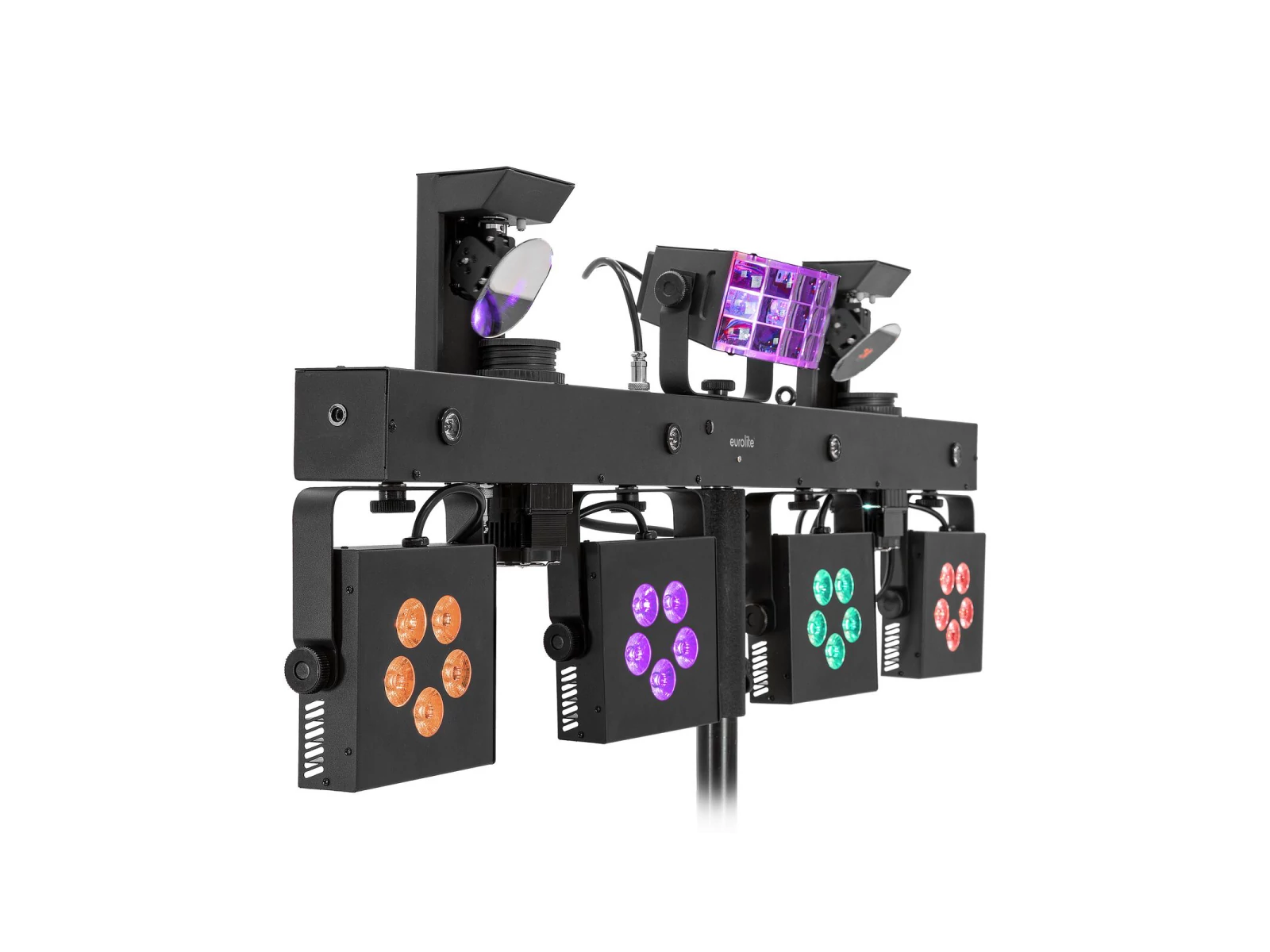

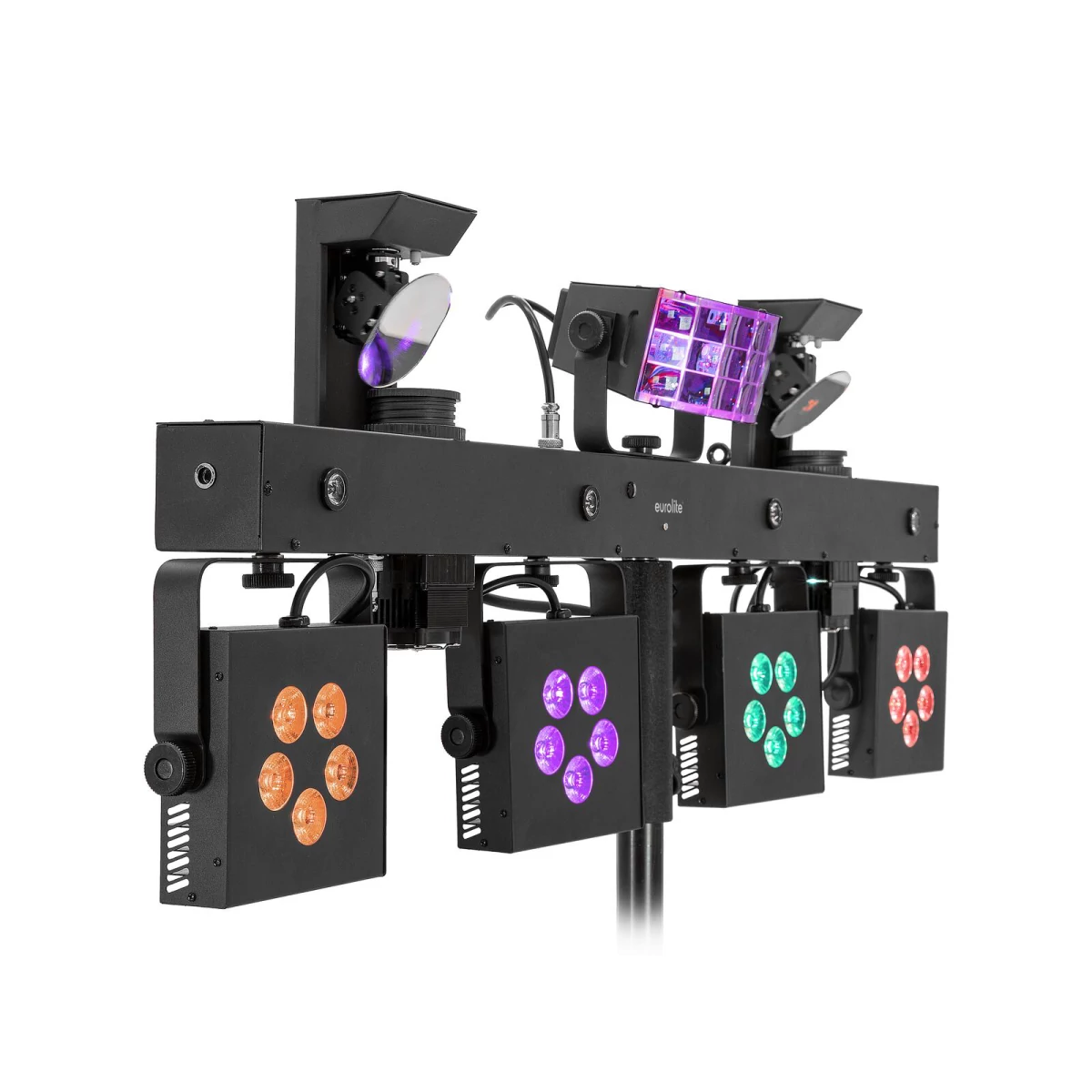

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag
- One derby, four spots as well as two scanners individually controllable
- Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
- Several diverse DMX modes for various consoles and requirements
- Brand-new software design with smart programs
- Heart gobo for romantic occasions
- Mains input and output for power linking up to 8 units
- Comes pre-assembled with practical transport bag
- Positioning within PAN and TILT
- Color wheel with 7 dichroic filters plus open
- Gobo wheel with static gobos, 7 gobos and open
- 20 integrated Showprograms
- Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; Sound to light via Microphone; Master/slave function; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Wireless footswitch (optional); Quick select potentiometer for brightness
- Flicker-free
- With a beam angle of 15°
- TV pin
- With Mounting bracket
- OLED display
- For application areas such as: Wedding/gala/events; mobile djs/entertainer; Lender
- Preprogrammed in EASY SHOW 2; EASY SHOW 3
spotlight
- 5 powerful LEDs 7 W high-power 4in1 QCL RGB/WW
light effect
- 2 powerful LEDs 3 W R/G/B
moving light
- 1 powerful LED 37,5 W cold white (CW)
bar
- 4 powerful LEDs 1 W high-power ultra violet (UV)
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 2 x mounting bracket, 1 x remote control, 1 x battery, 1 x bag, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 265 W |
IP classification | IP20 |
Protection class | Protection class I |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output | 1 x P-Con (gray), mounting version |
Fuse | 5 x 20 mm, T 5 A Fuse replaceable |
Equipment | Color wheel; gobo wheel with static gobos |
Color generation | Color wheel with 7 dichroic filters plus open |
Gobos | Gobo wheel with static gobos, 7 gobos and open |
DMX channels | 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 |
DMX input | 1 x 3-pin XLR (M) mounting version |
DMX output | 1 x 3-pin XLR (F) mounting version |
Cooling | Cooling fan |
Control | Stand-alone; Sound to light via Microphone; Master/slave function; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Wireless footswitch (optional); Quick select potentiometer for brightness; EASY SHOW 2; EASY SHOW 3 |
Beam angle | 15° |
Beam angle (1/2 peak) | Spot 15° |
Beam angle (1/10 peak) | Spot 30° |
Illuminance in Lux (lx) | Spot red (R) 1m:2300 lx, 3m:235 lx, 6m:58 lx |
Spot green (G) 1m | 4187 lx, 3m:422 lx, 6m:107 lx |
Spot blue (B) 1m | 760 lx, 3m:78 lx, 6m:20 lx |
Spot warm white (WW) 1m | 3290 lx, 3m:325 lx, 6m:85 lx |
Spot all 1m | 10283 lx, 3m:1010 lx, 6m:259 lx |
Ultra violet (UV) 1m | 30 lx, 3m:4 lx, 6m:1 lx |
Housing color | Black |
Attachment system | TV spigot Ø 28mm |
2x Mounting bracket | |
Display type | OLED display |
Dimensions | Length:1,12 m |
Depth | 10 cm |
Height | 42 cm |
Weight | 15,10 kg |
Spotlight | |
LED | Spot each 5 x 7 W high-power 4in1 QCL RGB/WW |
Light effect | |
LED | Multi beam effect each with 2 x 3 W R/G/B |
Moving light | |
LED | Scanner each 1 x 37,5 W cold white (CW) |
Bar | |
LED | 4 x 1 W high-power ultra violet (UV) |
Remote control | |
Battery | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
