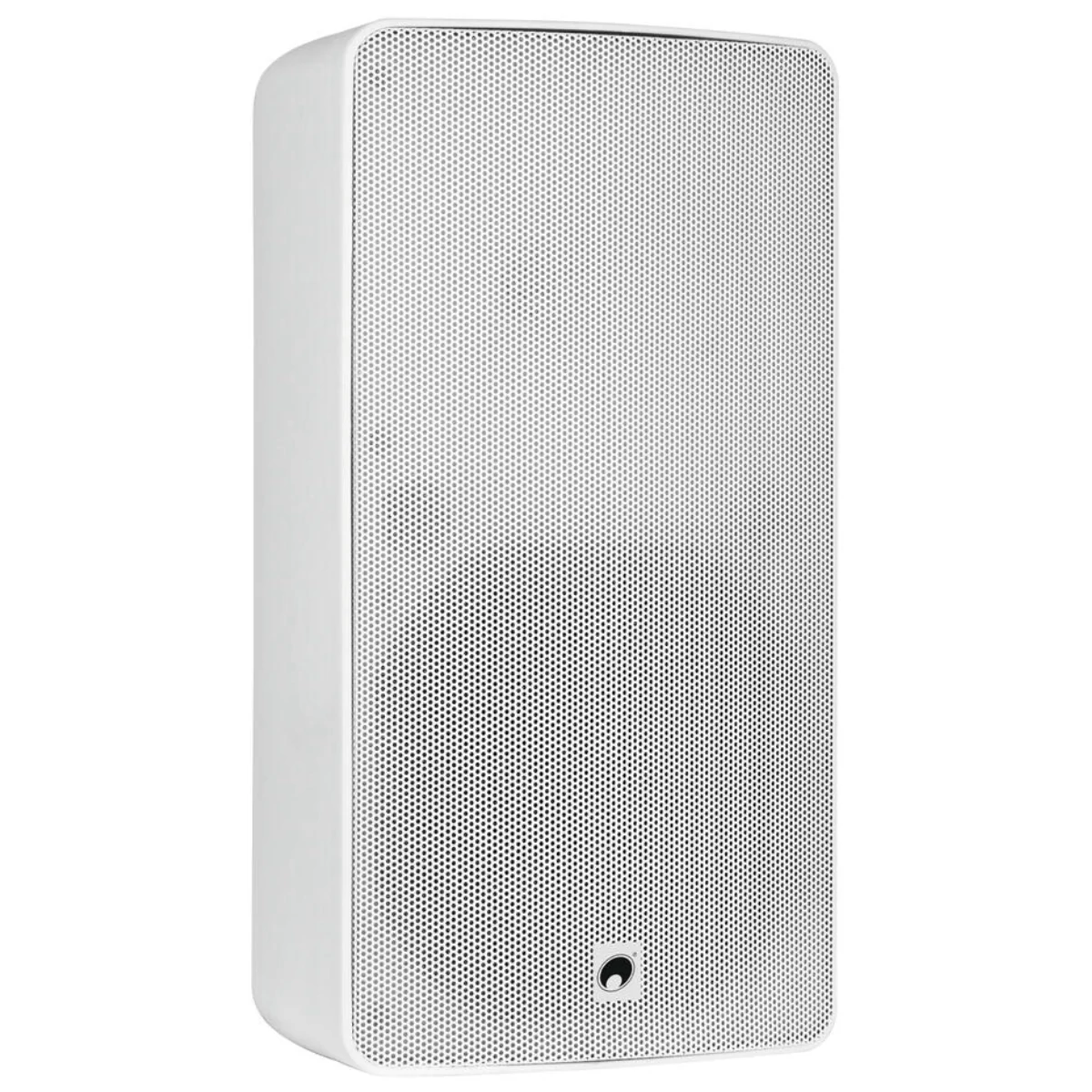

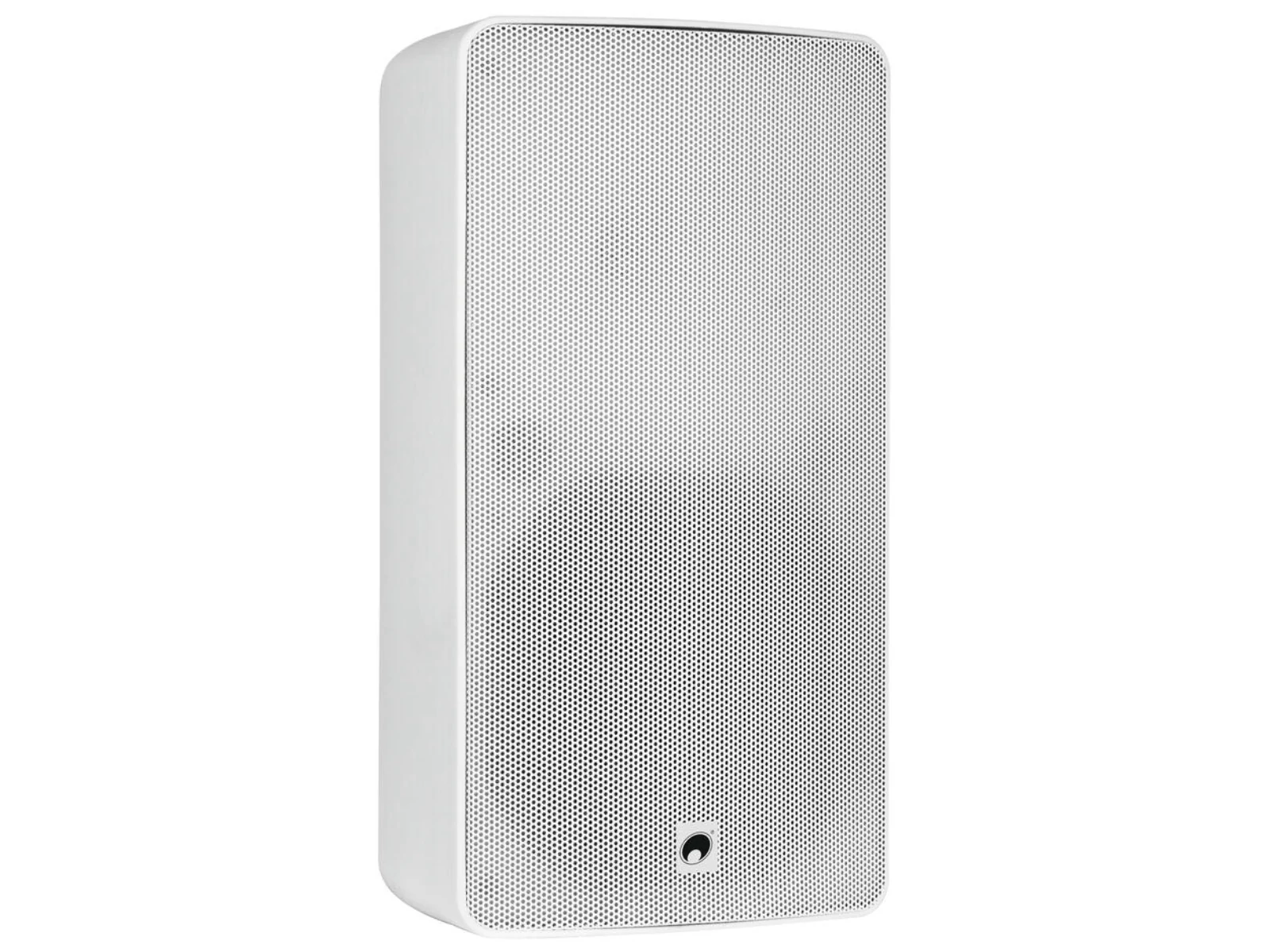

Weather-proof 8" wall speaker (IP65) with mount, 150 W RMS
Great sound - also runs with 100 voltsYou want reliable and balanced sound for your bar, restaurant, shop or the conference area of your hotel? You need indoor and outdoor speakers? With the OPD series you get powerful installation speakers that meets all your requirements.The speakers have a brilliant sound pattern and are available in a low ohm (16 ohms) and in a 100 V version. These two cover both small and large installations. A rotatable mounting bracket is included in the delivery. A swivel wall mount with matching colors is optionally available.With their weatherproofed (IP65) plastic cabinet the ODP speakers are well prepared for outdoor use, indoor use is of course also possible.
- 16-ohm PA speaker systems with an excellent sound for general applications

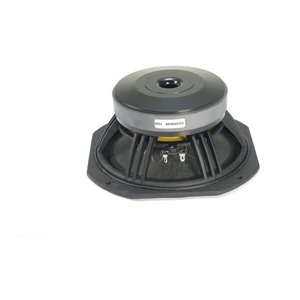

- 2-way system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")
- Durable plastic cabinet with metal grille
- Screw plug terminal for easy handling

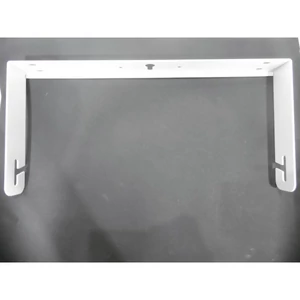

- With mounting bracket
- With rigging points
- Grey aluminum grille with acoustic foam
- Suitable for outdoor use IP65
- Various versions available
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures
Scope of delivery
- 1 x top
- 1 x mounting bracket
- 6 x screw
- 1 x safety eyelet
- 1 x lid
- 2 x washer
- 1 x screwing
- 1 x screw plug-in terminal
- 1 x user manual
Manuals
ManualsParaméterek
| IP classification | IP65 |
| Power | Program:300W |
| Rated | 150W RMS |
| Frequency range | 60 - 18000 Hz |
| Sensitivity | 94 dB (1W/1m) |
| Max. SPL | 116 dB |
| Dispersion angle | 90° x 50° |
| Impedance | 16 ohms |
| Attachment system | Mounting bracket |
| Flying points | 4 x M8 thread |
| Connections | Speaker via screw plug-in terminal |

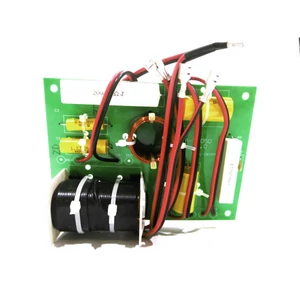

| Crossover frequency | 2300 Hz |
| Speaker | 1 x woofer 8" |
| Basket material | aluminum |
| Conematerial | weatherproof Cardboard/paper |
| Voice coil lows 2" | |
| 1 x dome tweeter 1" | |
| Voice coil calotte tweeter 1" | |
| Type of speaker | Compact cabinet speaker; on ceiling/on wall speaker |
| Color | White |
| Dimensions | Width:24.1 cm |
| Depth | 28.5 cm |
| Height | 45 cm |
| Weight | 9.40 kg |
