Leírás

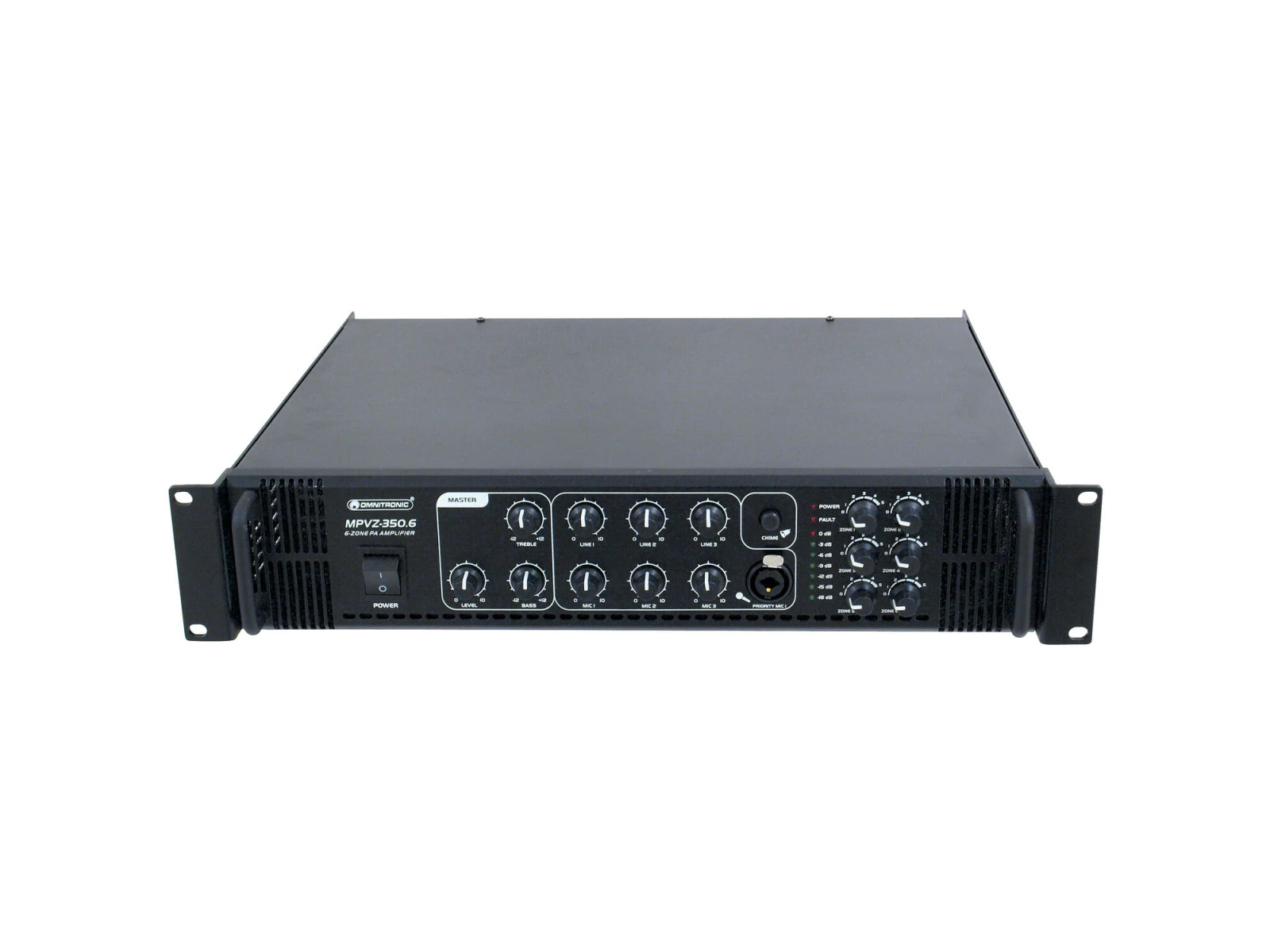

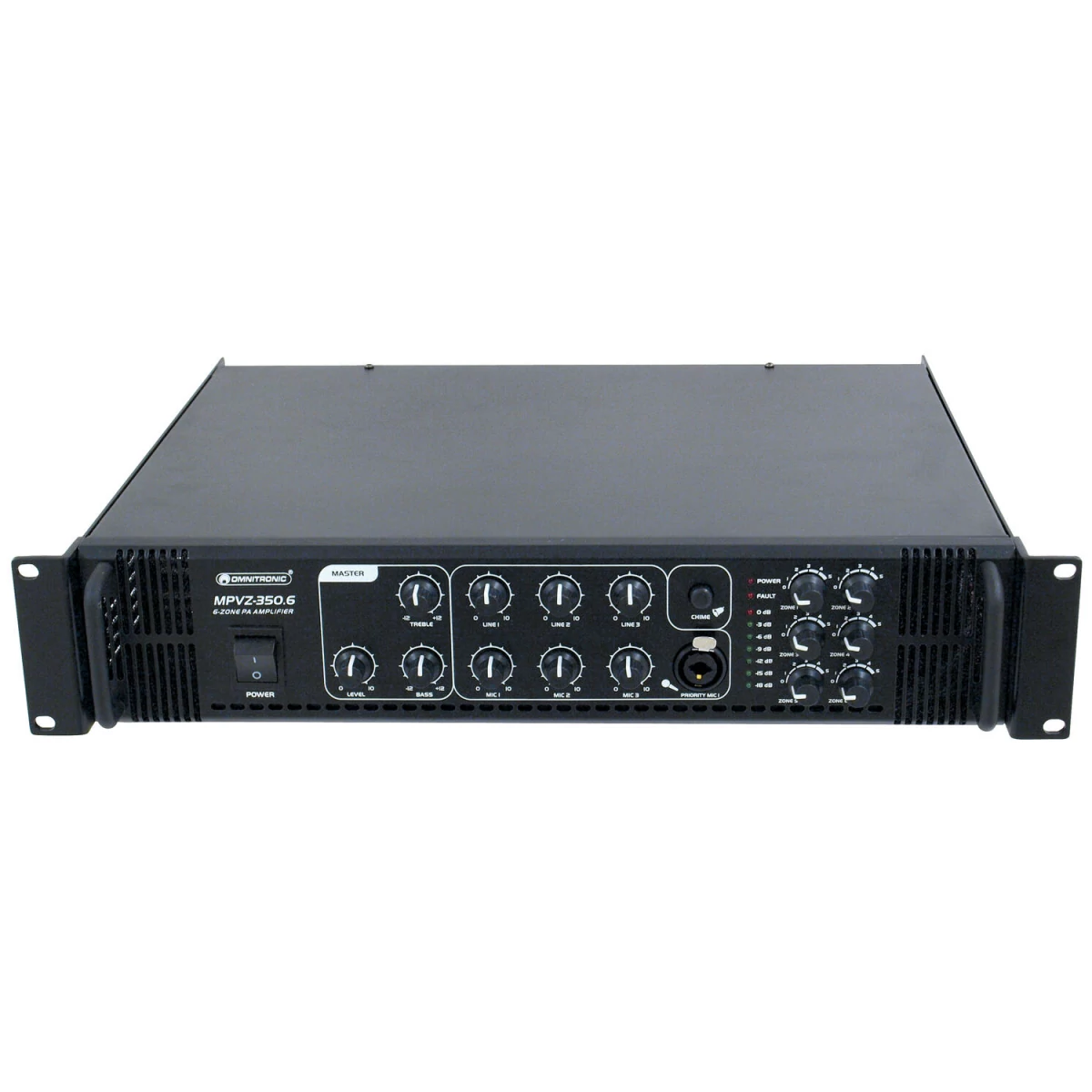

6 zone PA mixing amplifier adjustable zones, 350 W RMS
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- (19") 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Scope of delivery
- 1 x amplifier
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 700.00 W |
| Output power | 350 W RMS |
| Power connection | Fixed power supply cord with safety plug |
| Frequency range | 80 - 16000 Hz |
| S/N ratio | >75 dB microphone |
| >85 dB line | |
| THD | <0.5 % at 1 kHz |
| Cooling | 1 x temperature-controlled fan , air flow from front to rear |
| Impedance | Public address systems 100V; 4-16 ohms; Public address systems 70V |
| Zone output | 6 adjustable zones |
| Circuitry | Class AB |
| Control elements | Power switch |
| Controls | Current limiting; short-circuit; power on/off transient; power on/off transient; Overvoltage; short-circuit |
| Status LED | Power, fault, level meter |
| Connections | Input:microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | microphone via 2 x 6.3 mm plug (unbal.) |
| Input | line via 3 x stereo RCA 0.3 V |
| Output | rec. via 1 x stereo RCA |
| Output | speaker via screw terminal |
| Equalizer | Master:1 x 2-band tone control mono |
| Material | Metal |
| Color | Black |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48.3 cm |
| Depth | 38.5 cm |
| Height | 8.9 cm |
| Weight | 12.80 kg |
