Leírás

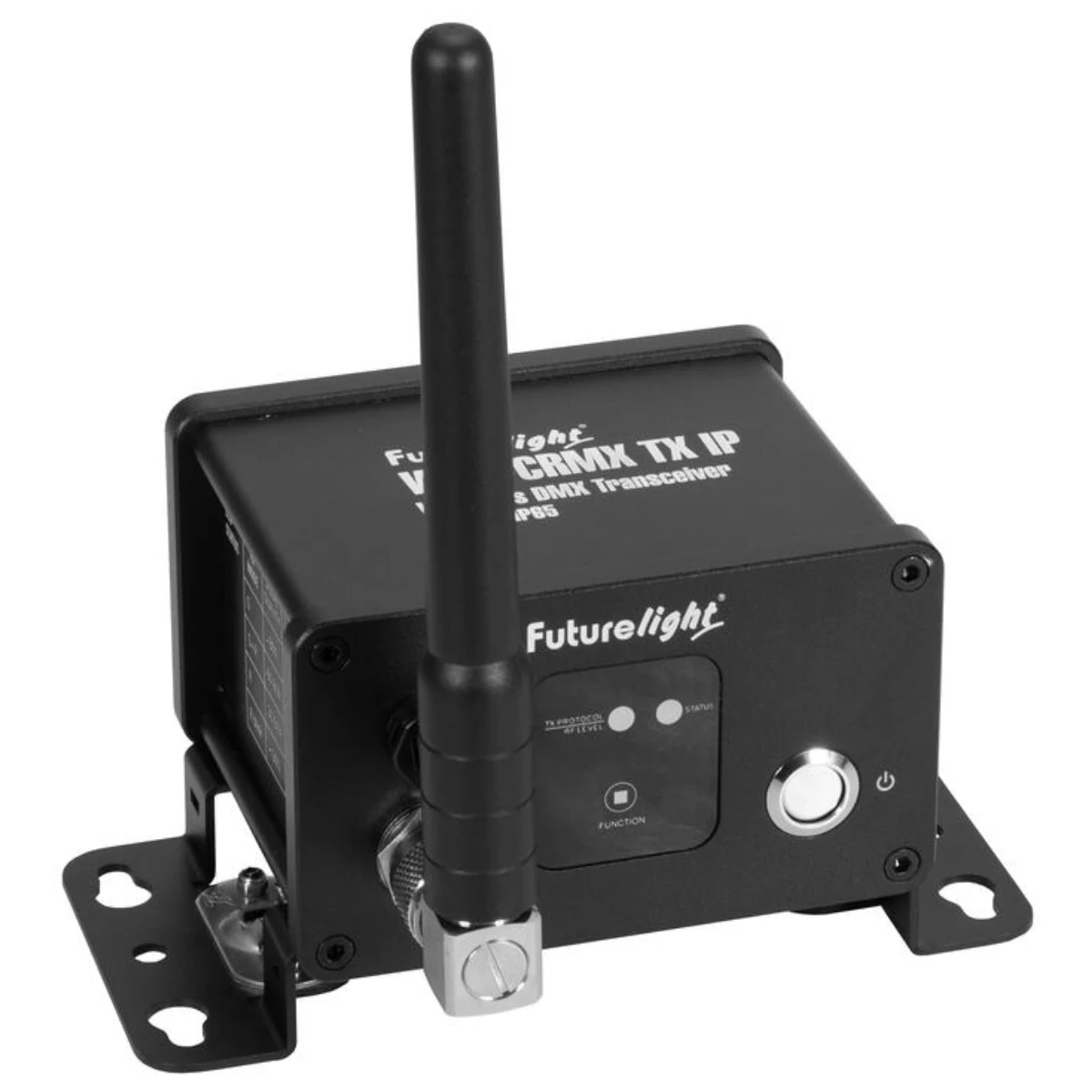

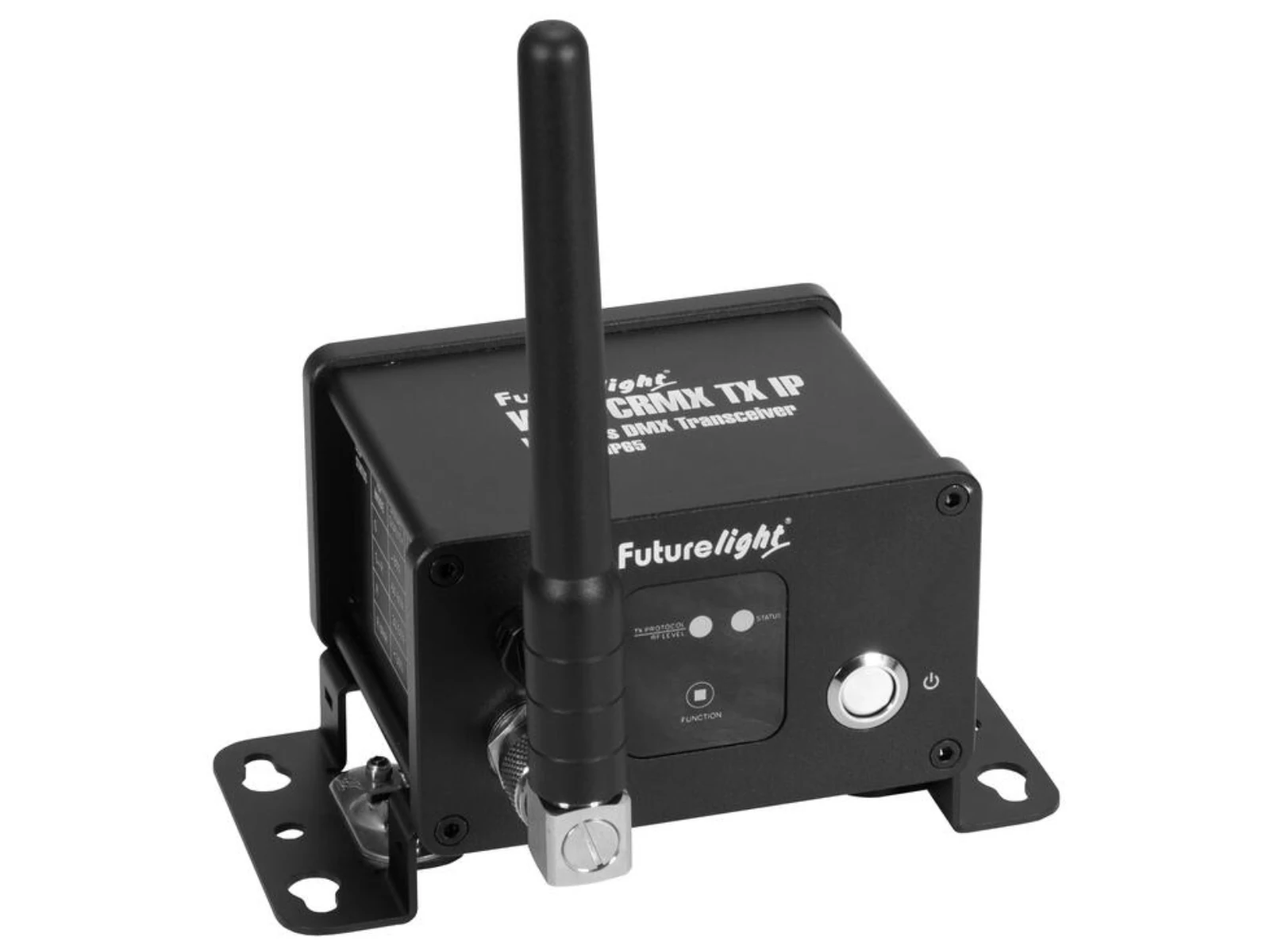

Weather-proof wireless DMX transceiver, IP65
- Transceiver, to be used as transmitter or receiver
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Multicolored LED indicator
- Lockable power input (IP T-Con)

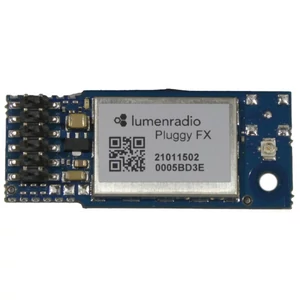

- Control via W-DMX by wireless solution; CRMX by LumenRadio
- Operating range up to 600m with line-of-sight
- 2.4 GHz license-free worldwide
- Up to 10 transmitters can be operated in parallel without interference
- With omega bracket
- OLED display
- Suitable for outdoor use IP65
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x omega bracket
- 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 1.6 W |
| IP classification | IP65 |
| Protection class | Protection class I |
| Power connection | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| DMX channels | Input 512 |
| Output 512 | |
| DMX input | 1 x 3-pin XLR (M) mounting version IP |
| DMX output | 1 x 3-pin XLR (F) mounting version IP |
| Control | W-DMX by wireless solution; CRMX by LumenRadio |
| Range | Range up to 600m with line-of-sight |
| Frequency band | 2.4 GHz |
| Parallel mode | Max. 10 transmitter |
| Antenna gain | 5 dBi |
| Modulation | GFSK |
| Attachment system | Omega bracket |
| Display type | OLED display |
| Status LED | DMX, level meter |
| Color | Black |
| Dimensions | Length:17.3 cm |
| Width | 15.6 cm |
| Height | 9.2 cm |
| Weight | 1.30 kg |
