Leírás
LED Moving Head hybrid spot/wash with color wheel, static and rotating gobo wheel, prism and focus
- Positioning within PAN and TILT
EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB
- Bright spotlight and full-fledged washlight in one device
- Rotating 3-facet prism with variable speed
- Electronic dimmer
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- 6 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
- Positioning within 540° PAN and 200° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- 1 x color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
shake effect - Gobo wheel with rotating gobos, 6 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- Integrated Showprograms
- Can be operated in 25 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light Captain; EASY SHOW 3
- Flicker-free
- Effect: Gobo effect
- With a beam angle of 13°
- Multicolor LCD display
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

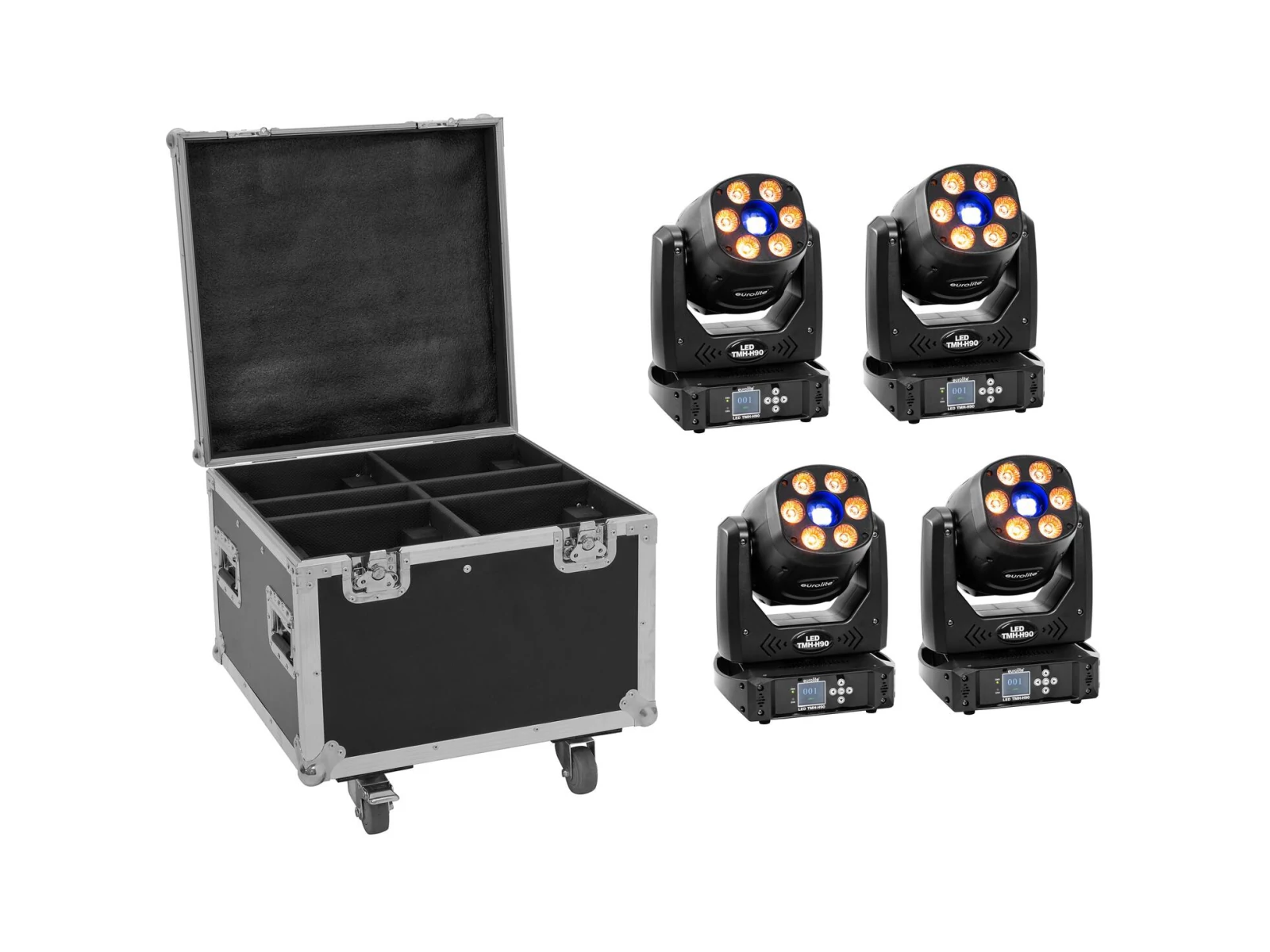

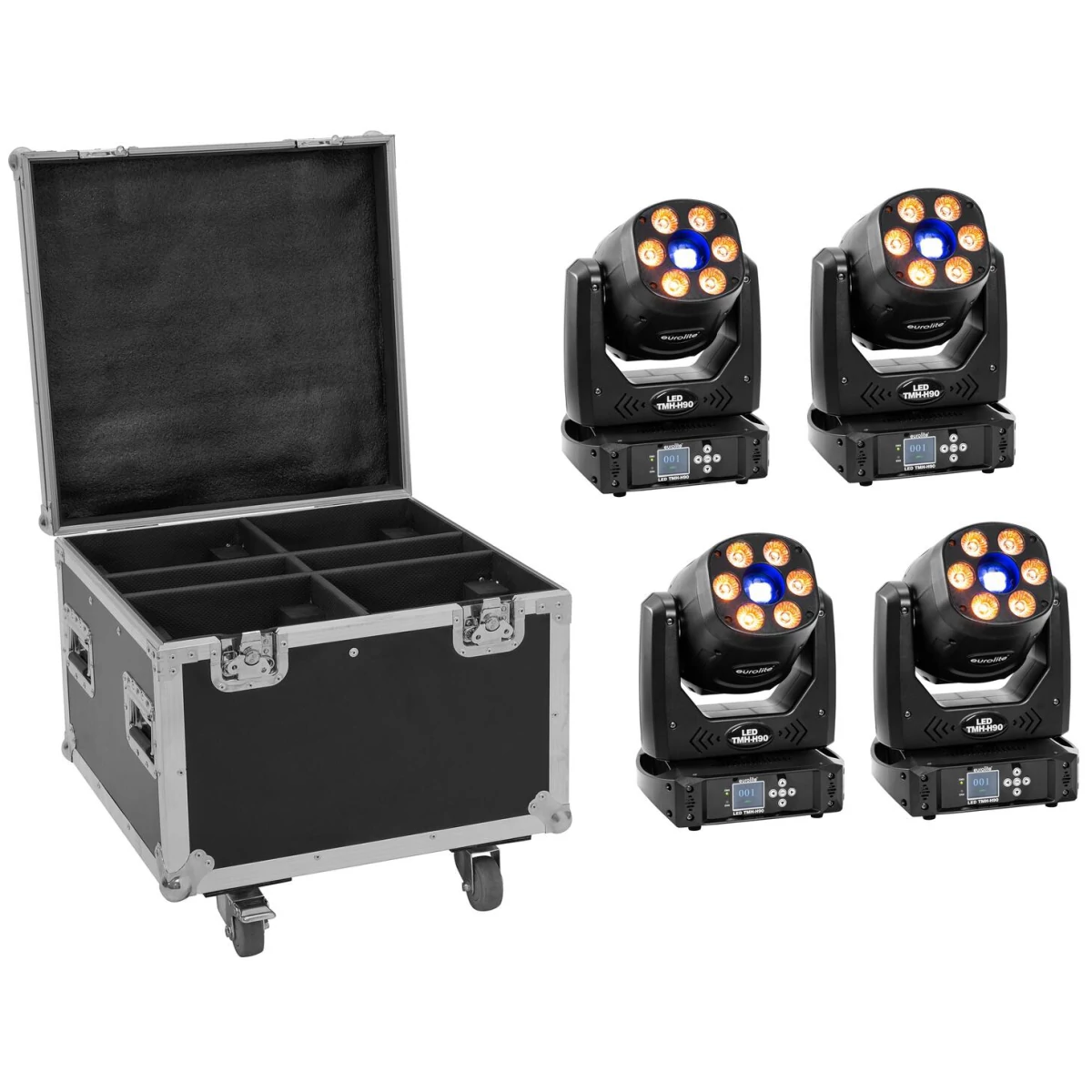

ROADINGER Flightcase 4x TMH-S90/H90/B90
Flightcase for 4 x EUROLITE LED TMH-S90 Moving-Head Spot
- For optimal security
- With 4 Device compartments
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- Castors
Paraméterek
| Weight | 45,00 kg |
| EUROLITE LED TMH-H90 Hybrid Moving-Head Spot/Wash COB | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 135 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output | P-Con (gray), mounting version |
| Fuse | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type | LED lamp |
| LED | 1 x 90 W COB (chip-on-board) cold white (CW) |
| 6 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) | |
| Max. TILT movement | 200° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate | 2 - 30 Hz |
| Equipment | Prism 3-fold; gobo wheel with rotating gobos Single in slot; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation | 1 x color wheel with 7 dichroic filters plus open |
| Gobos | Gobo wheel with static gobos, 7 gobos and open |
| Shake effect | |
| Gobo wheel with rotating gobos, 6 gobos and open | |
| Outside diameter 21,8mm | |
| Image diameter 16mm | |
| Shake effect | |
| Gobos changeable | |
| Slot-in gobo system for easy gobo replacement | |
| DMX channels | 25 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | Cooling fan |
| Control | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain; EASY SHOW 3 |
| Beam angle | 13° |
| Beam angle (1/2 peak) | Spot 13° |
| Wash effect 20° | |
| Beam angle (1/10 peak) | Wash effect 38° |
| Illuminance in Lux (lx) | Spot cold white (CW) 1m:49373 lx, 3m:6186 lx, 6m:1606 lx |
| Wash effect red (R) 1m | 974 lx, 3m:101 lx, 6m:26 lx |
| Wash effect green (G) 1m | 2008 lx, 3m:244 lx, 6m:66 lx |
| Wash effect blue (B) 1m | 518 lx, 3m:49 lx, 6m:13 lx |
| Wash effect cold white (CW) 1m | 2527 lx, 3m:257 lx, 6m:69 lx |
| Wash effect amber (A) 1m | 733 lx, 3m:83 lx, 6m:21 lx |
| Wash effect ultra violet (UV) 1m | 16 lx, 3m:2 lx, 6m:1 lx |
| Wash effect all 1m | 5885 lx, 3m:703 lx, 6m:184 lx |
| Housing color | Black |
| Display type | Multicolor LCD display |
| Dimensions | Width:25,0 cm |
| Depth | 22,0 cm |
| Height | 36,0 cm |
| Weight | 6,50 kg |
| Noise classification | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
| ROADINGER Flightcase 4x TMH-S90/H90/B90 | |
| Maximum load | 100 kg |
| Aluminum profile frames | 30 mm |
| Case handles | 4 pc/pcs |
| Stop hinge | 2 pc/pcs |
| Lock | Butterfly lock:2 pc/pcs |
| Transport aid | Castors |
| Material | Plywood multi-layer glued, 7 mm |
| Color | Black, laminated |
| Device compartment | 26 cm x 20 cm x 37 cm |
| Accessory compartment | 26 cm x 9 cm x 37 cm |
| Dimensions | Width:58 cm |
| Depth | 57 cm |
| Height | 54 cm |
| Weight | 19,00 kg |
