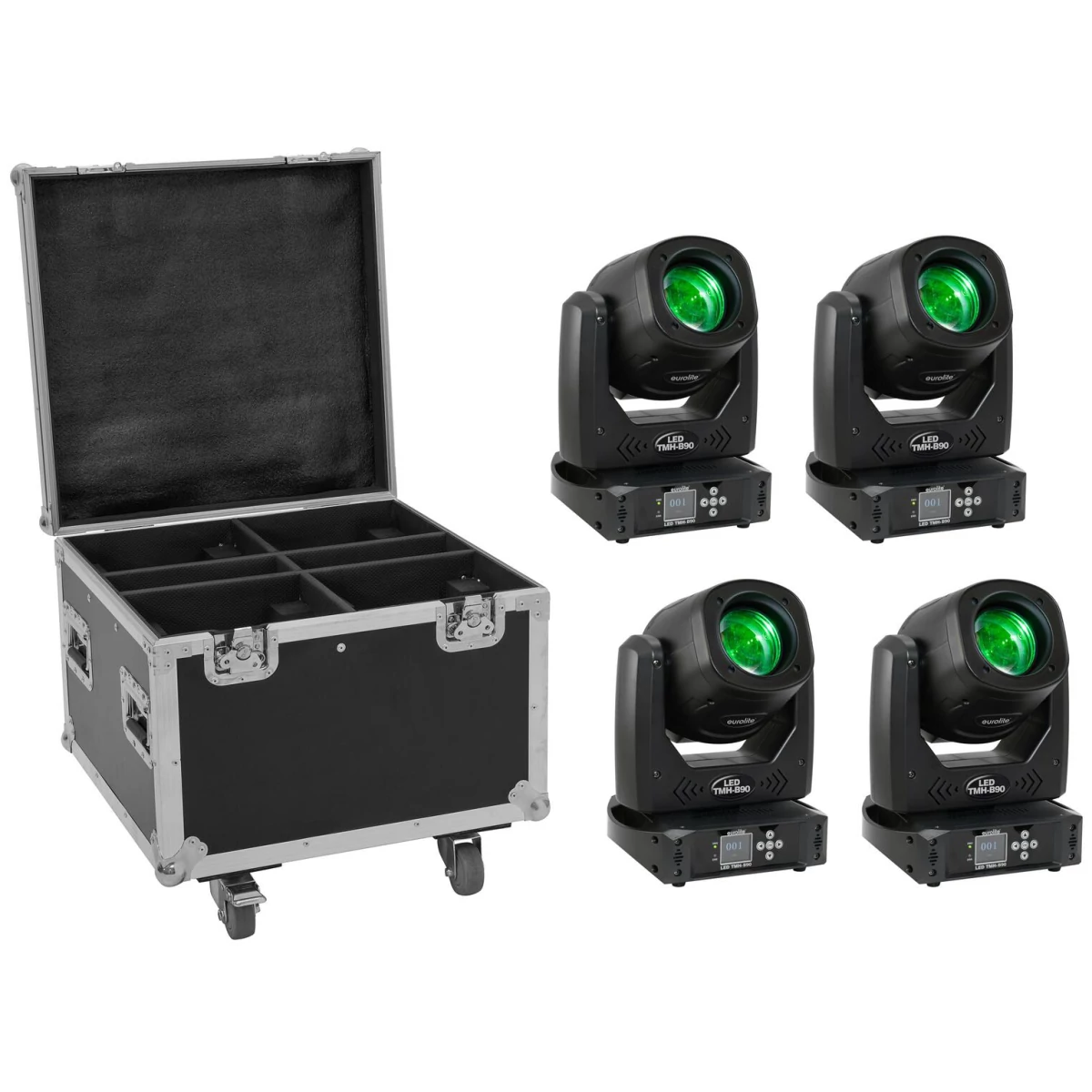

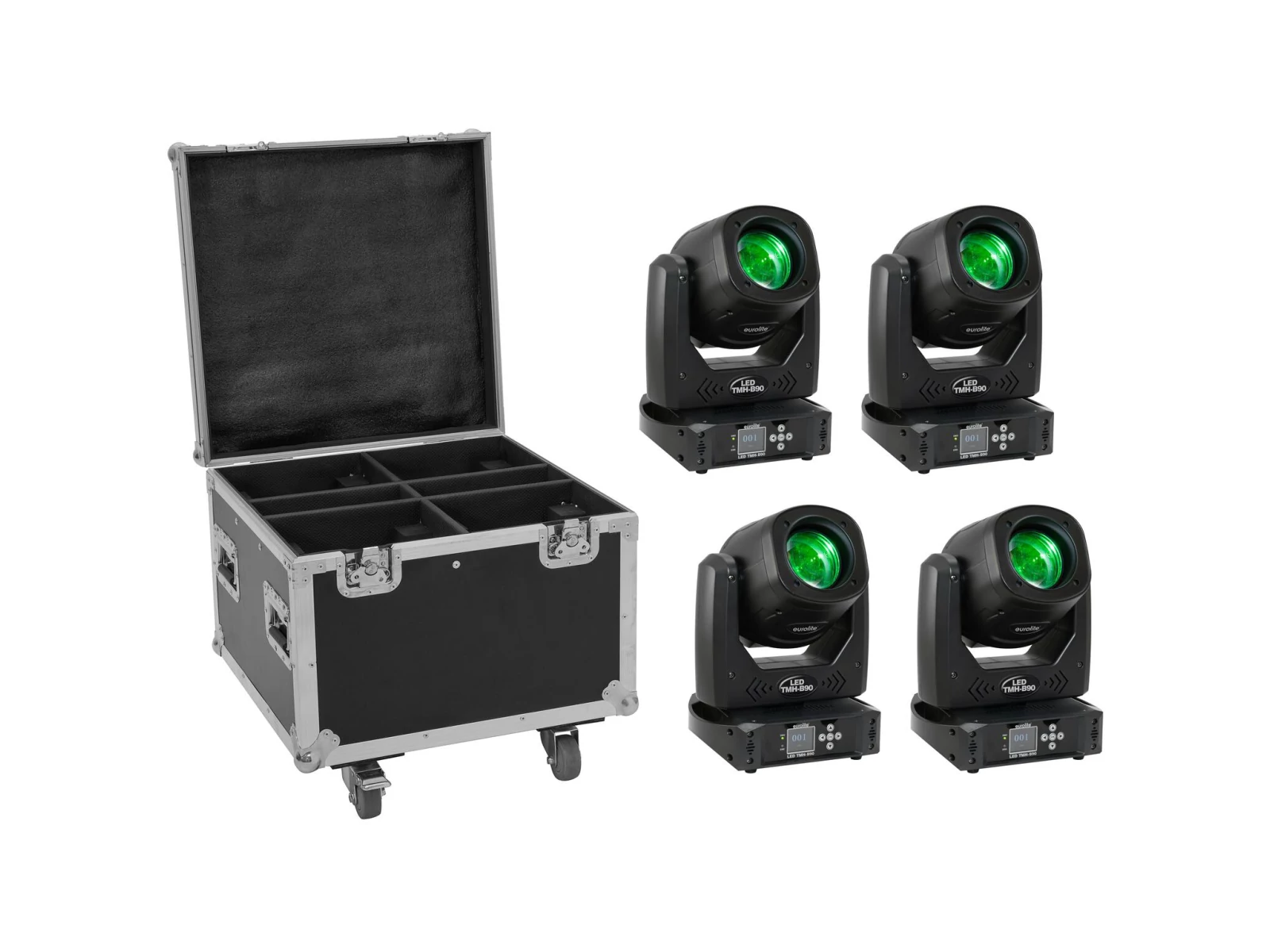

EUROLITE Set 4x LED TMH-B90 + Case with wheels

1.015.900 Ft (799.921 Ft + ÁFA)

Menny.:db

Szállítási díj:	Ingyenes
Garancia:	3 év
Raktárkészlet:	Szállítás alatt
Cikkszám:	20000931
Kívánságlistára teszem

EUROLITE Set 4x LED TMH-B90 + Case with wheels

Leírás

LED moving head beam with color wheel, static gobo wheel, prism and focus

Positioning within PAN and TILT

EUROLITE LED TMH-B90 Moving-Head Beam

Rotating 8-facet prism with variable speed
Electronic dimmer
frost filter
Mains input and output for power linking up to 8 units
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN and 200° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
Integrated Showprograms
Can be operated in 14 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light Captain; EASY SHOW 3
Flicker-free
Effect: Single Beam
With a beam angle of 3°
Good color rendering index (CRI)
LCD display

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

ROADINGER Flightcase 4x TMH-S90/H90/B90

Flightcase for 4 x EUROLITE LED TMH-S90 Moving-Head Spot

For optimal security
With 4 Device compartments
High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
Interior with foam padding
cover with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
Castors

Paraméterek

Weight	45,20 kg
EUROLITE LED TMH-B90 Moving-Head Beam
Power supply	100-240 V AC, 50/60 Hz
Power consumption	125 W
IP classification	IP20
Protection class	Protection class I
Power connection	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output	P-Con (gray), mounting version
Device fuse	5 x 20 mm, T 2 A Fuse replaceable
Lamp type	LED lamp
LED	1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement	200° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement	540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate	2 - 20 Hz
Equipment	Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold; frost filter
Color generation	Color wheel with 7 dichroic filters plus open
Gobos	Gobo wheel with static gobos, 13 gobos und open
Shake effect
DMX channels	14
DMX input	3-pin XLR (M) mounting version
DMX output	3-pin XLR (F) mounting version
Cooling	Cooling fan
Control	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain; EASY SHOW 3
Beam angle	3°
Beam angle (1/2 peak)	3°
Color rendering index (CRI)	80 Ra
Illuminance in Lux (lx)	Cold white (CW) 3m:33839 lx, 6m:10454 lx
Housing color	Black
Display type	LCD display
Dimensions	Width:25,5 cm
Depth	20,5 cm
Height	33,0 cm
Weight	6,55 kg
Noise classification	Class 2 (slight noise)
Legal specifications
Special product	Not designed for household room illumination
Intended use	Show effect lighting
ROADINGER Flightcase 4x TMH-S90/H90/B90
Maximum load	100 kg
Aluminum profile frames	30 mm
Case handles	4 pc/pcs
Stop hinge	2 pc/pcs
Lock	Butterfly lock:2 pc/pcs
Transport aid	Castors
Material	Plywood multi-layer glued, 7 mm
Color	Black, laminated
Device compartment	26 cm x 20 cm x 37 cm
Accessory compartment	26 cm x 9 cm x 37 cm
Dimensions	Width:58 cm
Depth	57 cm
Height	54 cm
Weight	19,00 kg
