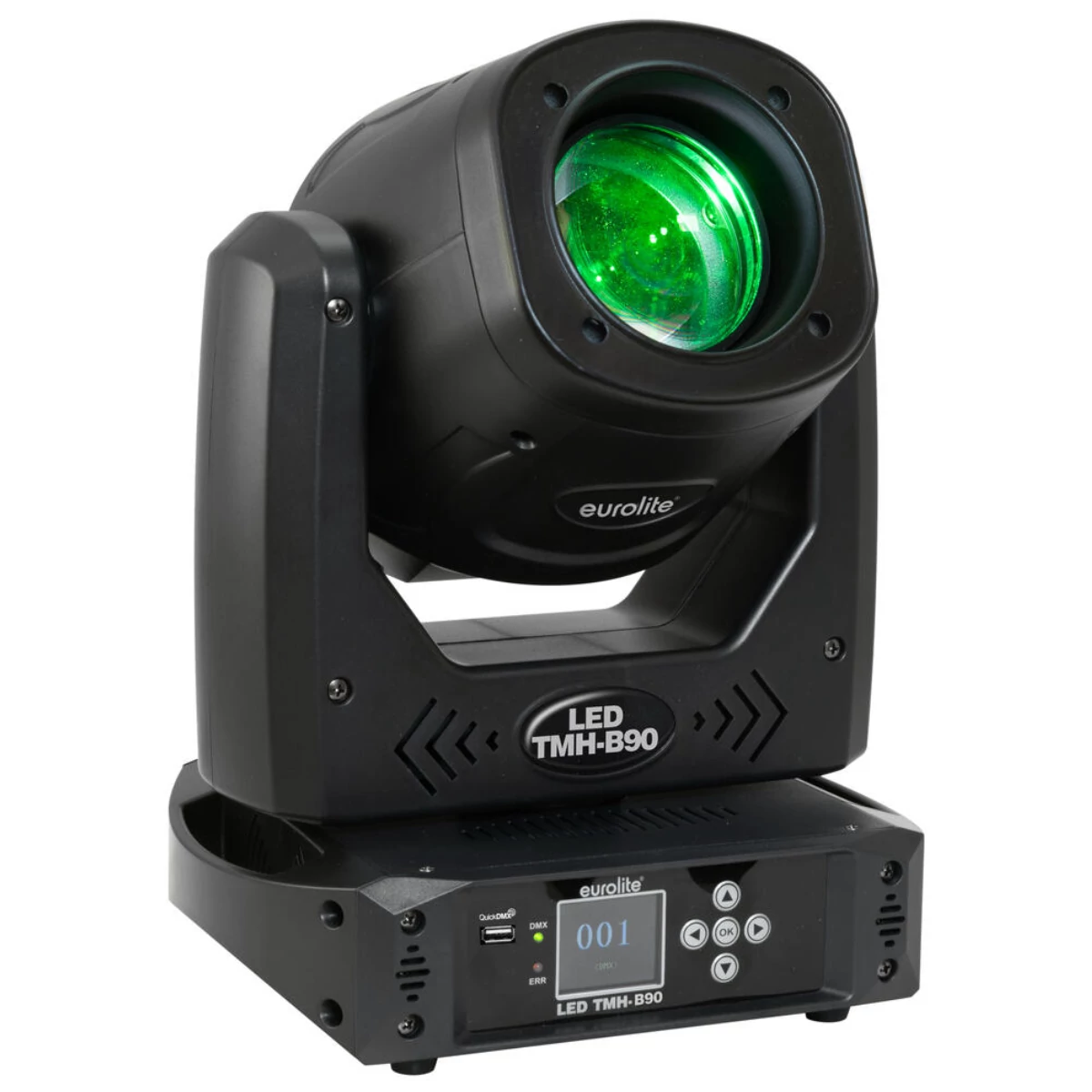

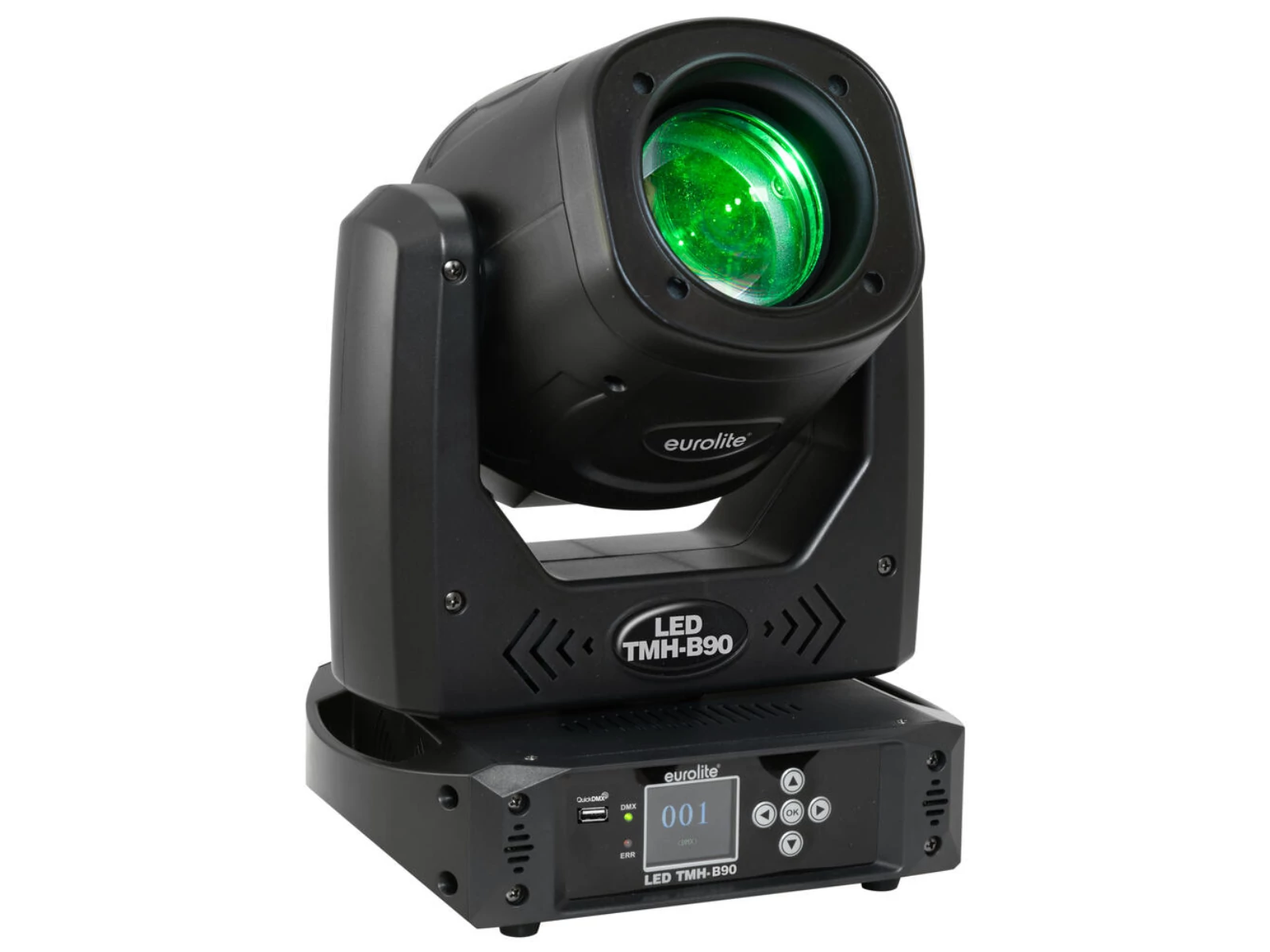

EUROLITE LED TMH-B90 Moving Head Beam

206.900 Ft 173.900 Ft (136.929 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 2 év garancia
Raktárkészlet: Raktáron
Cikkszám: 51786080
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

LED moving head beam with color wheel, static gobo wheel, prism and focus

  • 1 LED 90 W COB (chip-on-board) cold white (CW)
  • Positioning within 540° PAN, 200° TILT
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Color wheel; gobo wheel with static gobos; focus motor-driven; prism 8-fold rotating; frost filter
  • Dimmer electronic
  • Beam effect; strobe effect
  • Color wheel with 7 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobo wheel with static gobos, 13 gobos und open
    shake effect
  • Can be operated in 14 CH mode
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Flicker-free
  • With a beam angle of 3°
  • Good color rendering index (CRI)
  • With omega bracket
  • LCD display
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
  • Application possibility: Standing; suspended

moving light

  • The article is delivered ready to stand

omega bracket

  • Easy installation
  • The article is delivered dismantled


Scope of delivery
  • 1 x moving light
  • 1 x user manual
  • 1 x power cord
  • 1 x omega bracket
  • 1 x safety eyelet

Manuals

Manuals

Paraméterek

Power supply 100-240 V AC, 50/60 Hz
Power consumption 125 W
Protection class Protection class I
Power connection Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction 3 x 1 mm² H05VV-F
Cable length 1.10 m
Power output P-Con (grey), mounting version
Fuse 5 x 20 mm, T 2 A fuse replaceable
Lamp type LED lamp
LED type 1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement 200° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement 540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate 2 - 20 Hz
Equipment Color wheel; gobo wheel with static gobos; focus motor-driven; prism 8-fold rotating; frost filter
Color generation Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos Gobo wheel with static gobos, 13 gobos und open
Shake effect
DMX channels 14
DMX input 3-pin XLR (M) mounting version
DMX output 3-pin XLR (F) mounting version
Cooling Cooling fan
Control Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for Light Captain; EASY SHOW 3; Light´J
Projection Flicker-free
PWM frequency 3000 Hz
DMX fail mode Last action; zero values
Beam angle 3°
Beam angle (1/2 peak) 3°
Beam angle (1/10 peak) 3°
Color rendering index (CRI) 80 Ra
Illuminance in Lux (lx) Cold white (CW) 3m:33839 lx, 6m:10454 lx
Housing color Black matte
Attachment system Omega bracket
Display type LCD display
Status LED DMX, fault
USB port 1 x type A
Material Plastic, painted; metal, painted
Dimensions Width:25.5 cm
Depth 20.5 cm
Height 33.0 cm
Weight 6.55 kg
Noise classification Class 2 (slight noise)
Omega bracket
Setup Easy installation
