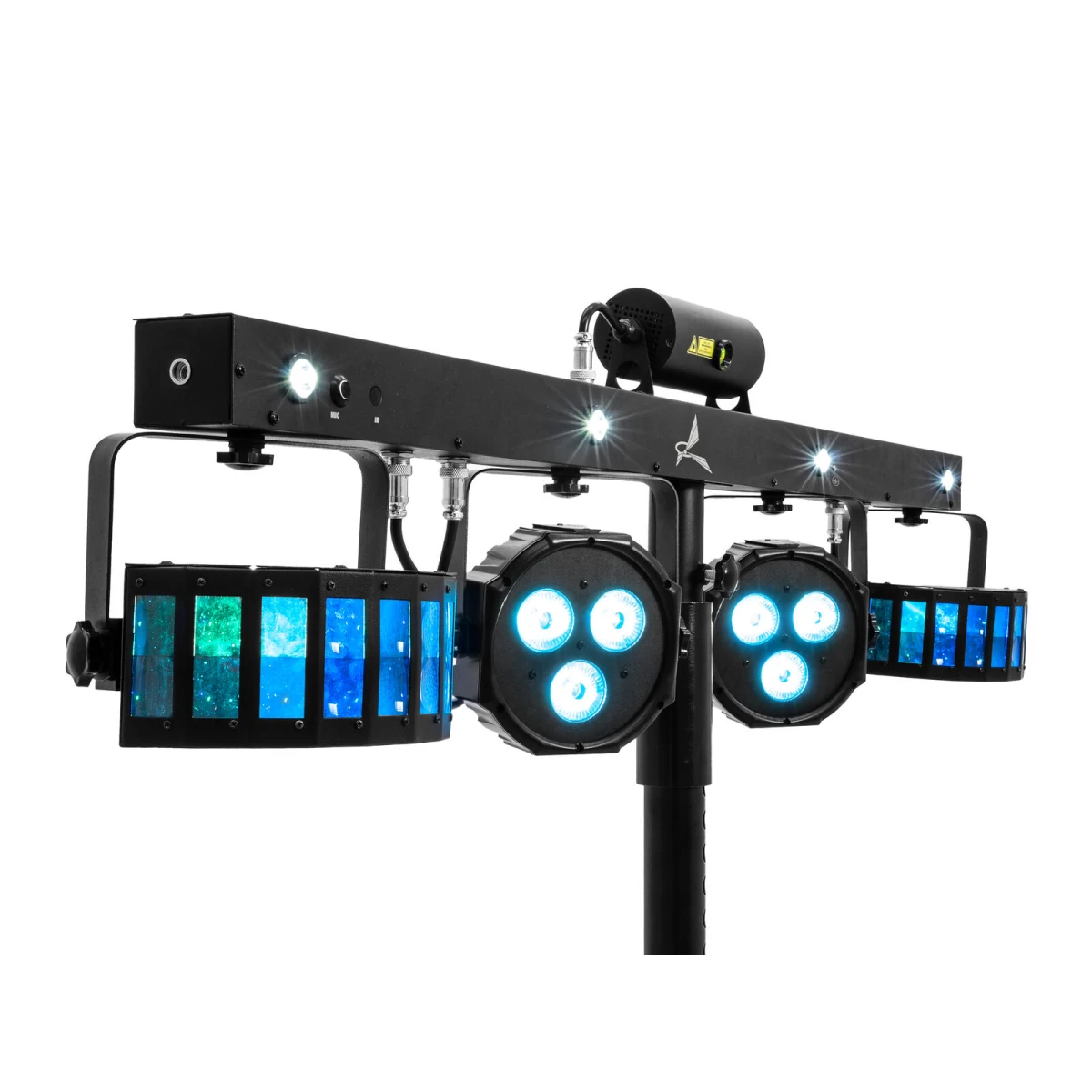

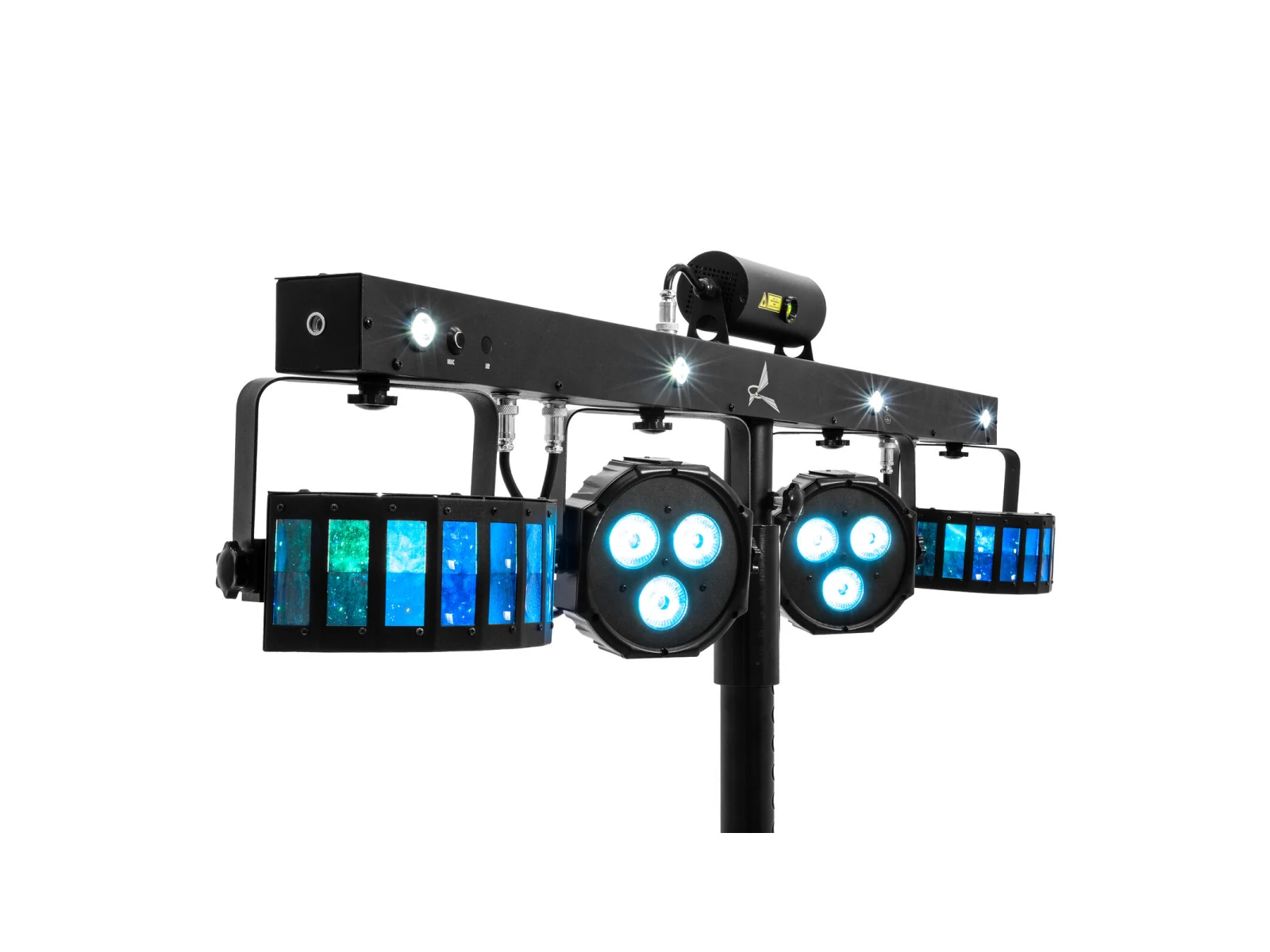

EUROLITE LED KLS Laser Bar FX Light Set

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

Bar with 2 derbies, 2 spots, white strobe LEDs, laser (RG, 2M), foot switch

Crossbar with integrated DMX control unit and stand sleeve
2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects
When fog is used, this effect becomes especially attractive
Laser; multi beam effect; strobe effect; flower effect
37 integrated show programs

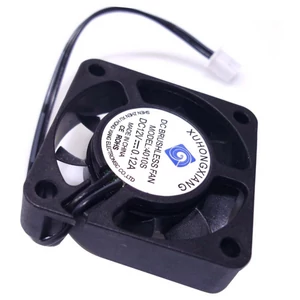

The device is cooled by cooling fan
Control via stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch; master/slave function
Fixtures available for Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
With mounting bracket

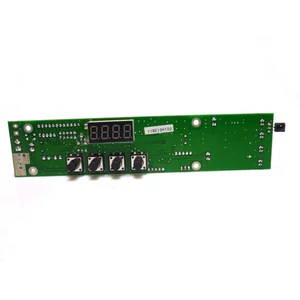

4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; mobile djs / entertainer; party room; restaurants, bars and hotels; wedding/gala/events
Application possibility: On stand

laser

Laser class 2M
does not require additional protective measures or appointment of a laser safety officer

spotlight

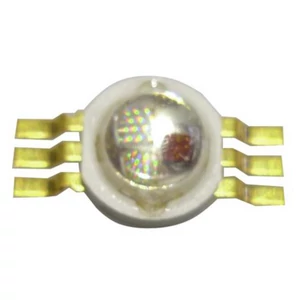

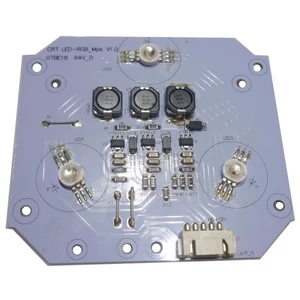

3 LEDs 3 W SMD 8072 3in1 TCL RGB (homogenous color mix)
2 spots controlled separately
With a beam angle of 13°

light effect

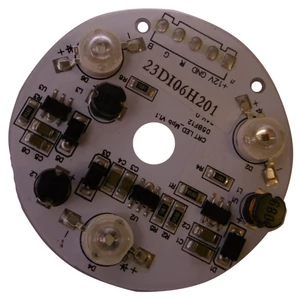

3 LEDs 1 W SMD 8072 R/G/B
2 spots controlled separately

bar

4 LEDs 1 W SMD 8072 cold white (CW)
LEDs controlled separately

Scope of delivery

1 x user manual
1 x declaration of conformity
1 x power cord
1 x foot control
1 x remote control
2 x battery

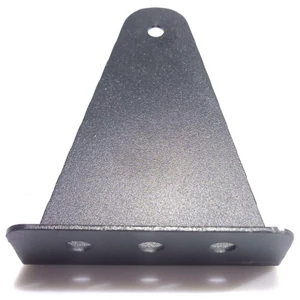

2 x mounting bracket

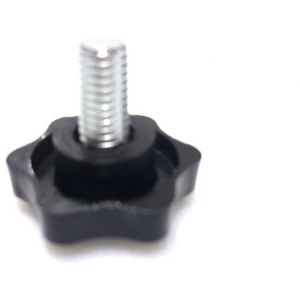

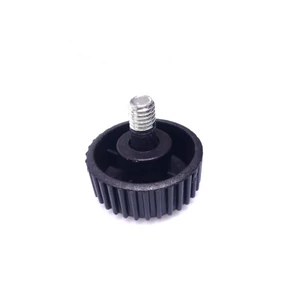

2 x knurled screw

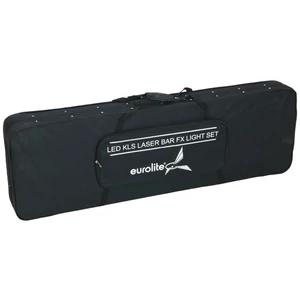

1 x bag

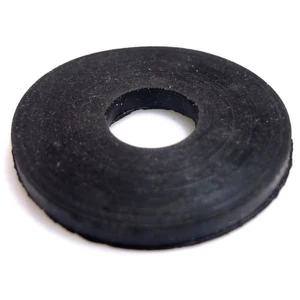

2 x washer

Manuals

Paraméterek

Power supply	100-240 V AC, 50/60 Hz
Power consumption	50 W
IP classification	IP20
Protection class	Protection class I
Power connection	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output	1 x IEC connector (F) mounting version
Device fuse	5 x 20 mm, F 1 A fuse replaceable
Lamp type	LED lamp
Flash rate	0 - 30 Hz
DMX channels	3; 5; 9; 27
DMX input	1 x 3-pin XLR (M) mounting version
DMX output	1 x 3-pin XLR (F) mounting version
Cooling	Cooling fan
Control	Stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch; master/slave function
Fixtures available for	Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
Housing color	Black
Attachment system	Tube:1x Ø 35mm
2x mounting bracket
Display type	4 digit 7-segment LED display
Dimensions	Width:109 cm
Depth	14.5 cm
Height	37 cm
Weight	9.05 kg
Noise classification	Class 2 (slight noise)
Light effect
LED type	3 x 1 W SMD 8072 R/G/B
Spotlight
LED type	3 x 3 W SMD 8072 3in1 TCL RGB (homogenous color mix)
Beam angle	13°
Beam angle (1/2 peak)	13°
Beam angle (1/10 peak)	20°
Foot control
Battery	1 x 9.0 V E block 6LR61 alkaline manganese included
Remote control
Battery	1 x button cell 3.0 V CR2025 lithium manganese built-in

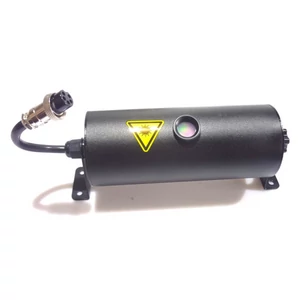

Laser
Laser class	2M
Laser color	R/G

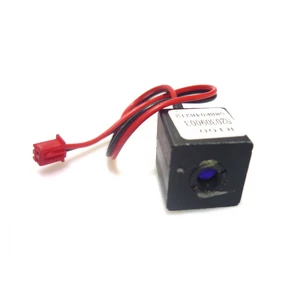

Laser module	Red (R) 100 mW 650nm

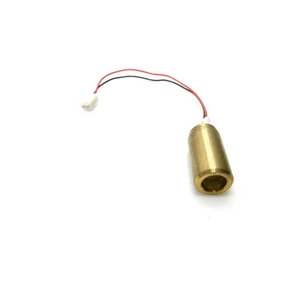

Green (G) 30 mW 532nm
Bar
LED type	4 x 1 W SMD 8072 cold white (CW)
Beam angle (1/2 peak)	7°
