Leírás

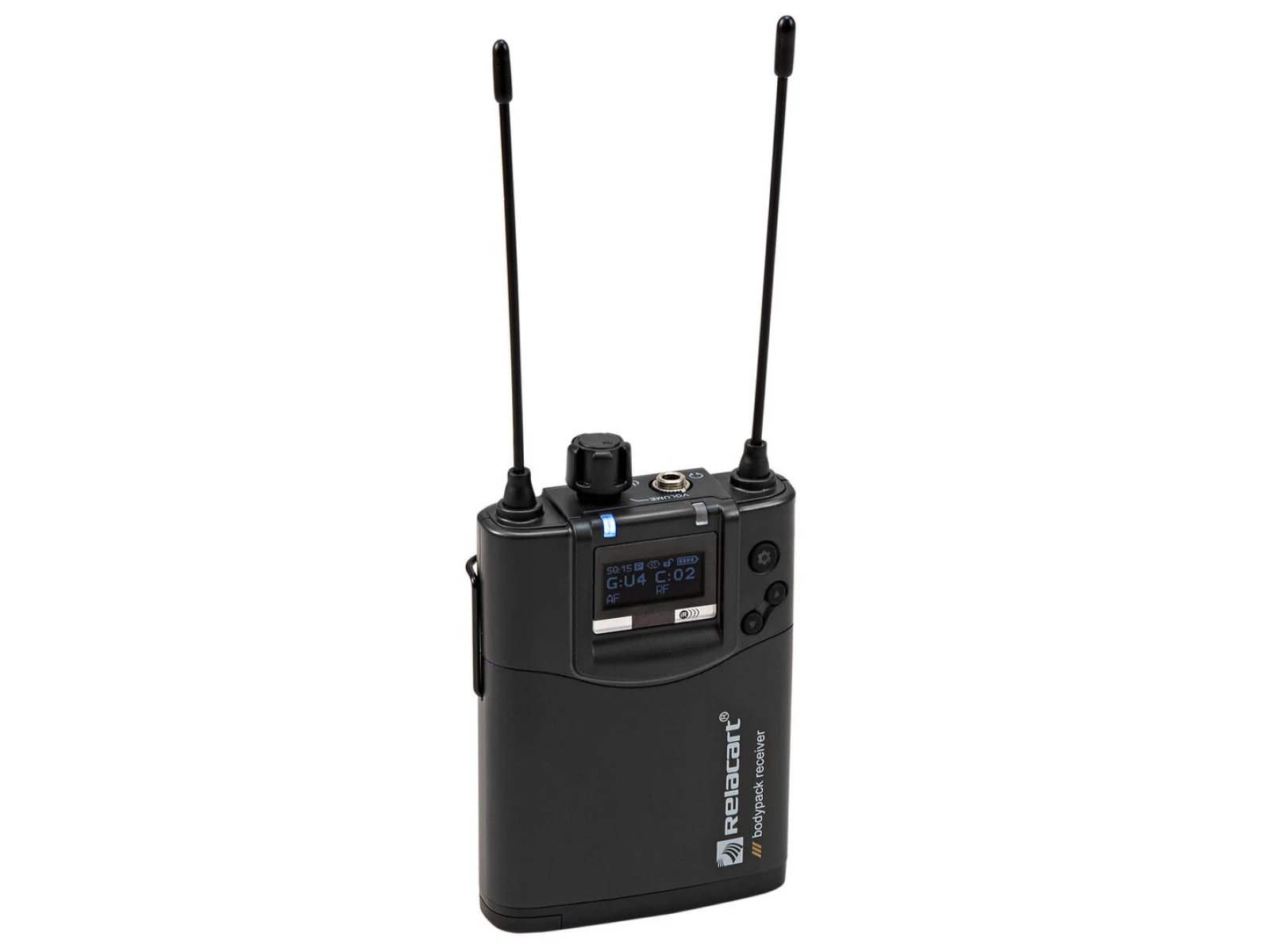

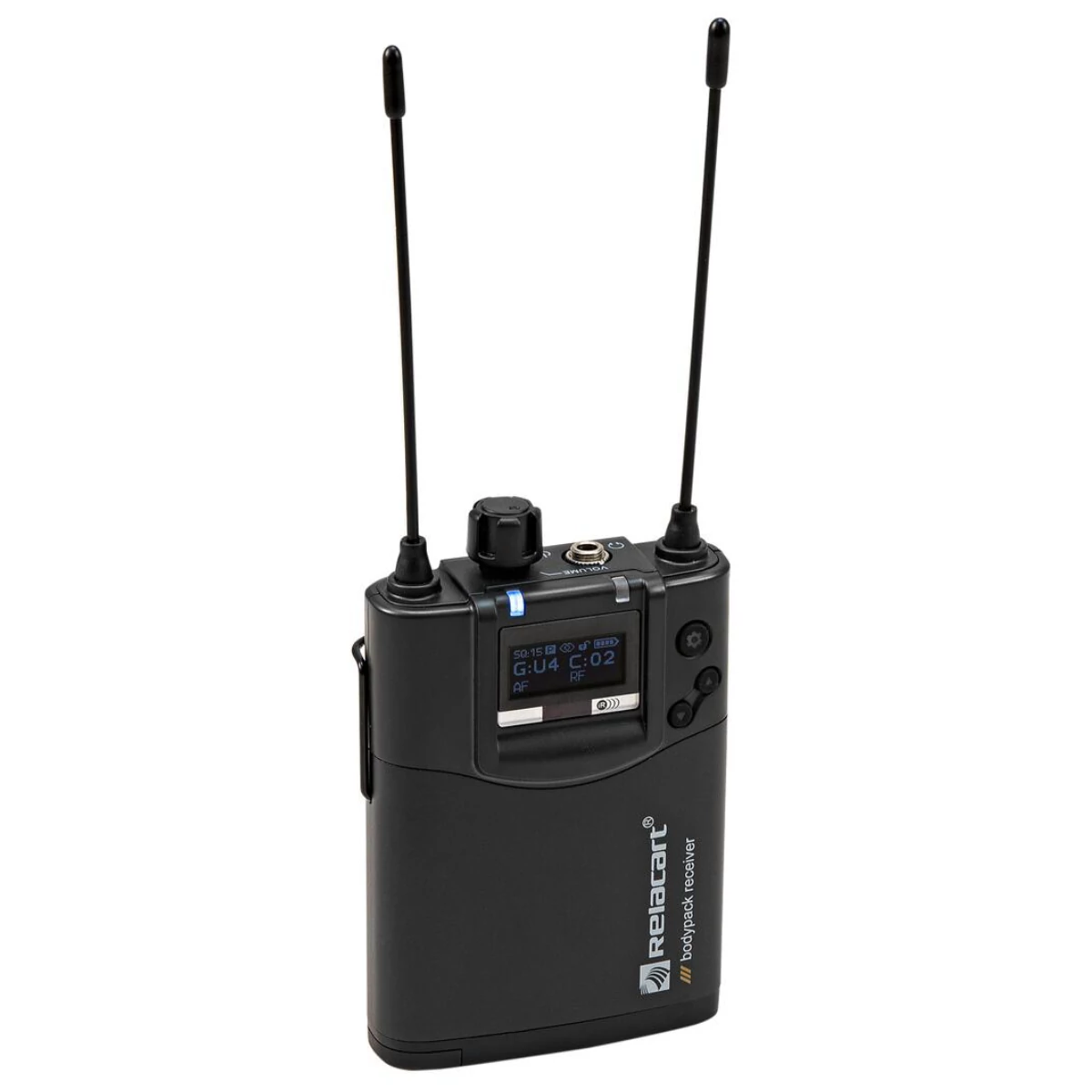

In-ear stereo wireless receiver with diversity technology
The PM-320 is a wireless in-ear monitoring system delivering outstanding sound for live performances, theater and voice applications. Diversity technology guarantees optimum reception quality without interference or dropouts. The system can be operated in mono and stereo mode. The bodypack receiver is 100 g light and offers perfect wearing comfort.
- Stereo pocket receiver with 317 preset channels and 5 user-defined channels for in-ear monitoring
- Sturdy all-metal housing with soft-touch controls, applicable for touring
- Diversity technology for high reception quality
- Pilot frequency squelch technology delete wireless RF interference
- Parallel operation of up to 5 systems is possible without any interference
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LEDs for antenna A/B
- Stereo or mono/mix mode
- Balance (left, right) adjustable
- Limiter and high frequency boost
- Lock function for prevents undesired changes to settings
- OLED display
- Operating range up to 100m with line-of-sight
Package contents
- 1 x receiver, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Type | In-ear Monitor |
| Battery | 2 x Mignon (AA) (not included) |
| Frequency range | 25 - 15000 Hz |
| S/N ratio | >100 dB |
| THD | <0,9 % at 1 kHz |
| Display type | OLED display |
| Display | Charge level , frequency , Chanal |
| Connections | Output:headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Frequency band | UHF 628 - 668 MHz |
| Frequency selection | 317 Switchable frequencys |
| In 20 groups | |
| Modulation | FM, stereo |
| Frequency stability | ± 0,0005 % |
| Range | Range up to 100m with line-of-sight |
| Switching bandwidth | 32 MHz |
| Diversity | Antenna diversity |
| Material | Aluminum |
| Dimensions | Width:6,5 cm |
| Depth | 2,3 cm |
| Height | 9 cm |
| Weight | 110 g |
