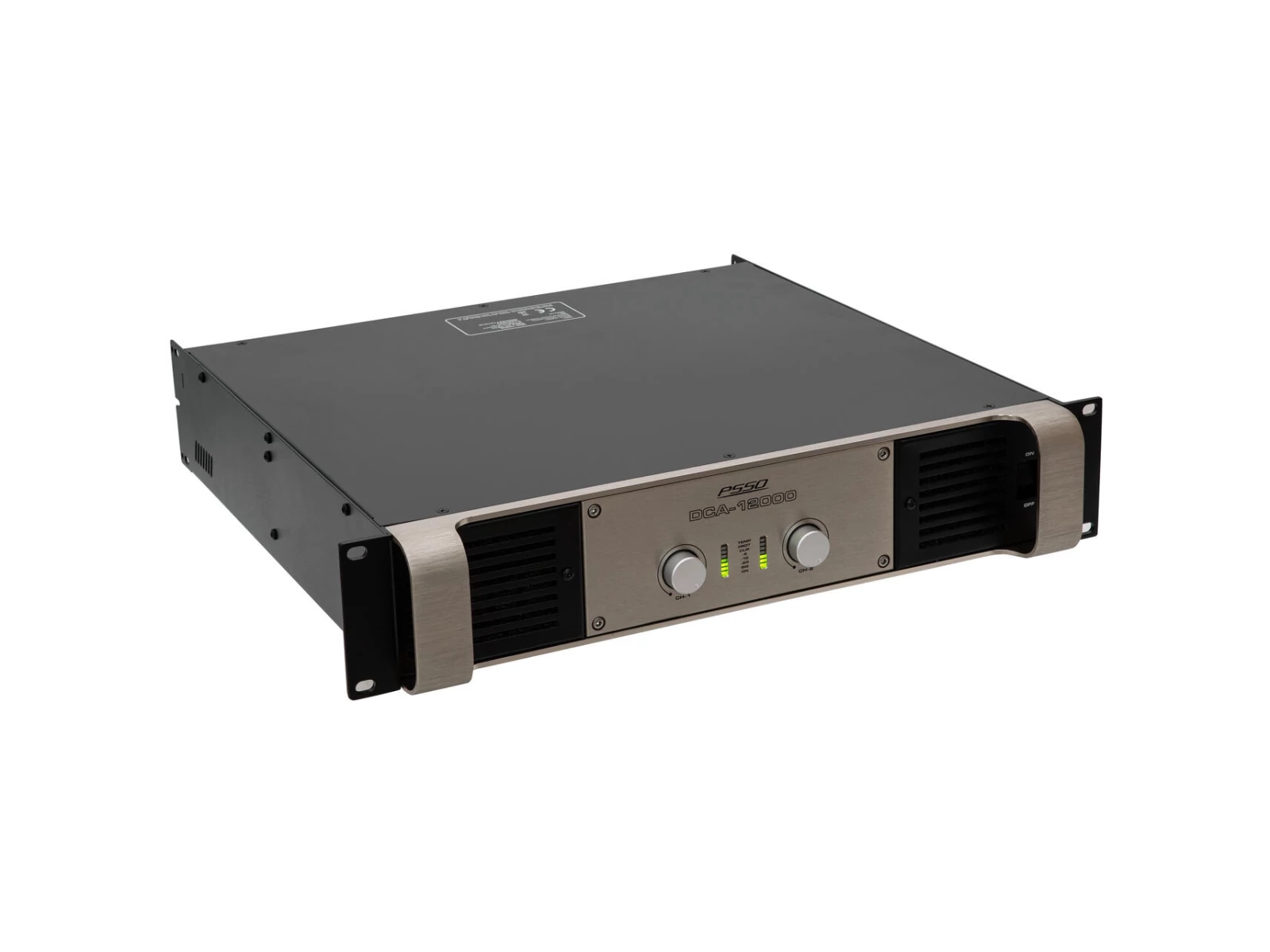

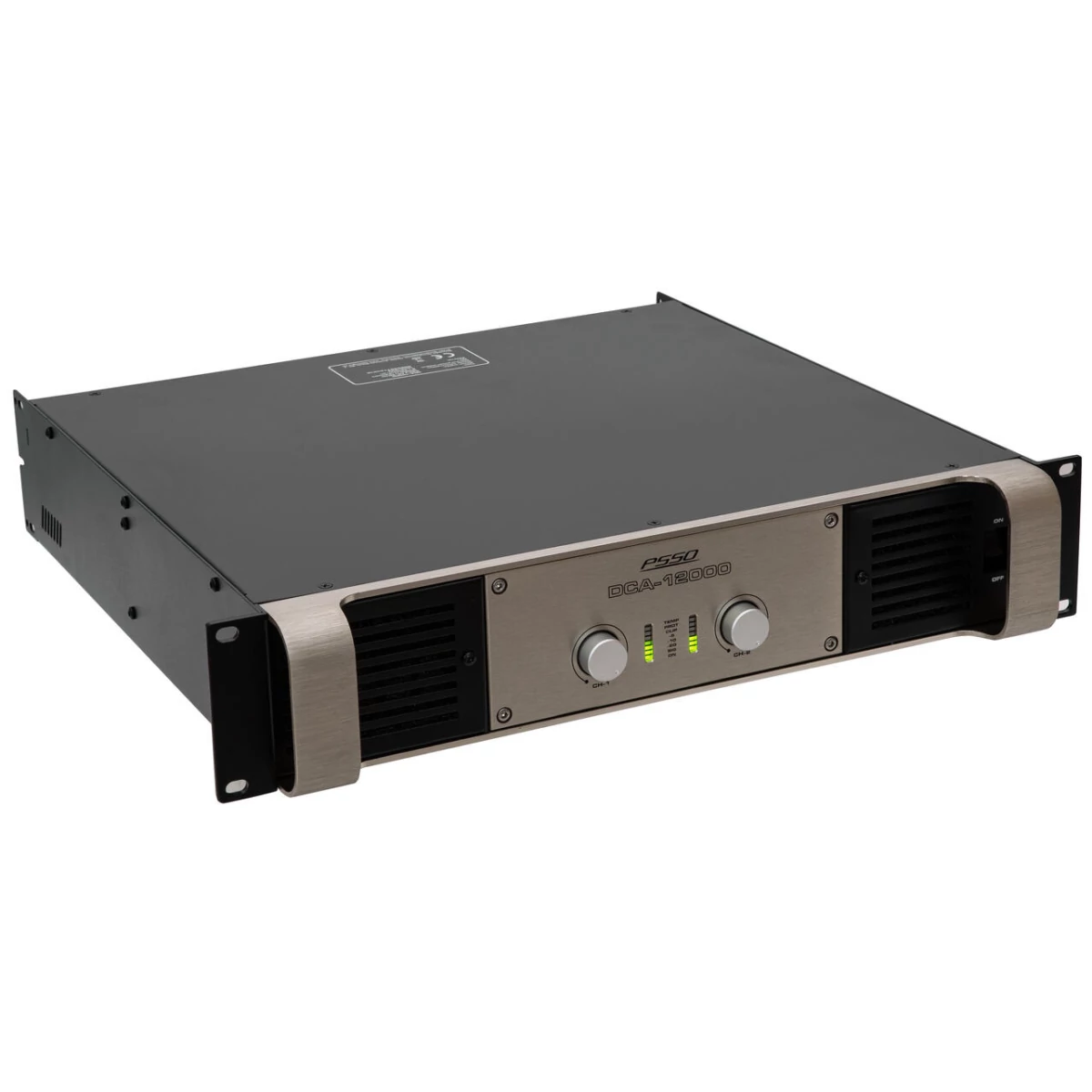

PSSO DCA-12000 2-channel SMPS Amplifier

789.900 Ft 663.900 Ft (522.756 Ft + ÁFA)

Menny.:db

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Class I stereo PA amplifier with SMPS, 2 x max. 6000 W (2 ohms), 2 x max. 3900 W (4 ohms)

Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
(19") 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan
Built with NEUTRIK connector
For application areas such as: Stage; concerts/FoH's; rental; mobile djs / entertainer; restaurants, bars and hotels; sports centres/gyms

Scope of delivery

Power supply	230 V AC, 50 Hz
Power consumption	1050 W 1/8 power
Protection class	Protection class I
Output power	2 x max. 6000 W (2 ohms)
2 x max. 3900 W (4 ohms)
2 x max. 2300 W (8 ohms)
1 x max. 10000 W bridged (4 ohms)
1 x max. 6200 W bridged (8 ohms)
Power connection	Fixed power supply cord with safety plug
Cable length	1.6 m
Frequency range	20 - 20000 Hz
S/N ratio	>90 dB
THD	<0.05 % at 1 kHz
Cooling	3 x temperature-controlled fan , air flow from front to rear
Impedance	Input:10 kOhm , unbal.
Input	20 kOhm , bal.
Gain	38 dB/ 0.775 V
32 dB/ 1.0 V
26 dB/ 1.4 V
Housing color	Black
Circuitry	Class I
Slew rate	>10 V/µs
Damping factor	>200
Control elements	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch, limiter selector
Controls	Overheat; overload; short-circuit; softstart; DC voltage; VHF; limiter
Status LED	Power, level meter, clip, protect
Connections	Input:line via 2 x 3-pin XLR (F) mounting version
Output	line via 2 x 3-pin XLR (M) mounting version
Output	speaker via 2 x speaker built-in socket (F)
Input sensitivity	0.775 V; 1.0 V; 1.4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands	Built with NEUTRIK connector
Material	Steel
Housing design	(19") 48.3 cm rack installation 2 U
Dimensions	Width:48.3 cm
Depth	44.0 cm
Height	8.9 cm
Weight	14.20 kg
