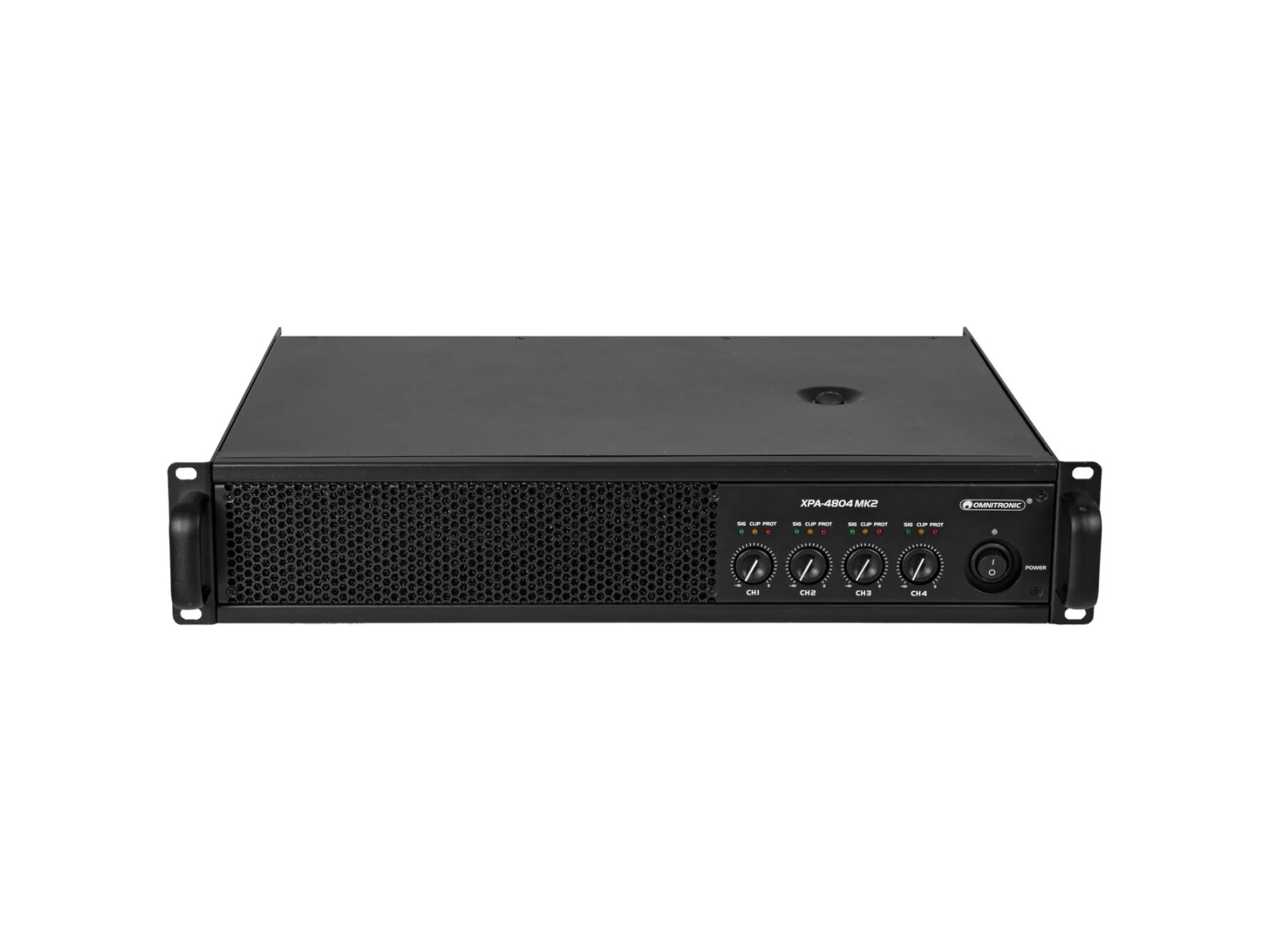

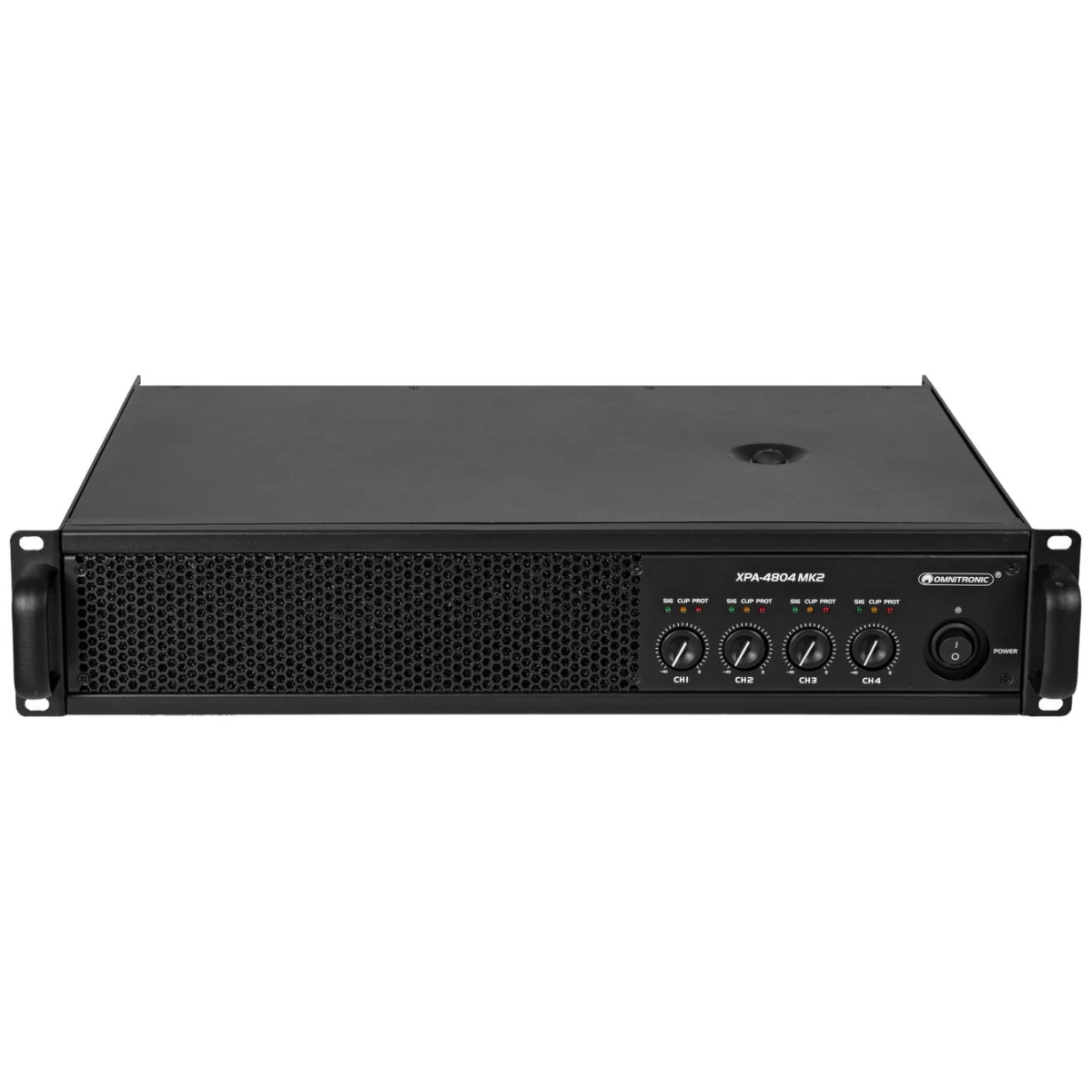

OMNITRONIC XPA-4804 MK2 Amplifier

301.900 Ft 253.900 Ft (199.921 Ft + ÁFA)

Menny.:db

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Class D PA amplifier with limiter, 4 x 1800 W RMS (2 ohms), 4 x 1200 W RMS (4 ohms)

3 operating modes can be selected (stereo, parallel or bridged)
Input sensitivity adjustable
Level control per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
(19") 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by cooling fan
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms

Scope of delivery

Power supply	230 V AC, 50 Hz
Power consumption	1380 W 1/8 power
Protection class	Protection class I
Output power	4 x 1800 W RMS (2 ohms)
4 x 1200 W RMS (4 ohms)
4 x 800 W RMS (8 ohms)
2 x 2500 W RMS bridged (4 ohms)
2 x 2400 W RMS bridged (8 ohms)
Power connection	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range	20 - 20000 Hz
S/N ratio	>102 dB
THD	<0.1 % at 1 kHz
Cooling	2 x cooling fan , air flow from front to rear
Impedance	Input:20 kOhm , bal.
Input	10 kOhm , unbal.
Gain	40 dB/ 0.775 V
38 dB/ 1 V
32 dB/ 2 V
Housing color	Black
Circuitry	Class D
Slew rate	>30 V/µs
Damping factor	>500
Control elements	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls	Overheat; overload; short-circuit; softstart; DC voltage; VHF; current limiting; limiter
Status LED	Power, signal, clip, protect
Connections	Input:line via 4 x 3-pin XLR (F) mounting version
Link	line via 4 x 3-pin XLR (M) mounting version
Output	speaker via 4 x speaker built-in socket (F)
Input sensitivity	0.775 V; 1 V; 2 V , switchable
Housing design	(19") 48.3 cm rack installation 2 U
Dimensions	Width:48.3 cm
Depth	33.0 cm
Height	8.8 cm
Weight	14.20 kg
