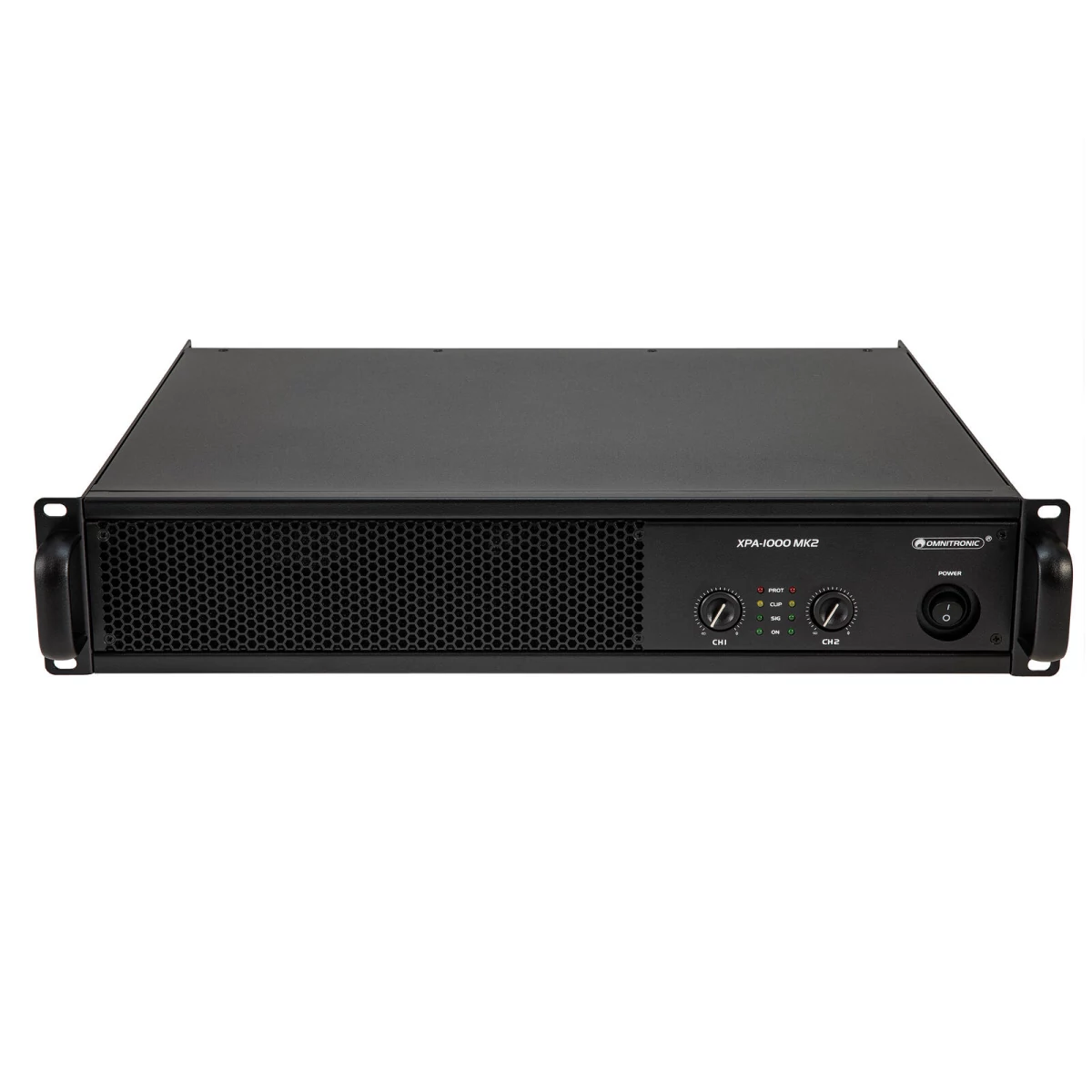

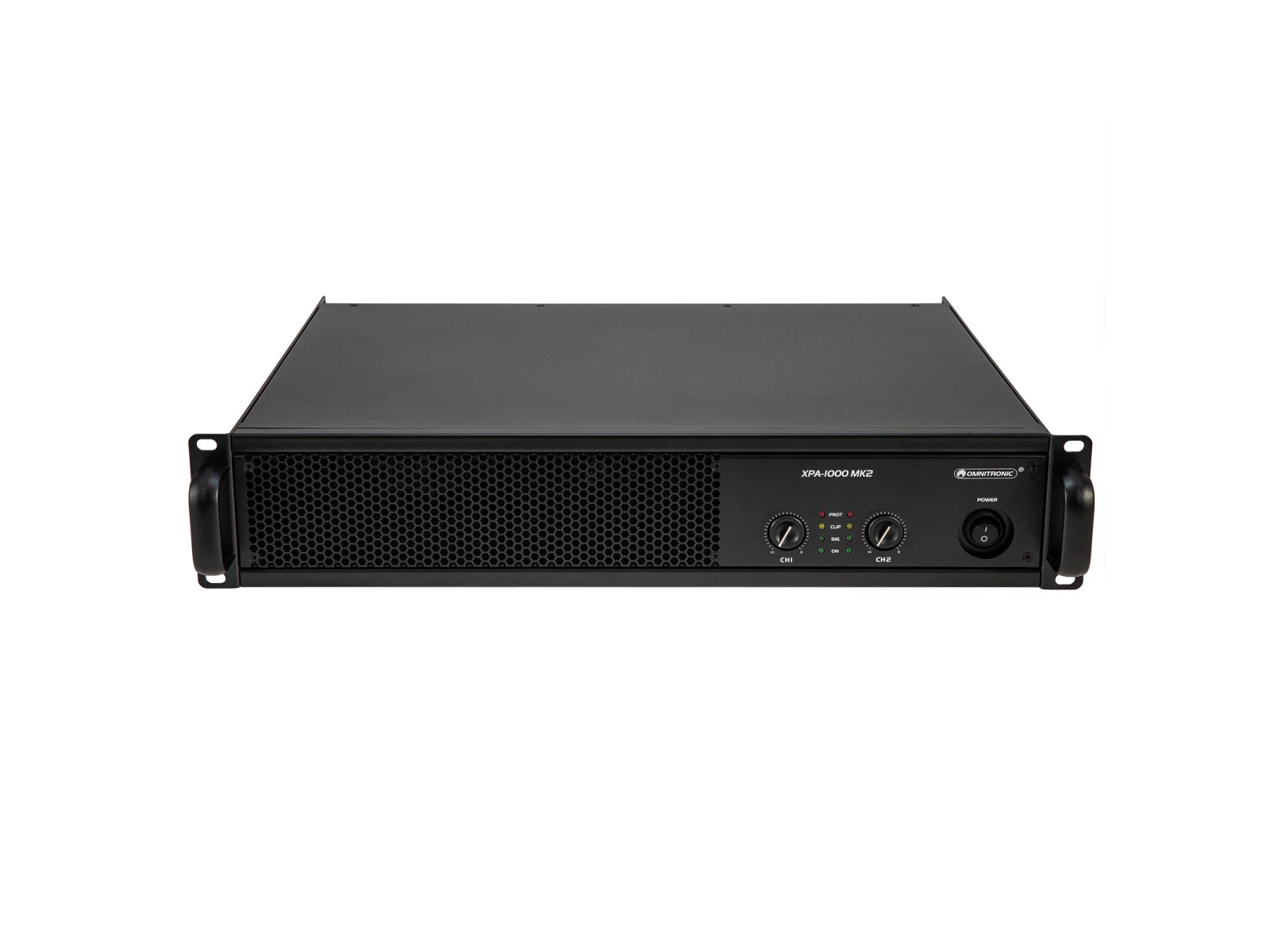

OMNITRONIC XPA-1000 MK2 Amplifier

115.900 Ft 97.900 Ft (77.087 Ft + ÁFA)

Menny.:db

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Class AB PA amplifier with limiter, 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)

Scope of delivery

Power supply	230 V AC, 50 Hz
Power consumption	710 W 1/8 power
IP classification	IP20
Protection class	Protection class I
Output power	2 x 500 W RMS (4 ohms)
2 x 300 W RMS (8 ohms)
1000 W RMS bridged (8 ohms)
Power connection	Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Device fuse	5 x 20 mm, F 8 A fuse serviceable
Frequency range	20 - 20000 Hz
S/N ratio	>95 dB
THD	<0.05 % at 1 kHz
Cooling	2 x temperature-controlled fan , air flow from front to rear
Impedance	Input:10 kOhm , unbal.
Input	20 kOhm , bal.
Housing color	Black
Circuitry	Class AB
Slew rate	>20 V/µs
Damping factor	>200
Control elements	Power switch, level control per channel, mode switch (stereo/parallel/bridged)
Controls	Softstart; DC voltage; VHF; short-circuit; limiter; overheat
Status LED	Power, signal, clip, protect
Connections	Input:line via 2 x 3-pin XLR (F) mounting version
Input	line via stereo RCA
Output	speaker via 2 x speaker built-in socket (F)
Output	speaker via screw terminal
Input sensitivity	1 V
Housing design	(19") 48.3 cm rack installation possible 2 U
Mounting depth	33.2 cm
Dimensions	Width:48.3 cm
Depth	36.8 cm
Height	8.8 cm
Weight	10.40 kg
