Leírás

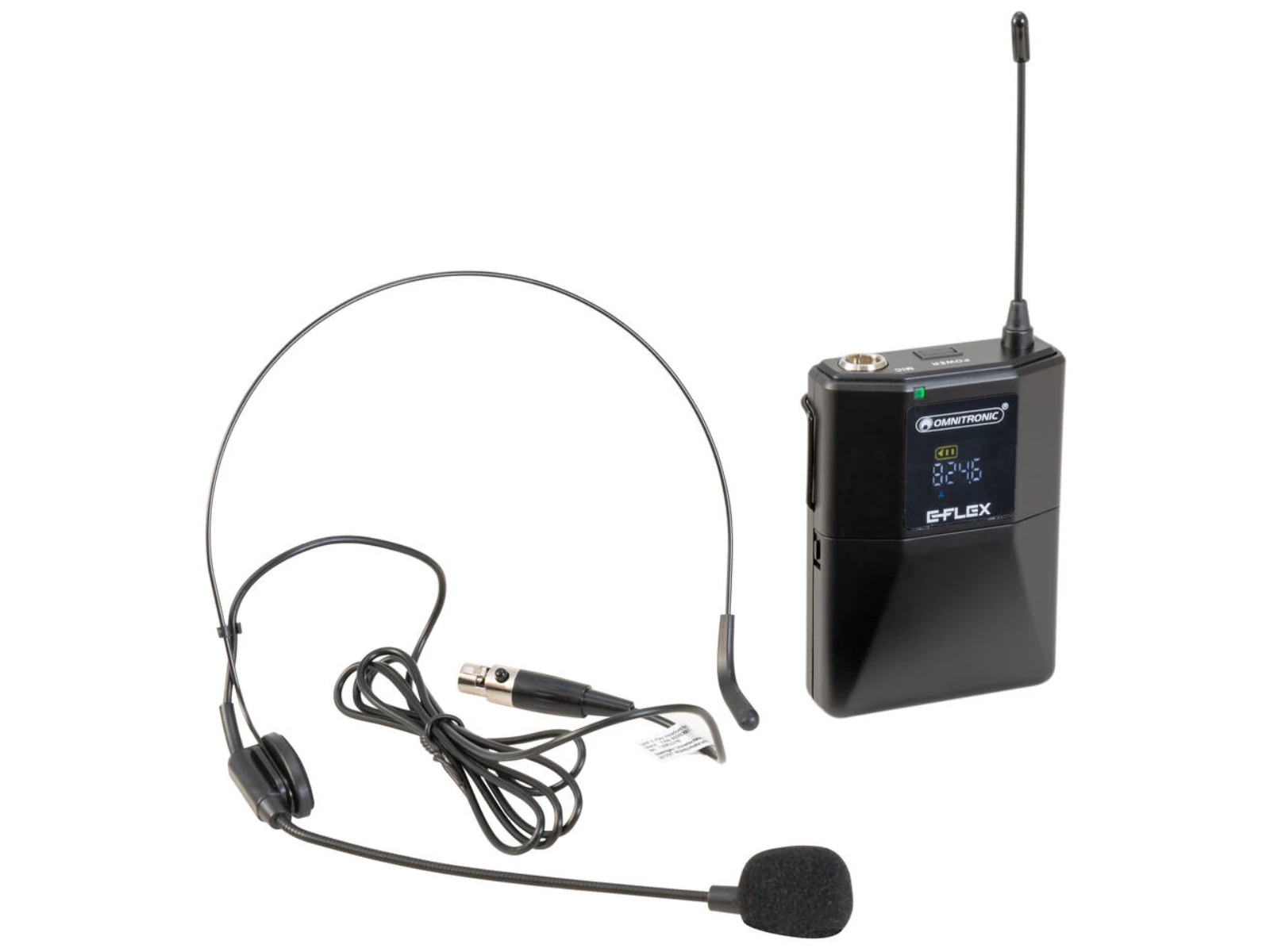

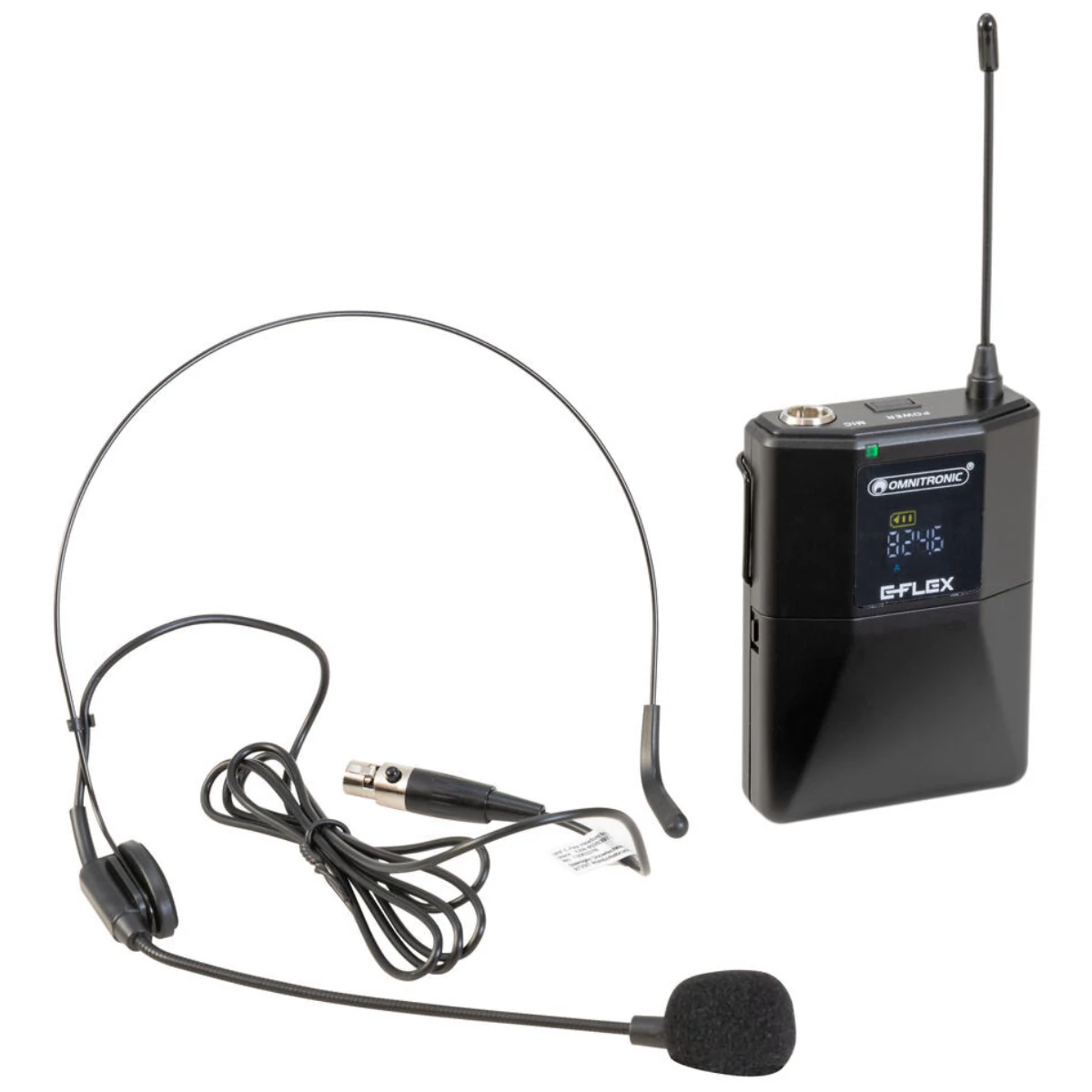

Bodypack transmitter with PLL multifrequency transmitter
- Quick pairing at the touch of a button
- Receiver automatically adopts frequency setting
- 16 channels selectable
- Sensitivity adjustable
- Operating range up to 30m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- 4 digit 7-segment LED display
- Charge status indicator
Package contents
- 1 x transmitter, 1 x microphone, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Type | Pocket transmitter |
| Power supply | 3V DC |
| Power connection | Battery/battery pack |
| Battery | 2 x Mignon (AA) (not included) |
| Frequency range | 50 - 15000 Hz |
| Range | Range up to 30m with line-of-sight |
| Frequency band | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| RF power output | 10 mW |
| Modulation | FM |
| Frequency selection | 16 switchable frequencies |
| In 2 groups | |
| Connector type | Mini XLR (M) 3-pin mounting version |
| Display type | 4 digit 7-segment LED display |
| Display | Charge status indicator , channel , frequency , Mute |
| Control elements | Sensitivity rotary dial, frequency selector switch |
| Status LED | Power |
| Switch | On/off/mute switch |
| Material | Plastic |
| Color | Black |
| Dimensions | Width:6.9 cm |
| Depth | 2.5 cm |
| Height | 9.4 cm |
| Weight | 0.11 kg |
