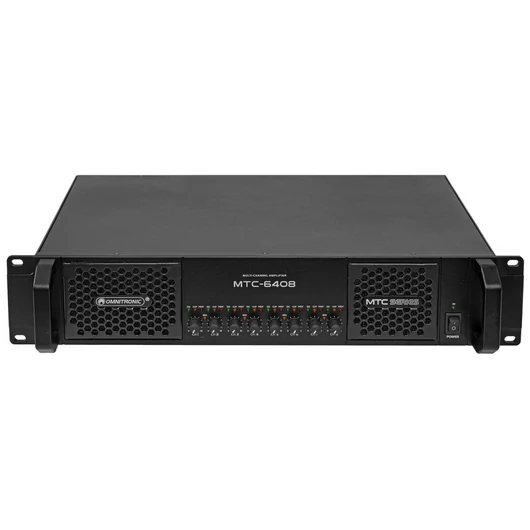

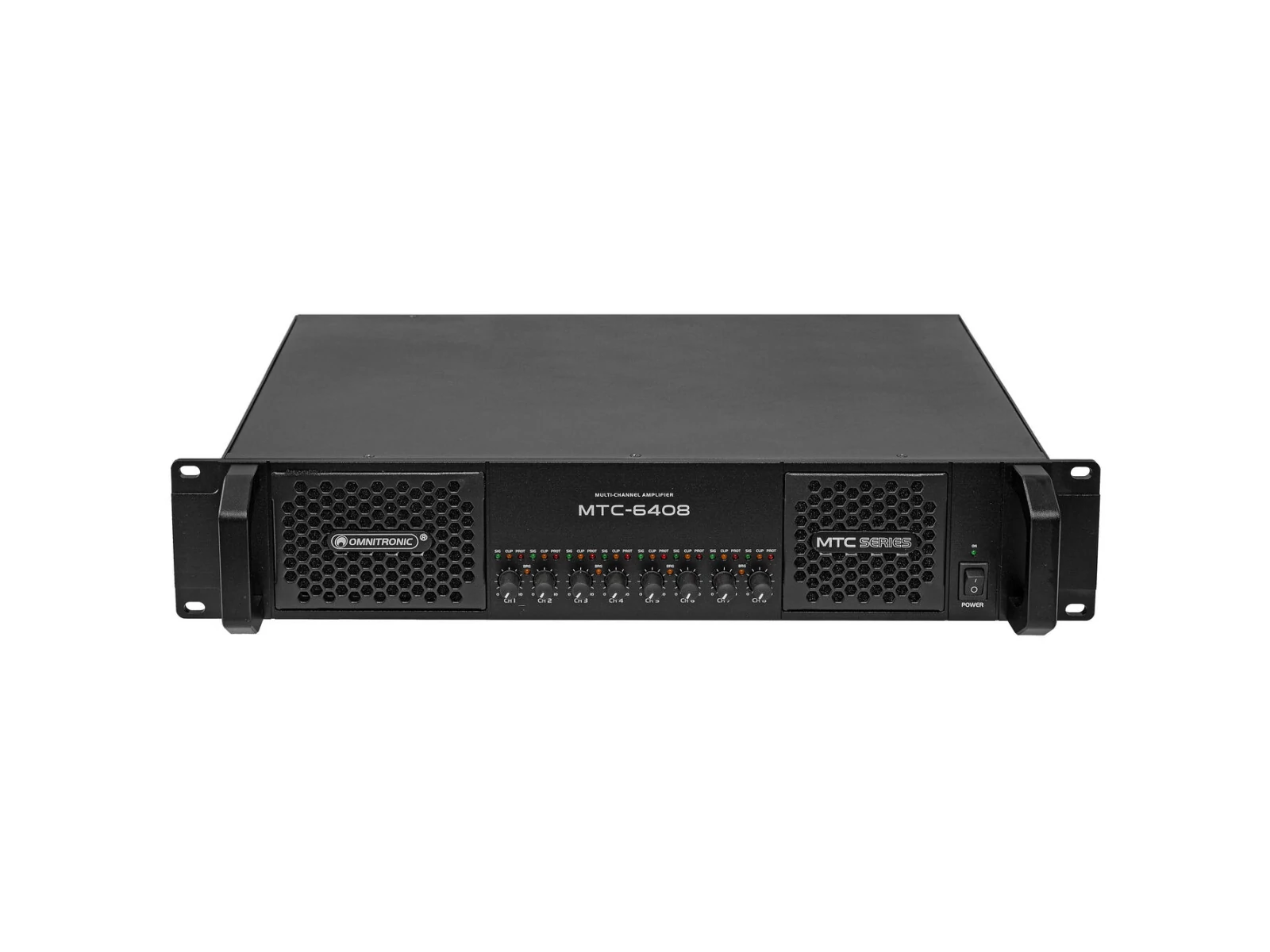

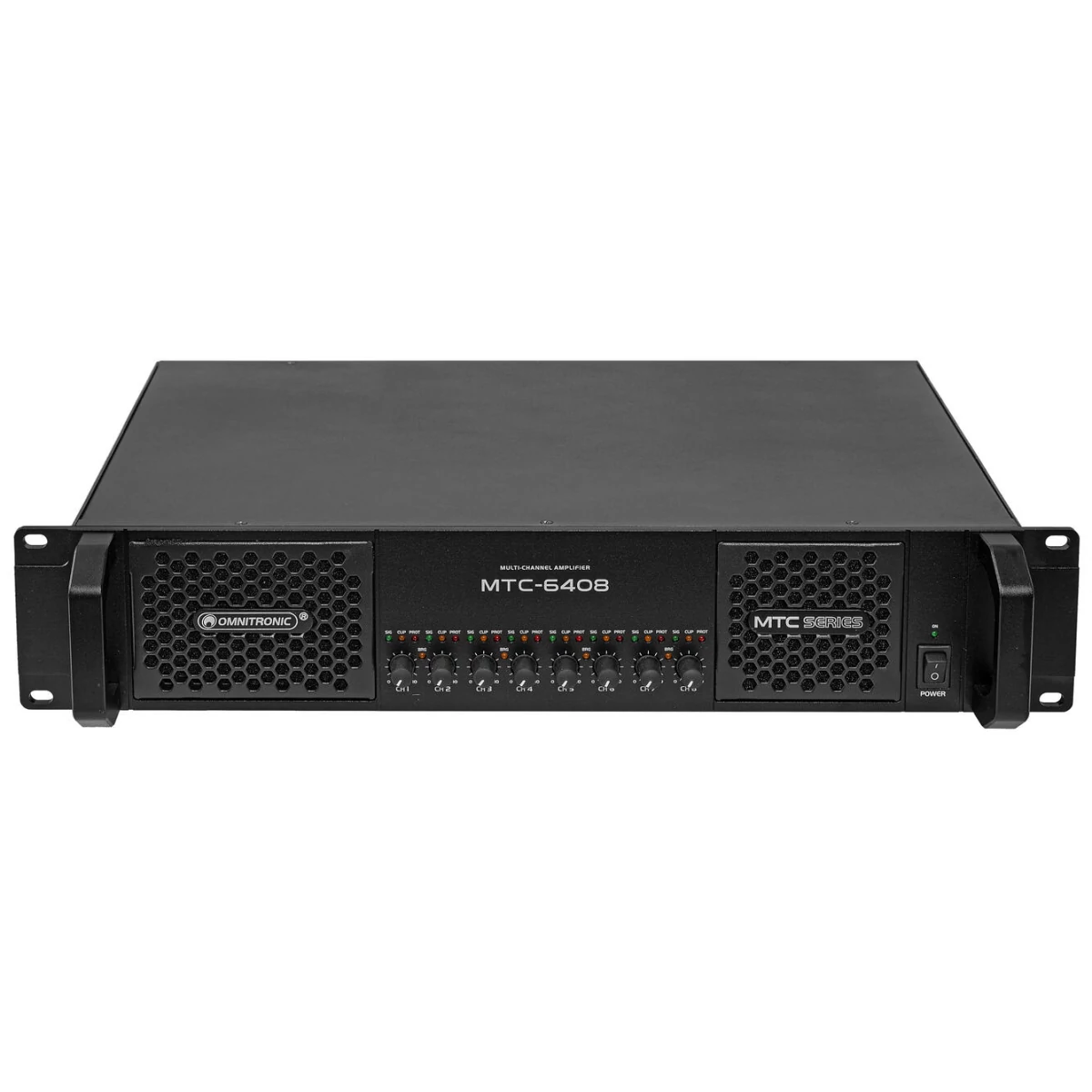

OMNITRONIC MTC-6408 8-channel Amplifier

464.900 Ft 390.900 Ft (307.795 Ft + ÁFA)

Menny.:db

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Class D multi-channel PA amplifier with SMPS, 8 x 800 W RMS (4 ohms), 8 x 400 W RMS (8 ohms)

Extremely low weight and height due to integrated switch mode power supply
2 operating modes can be selected (stereo or bridge/100V)
Level control per channel
(19") 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms

Scope of delivery

Power supply	100-240 V AC, 50/60 Hz
Power consumption	1200 W 1/8 power
Protection class	Protection class I
Output power	8 x 800 W RMS (4 ohms)
8 x 400 W RMS (8 ohms)
4 x 1500 W RMS bridged (8 ohms)
8 x 200 W RMS (100 V)
4 x 1500 W RMS bridged (100 V)
Power connection	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length	1 m
Device fuse	5 x 20 mm, T 10 A fuse fix on board
Frequency range	20 - 20000 Hz
S/N ratio	>119 dB
THD	<0.05 % at 1 kHz
Cooling	2 x temperature-controlled fan , air flow from front to rear
Impedance	Input:20 kOhm , bal.
Input	10 kOhm , unbal.
Gain	28.2 dB
Bridged 34.2 dB
Housing color	Black
Circuitry	Class D
Damping factor	350
Control elements	Power switch, level control per channel, mode switch (stereo/bridged)
Controls	Softstart; overheat; overload; short-circuit; DC voltage
Status LED	Power, signal, clip, bridged, protect
Connections	Input:line via 8 x 3-pin XLR
Link	line via 8 x 3-pin XLR
Output	speaker via screw plug-in terminal
Output	8 x speaker built-in socket (F)
Output	speaker (bridge) via 4 x speaker built-in socket (F)
Housing design	(19") 48.3 cm rack installation 2 U
Dimensions	Width:48.3 cm
Depth	40.8 cm
Height	8.8 cm
Weight	9.42 kg
