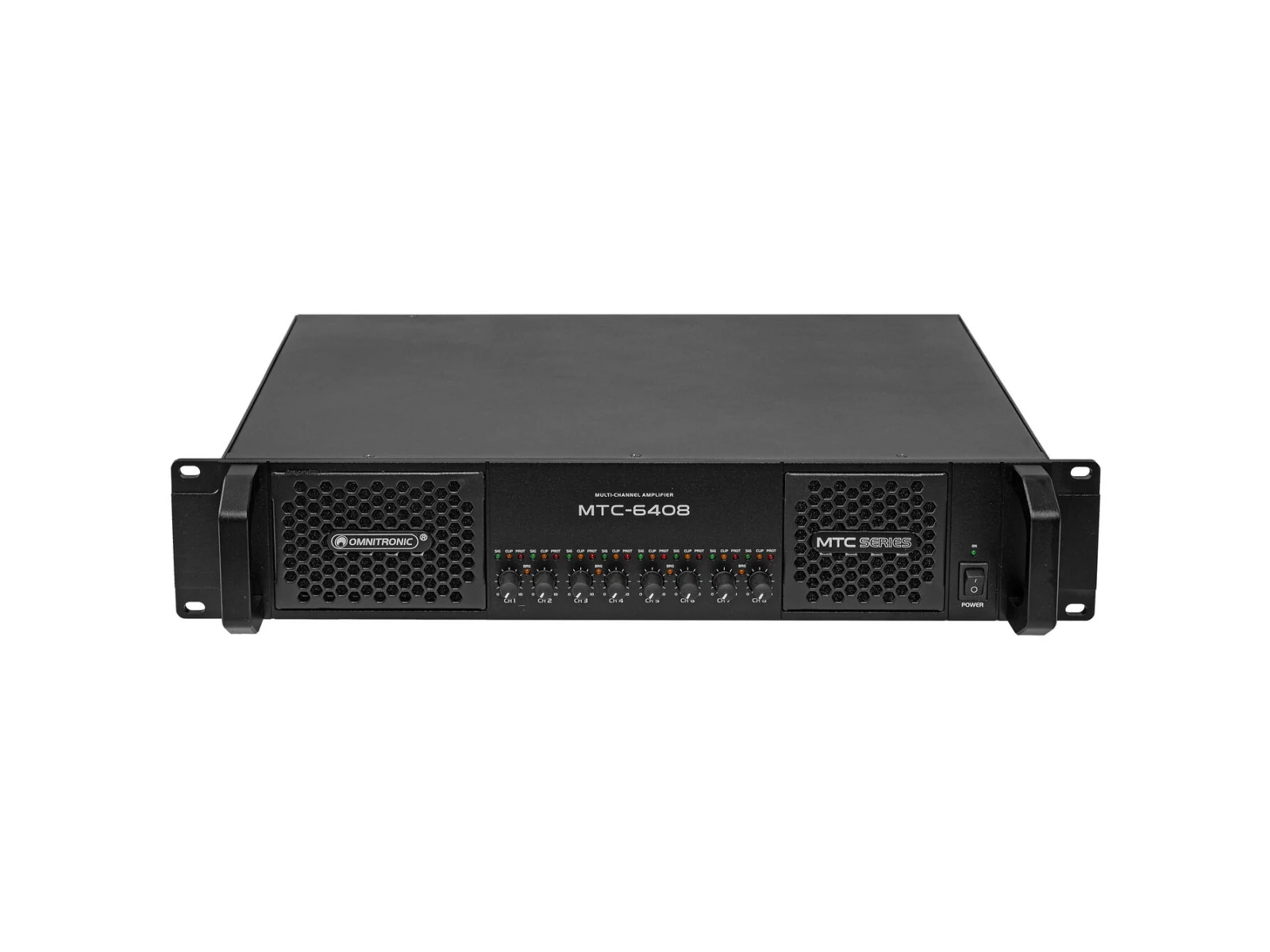

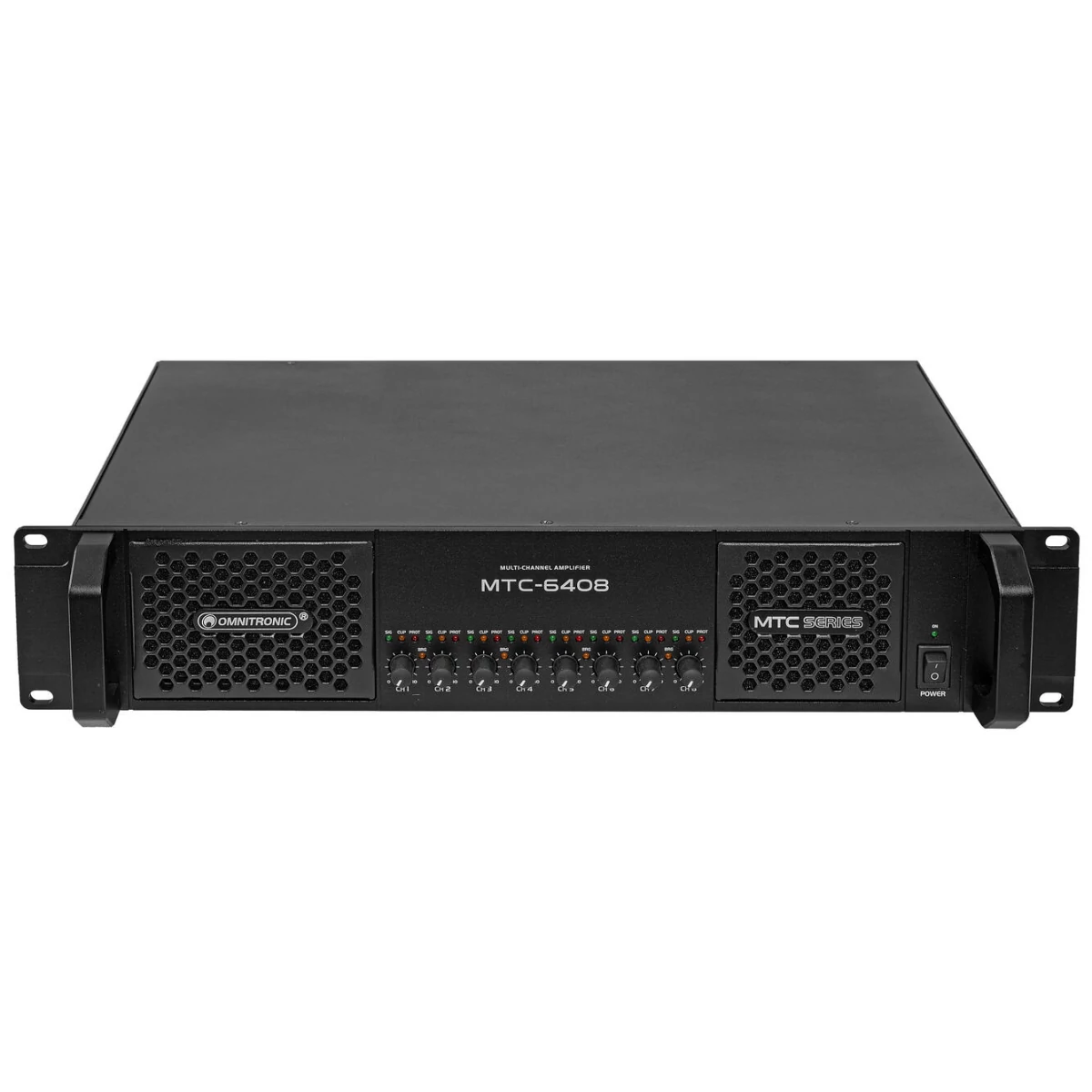

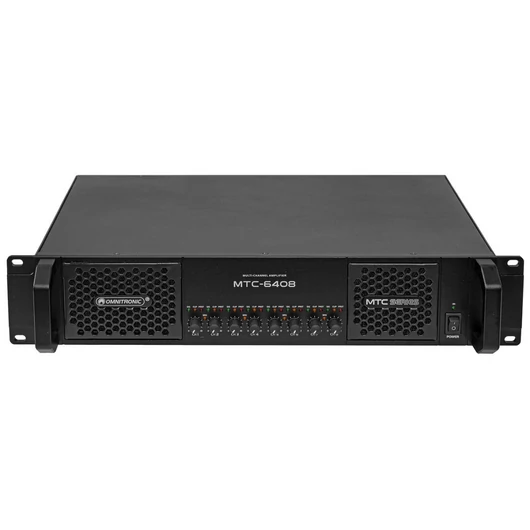

OMNITRONIC MTC-6408 8-Channel Amplifier

496.900 Ft 417.900 Ft (329.055 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 3 év garancia
Raktárkészlet: Raktáron
Cikkszám: 10452435
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be Cetelem Online Áruhitelt.

Leírás

Class D multi-channel PA amplifier with SMPS, 8 x 800 W RMS (4 ohms), 8 x 400 W RMS (8 ohms)

  • Extremely low weight and height due to integrated switch mode power supply
  • 2 operating modes can be selected (stereo or bridge/100V)
  • Level control per channel
  • (19") 48.3 cm rack installation 2 U
  • Highly efficient Air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms

Package contents

  • 1 x amplifier, 1 x power cord, 1 x user manual

Manuals

Manuals

Paraméterek

Power supply 100-240 V AC, 50/60 Hz
Power consumption 1200 W 1/8 power
Protection class Protection class I
Output power 8 x 800 W RMS (4 ohms); 8 x 400 W RMS (8 ohms); 4 x 1500 W RMS bridged (8 ohms); 8 x 200 W RMS (100 V); 4 x 1500 W RMS bridged (100 V)
Power connection Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length 1 m
Device fuse 5 x 20 mm, T 10 A Fuse fix on board
Frequency range 20 - 20000 Hz
S/N ratio >119 dB
THD <0,05 % at 1 kHz
Cooling 2 x temperature-controlled fan , Air flow from front to rear
Impedance Input:20 kOhm , bal.
Input 10 kOhm , unbal.
Gain 28,2 dB
Bridged 34,2 dB
Housing color Black
Circuitry Class D
Damping factor 350
Control elements Power switch, level control per channel, mode switch (stereo/bridged)
Controls Softstart; overheat; overload; short-circuit; DC voltage
Status LED Power, signal, clip, bridged, protect
Connections Input:line via 8 x 3-pin XLR
Link line via 8 x 3-pin XLR
Output speaker via screw plug-in terminal
Output 8 x speaker built-in socket (F)
Output Speaker (bridge) via 4 x speaker built-in socket (F)
Housing design (19") 48.3 cm rack installation 2 U
Dimensions Width:48,3 cm
Depth 40,8 cm
Height 8,8 cm
Weight 9,42 kg
