Leírás

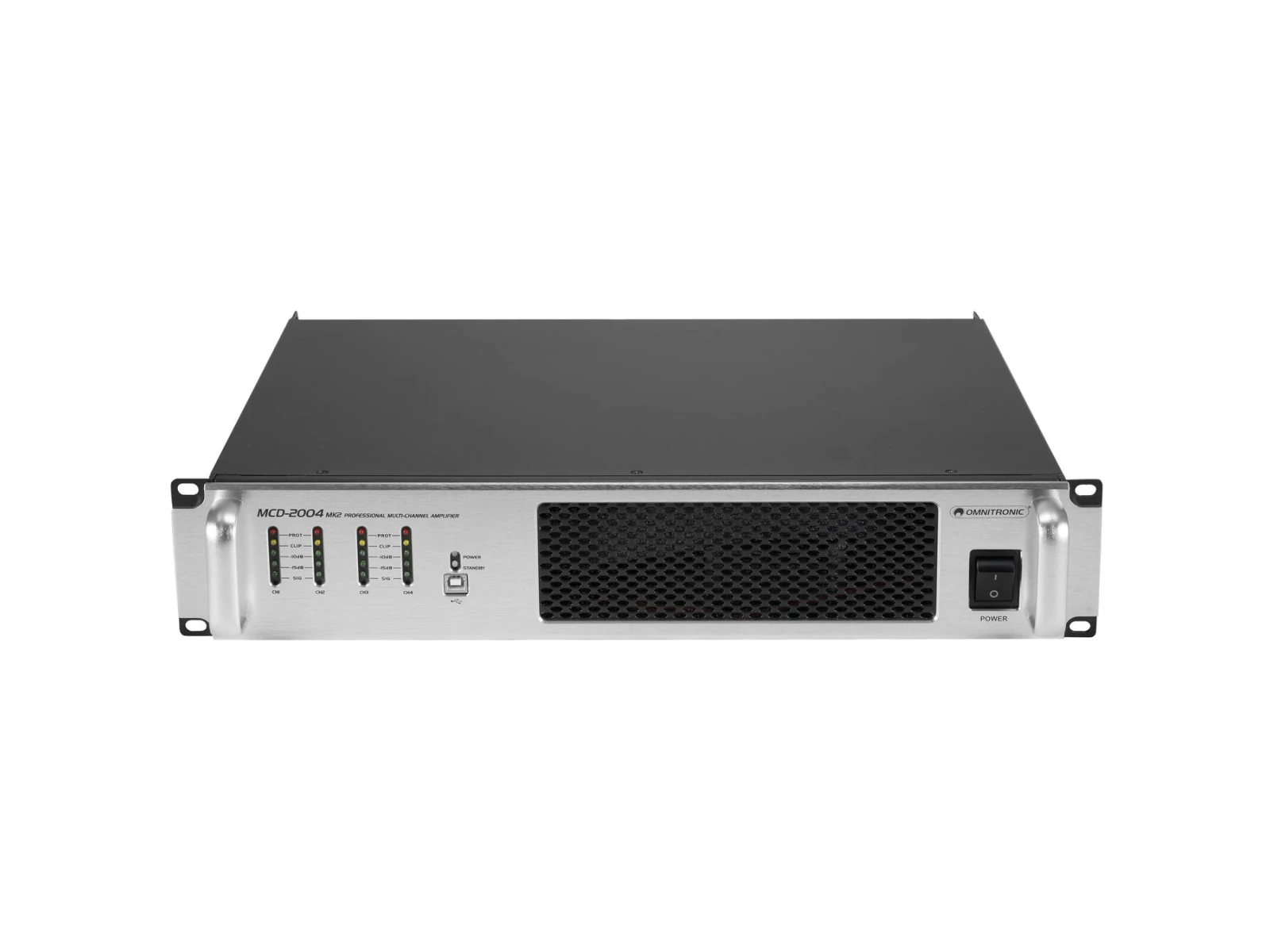

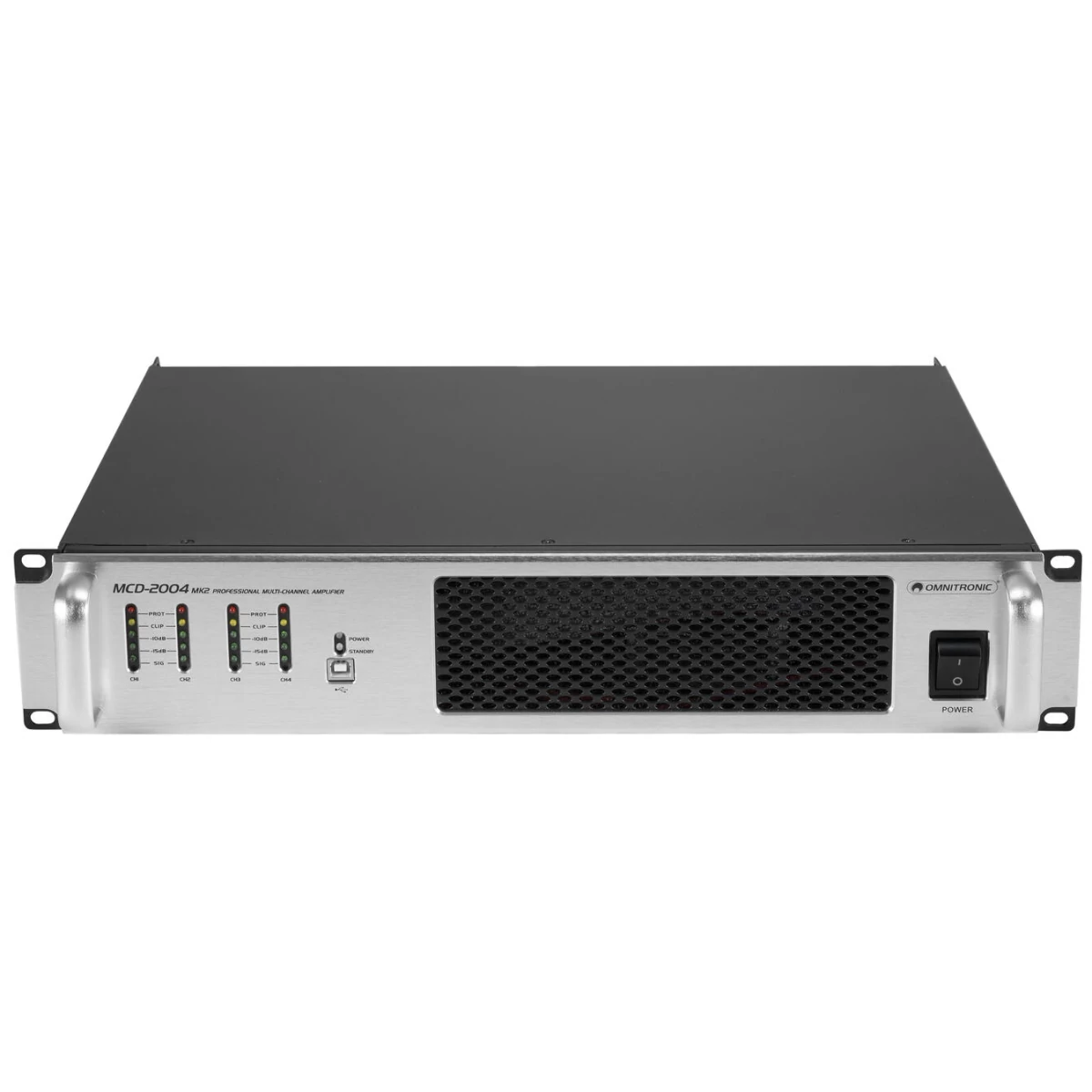

Class D multi-channel PA amplifier with SMPS, 4 x 500 W RMS (4 ohms), 4 x 250 W RMS (8 ohms)
- PA amplifier with integrated limiter for multi-zone applications
- Signal inputs via balanced XLR mounting jacks and terminal blocks
- Tamper-proof level adjustment on the rear panel
- 3-fold output meter with clip LED per channel
- Rugged steel chassis with aluminum front panel
- (19") 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by cooling fan
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Package contents
- 1 x amplifier, 1 x power cord, 4 x screw plug-in terminal, 4 x foot, 4 x screw, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 350 W 1/8 power |
| Output power | 4 x 500 W RMS (4 ohms) |
| 4 x 250 W RMS (8 ohms) | |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range | 22 - 25000 Hz |
| S/N ratio | >120 dB |
| THD | <0.003 % at 1 kHz |
| Cooling | 1 x cooling fan , air flow from front to rear |
| Impedance | Input:22 kOhm , bal. |
| Input | 12 kOhm , unbal. |
| Gain | 26 dB |
| Circuitry | Class D |
| Slew rate | >10 V/µs |
| Damping factor | >500 |
| Control elements | Power switch, level control per channel |
| Controls | Overheat; short-circuit; softstart; overload; DC voltage; power on/off transient |
| Status LED | Power, level meter, clip, protect, standby |
| Connections | Input:line via 4 x 3-pin XLR |
| Input | line via 4 x screw plug-in terminal |
| Output | speaker via 4 x screw plug-in terminal |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48.3 cm |
| Depth | 38.8 cm |
| Height | 8.9 cm |
| Weight | 7.45 kg |
