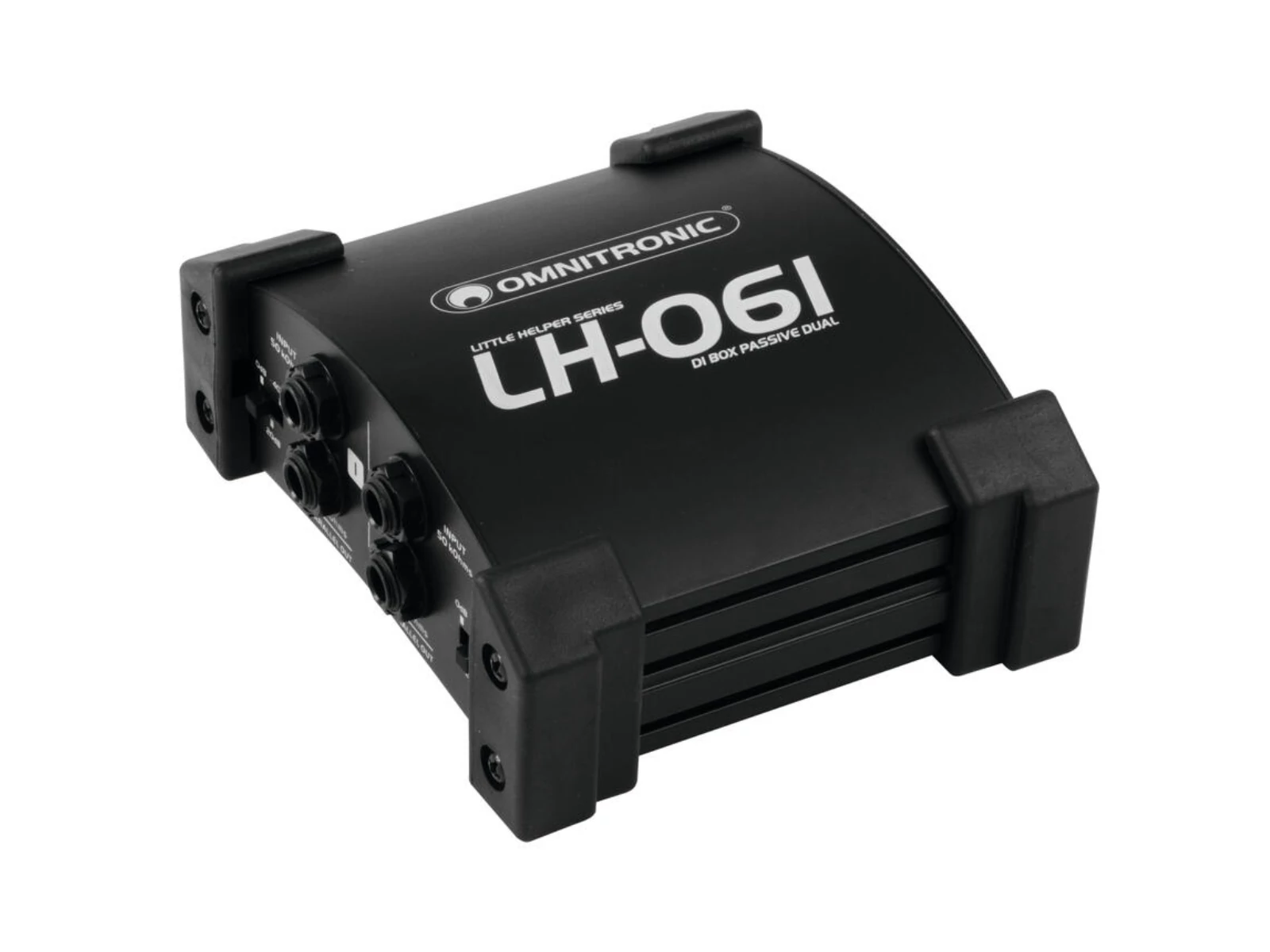

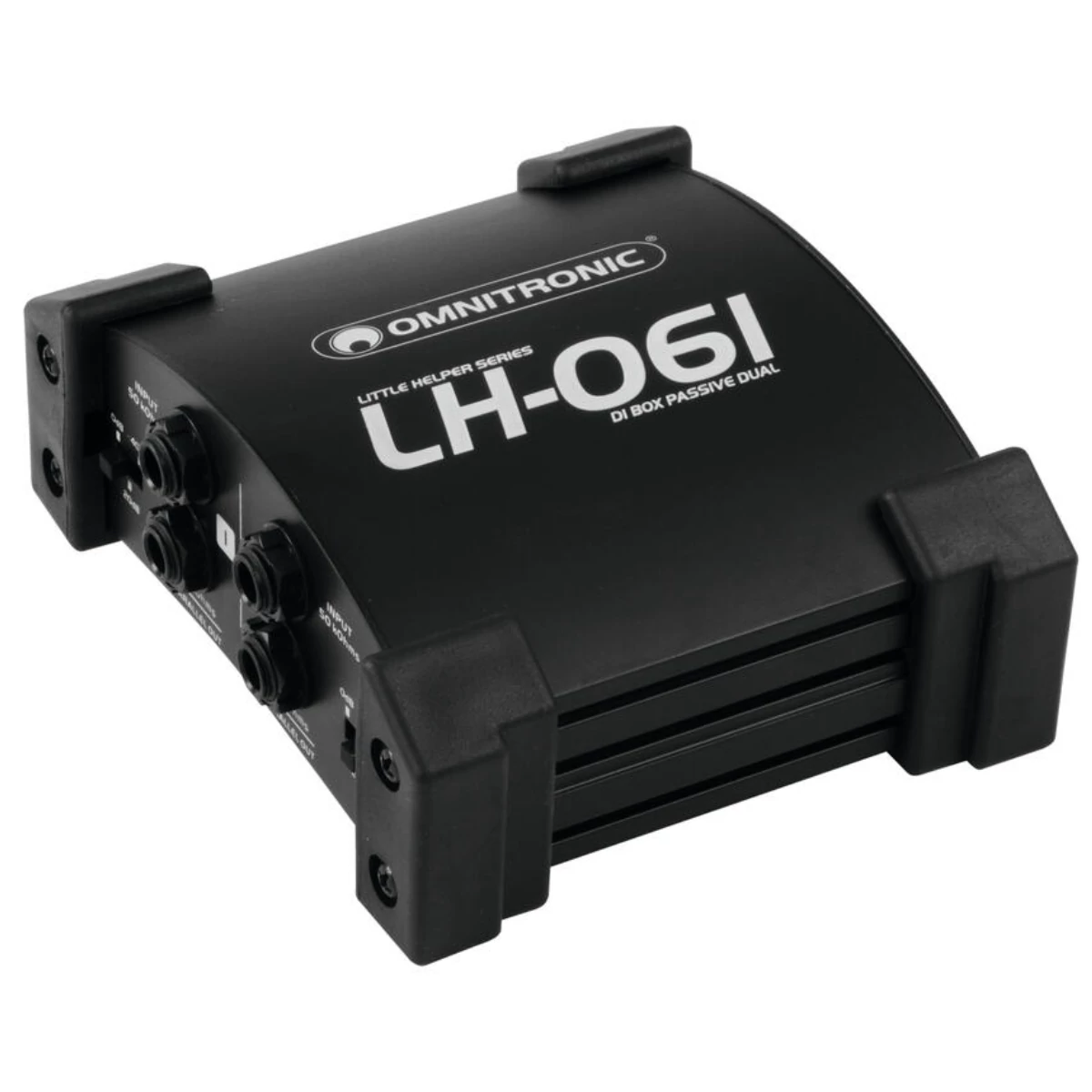

Passive 2-channel DI box/splitter, black
- 2 high-impedance signal inputs via two 6.3 mm jacks
- 2 low-impedance XLR outputs
- Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Cables can be routed under the housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x user manual
- 1 x device
Manuals
ManualsParaméterek
| Frequency range | 15 - 30000 Hz |
| Impedance | Input:50 kOhm |
| Output | 600 Ohm |
| Input attenuation | 0 dB, -20 dB, -40 dB; switchable |
| Control elements | Groundlift selector, Input sensitivity switch |
| Connections | Input:2 x 6.3 mm jack socket (mono) mounting version |
| Output | line via 2 x 3-pin XLR |
| Link | 2 x 6.3 mm jack socket (mono) mounting version |
| Max. level | Output:+6 dBu |
| Color | Black |
| Dimensions | Width:13.3 cm |
| Depth | 11.5 cm |
| Height | 5.4 cm |
| Weight | 0.61 kg |
