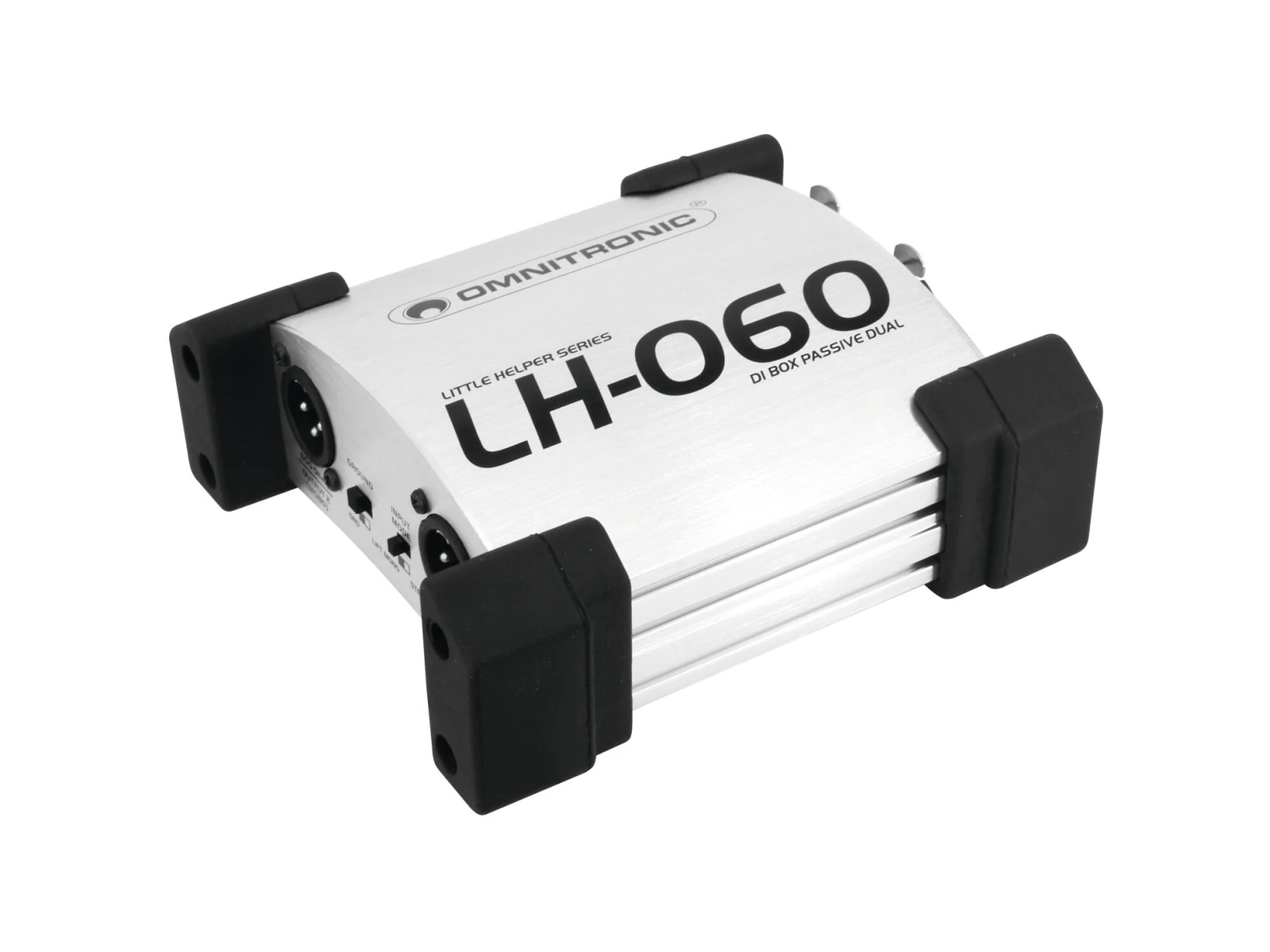

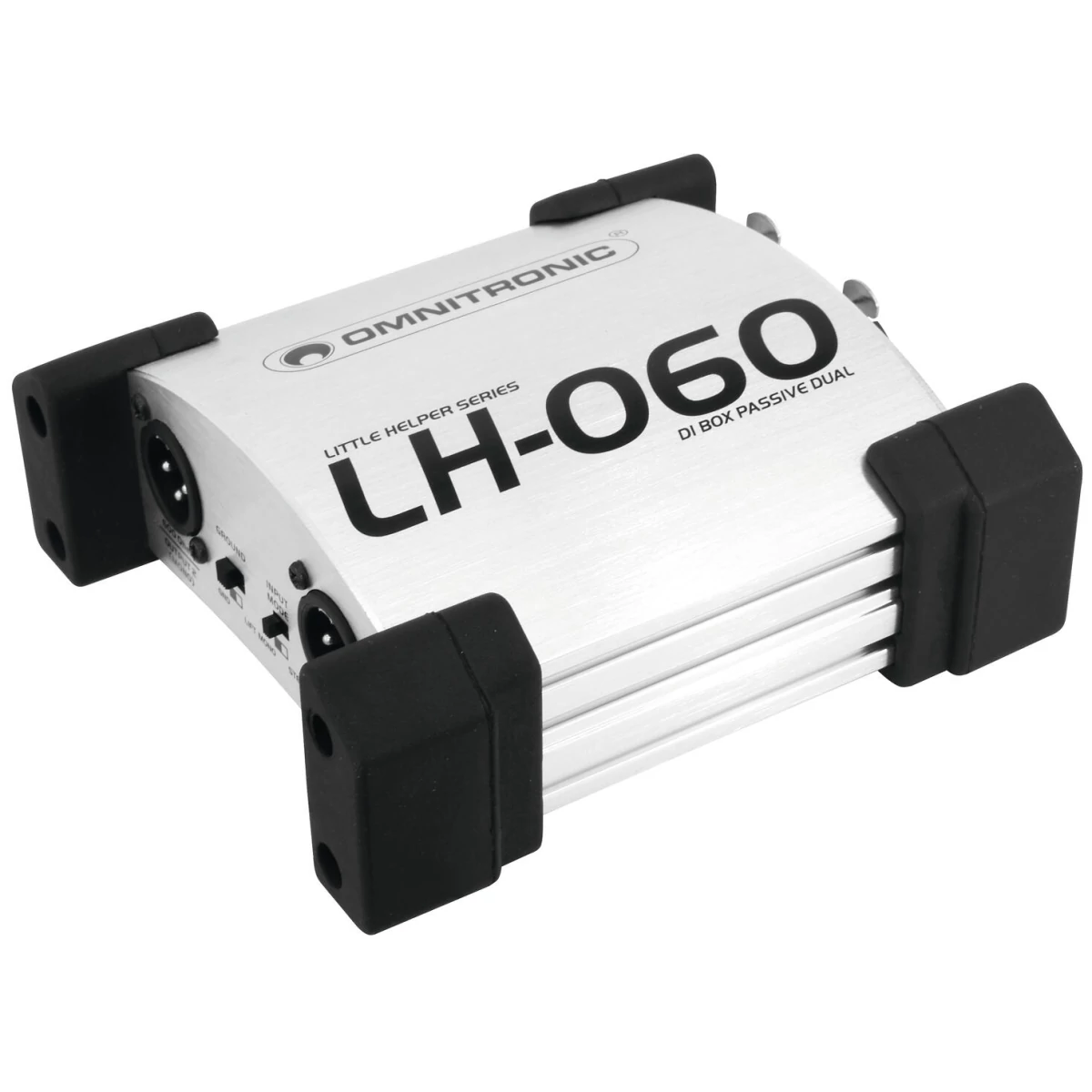

Passive 2-channel DI box/splitter, silver
- 2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)
- 2 low-impedance XLR outputs
- Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
- Switchable to split mode (input 2 routes the signal to both outputs)
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Cables can be routed under the housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x device
- 1 x user manual
Manuals
ManualsParaméterek
| Frequency range | 15 - 30000 Hz |
| Impedance | Input:50 kOhm |
| Output | 600 Ohm |
| Input attenuation | 0 dB, -20 dB, -40 dB; switchable |
| Housing color | Silver |
| Control elements | Groundlift selector |
| Connections | Input:2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Output | line via 2 x 3-pin XLR |
| Max. level | Output:+6 dBu |
| Dimensions | Width:15 cm |
| Depth | 13 cm |
| Height | 6 cm |
| Weight | 0.65 kg |
