Leírás

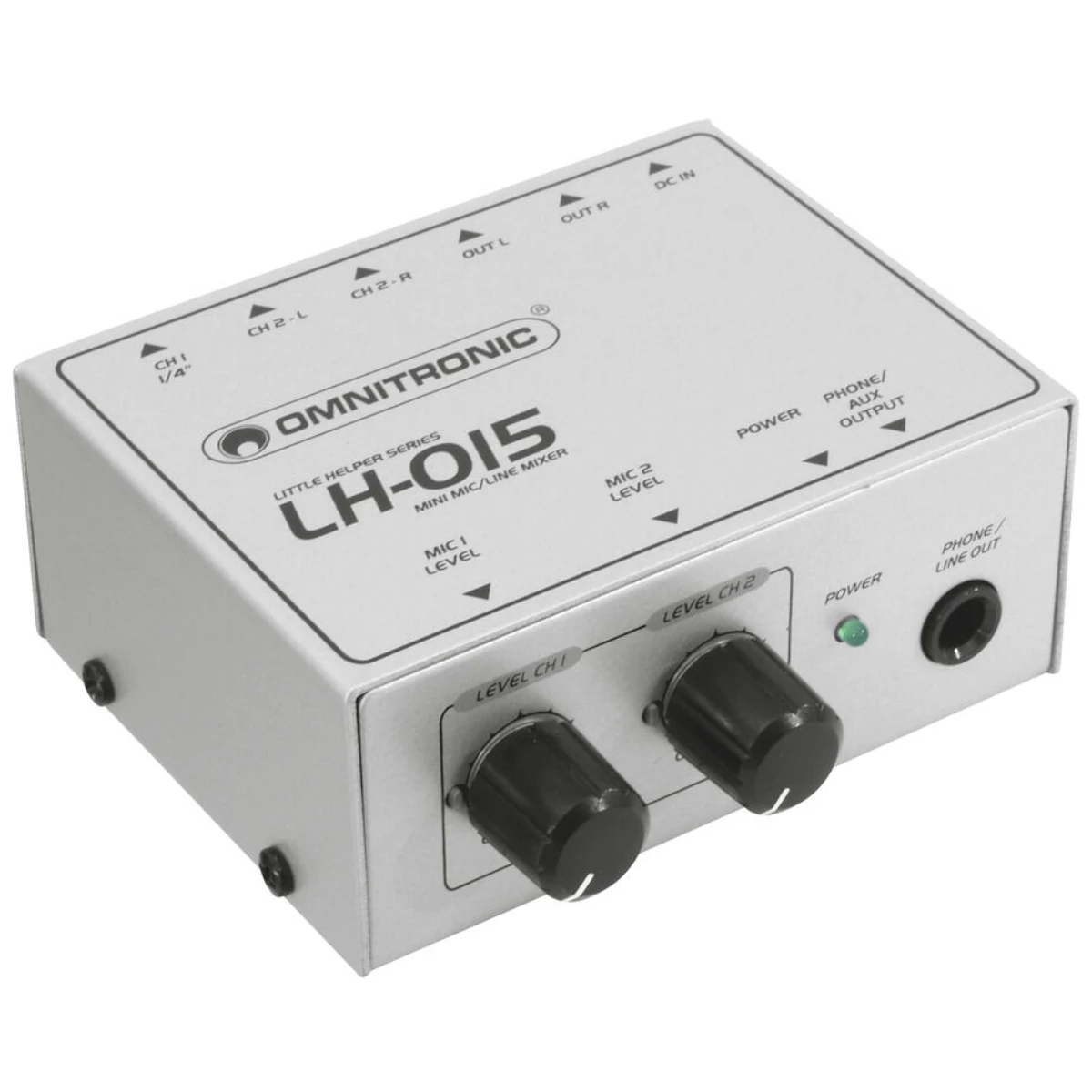

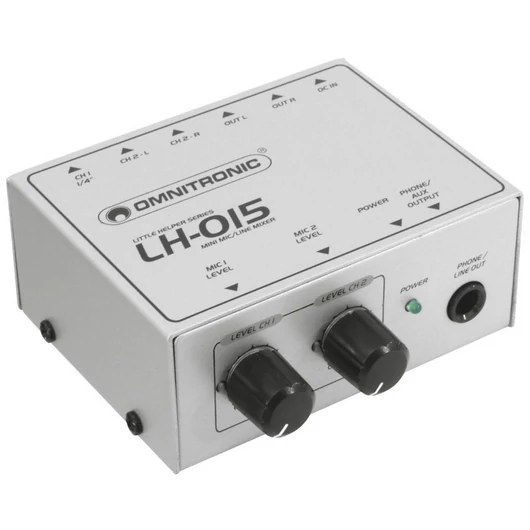

2-channel miniature mic/line mixer
- Distributes the signal of 2 audio sources (microphones, instruments or line level units) to 1 mono output
- 1 mono mic/line input (6.3 mm jack) with separate level control
- 1 stereo line input (RCA) input with separate level control
- 2 mono master outputs (RCA and 6.3 mm jack) e.g. for PA amplifier, mixer and headphones
Scope of delivery
- 1 x user manual
- 1 x external mains adapter
- 4 x foot
- 1 x mixer
Manuals
ManualsParaméterek
| Power supply | 12V 150 mA |
| Power connection | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >100 dB |
| Impedance | Input:microphone 10 kOhm |
| Input | line 20 kOhm |
| Output | 50 Ohm |
| Gain | Microphone 32 dB |
| Line 20 dB | |
| Dimensions | Width:9.5 cm |
| Depth | 7.3 cm |
| Height | 4 cm |
| Weight | 0.50 kg |
