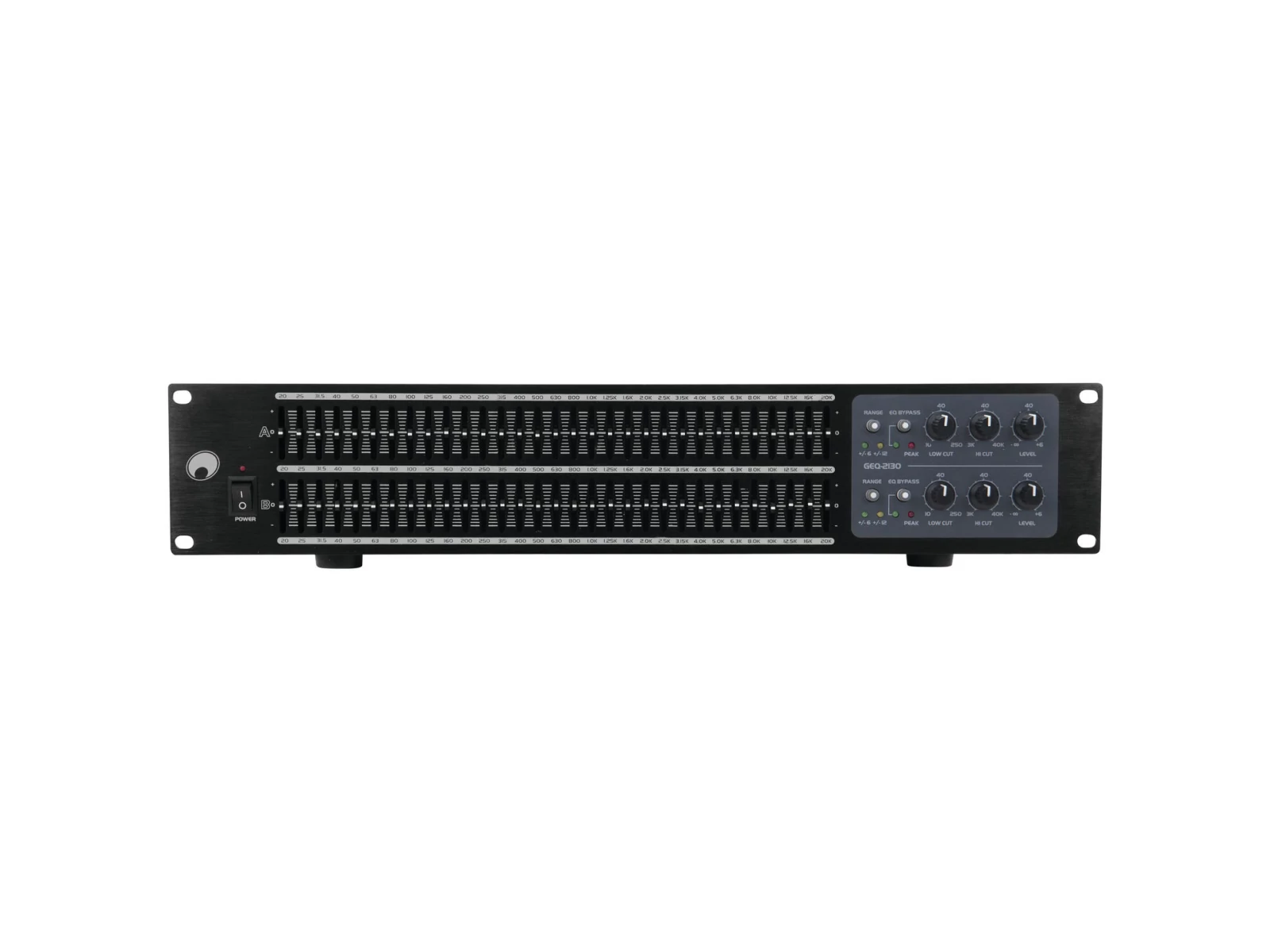

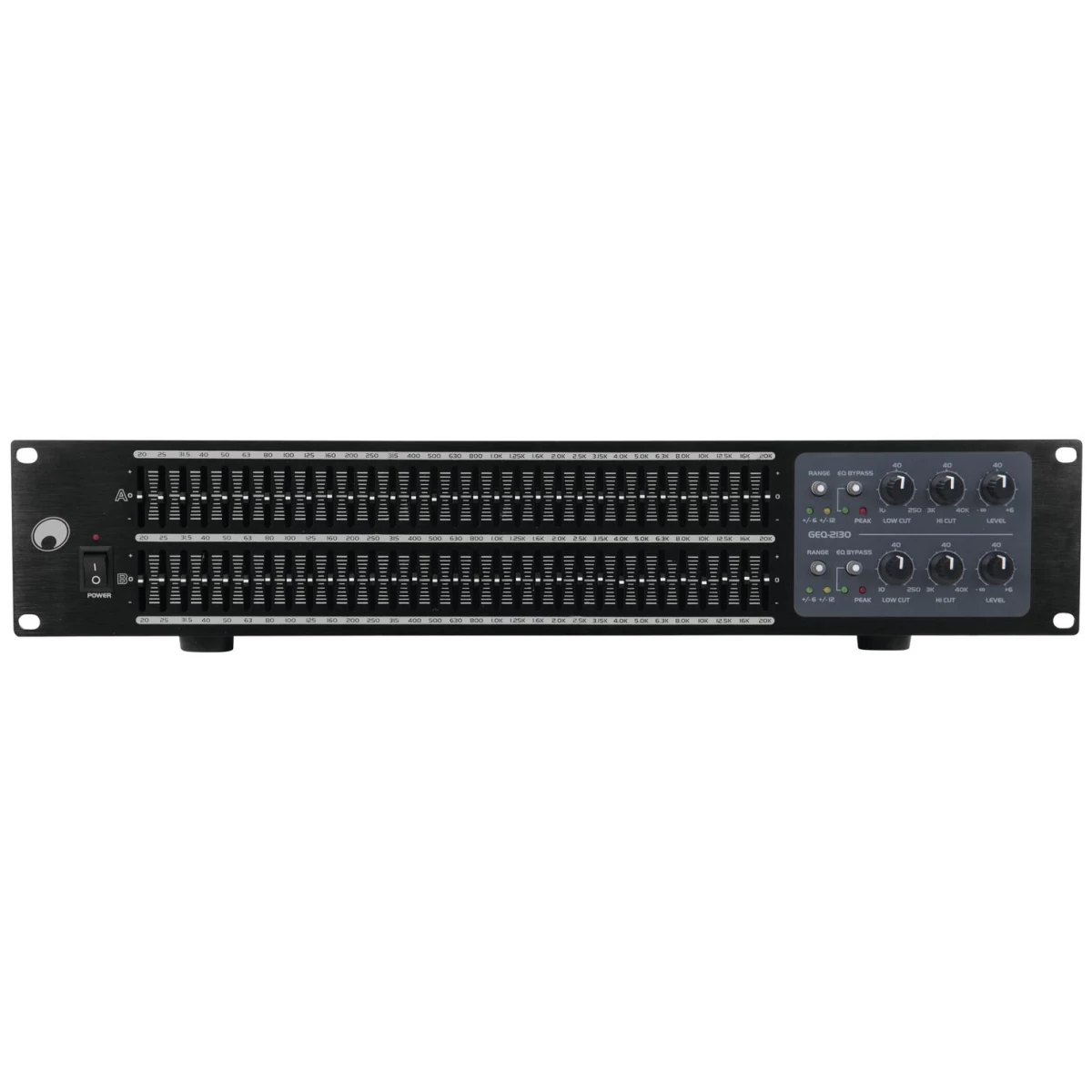

OMNITRONIC GEQ-2310 Equalizer 2x31-Band

75.900 Ft 63.900 Ft (50.315 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 2 év garancia
Raktárkészlet: Raktáron
Cikkszám: 10355526
Jelölje be azokat a kiegészítő termékeket, amiket még a kosárba szeretne tenni!
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

1 x graphic equalizer 31-band

  • 2-channel version, 2 x 31 frequency controls with 1/3 octave steps
  • Long sliding frequency controls with center click
  • EQ gain switchable ±6 dB to ±12 dB
  • Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), adjustable
  • Separate level control per channel
  • Bypass switch allows instant comparison of original sound with processed sound
  • Inputs and outputs via 6.3 mm jack sockets and XLR sockets
  • (19") 48.3 cm rack installation 2 U


Scope of delivery
  • 1 x device
  • 1 x power cord
  • 1 x user manual

Manuals

Manuals

Paraméterek

Power supply 230 V AC, 50 Hz
Power consumption 17 W
Protection class Protection class I
Power connection Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable construction 3 x 0.75 mm² H05VV-F
Frequency range 20 - 20000 Hz
THD <0.05 % at 1 kHz
Impedance Input:20 kOhm , bal.
Input 15 kOhm , unbal.
Output 300 kOhm , bal.
Output 150 kOhm , unbal.
Filter Low cut:10 Hz - 250 Hz; hi cut:3000 Hz - 40000 Hz
Control range ±6dB, ±12dB, switchable
Housing color Black
Control elements Power switch, groundlift selector, tone control, range-switch, Bypass switch; hi-cut control, low-cut control, level control per channel
Connections Input:line via 2 x 3-pin XLR (F) mounting version
Input line via 2 x 6.3-mm-jack (bal.)
Output line via 2 x 3-pin XLR (M) mounting version
Output line via 2 x 6.3-mm-jack (bal.)
Equalizer Master:1 x graphic equalizer 31-band stereo
Centre frequency ISO standard, 1/3 octave (terzband), 20/25/31.5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800 Hz, 1/1.25/1.6/2/2.5/3.15/4/5/6.3/8/10/12.5/16/20 kHz
Max. level Input:+24 dBu, bal.
Input +18 dBu, unbal.
Output +24 dBu, bal.
Output +18 dBu, unbal.
Housing design (19") 48.3 cm rack installation 2 U
Mounting depth 13 cm
Dimensions Width:48.3 cm
Depth 15 cm
Height 8.9 cm
Weight 2.92 kg
