Microphone line mixer, 6 mono channels + 3 stereo channels

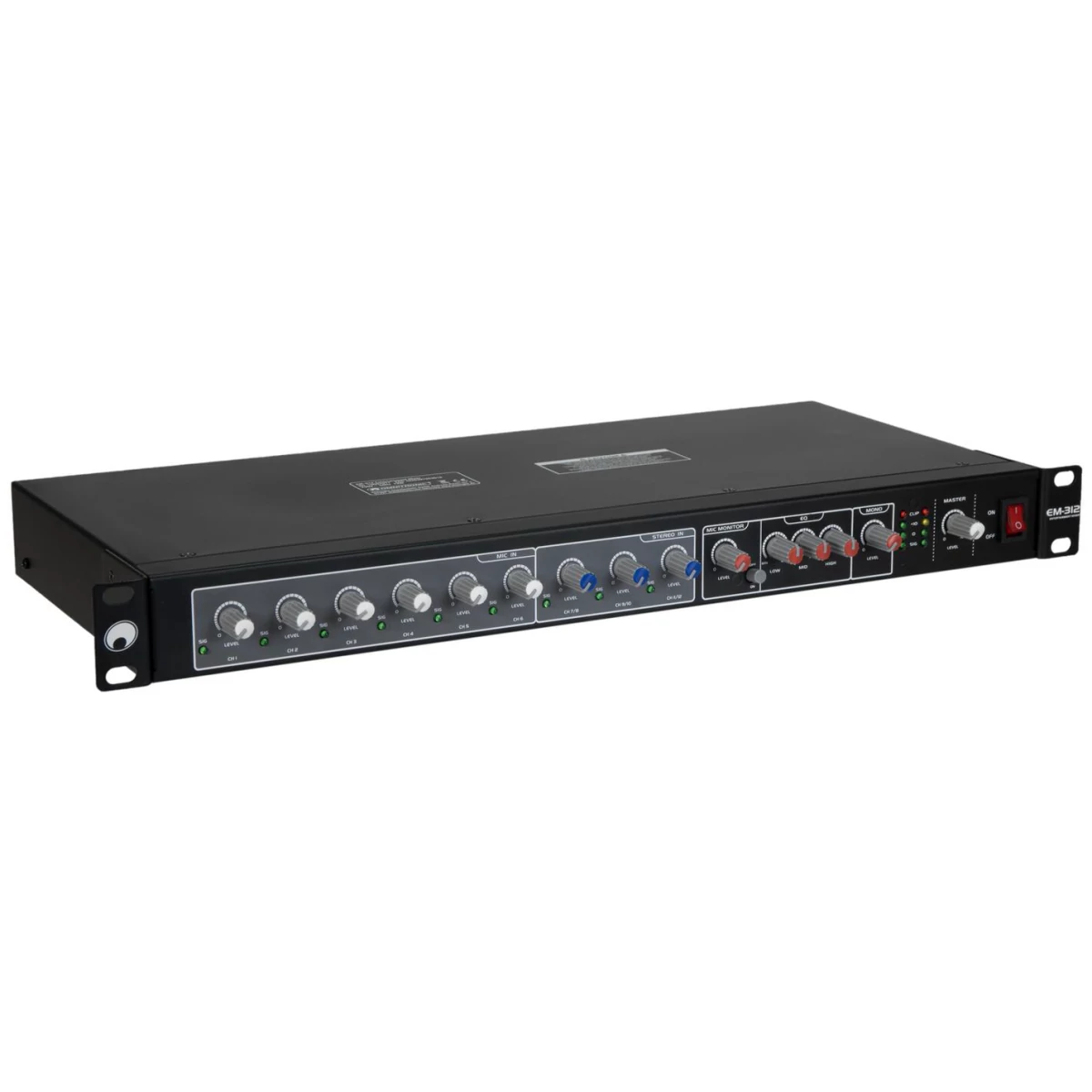

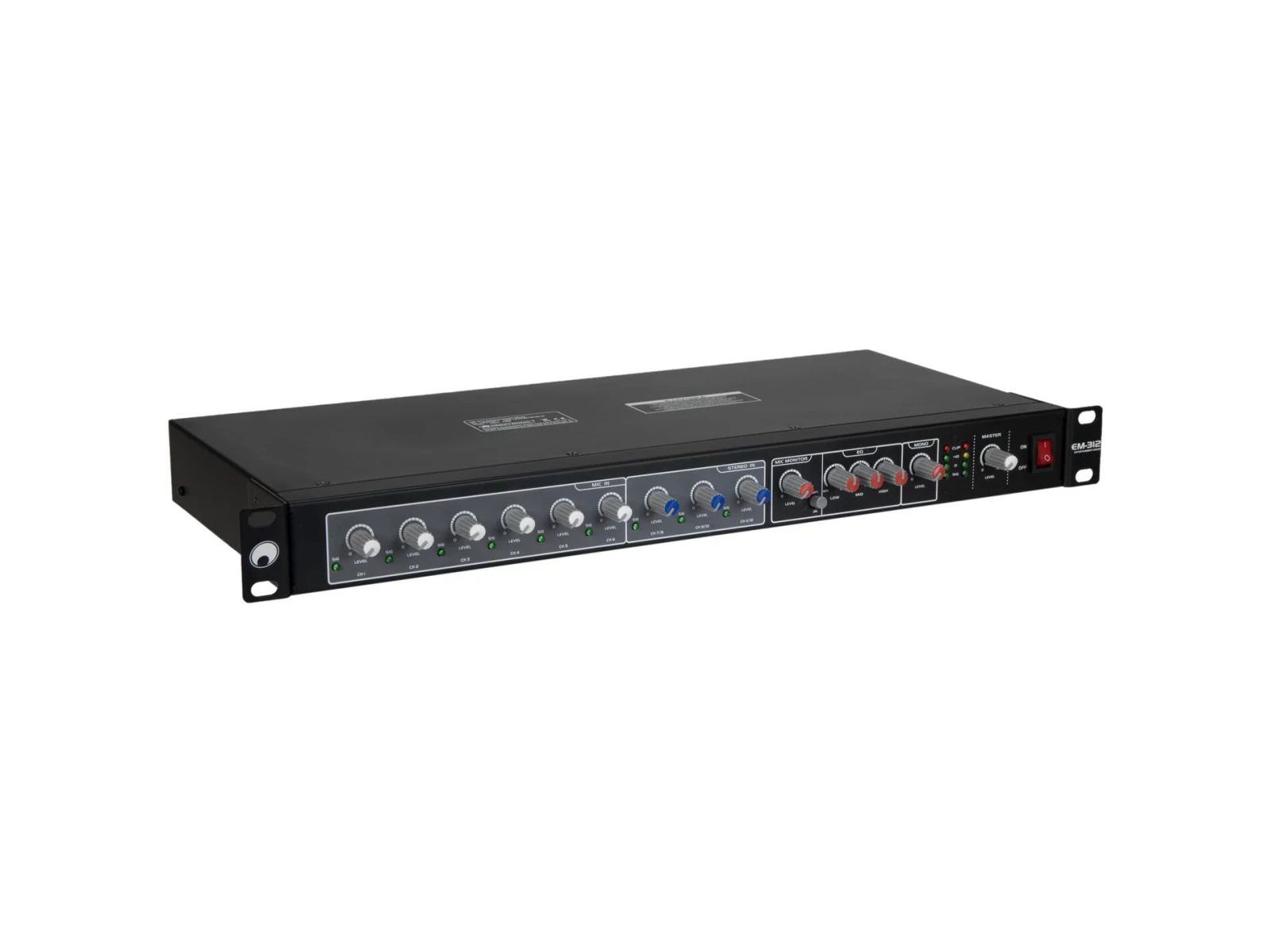

The EM-312 is a slim rack-mounted 12-channel mixer with 6 mic/line combo inputs and 6 additional line inputs. It has XLR outputs, a 6.3 mm mono output, a stereo RCA recording output, and a 6.3 mm monitoring output for the mic section. The EM-312 offers separate volume controls for all inputs in addition to volume control for the mono output and a master volume control. It has a 3-band equalizer and an adjustable priority function for microphone announcements through channel 1.
- 6 mono mic/line input channels (combo jack), switchable
- 3 stereo line input channels (RCA)
- Phantom power can be switched on for each microphone input
- All input channels with separate level controls and signal LED
- Adjustable priority circuit for channel 1
- Balanced stereo XLR outputs and RCA outputs
- Adjustable monitor output
- Adjustable mono line output (6.3 mm jack)
- Master level control, 4-digit stereo LED level meter and 3-band equalizer
- Additional screw terminals for 24 V DC power input
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
Scope of delivery
- 1 x device
- 1 x power cord
- 4 x foot
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Or | |
| 24V DC | |
| Power consumption | 12 W |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Mains input via screw terminal | |
| Device fuse | 5 x 20 mm, T 0.5 A fuse replaceable |
| Frequency range | 20 - 22000 Hz |
| S/N ratio | >103 dB |
| THD | <0.03 % at 1 kHz |
| Phantom power | 18 V DC or 21 V DC |
| Impedance | Input:mic/line 1.4 kOhm |
| Input | line 10 kOhm |
| Output | 120 Ohm |
| Control elements | Power switch, Input sensitivity switch, tone control, level control per channel, Master control |
| Status LED | Power, signal, master level meter, clip |
| Connections | Input:mic/line via 6 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | line via 3 x stereo RCA |
| Output | master via 2 x 3-pin XLR |
| Output | mono via 1 x 6.3 mm jack socket (mono) mounting version |
| Output | rec. via 1 x stereo RCA |
| Channels | Input channel:6 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial, 3-band tone control EQ 80Hz/2.5kHz/12kHz, Input sensitivity switch |
| Input channel | 3 x stereo via RCA, channel control via rotary dial, 3-band tone control EQ 80Hz/2.5kHz/12kHz |
| Master output | 1 x stereo via XLR, channel control via rotary dial |
| Master output | 1 x mono via jack, channel control via rotary dial |
| Max. level | Input:microphone -19 dBu |
| Input | line +21 dBu |
| Output | +21 dBu |
| Color | Black |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48.3 cm |
| Depth | 23 cm |
| Height | 4.45 cm |
| Weight | 3.04 kg |
