6-channel microphone/line mixer

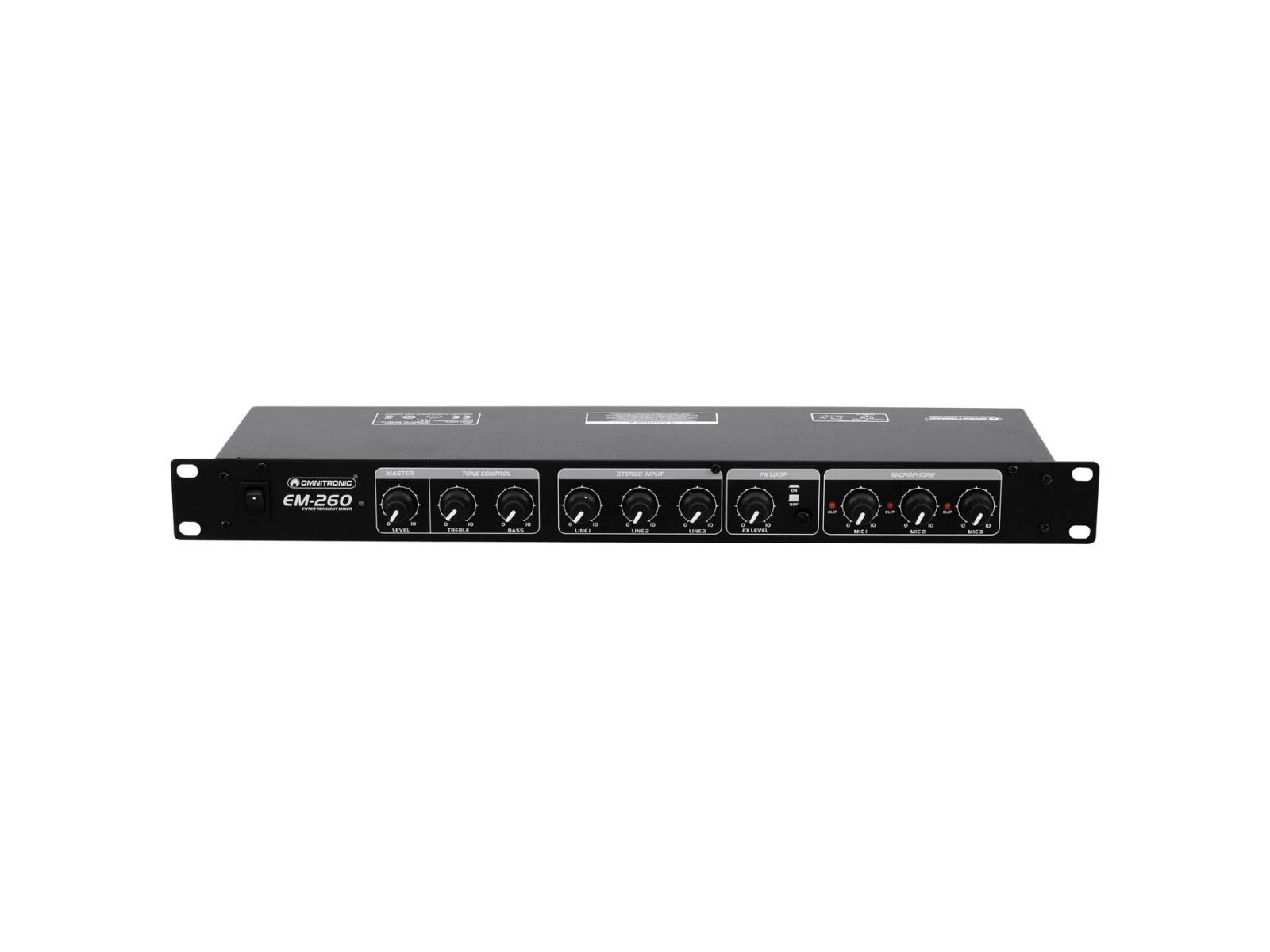

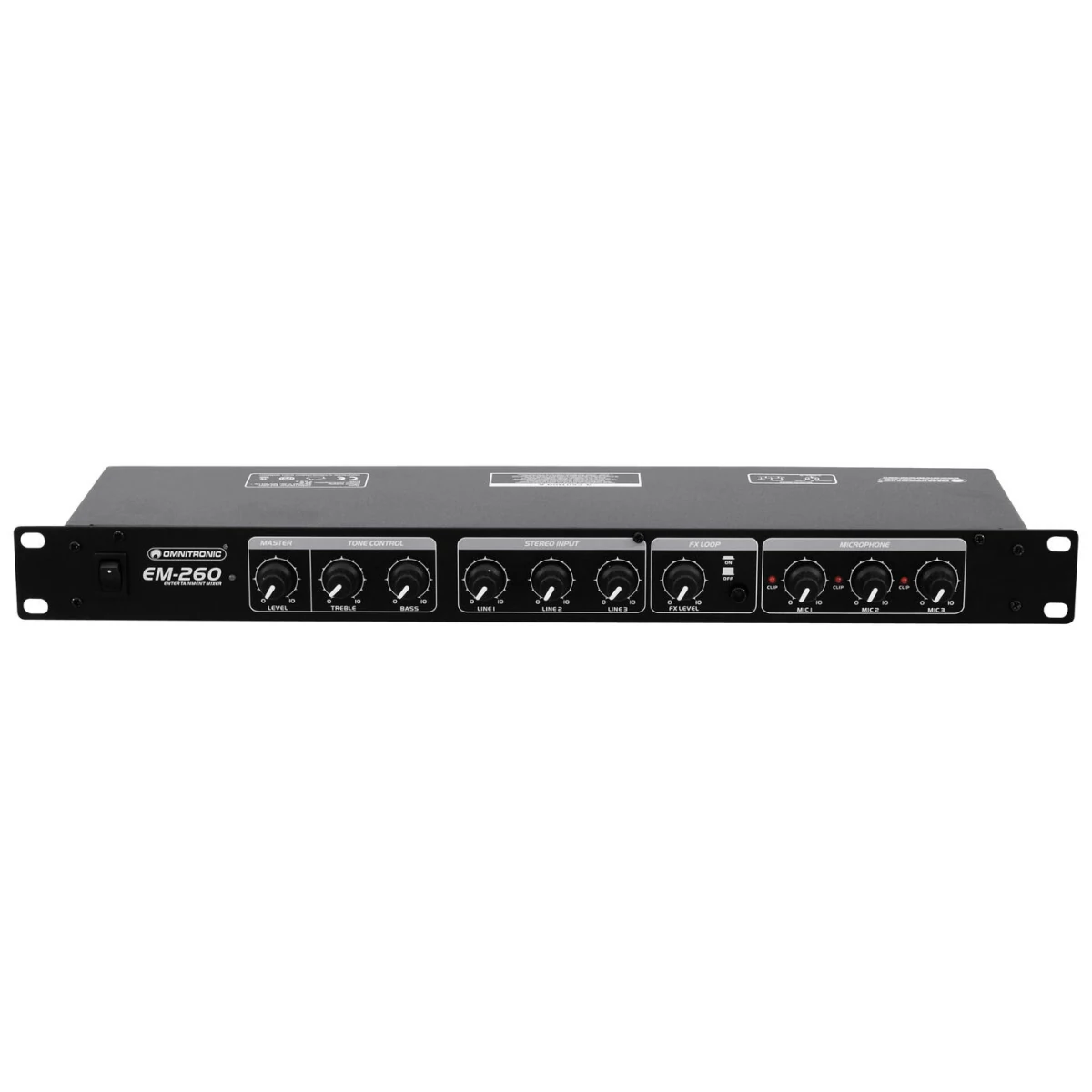

Mixer for microphone and line sourcesThe perfect tool for your karaoke party: With the Omnitronic EM-260B Entertainment Mixer you mix 3 microphone and 3 line sources to one stereo output - in an very simple way. Installing the mixer is easy as well, thanks to the small dimensions you are flexible.Design clearly arrangedEven if you are a beginner, you can operate the mixer very easily. As it is clearly structured, you won't get lost. Each channel has a clip LED. The microphone inputs show optional 12 V phantom power. The unit is perfectly suited for bar, restaurant or club house installation.Effects an recording sessionsWith the FX send/return (with FX level control) you can cut in effects to support your voice. Record singing sessions by using the record output.
- 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
- Ideal e.g. for karaoke when microphones need to mixed with CDs
- 3 mono input channels mic/line (XLR, bal.), switchable
- 3 stereo line input channels (RCA)
- Clip LED for each microphone channel
- Each microphone input with optional 12 V phantom power
- FX send/return with FX level control
- Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
- Stereo record output (RCA)
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
Scope of delivery
- 1 x device
- 1 x power cord
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 115/230 V AC, 50/60 Hz |
| Power consumption | 5 W |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range | 20 - 20000 Hz |
| Phantom power | 12 V DC |
| Housing color | Black |
| Control elements | Phantom power switch, power switch, FX send/returne control |
| Status LED | Power, clip |
| Connections | Input:mic/line via 3 x 3-pin XLR |
| Input | line via 3 x stereo RCA |
| Input | FX via 2 x 6.3 mm jack socket (mono) mounting version |
| Output | rec. via 1 x stereo RCA |
| Output | master via 2 x 6.3 mm jack socket (mono) mounting version |
| Output | FX via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels | Input channel:3 x stereo via RCA, channel control via rotary dial, 2-band tone control EQ 100Hz/10kHz |
| Microphone channel | 3 x mono with mic-line switch via XLR, channel control via rotary dial |
| Master output | 1 x stereo via jack, channel control via rotary dial |
| Max. level | Input:microphone +14 dB |
| Input | line +24 dB |
| Material | Metal |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48.3 cm |
| Depth | 12.3 cm |
| Height | 4.45 cm |
| Weight | 2.30 kg |
