Leírás

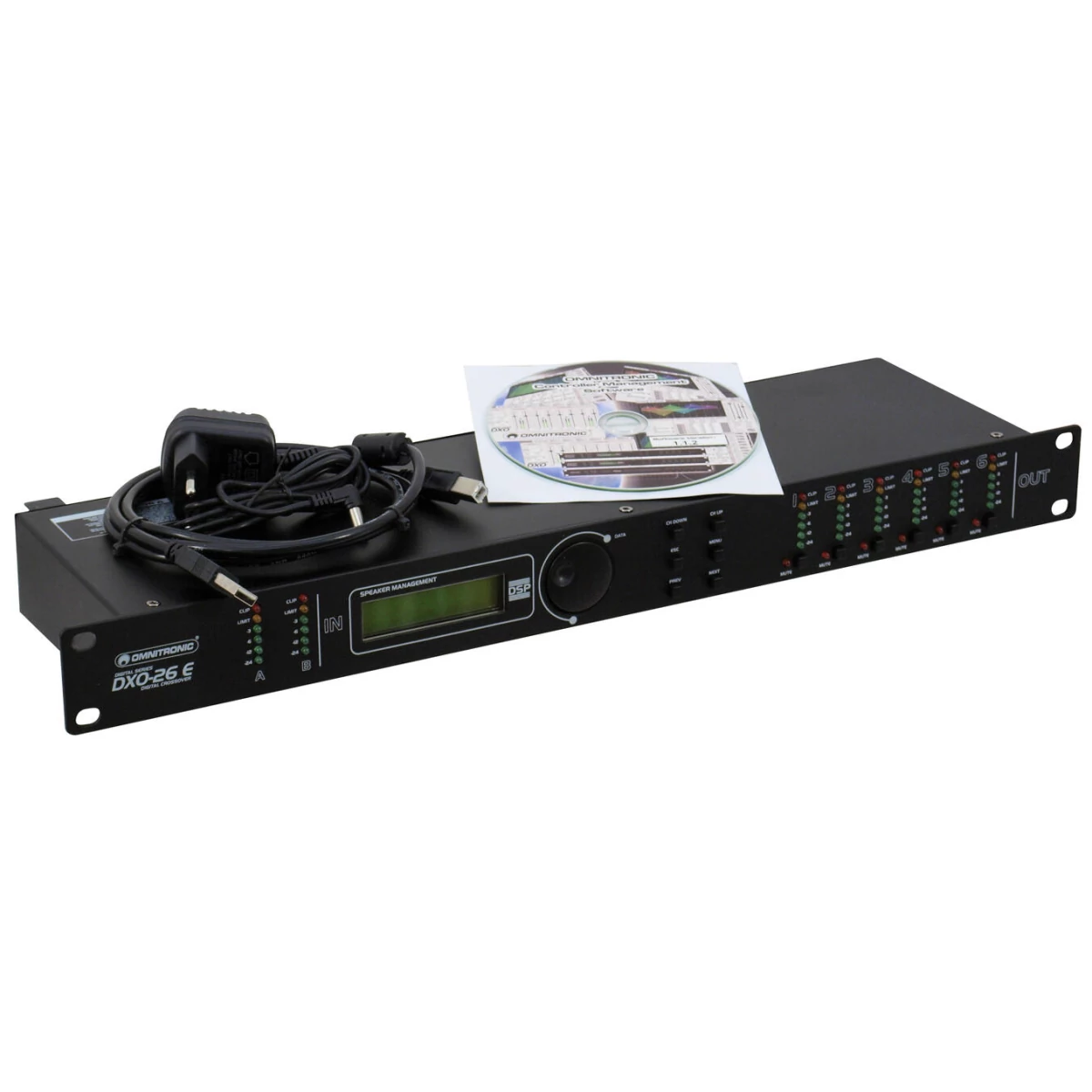

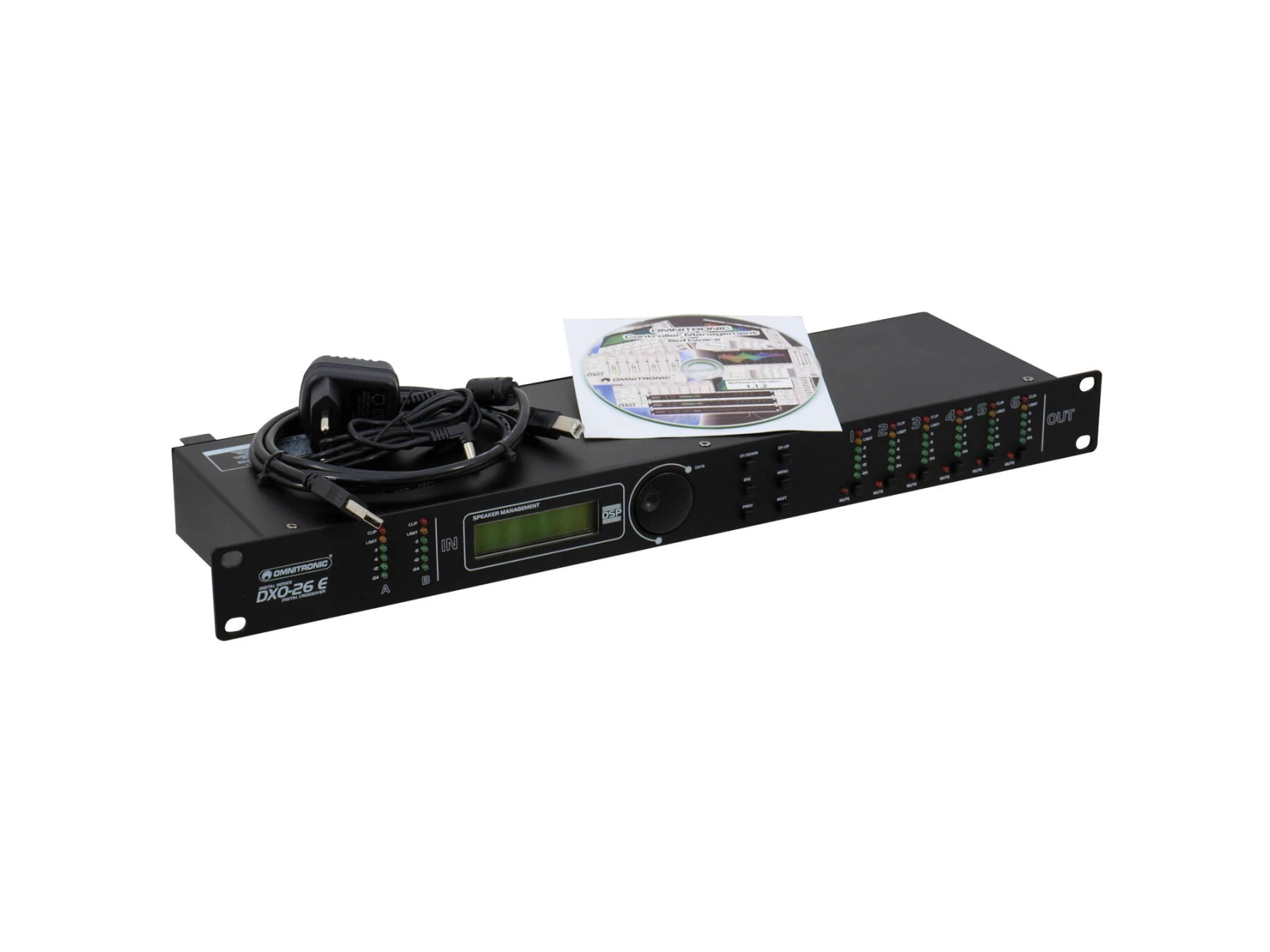

Digital Speaker Management System with 2 inputs and 6 outputs, incl. software
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 6 analog outputs (XLR)
- Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
- Up to 30 user presets storable in the device via software
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase
- Lock function for prevents undesired changes to settings
- Sample rate: 67 kHz
- (19") 48.3 cm rack installation 1 U
- Digital signal processor
- Monochrome LCD display
- The device can be connected via USB to the PC in connection with DXO Software
firmware can be updated - Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
- For application areas such as: Clubs/dancing school; installation; mobile djs / entertainer; restaurants, bars and hotels; rental
Scope of delivery
- 1 x controller
- 1 x user manual
- 1 x USB cable

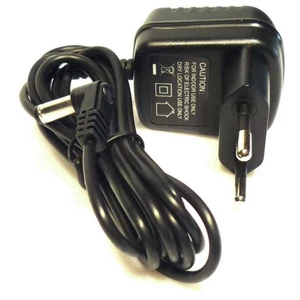

- 1 x external mains adapter
- 4 x foot
- 1 x CD
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| 6V 800 mA | |
| Protection class | Protection class III |
| Power connection | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Frequency range | 10 - 30000 Hz |
| THD | <0.005 % at 1 kHz |
| DSP | Digital signal processor |
| Impedance | Input:10 kOhm |
| Output | 50 Ohm |
| Gain | Output:-50 dB to +12 dB |
| Filter | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct |
| Delay | 0 - 5 ms |
| Dynamic range | Input:114 dB |
| Output | 110 dB |
| Sample rate | 67 kHz |
| Display type | Monochrome LCD display |
| Control elements | Mute control, encoder, navigation keys |
| Status LED | Limit, clip, level meter, Mute |
| Connections | Input:line via 2 x 3-pin XLR |
| Output | line via 6 x 3-pin XLR |
| Crossover frequency | 20-20000 Hz |
| Max. level | Input:+22 dBu |
| Output | +9 dBu |
| USB port | Type B |
| Color | Black |
| PC connect | DXO Software via USB, firmware can be updated |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48.3 cm |
| Depth | 12.8 cm |
| Height | 4.45 cm |
| Weight | 1.77 kg |
| Operating system | Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better |
