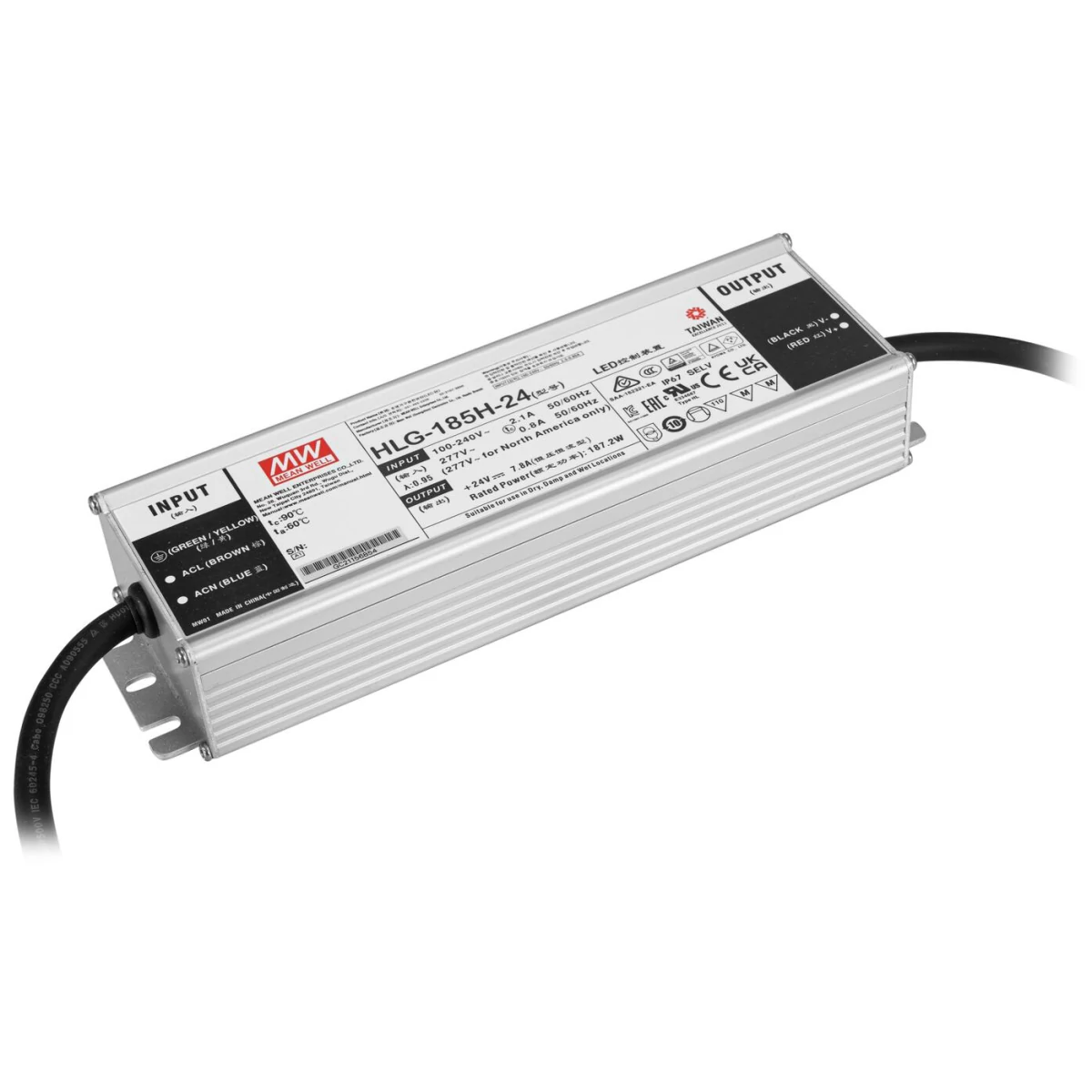

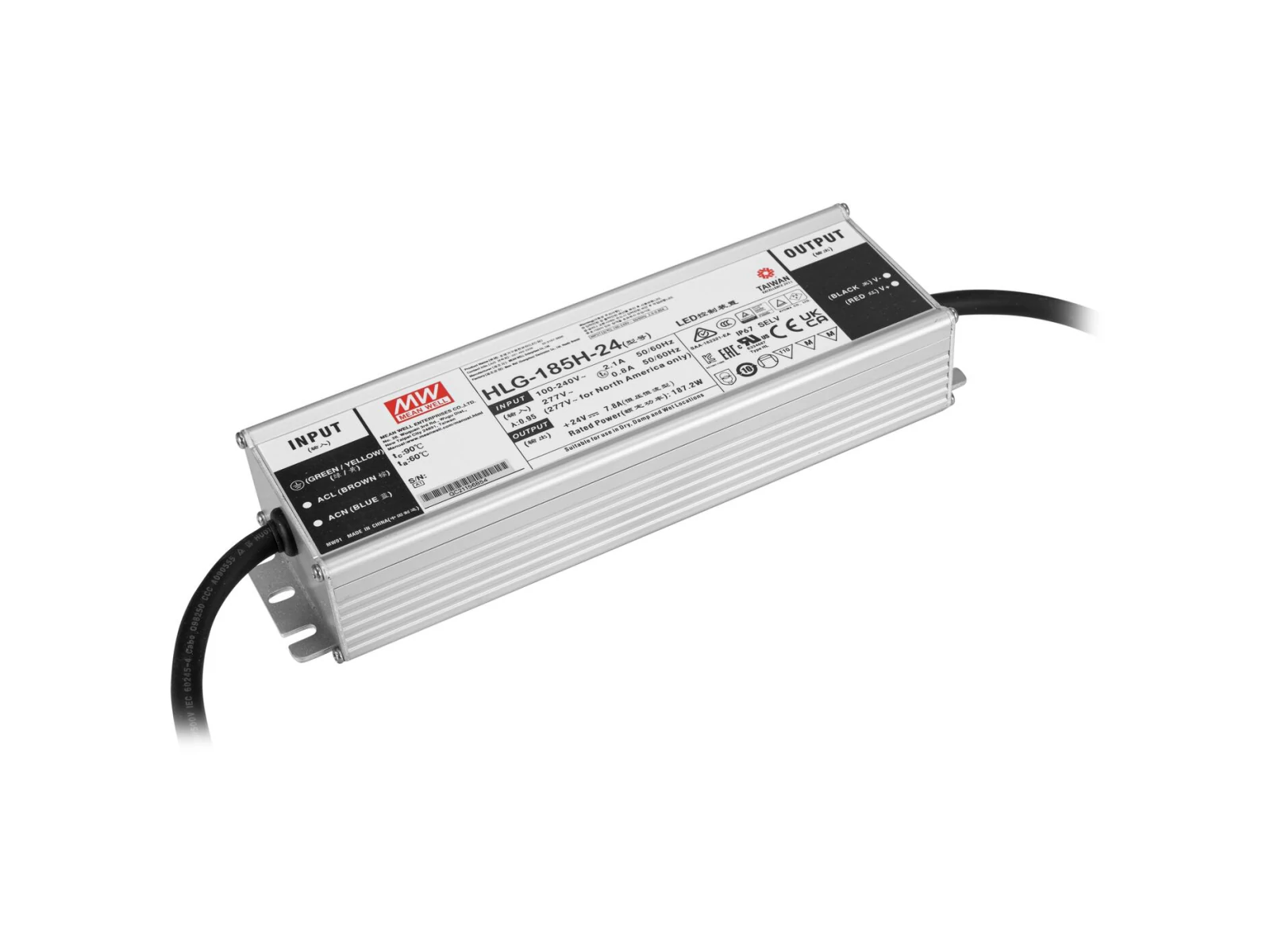

LED switching power supply IP67, 187 W / 24 V DC / 7.8 A
- Constant voltage, constant current
- Especially for LED lighting installations with high power requirements
- Full-range AC input
- Low-noise according to EMC standard EN 61000-3-2 class C
- Built-in active PFC filter
- Overload protection by shutdown, auto recovery
- Rugged metal housing
- MEANWELL Power supply
- Suitable for outdoor use IP67
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
- 1 x external mains adapter
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| IP classification | IP67 |
| Protection class | Protection class I |
| Power connection | Fixed supply cord with open wires |
| Cable construction | 3 x 1.0 mm² H05RN-F; 2 x 1.04 mm² H05RN-F |
| Cable length | 0.25 m |
| Plug A | 1 x no connector/cable only |
| Plug B | 1 x no connector/cable only |
| Housing color | Silver |
| Controls | Overheat; overload; Overvoltage; short-circuit |
| Output | 24 V DC; 7.8 A; 187 W |
| Use of brands | MEANWELL Power supply |
| Material | Aluminum |
| Dimensions | Length:22.8 cm |
| Width | 6.8 cm |
| Height | 3.88 cm |
| Weight | 1.05 kg |
