Leírás

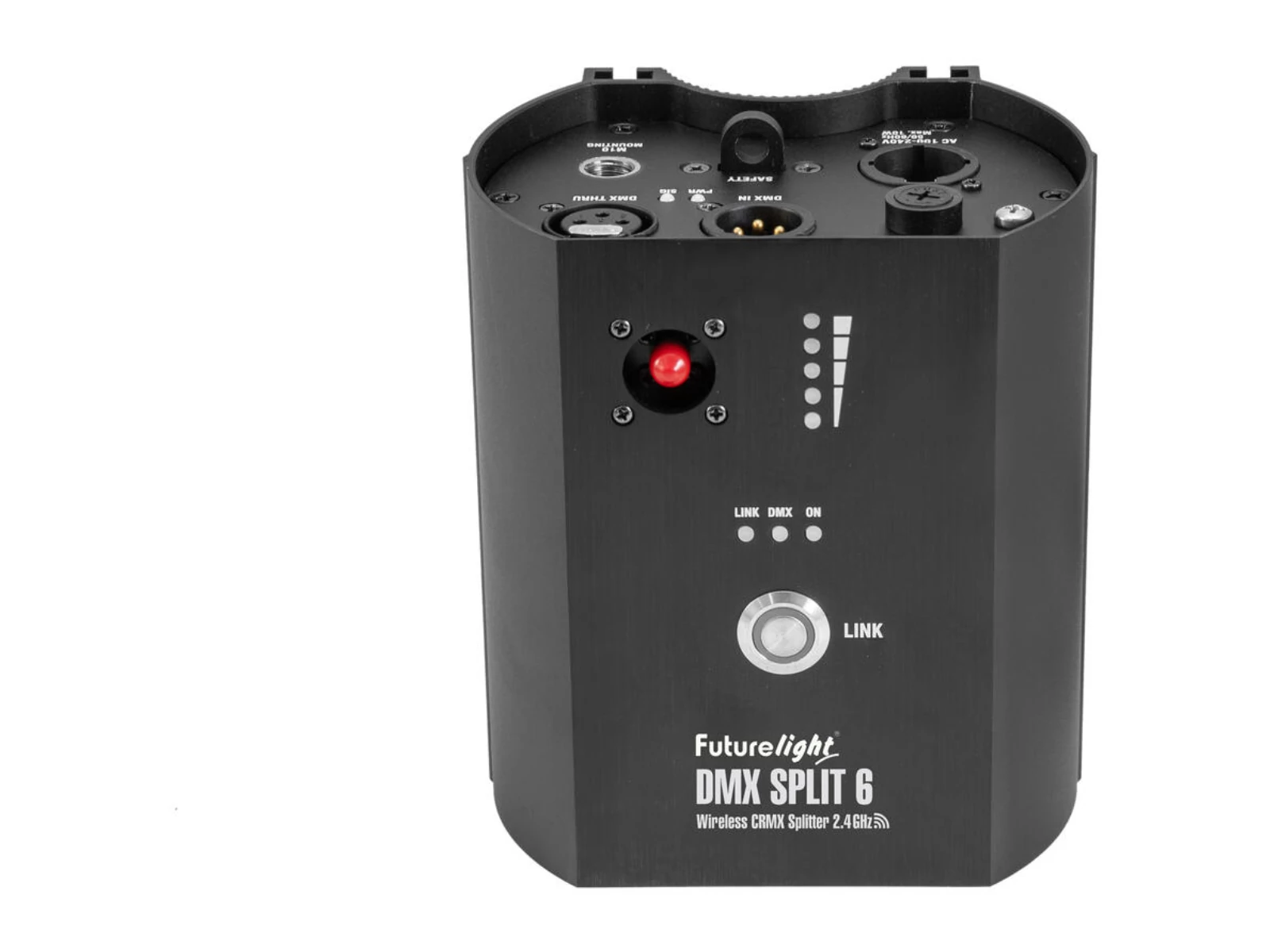

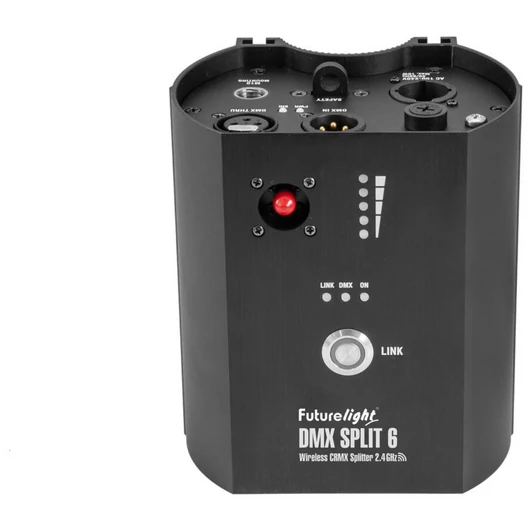

6-fold splitter and wireless DMX receiver (2.4 GHz) for truss and wall mounting
- DMX splitter for splitting one DMX input signal to 6 DMX outputs
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Input and outputs galvanically isolated
- Can transmit up to 512 DMX channels
- Each DMX output with active signal processing
- Control via DMX; CRMX by LumenRadio; W-DMX by wireless solution
- Operating range up to 500m with line-of-sight
- 2.4 GHz license-free worldwide
- Up to 10 transmitters can be operated in parallel without interference
- Ultra-low latency
- With Holder for wall mounting
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x antenna
- 1 x mounting bracket
- 2 x strap
- 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 10 W |
| Protection class | Protection class I |
| Power connection | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Fuse | 5 x 20 mm, F 1 A fuse replaceable |
| DMX channels | Output 512 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| 6 x 3-pin XLR (F) mounting version separate (galvanic) with active signal processing | |
| Control | DMX; CRMX by LumenRadio; W-DMX by wireless solution |
| Range | Up to 500m with line-of-sight |
| Frequency band | 2.4 GHz |
| Parallel mode | Max. 10 transmitter |
| Antenna gain | 5 dBi |
| Latency | < 5 ms |
| Modulation | GFSK |
| Housing color | Black |
| Attachment system | M10 thread |
| Holder for wall mounting | |
| Status LED | DMX, pairing, power, level meter |
| Dimensions | Length:13.7 cm |
| Width | 12.2 cm |
| Height | 11.2 cm |
| Weight | 1.20 kg |
