Leírás
Steel rope with loops, grouted without grummet thimbles

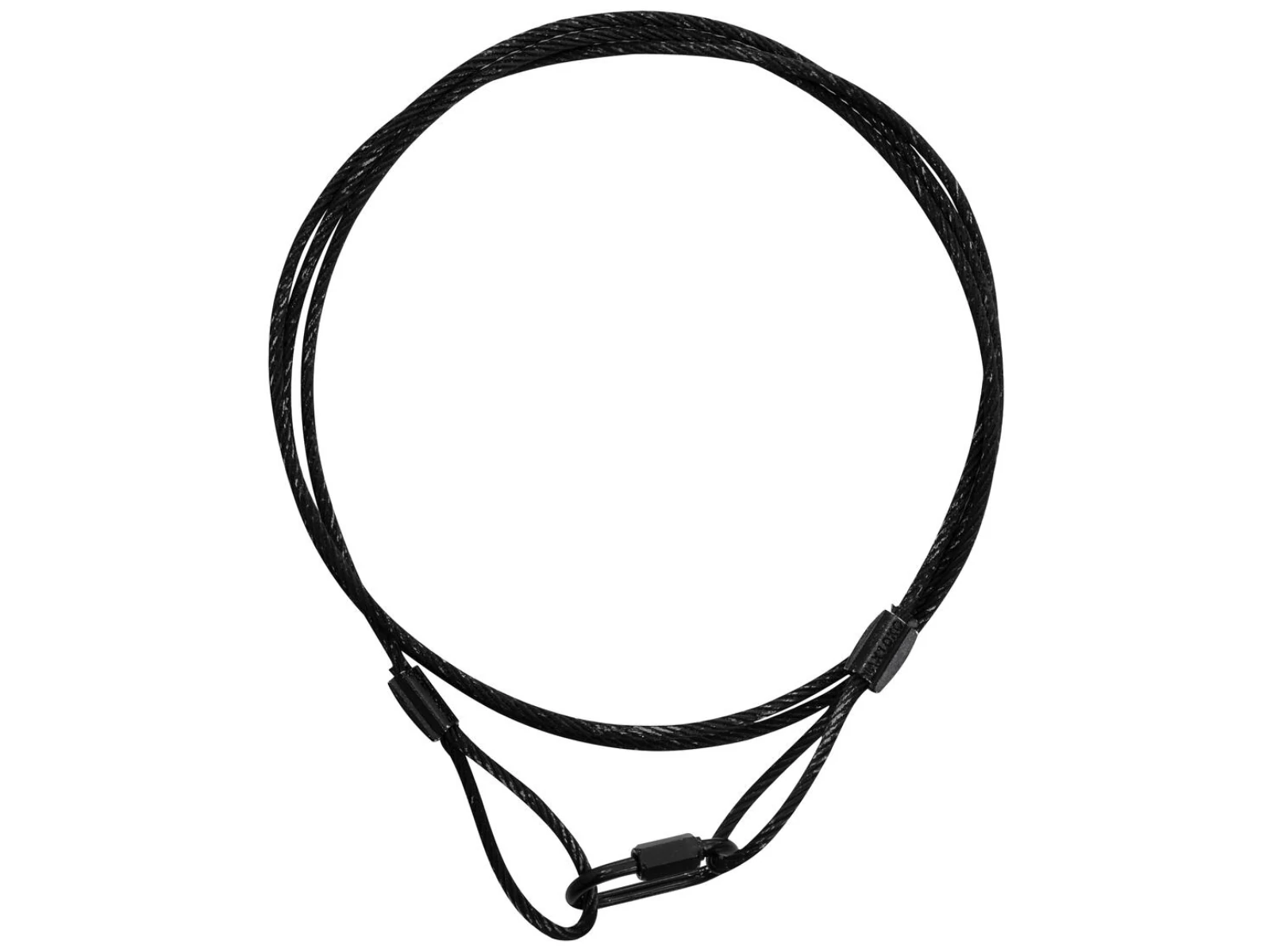

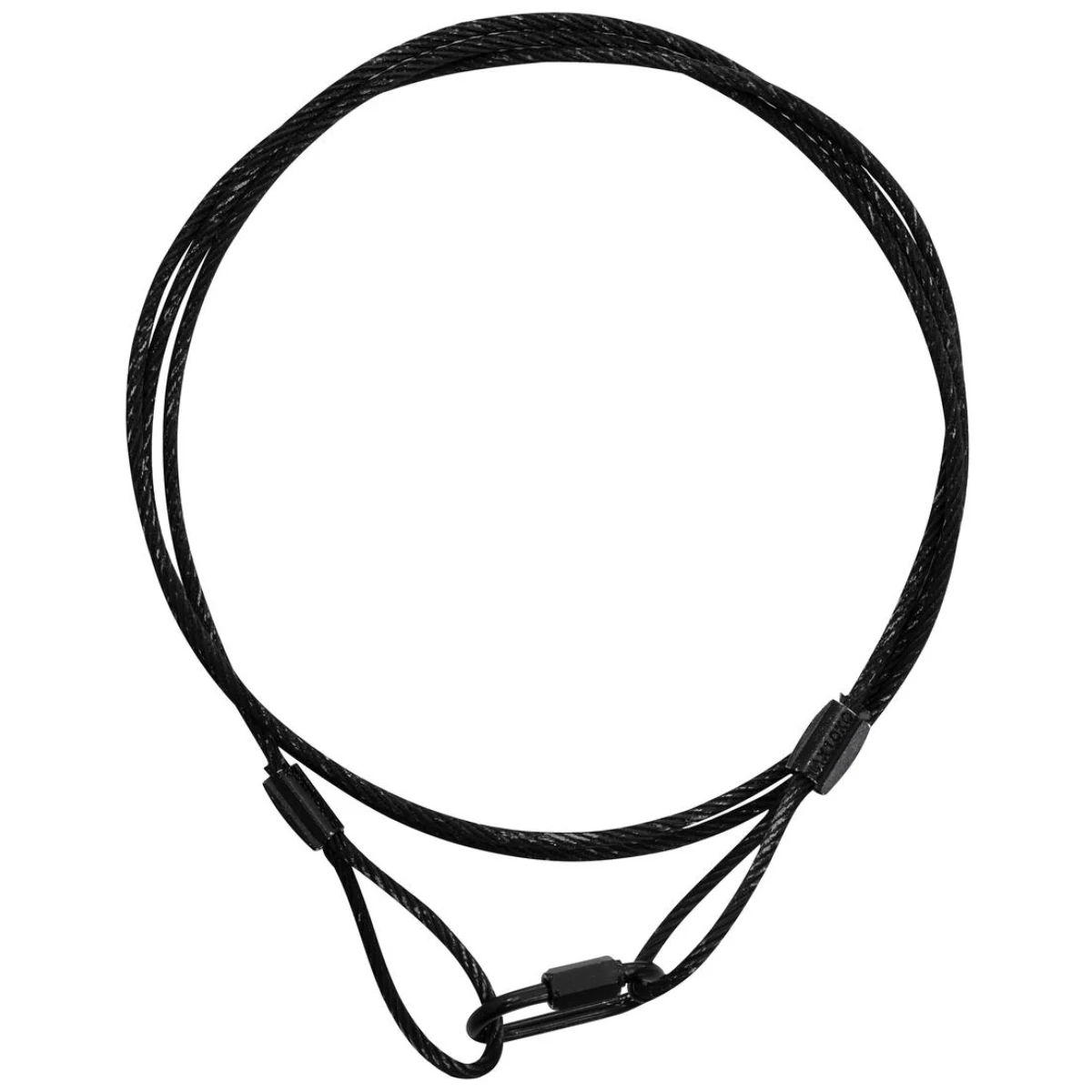

EUROLITE Steel Rope (SC) 900x3mm black without quick link
- With steel core
- Stopping rope for general lifting purposes
- Rope with loop
EUROLITE Quick Link Type A-200
Quick link
- Complies with DIN 56927:2009-03
Scope of delivery
Paraméterek
| Weight | 0.07 kg |
| EUROLITE Steel Rope (SC) 900x3mm black without quick link | |
| Maximum load WLL (5-fold) | 100 kg |
| Design of the core | 6 x 19 WSC |
| Nominal tensile strenght of rope | 1770 N/mm² |
| Wire surface | Zinc-plated |
| Color | Black |
| Temperature range | -40° C - +100° C |
| Dimensions | Length:90 cm |
| Diameter | Ø 0.30 cm |
| Weight | 0.04 kg |
| EUROLITE Quick Link Type A-200 | |
| Maximum load WLL (10-fold) | 200 kg |
| Standard | DIN 56927:2009-03, |
| Shape | A - small opening |
| Material | Steel, zinc-plated |
| Opening | 0-7.5 mm |
| Dimensions | Length:4.50 cm |
| Width | 5.80 cm |
| Depth | 2.70 cm |
| Diameter | Ø 0.60 cm |
| Weight | 0.03 kg |
