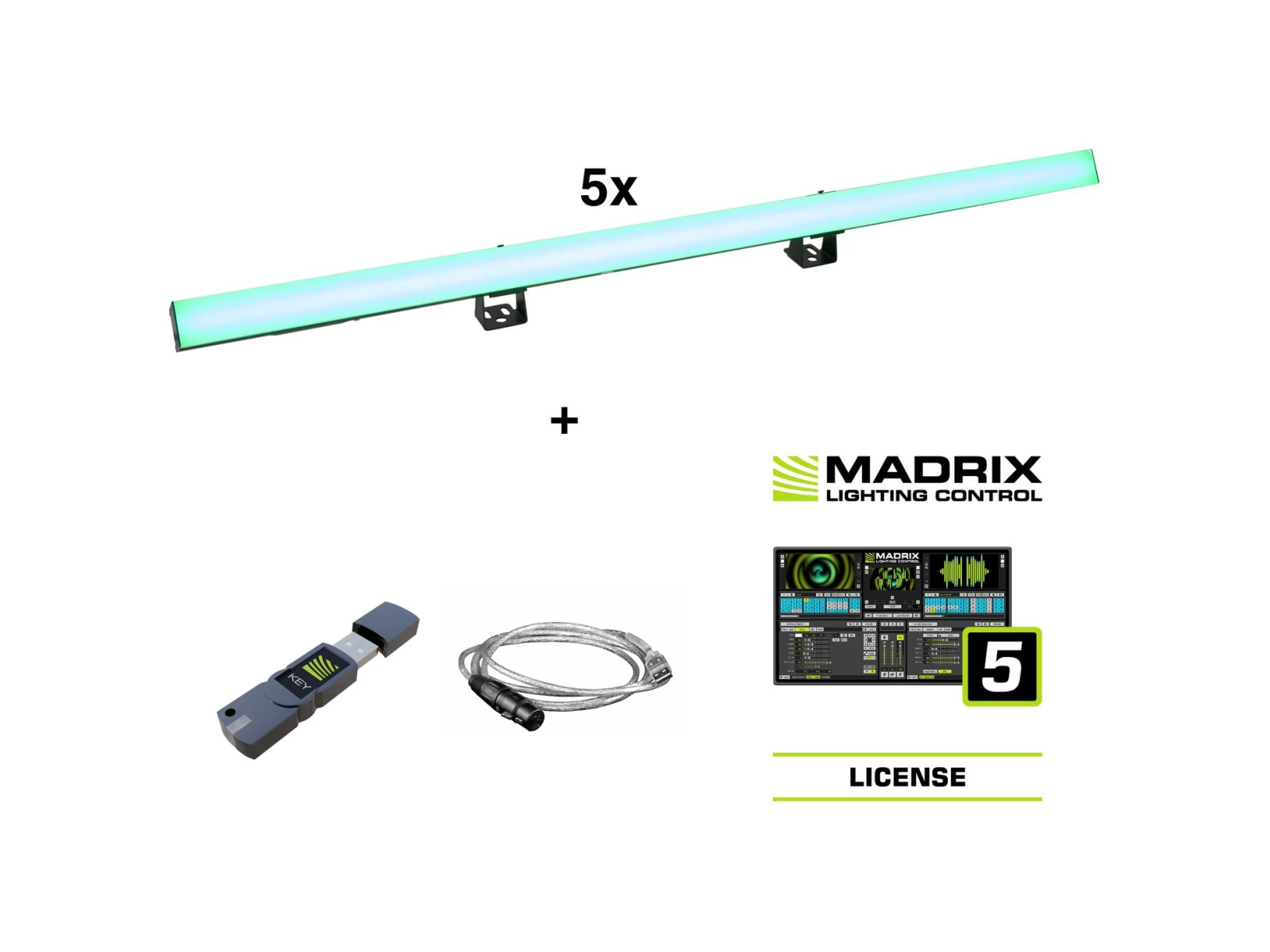

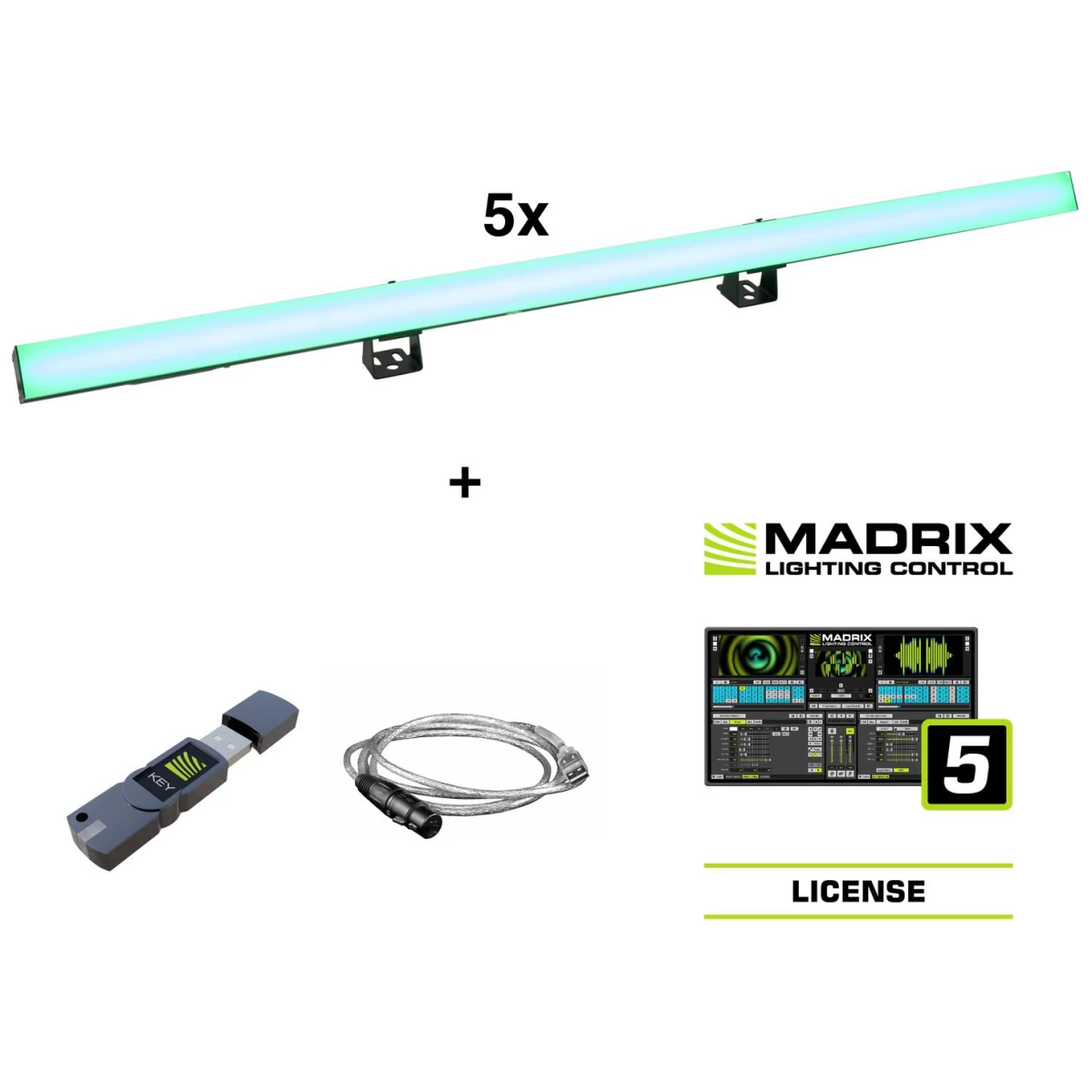

EUROLITE Set 5x LED PR-100/32 Pixel DMX Rail + Madrix Software

620.900 Ft 521.900 Ft (410.945 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 3 év garancia
Raktárkészlet: Raktáron
Cikkszám: 20000909
Jelölje be azokat a kiegészítő termékeket, amiket még a kosárba szeretne tenni!
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

DMX controlled pixel tube with RGB color mixing

EUROLITE LED PR-100/32 Pixel DMX rail

  • DMX and power terminals intelligently designed for easy wiring
  • Front cover: milky
  • 96 LEDs SMD 5050 3in1 RGB (homogenous color mix)
    32 segments controlled separately
  • Color blend stepless; color change adjustable; colors preset; Dimmer electronic
  • Strobe effect
  • 12 integrated show programs
  • Direct color selection for 17 preset colors
  • Can be operated in 3; 5; 8; 48; 96 CH mode
  • The device is cooled by passive convection cooling
  • Control via DMX; sound to light via microphone; stand-alone
  • With a beam angle of 120°
  • Variable color temperature - 6500 K
  • With mounting bracket
  • Monochrome 4 digit 7-segment LED display
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; decoration; wedding/gala/events; restaurants, bars and hotels; video and photography; advertisement/Shop window
  • Silent operation
  • Application possibility: Suspended; wall mounting

light effect

  • The article is delivered ready to stand

mounting bracket

  • Easy installation
  • The article is delivered pre-assembled

MADRIX Software 5 License start

MADRIX 5 licence "start"

  • Includes 1x MADRIX 5 License "start"
  • Requires a valid, empty, and metallic MADRIX KEY
  • Can transmit up to 1024 DMX channels
  • Compatible with Win 7, Win 8, Win 10,
  • Made in Germany
  • Engineered in Germany
  • For further information about this product, please refer to the Data Sheet under "Downloads"

MADRIX USB ONE DMX512 USB Interface

USB-DMX cable to send/receive DMX signals with MADRIX software

  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Control via DMX
  • Built with NEUTRIK connector
  • The device can be connected via USB to the PC in connection with MADRIX software
  • Compatible with Win 7, Win 8, Win 10,
  • Made in Germany
  • Engineered in Germany
  • For application areas such as: Clubs/dancing school; stage; restaurants, bars and hotels

MADRIX KEY

MADRIX 5 KEY - without license

  • Includes an empty MADRIX KEY
  • Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
  • The device can be connected via USB to the PC
  • Made in Germany


Scope of delivery

5 x EUROLITE LED PR-100/32 Pixel DMX rail

  • 1 x light effect
  • 1 x power cord
  • 1 x user manual

1 x MADRIX KEY

  • 1 x device

Paraméterek

Weight 10.67 kg
EUROLITE LED PR-100/32 Pixel DMX rail
Power supply 100-240 V AC, 50/60 Hz
Power consumption 30 W
Protection class Protection class I
Power connection Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction 3 x 1.0 mm² H07RN-F
Cable length 1.2 m
Power output 1 x P-Con (grey), mounting version
Fuse T 3.15 A fuse fix in power supply
Lamp type LED lamp
LED type 96 x SMD 5050 3in1 RGB (homogenous color mix)
Flash rate 0.25 - 10 Hz
DMX channels 3; 5; 8; 48; 96
DMX input 3-pin XLR (M) mounting version
DMX output 3-pin XLR (F) mounting version
Cooling Passive convection cooling
Control DMX; sound to light via microphone; stand-alone
Fixtures available for GDTF (GrandMA3); Light Captain
DMX fail mode Blackout; hold; auto; static; full on
Beam angle 120°
Beam angle (1/2 peak) 120°
Color temperature - 6500K adjustable
Housing color Black matte
Attachment system Mounting bracket
Display type Monochrome 4 digit 7-segment LED display
Dimensions Length:99.90 cm
Width 5.95 cm
Height 13.25 cm
Weight 2.10 kg
Noise classification Class 0 (no noise at all)
Power cord
Cable construction 3 x 1.0 mm² H05VV-F; 3 x 1.0 mm² H05VV-F
Cable length Approx. 1.2 m
Mounting bracket
Setup Easy installation
Diameter mounting holes 1 x Ø11mm; 2 x Ø7mm; 2 x Ø7mm
Material Metal, 2 mm; metal, 2 mm
MADRIX Software 5 License start
DMX channels Output 1024
Weight 0.00 kg
Operating system Win 7, Win 8, Win 10,
MADRIX USB ONE DMX512 USB Interface
Power supply 5V DC 500 mA
Power connection Fixed power supply cord for USB A mains connection
DMX channels Input 512
Output 512
DMX output 1 x 5-pin XLR (F)
Control DMX
USB port USB 2.0, type A
Use of brands Built with NEUTRIK connector
PC connect MADRIX software via USB
Weight 0.10 kg
Operating system Win 7, Win 8, Win 10,
MADRIX KEY
Power connection Mains input via USB A (M) connectable version
USB port Type A
PC connect Via USB
Weight 0.07 kg
