Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus
- Positioning within PAN and TILT

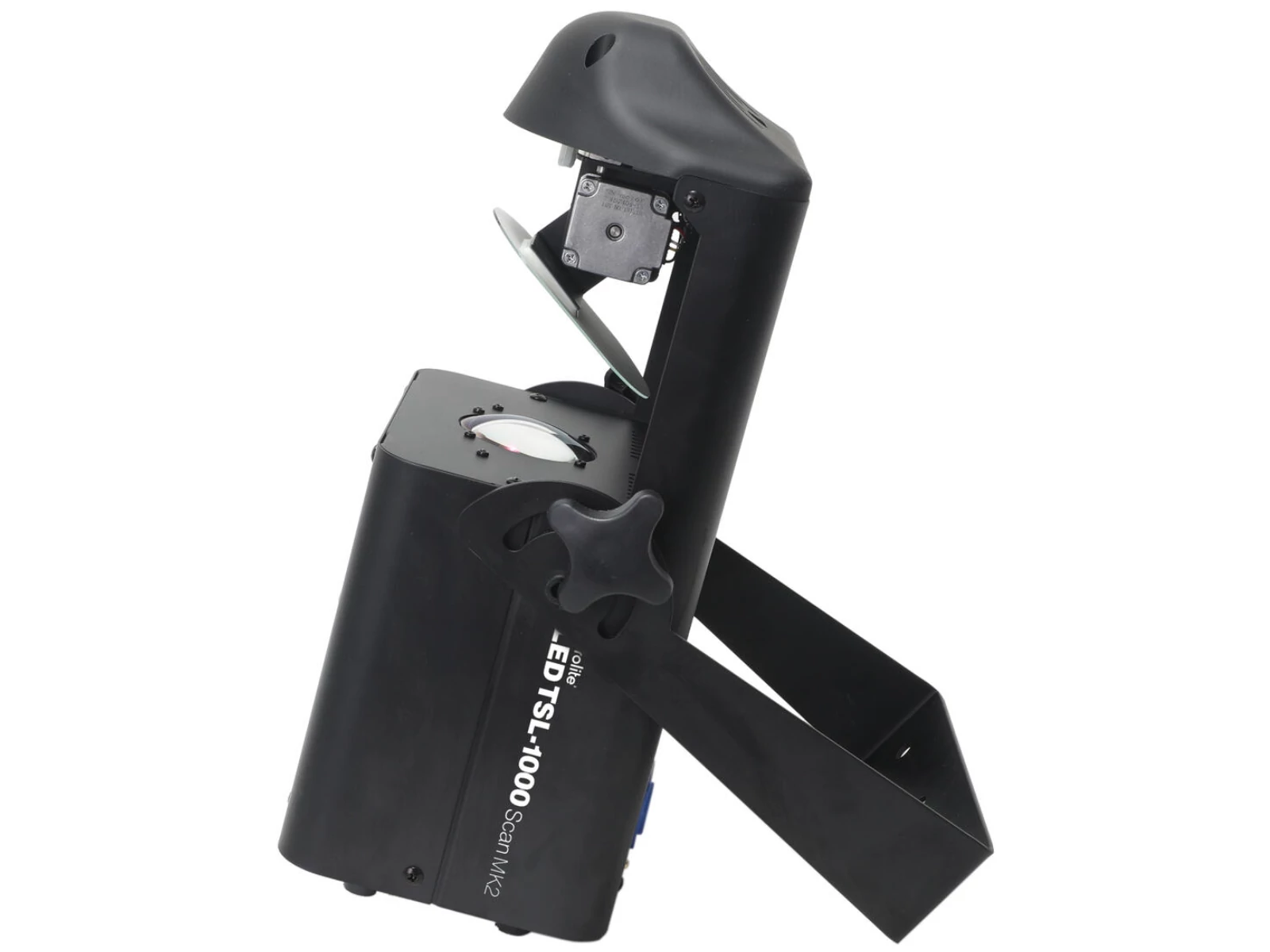

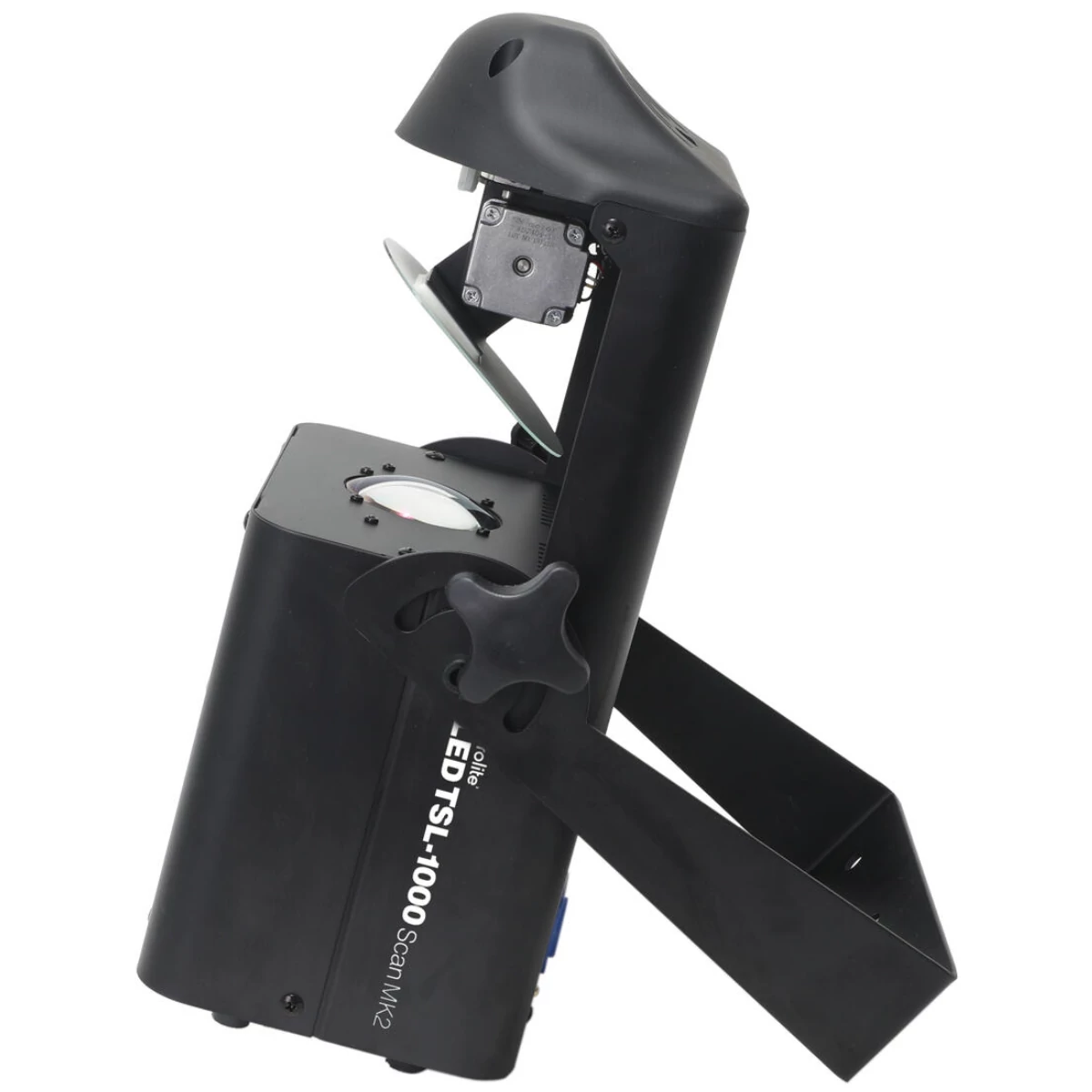

EUROLITE LED TSL-1000 Scan MK2
- 10 or 15 DMX channels selectable
- Gobo shake function
- 3-facet prism
- Strobe effect with adjustable speed
- Electronic dimmer
- Mains input and output for power linking up to 8 units
- Note: The macro programs of the predecessor model (no. 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
- 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
- Positioning within 160° PAN and 50° TILT
- Exact positioning (16 bit resolution)
- Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- Integrated Showprograms
- Can be operated in 10; 15 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone
- Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- Effect: Gobo effect
- With a beam angle of 20°
- OLED display
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x safety eyelet
ROADINGER Flightcase 2x LED TSL-1000 with trolley function
Flightcase 2x LED TSL-1000 with trolley function
- High-quality workmanship with birch multiplex 6,5 mm,
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- 3 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- Trolley
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Paraméterek
Weight | 21,60 kg |
EUROLITE LED TSL-1000 Scan MK2 | |
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 110 W |
IP classification | IP20 |
Protection class | Protection class I |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output | P-Con (gray), mounting version |
Fuse | 5 x 20 mm, T 4 A Fuse replaceable |
Lamp type | LED lamp |
LED | 1 x 100 W COB (chip-on-board) cold white (CW) |
Color temperature | 8000K |
Max. TILT movement | 50° Exact positioning (16 bit resolution) |
Max. PAN movement | 160° Exact positioning (16 bit resolution) |
Flash rate | 1 - 25 Hz |
Equipment | Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold |
Color generation | Color wheel with 8 dichroic filters plus open |
Gobos | Gobo wheel with rotating gobos, 7 gobos and open |
Shake effect | |
Gobos changeable | |
Slot-in gobo system for easy gobo replacement | |
DMX channels | 10; 15 |

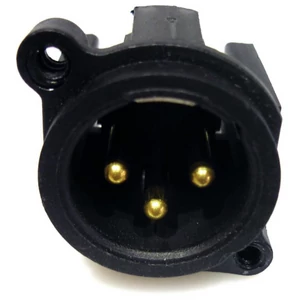

DMX input | 3-pin XLR (M) mounting version |
DMX output | 3-pin XLR (F) mounting version |
Cooling | Cooling fan |
Control | Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3 |
Beam angle | 20° |
Beam angle (1/2 peak) | 20° |
Illuminance in Lux (lx) | Cold white (CW) 1m:35679 lx, 3m:4265 lx, 6m:1055 lx |
Housing color | Black |
Display type | OLED display |
Dimensions | Width:25,1 cm |
Depth | 14,1 cm |
Height | 37,7 cm |
Weight | 5,75 kg |
Noise classification | Class 2 (slight noise) |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
ROADINGER Flightcase 2x LED TSL-1000 with trolley function | |
Maximum load | 25 kg |
Aluminum profile frames | 25 mm |
Case handles | 3 pc/pcs |
Stop hinge | 2 pc/pcs |
Lock | Butterfly lock:2 pc/pcs |
Transport aid | Trolley |
Material | Birch multiplex, 6,5 mm |
Accessory compartment | 44 cm x 7 cm x 13 cm |
Device compartment | 36 cm x 25,5 cm x 13 cm |
Inside dimensions | 86,5 cm x 32,5 cm x 13 cm |
Weight | 10,10 kg |
