Leírás

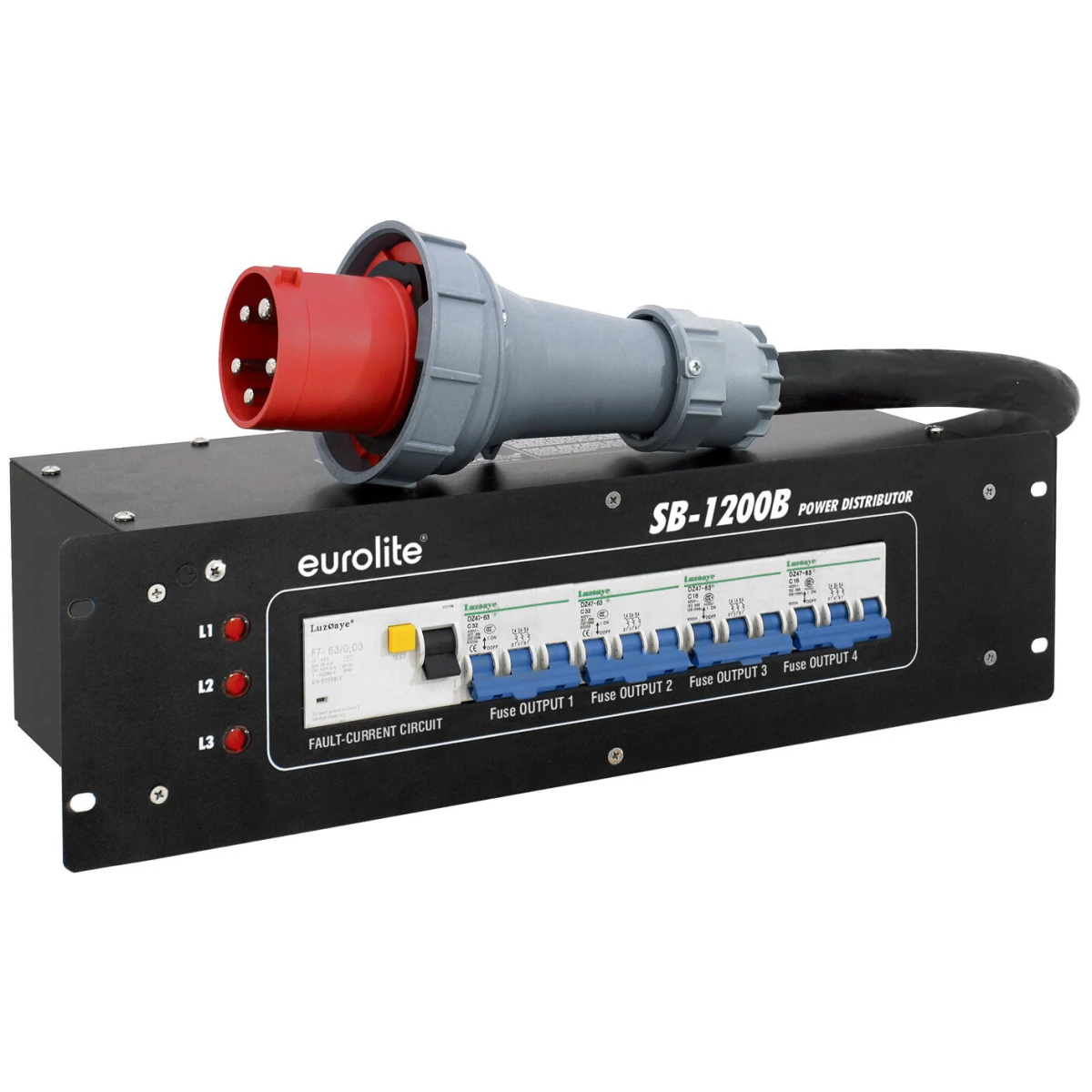

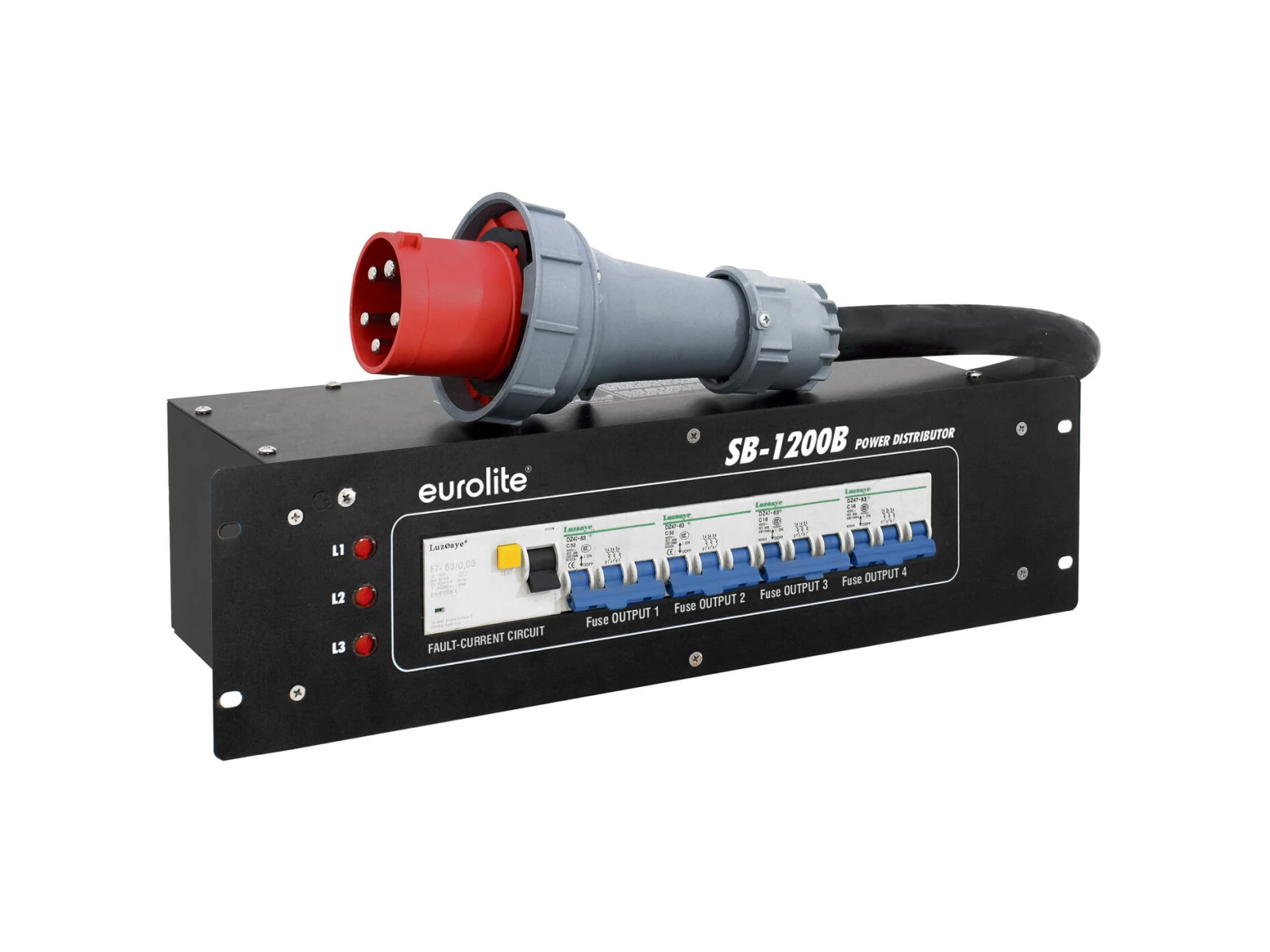

Practical 63 A distributor in 483 mm housing (19")
- Specially designed for larger distribution needs
- With earthing screw in order to ground a rigg if necessary
- (19") 48.3 cm rack installation 3 U
Package contents
- 1 x device, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 380-400V AC, 50Hz |
| Power connection | Fixed power supply cord with CEE 63A 5-pin |
| Cable construction | 5 x 16 mm² H07RN-F |
| Cable length | 1 m |
| Power output | 2 x CEE 32A 5-pol (F) recessed mounting fused |
| 2 x CEE 16A 5-pol (F) recessed mounting fused | |
| Protection | 1 x fault-current circuit breaker (FI) Typ B 63A/0,03A 4-pol |
| 2 x circuit breaker C 16A 3-pol | |
| 2 x circuit breaker C 32A 3-pol | |
| Phase status display | 3 |
| Housing design | (19") 48.3 cm rack installation 3 U |
| Dimensions | Width:48,3 cm |
| Depth | 31 cm |
| Height | 13,35 cm |
| Weight | 8,15 kg |
