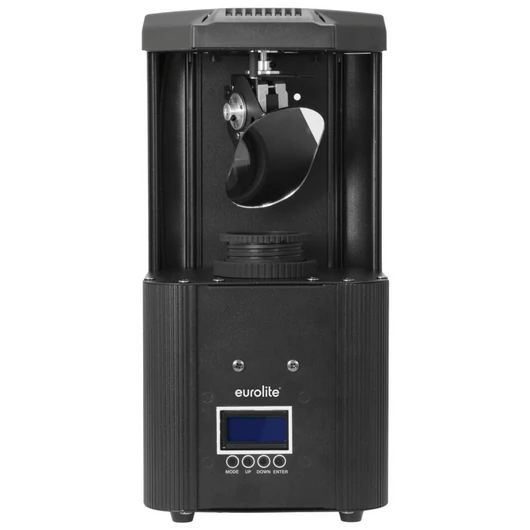

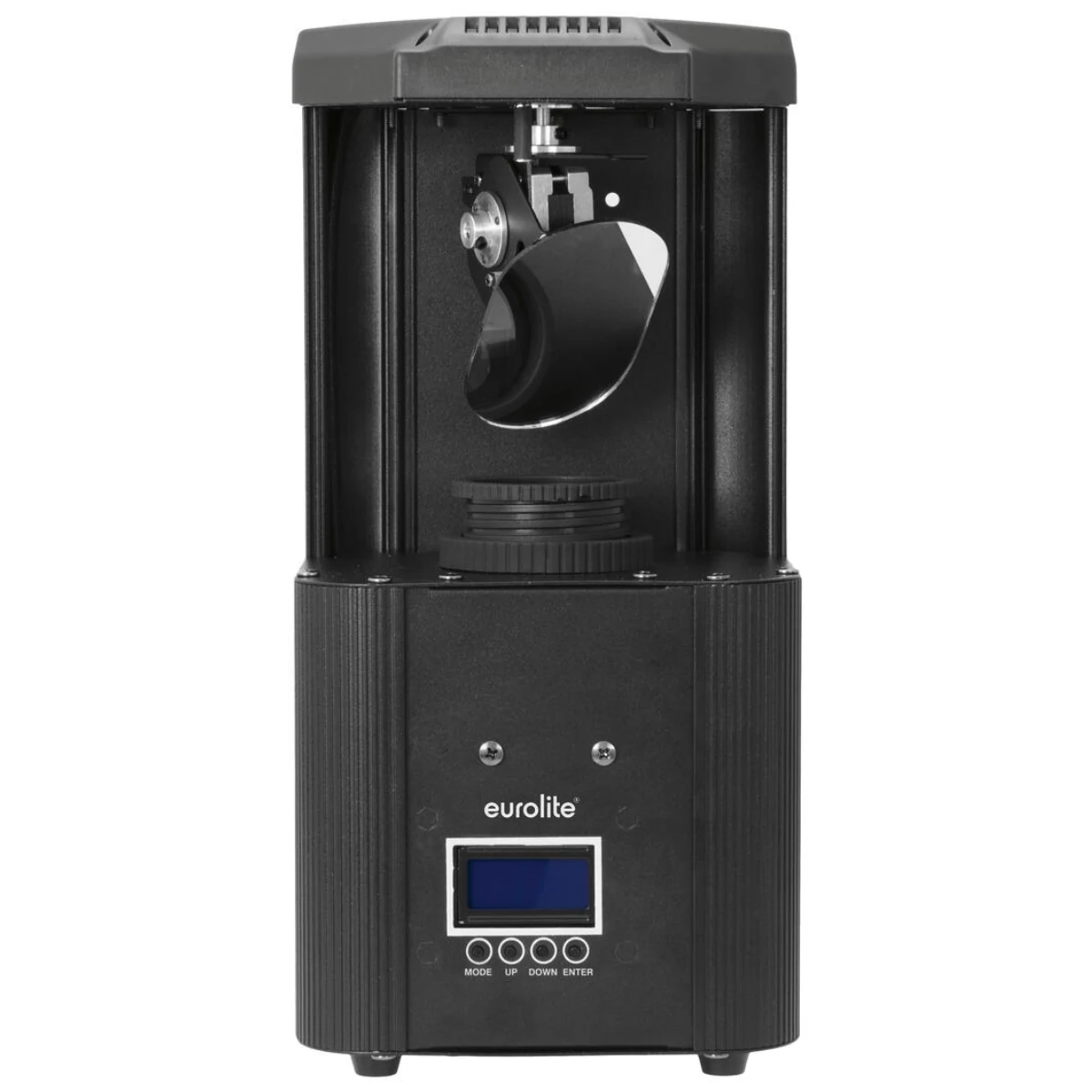

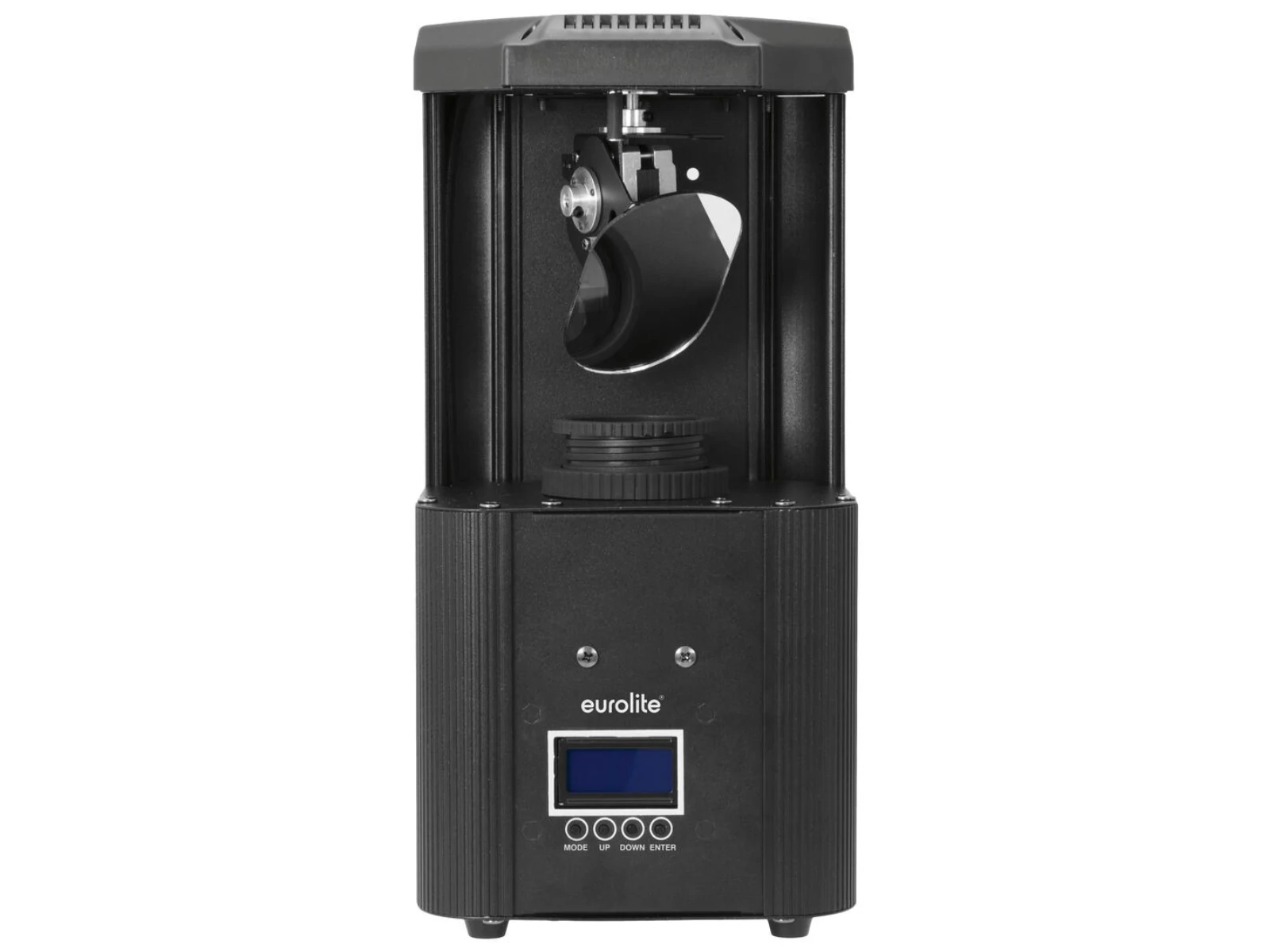

Handy scanner with 60 W COB LED, gobo and color wheel
- Compact design
- Electronic dimmer
- 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
- Positioning within PAN and TILT
- Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed - Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable - Slot-in gobo system for easy gobo replacement
- Shake effect
- Integrated Showprograms
- Can be operated in 10 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light Captain; Light´J
- Flicker-free
- With a beam angle of 11°
- LCD display
- Available in various colors
Package contents

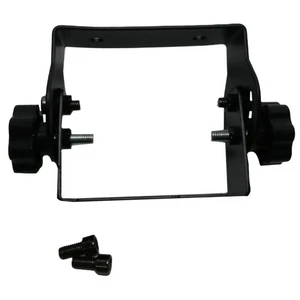

- 1 x moving light, 1 x user manual, 1 x power cord, 1 x mounting bracket, 3 x gobos
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 70 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse | 5 x 20 mm, T 1,5 A Fuse replaceable |
| Lamp type | LED lamp |
| LED | 1 x 60 W COB (chip-on-board) cold white (CW) |
| Equipment | Color wheel; gobo wheel with rotating gobos; Focus manual |
| Color generation | Color wheel with 7 dichroic filters plus open |
| Gobos | Gobo wheel with rotating gobos, 7 gobos and open |
| Outside diameter 14mm | |
| Image diameter 10mm | |
| Gobos changeable | |
| Slot-in gobo system for easy gobo replacement | |
| Shake effect | |
| DMX channels | 10 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | Cooling fan |
| Control | Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; Light Captain; Light´J; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle | 11° |
| Beam angle (1/2 peak) | 11° |
| Illuminance in Lux (lx) | Cold white (CW) 1m:12034 lx, 3m:1489 lx, 6m:388 lx |
| Housing color | Black |
| Display type | LCD display |
| Dimensions | Width:16,0 cm |
| Depth | 15,0 cm |
| Height | 33,0 cm |
| Weight | 3,22 kg |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
