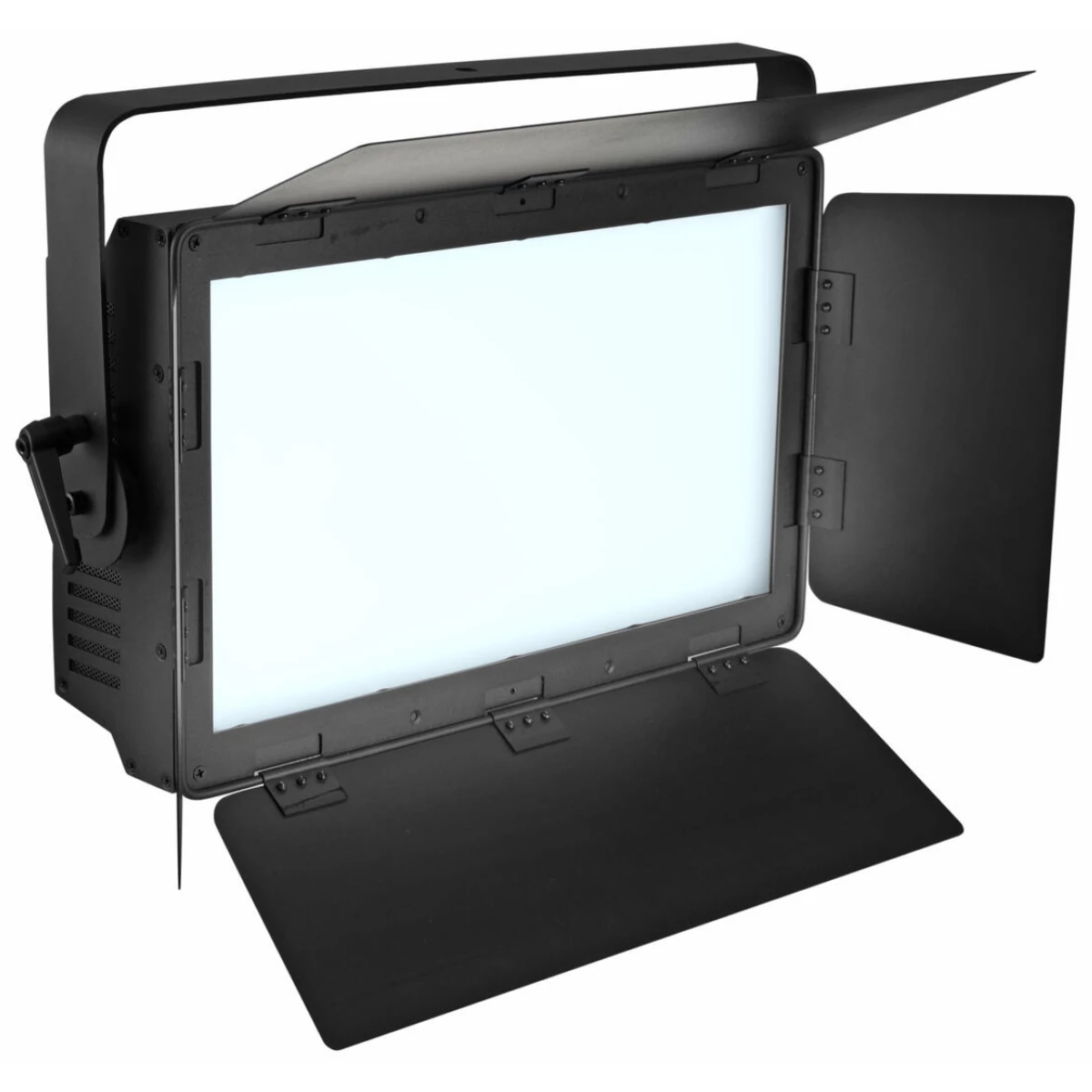

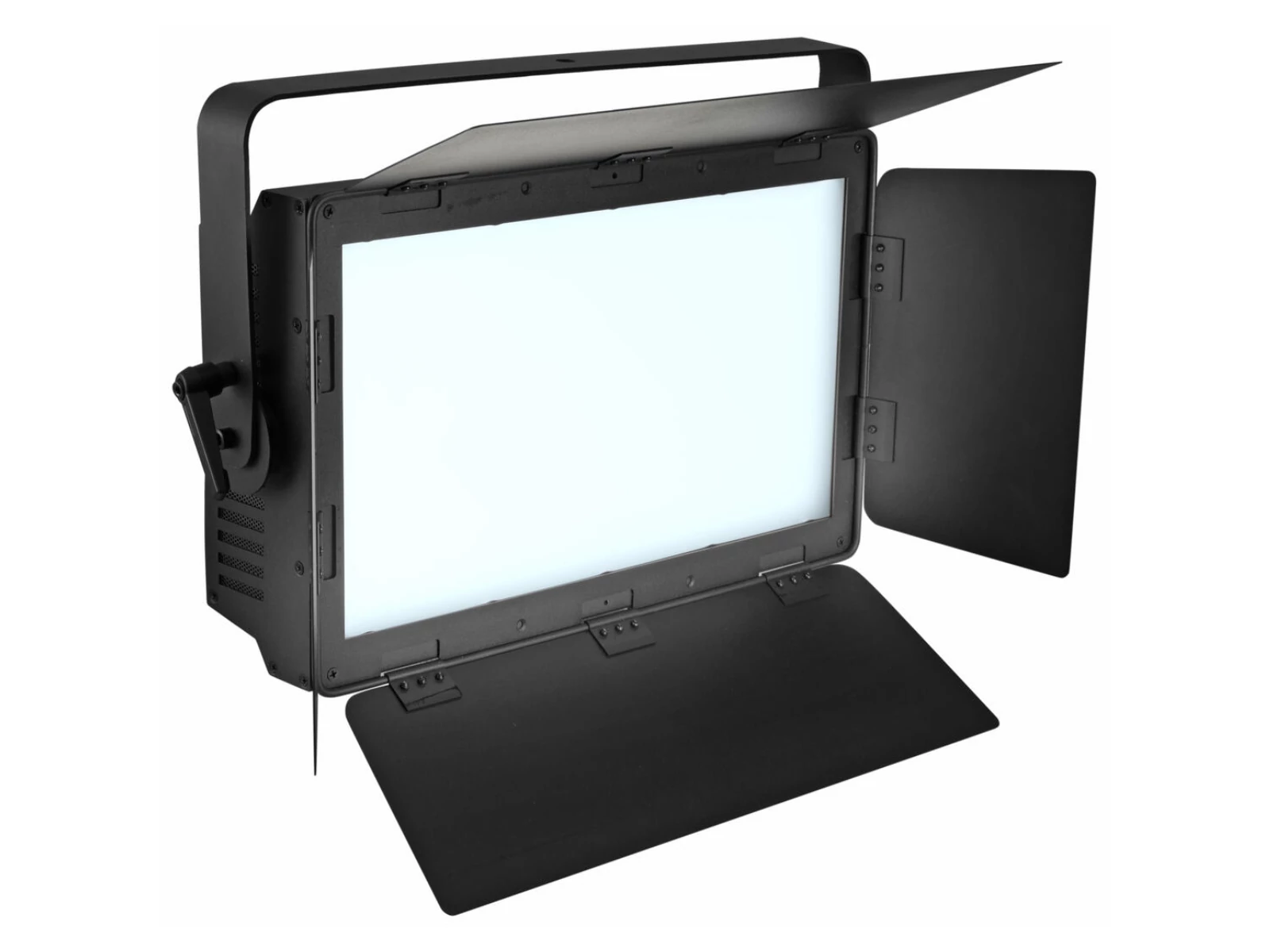

DMX-controlled surface light with 704 cold white LEDs, QuickDMX port and barn doors
- Energy-saving, durable and environmentally friendly
- Variable PWM frequency (pulse-width modulation)
- 4 barn doors to avoid blinding the audience and for protection during transport
- Slim, rugged metal housing
- Mains input and output for power linking up to 8 units
- 704 powerful LEDs SMD 2835 cold white (CW)
- Can be operated in 1; 2; 3 CH mode
- The device is cooled by passive convection cooling
- Controlling by stand-alone; DMX; Quick select potentiometer for brightness and flash rate; Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional)
- Flicker-free
- With a beam angle of 120°
- Good color rendering index (CRI)
- With Mounting bracket
- LCD display
- 1 hinged, chromium plated case handle
- For application areas such as: Video- and Photographic; Stage
Package contents
- 1 x spotlight, 1 x power cord, 1 x user manual
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 140 W |
IP classification | IP20 |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output | P-Con (gray), mounting version |
Fuse | T 3 A Fuse replaceable |
Lamp type | LED lamp |
LED | 704 x SMD 2835 cold white (CW) |
Color temperature | 6000K |
Flash rate | 0 - 20 Hz |
DMX channels | 1; 2; 3 |
DMX input | 3-pin XLR (M) mounting version |
DMX output | 3-pin XLR (F) mounting version |
Cooling | Passive convection cooling |
Control | Stand-alone; DMX; Quick select potentiometer for brightness and flash rate; Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional) |
Beam angle | 120° |
Beam angle (1/2 peak) | 120° |
Color rendering index (CRI) | 80 Ra |
Illuminance in Lux (lx) | Cold white (CW) 1m:4111 lx, 3m:598 lx, 6m:182 lx |
Housing color | Black |
Attachment system | Mounting bracket |
Display type | LCD display |
Case handles | 1 pc/pcs |
Dimensions | Width:56,5 cm |
Depth | 25,5 cm |
Height | 42,2 cm |
Weight | 7,70 kg |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
