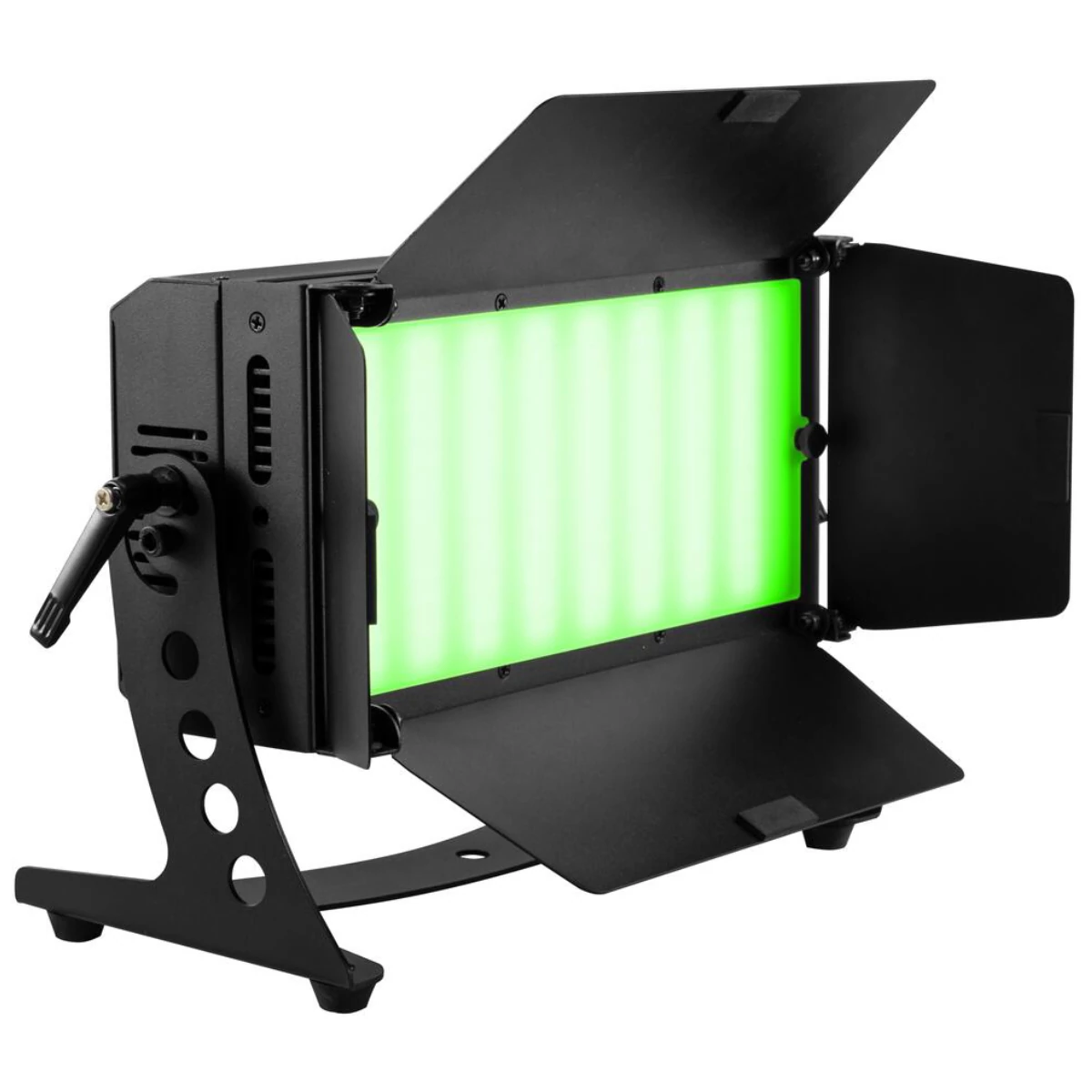

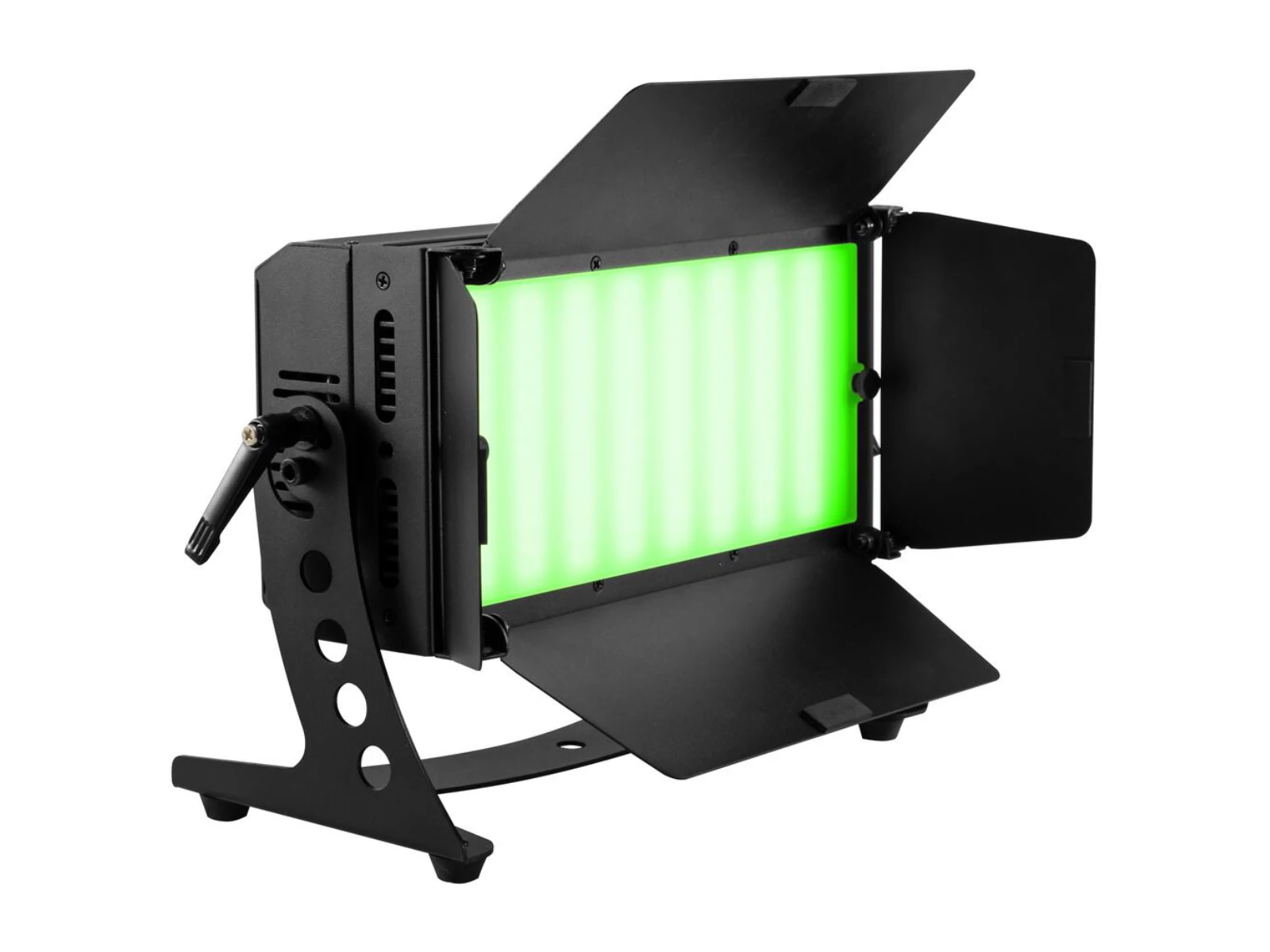

EUROLITE LED PLL-384 RGB/WW Panel

160.900 Ft 134.900 Ft (106.220 Ft + ÁFA)
Menny.:db
Szállítási díj: Ingyenes
Garancia: 2 év garancia
Raktárkészlet: Raktáron
Cikkszám: 40001893
Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás

DMX-controlled surface light with RGB/WW color mixing, QuickDMX port, frost filter and barn doors

  • Additional frost filter provides a wide, soft and homogeneous light
  • 4 barn doors to avoid blinding the audience and for protection during transport
  • With a beam angle of 120°
  • Very high color rendering index (CRI)
  • Very quiet working noise
  • White balance adjustable; Dimmer electronic; Dimmer speed (step response) adjustable; color change adjustable; color fade adjustable; color blend stepless
  • Control via stand-alone; DMX; master/slave function; rotary dial for brightness and preset color; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Strobe effect; wash effect
  • Integrated show programs
  • Direct color selection for 15 preset colors
  • With mounting bracket
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Stage; decoration; wedding/gala/events; Trade fair and shop fitting; theater; rental; advertisement/Shop window
  • Application possibility: Suspended; on stand
  • Can be operated in 3; 4; 6; 8; 11 CH mode
  • Various versions available

mounting bracket

  • The article is delivered pre-assembled

frost filter

  • The article is delivered pre-assembled


Scope of delivery
  • 1 x spotlight
  • 1 x user manual
  • 1 x power cord
  • 1 x frost filter
  • 2 x knurled screw

Manuals

Manuals

Paraméterek

Power supply 100-240 V AC, 50/60 Hz
Power consumption 160 W
Protection class Protection class I
Power connection Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output 1 x P-Con (grey), mounting version
Fuse T 6.3 A fuse serviceable
Lamp type LED lamp
LED type 240 x 1.5 W SMD 5054 R/G/B (homogenous color mix)
144 x 1 W SMD 5054 warm white (WW)
Flash rate 0.8 - 22 Hz
DMX channels 3; 4; 6; 8; 11
DMX input 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling Temperature-controlled fan
Control Stand-alone; DMX; master/slave function; rotary dial for brightness and preset color; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for Light´J; Light Captain; Colorchief
DMX fail mode Hold; blackout; auto; full on
Beam angle 120°
Beam angle (1/2 peak) 120°
Color temperature 3000K
Color rendering index (CRI) 96 Ra
Housing color Black
Attachment system Mounting bracket
Display type LCD display
USB port Type A
Material Metal, 1 mm, painted
Dimensions Length:34.7 cm
Width 13.1 cm
Height 21.1 cm
Weight 3.83 kg
Noise classification Class 1 (very slight noise, suitable for noise-sensitive environments)
Mounting bracket
Diameter mounting holes 1 x Ø10mm; 2 x Ø14mm
Spotlight
Illuminance in Lux (lx) Red (R) 1m:609 lx, 3m:73 lx, 6m:21 lx
Green (G) 1m 1250 lx, 3m:157 lx, 6m:46 lx
Blue (B) 1m 254 lx, 3m:31 lx, 6m:9 lx
Warm white (WW) 1m 1957 lx, 3m:243 lx, 6m:73 lx
All 1m 4046 lx, 3m:506 lx, 6m:149 lx
Diameter mounting holes 2 x Ø5.8mm
Power cord
Cable construction 3 x 1.0 mm² H05VV-F
Cable length 1.4 m
Frost filter
Illuminance in Lux (lx) Red (R) 1m:458 lx, 3m:59 lx, 6m:17 lx
Green (G) 1m 1048 lx, 3m:137 lx, 6m:41 lx
Blue (B) 1m 235 lx, 3m:31 lx, 6m:9 lx
Warm white (WW) 1m 1552 lx, 3m:203 lx, 6m:61 lx
All 1m 3283 lx, 3m:429 lx, 6m:127 lx
