Leírás

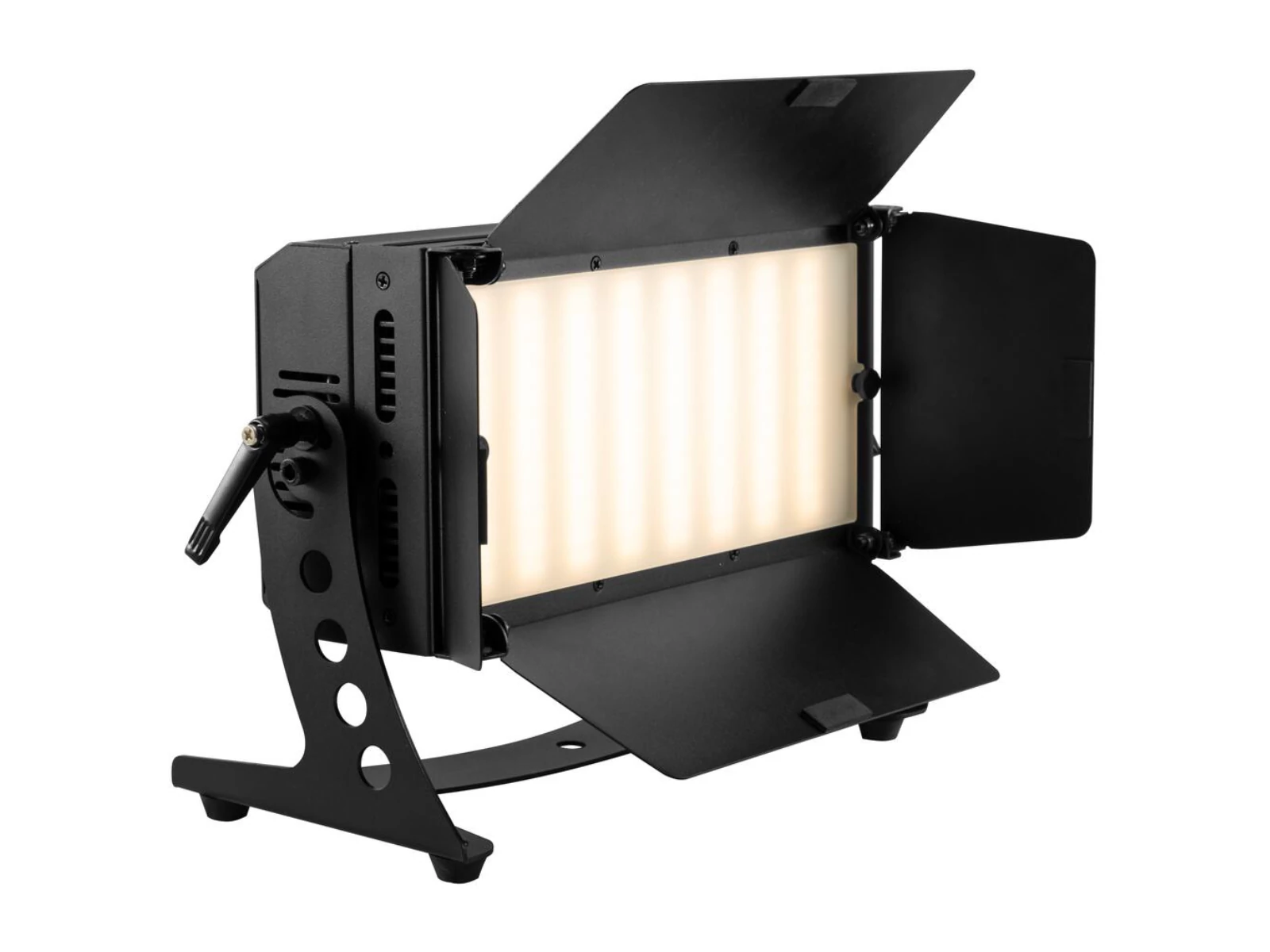

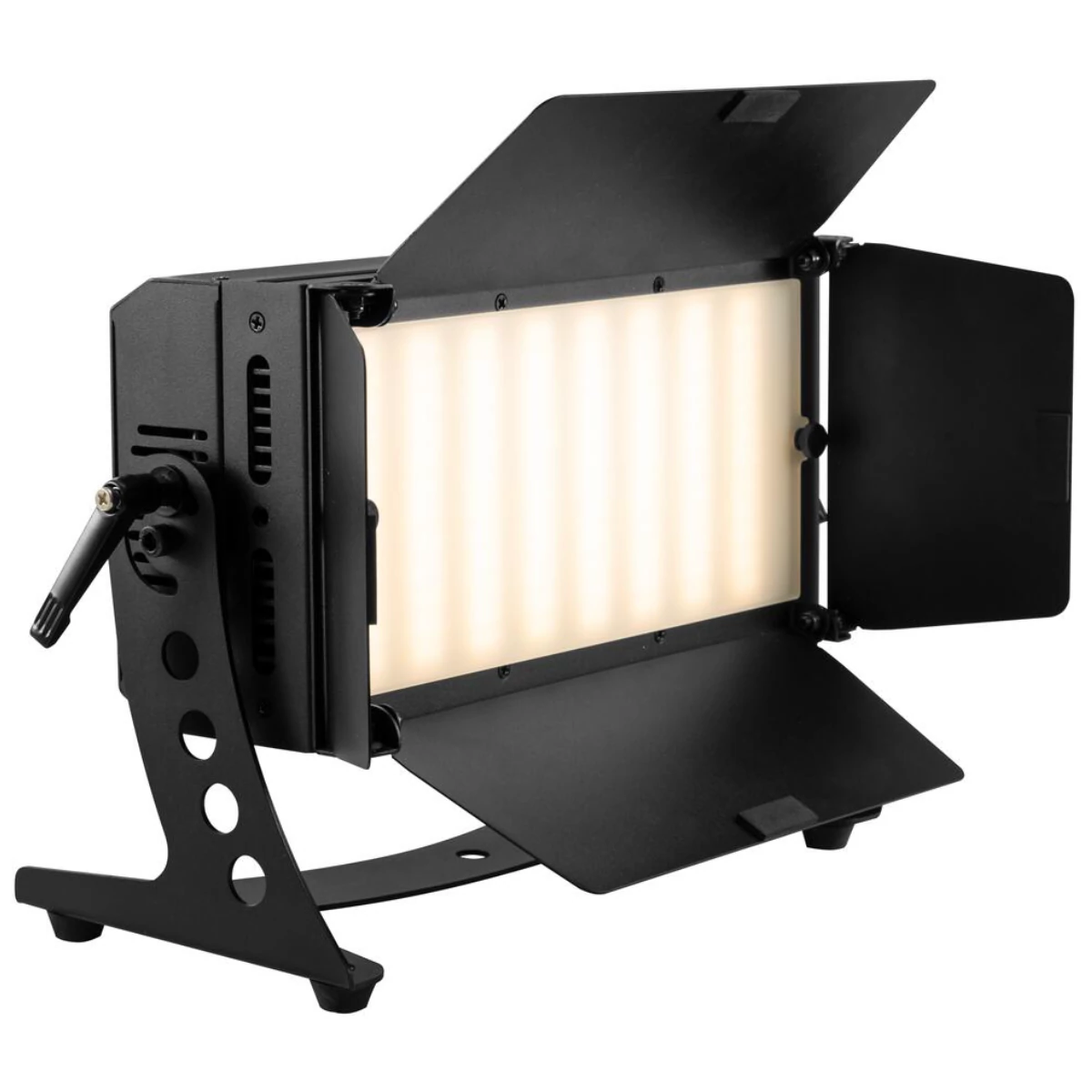

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, diffuser and barn doors
- 192 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- 192 powerful LEDs 0,5 W SMD 5730 warm white (WW)
- Energy-saving, durable and environmentally friendly
- Additional frost filter provides a wide, soft and homogeneous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Variable color temperature 2700 K - 5700 K
- Very quiet working noise
- Direct color temperature selection for 69 preset values
- Dimmer electronic
- The device is cooled by temperature-controlled fan
- Control via Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 120°
- Very high color rendering index (CRI)
- With Mounting bracket
- LCD display
- For application areas such as: Video and photography; Stage
- Preprogrammed in Light Captain
- Mains input and output for power linking up to 8 units
Package contents
- 1 x spotlight, 1 x power cord, 1 x diffusor cover, 2 x knurled screw, 1 x user manual
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 100 W |
IP classification | IP20 |
Protection class | Protection class I |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
Power output | P-Con (gray), mounting version |
Fuse | T 3,15 A Fuse fix on board |
Lamp type | LED lamp |
LED | 192 x 0,5 W SMD 5730 cold white (CW) |
192 x 0,5 W SMD 5730 warm white (WW) | |
Color temperature | 2700K - 5700K adjustable |
Flash rate | 1 - 20 Hz |
DMX channels | 2-1; 2-2; 3-1; 3-2; 4 |
DMX input | 1 x 3-pin XLR (M) mounting version |
DMX output | 1 x 3-pin XLR (F) mounting version |
Cooling | Temperature-controlled fan |
Control | Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) |
Preprogrammed in | Light Captain |
Beam angle | 120° |
Beam angle (1/2 peak) | 120° |
Color rendering index (CRI) | 94 Ra |
Illuminance in Lux (lx) | Wide cold white (CW) 1m:2324 lx, 3m:276 lx, 6m:83 lx |
Wide warm white (WW) 1m | 2277 lx, 3m:249 lx, 6m:76 lx |
Wide all 1m | 3530 lx, 3m:407 lx, 6m:124 lx |
Narrow cold white (CW) 1m | 2789 lx, 3m:327 lx, 6m:98 lx |
Narrow warm white (WW) 1m | 2542 lx, 3m:297 lx, 6m:94 lx |
Narrow all 1m | 4167 lx, 3m:508 lx, 6m:150 lx |
Housing color | Black |
Attachment system | Mounting bracket |
Display type | LCD display |
Material | Metal |
Dimensions | Length:34,7 cm |
Width | 13,8 cm |
Height | 21,1 cm |
Weight | 3,52 kg |
Noise classification | Class 1 (very slight noise, suitable for noise-sensitiveenvironments) |
Power cord | |
Cable construction | 3 x 1,0 mm² H05VV-F |
Cable length | Approx. 1,2 m |
Mounting bracket | |
Diameter mounting holes | 1 x Ø11mm; 2 x Ø8mm; 8 x Ø15mm |
Material | Metal, 2 mm |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
