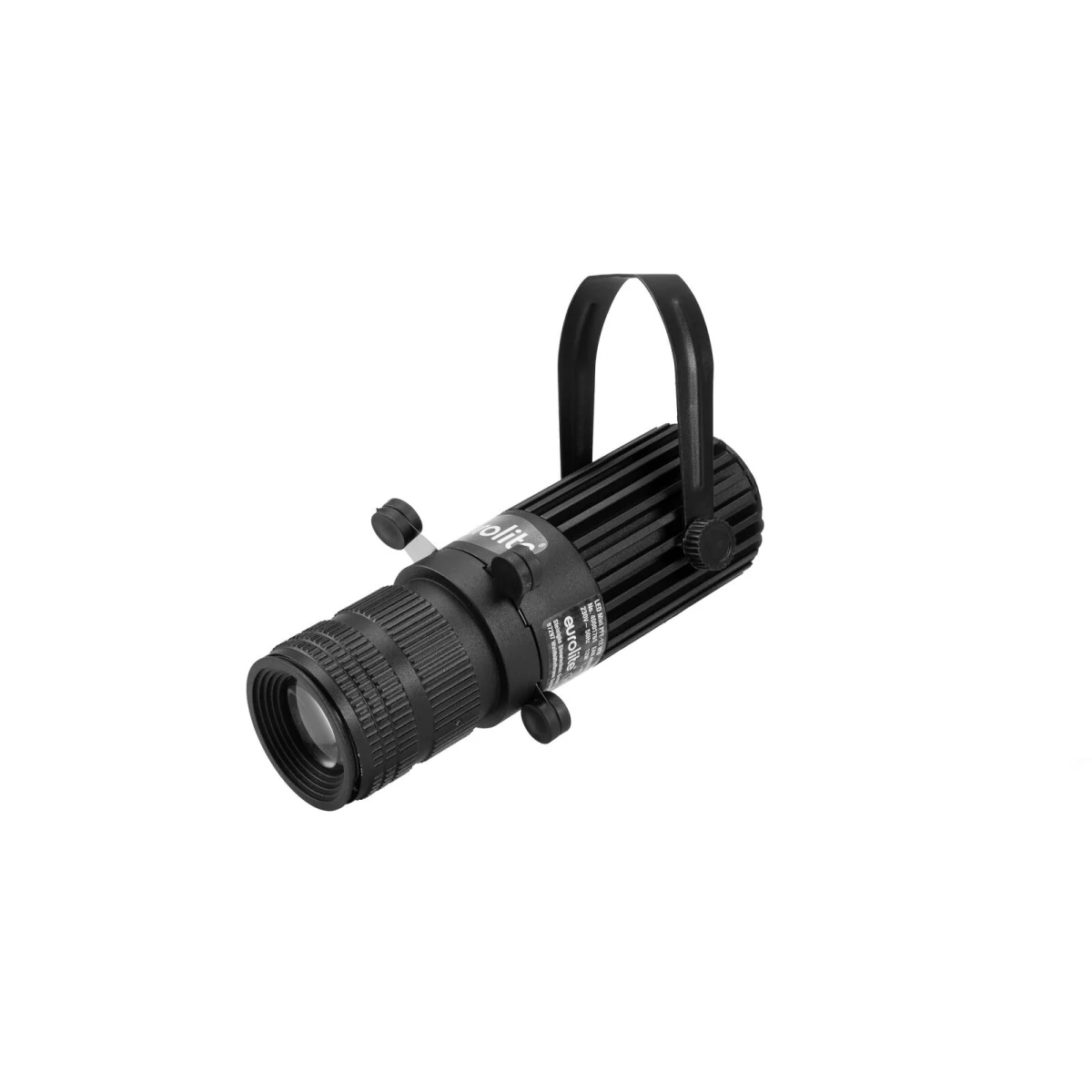

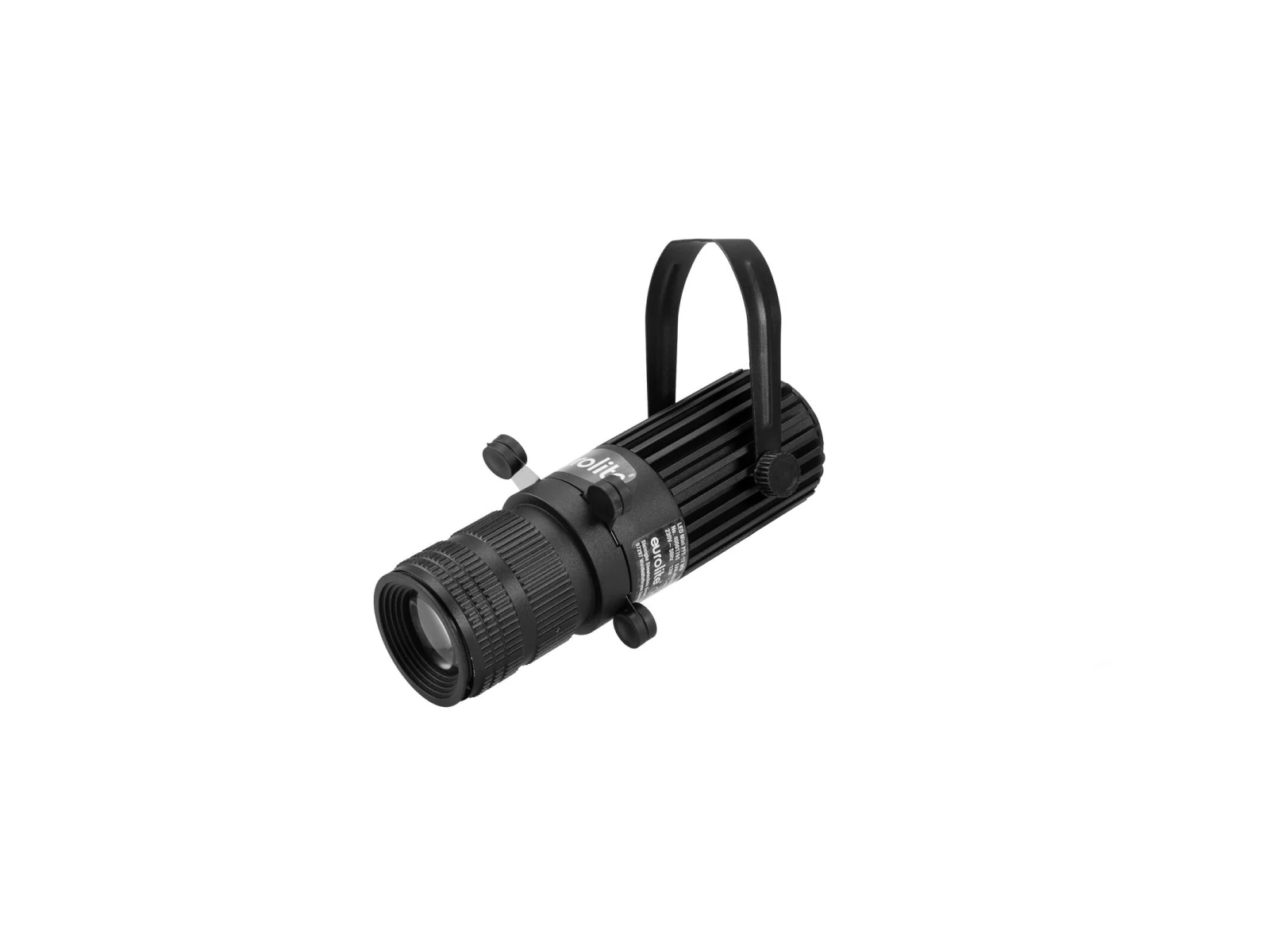

Fanless spotlight with 12 W COB LED, adjustable light beam shape, color rendering index (CRI) >90
- 4 shutter blades
- 1 powerful LED COB (chip-on-board)
- Focus manual
- Spot effect
- The device is cooled by passive convection cooling
- Easy installation
- With a beam angle of 28°
- Very high color rendering index (CRI)
- With mounting bracket
- Various versions available
- For application areas such as: Clubs/dancing school; decoration; Trade fair and shop fitting; restaurants, bars and hotels; video and photography; advertisement/Shop window
- Very quiet working noise
- Application possibility: Suspended
Scope of delivery
- 1 x spotlight
- 1 x key
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 12 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Fixed power supply cord with safety plug |
| Cable construction | 3 x 0.75 mm² H05VV-F |
| LED type | 1 x COB (chip-on-board) |
| Equipment | Focus manual |
| Cooling | Passive convection cooling |
| Setup | Easy installation |
| Beam angle | 28° |
| Beam angle (1/2 peak) | 28° |
| Color temperature | 2778K |
| Color rendering index (CRI) | 98 Ra |
| Illuminance in Lux (lx) | Warm white (WW) 1m:2388 lx, 3m:282.5 lx, 6m:70.06 lx |
| Luminous flux | 960 lm |
| Housing color | Black matte |
| Attachment system | Mounting bracket |
| Material | Aluminum casting |
| Dimensions | Length:19 cm |
| Width | 8.5 cm |
| Height | 12.5 cm |
| Weight | 0.50 kg |
| Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Energy efficiency class (A - G) | F |
