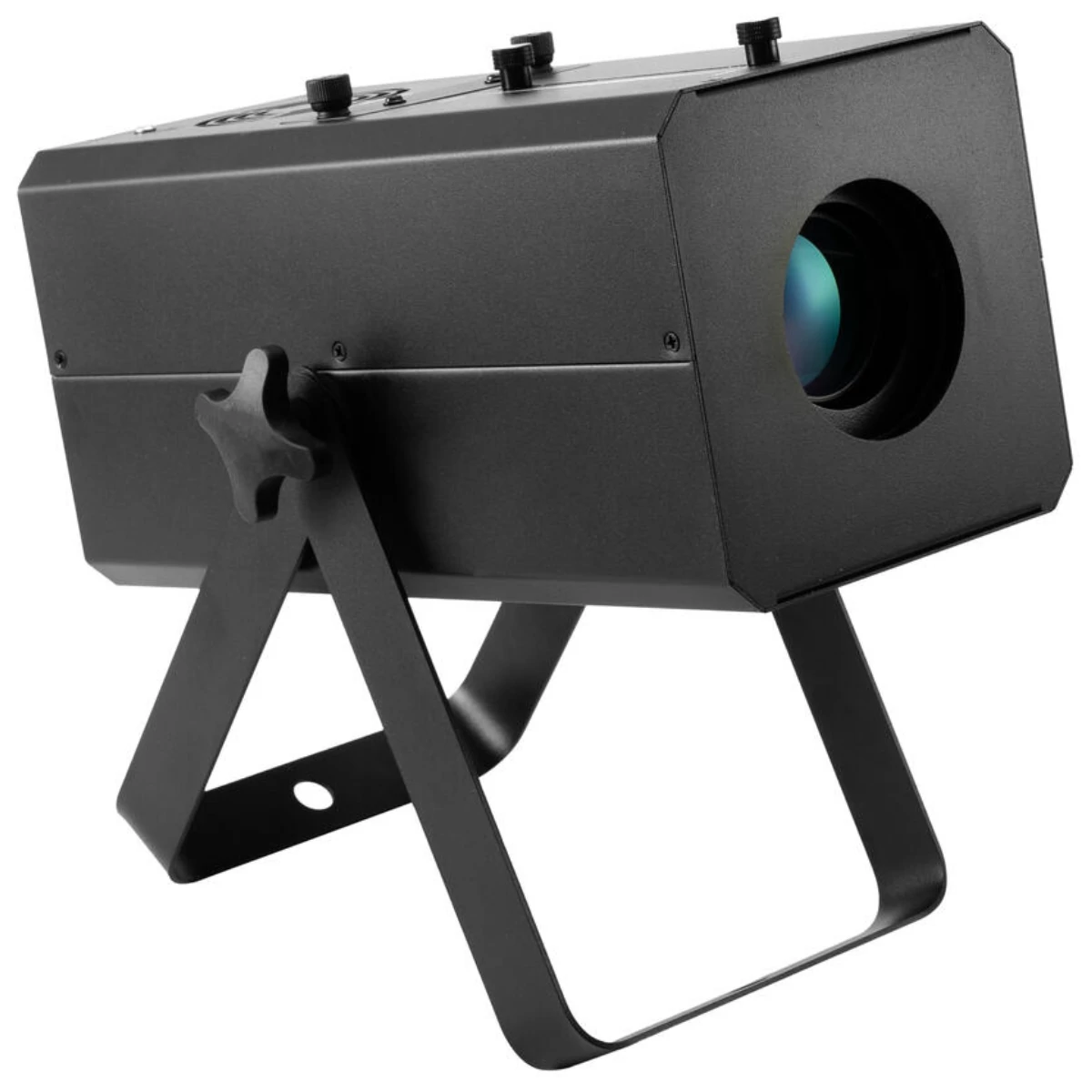

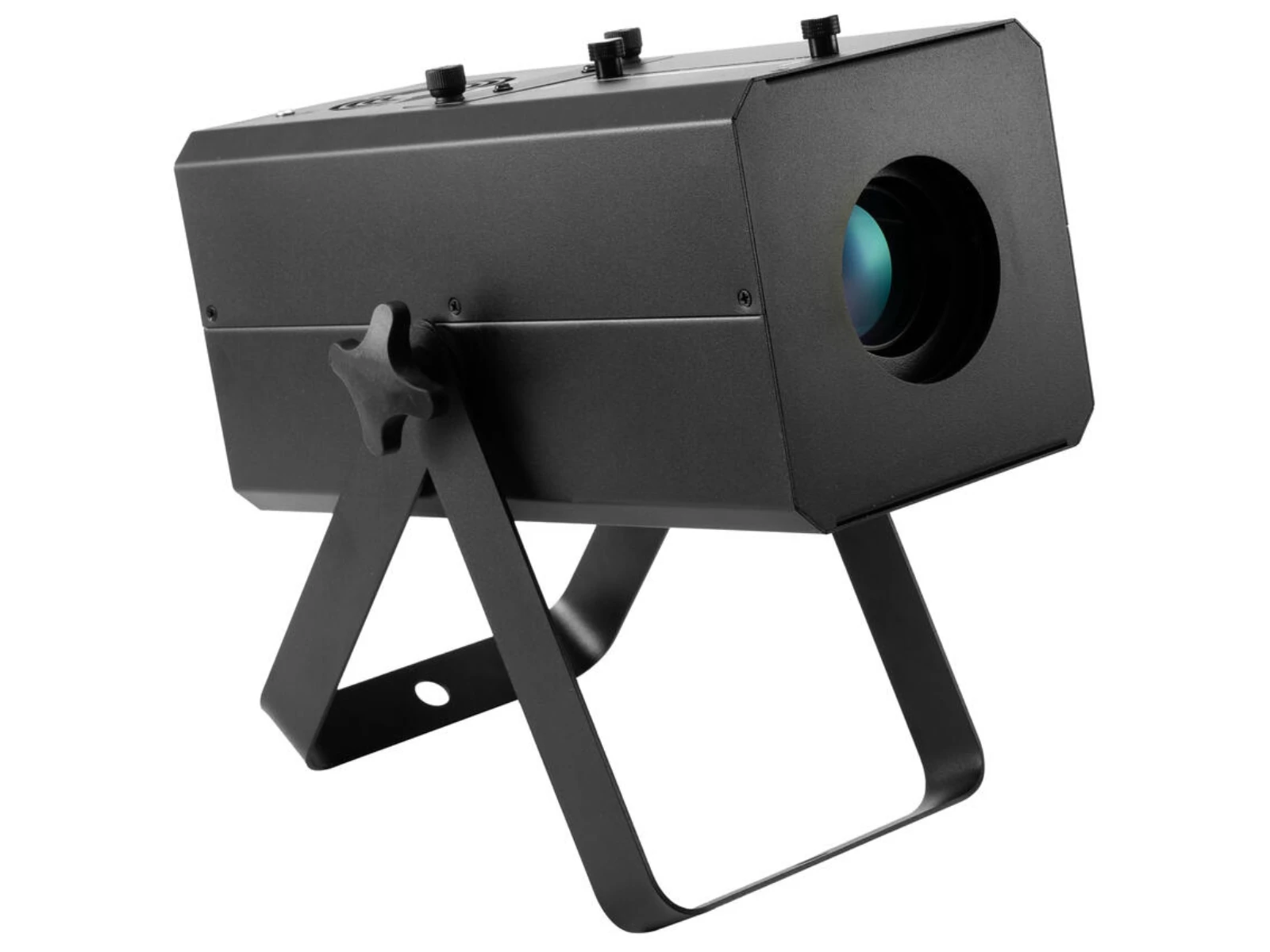

Professional gobo projector with additional color wheel
- 1 LED 100 W COB (chip-on-board) cold white (CW)
- Gobos rotating; zoom manual; focus manual
- Dimmer electronic; color selection direct; Rotation speed adjustable; Rotation direction adjustable; program selection manual
- Gobo effect; spot effect
- Color wheel with 5 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos
gobos changeable - Gobo indexable
- 3 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Fixtures available for Light Captain
- Flicker-free
- DMX fail mode (hold; blackout)
- With a beam angle of 12° - 25°
- Monochrome 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels; theater; rental; video and photography; advertisement/Shop window
- Application possibility: Standing; suspended; on stand
mounting bracket
- With double bracket
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x gobo holder
- 3 x gobos
- 2 x mounting bracket
- 2 x knurled screw
- 4 x washer
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz | |
| 230V AC 1000 mA | ||
| Power consumption | 100 W | |
| IP classification | IP20 | |
| Protection class | Protection class I | |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | |
| Power output | 1 x P-Con (gray), mounting version Bypass | |
| Device fuse | 5 x 20 mm, T 3 A fuse replaceable | |
| Lamp type | LED lamp | |
| LED type | 1 x 100 W COB (chip-on-board) cold white (CW) | |
| Flash rate | 0.4 - 24 Hz | |
| Equipment | Gobos rotating; zoom manual; focus manual | |
| Color generation | Color wheel with 5 dichroic filters plus open | |
| Half colors selectable, Rainbow effect with adjustable speed in both directions | ||
| Gobos | Gobo wheel with rotating gobos | |
| Outside diameter 32.6mm | ||
| Image diameter 21mm | ||
| Gobos changeable | ||
| Gobo indexable | ||
| DMX channels | 5 | |
| DMX input | 1 x 3-pin XLR (M) mounting version | |
| DMX output | 1 x 3-pin XLR (F) mounting version Bypass | |
| Cooling | 2 x temperature-controlled fan | |
| Control | Stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) | |
| Fixtures available for | Light Captain | |
| Projection | Flicker-free | |
| PWM frequency | 24000 Hz | |
| DMX fail mode | Hold; blackout | |
| Beam angle | 12° - 25° | |
| Beam angle (1/2 peak) | Spot 12 - 14° | |
| Beam angle (1/10 peak) | Spot 12 - 25° | |
| Illuminance in Lux (lx) | Narrow cold white (CW) 1m:133020 lx, 3m:14449 lx, 6m:3622 lx | |
| Wide cold white (CW) 1m | 43370 lx, 3m:4970 lx, 6m:1328 lx | |
| Housing color | Black matte | |
| Display type | 1 x monochrome 4 digit 7-segment LED display | |
| USB port | 1 x type A | |
| Material | Metal, painted | |
| Dimensions | Length:31 cm | |
| Width | 20 cm | |
| Height | 29 cm | |
| Weight | 4.67 kg | |
| Noise classification | Class 2 (slight noise) | |
| Power cord | ||
| Cable construction | 3 x 1.0 mm² H05VV-F | |
| Mounting bracket | ||
| Attachment system | Ø 12mm | |
| Double bracket | ||
| Legal specifications | ||
| Special product | Not designed for household room illumination | |
| Intended use | Show effect lighting | |
