Leírás

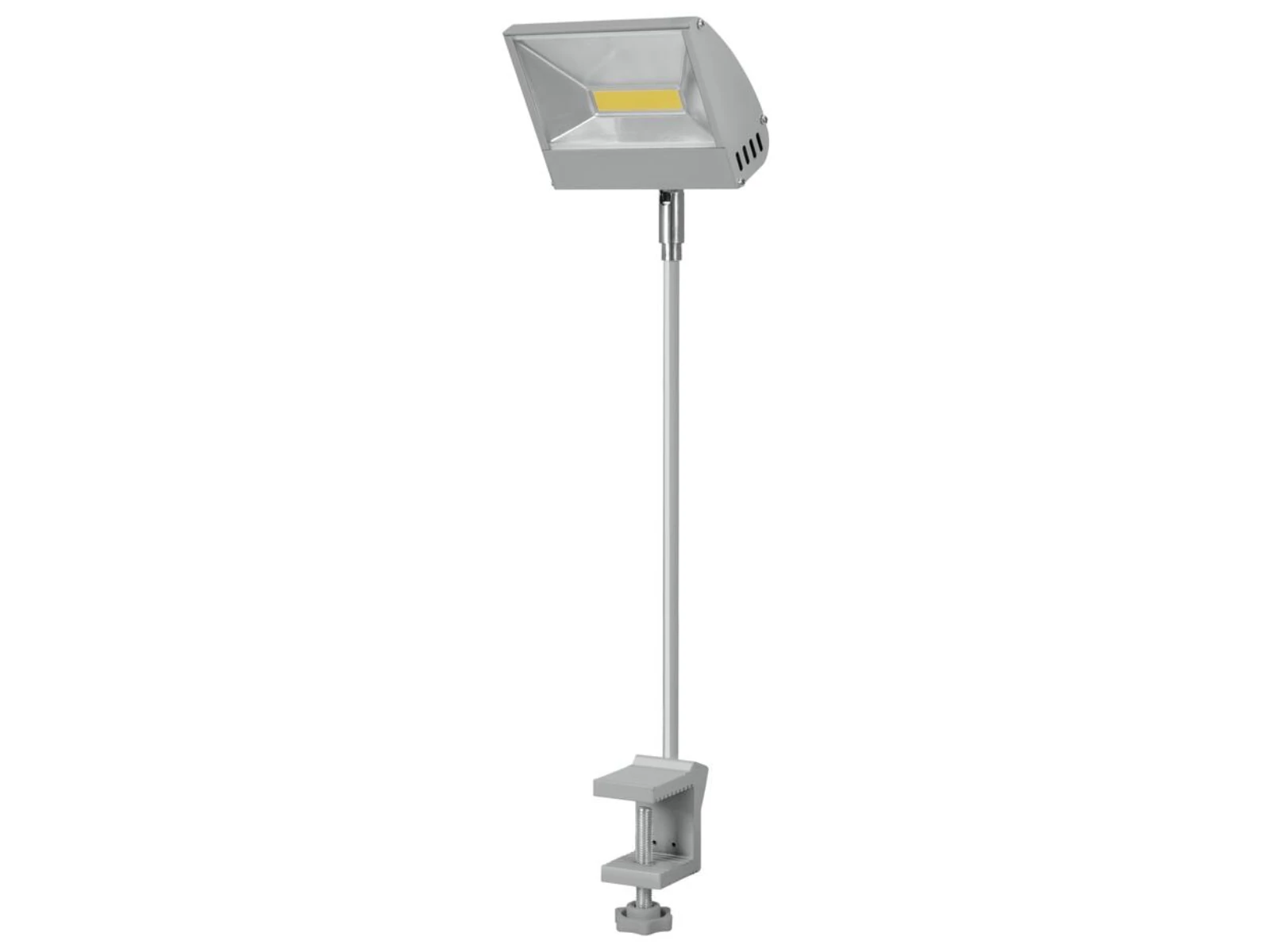

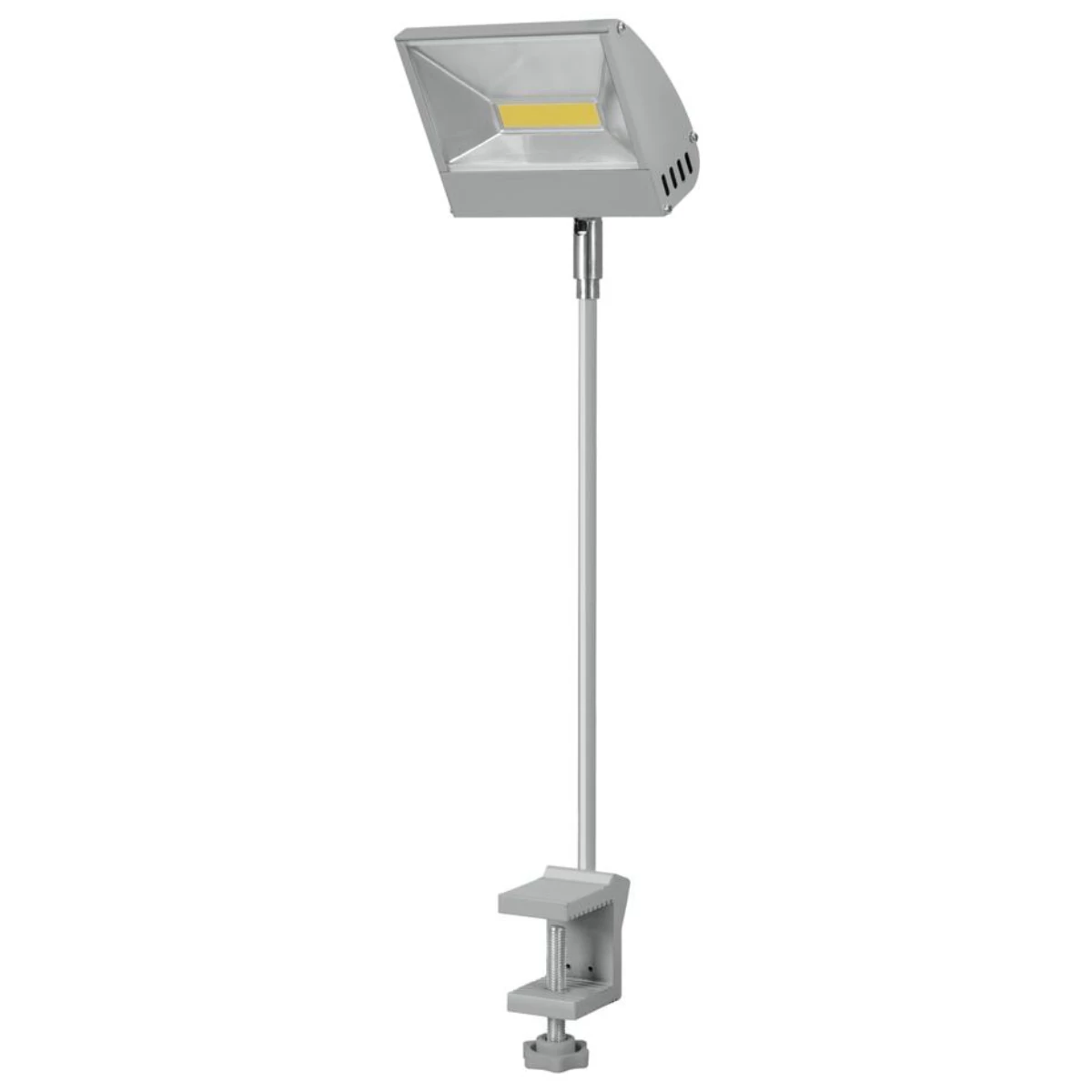

30 W LED floodlight with extension arm and screw terminal for fixation
- Inclination angle of the LED head manually adjustable
- Unique design
- Easy mounting via screw clamp
- For tabletops with up to 40 mm strength
- 1 powerful LED 30 W COB (chip-on-board) neutral white (NW)
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 59°
- Good color rendering index (CRI)
- Various versions available
- For application areas such as: Decoration; Trade fair and shop fitting; advertisement/Shop window
- Silent operation
- Application possibility: Suspended; wall mounting
Scope of delivery
- 1 x spotlight
- 1 x knurled screw
- 1 x plate
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 31 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Fixed power supply cord with safety plug |
| Cable construction | 3 x 0.75 mm² H05VV-F |
| Cable length | Approx. 1.2 m |
| Lamp type | LED lamp |
| LED type | 1 x 30 W COB (chip-on-board) neutral white (NW) |
| Inclination angle | 90 ° |
| Cooling | Passive convection cooling |
| Control | Plug and play |
| Beam angle | 59° |
| Beam angle (1/2 peak) | 59° |
| Beam angle (1/10 peak) | 106° |
| Color temperature | 4100K |
| Color rendering index (CRI) | 83 Ra |
| Illuminance in Lux (lx) | 1m:1275 lx, 3m:176 lx, 6m:46 lx |
| Luminous flux | 1769 lm |
| Housing color | Silver |
| Dimensions | Length:62 cm |
| Width | 13.5 cm |
| Depth | 8.5 cm |
| Weight | 0.83 kg |
| Noise classification | Class 0 (no noise at all) |
| Energy efficiency class (A - G) | G |
| EPREL-Nr | 1273258 |
| Knurled screw | |
| Thread | X 60 mm |
| Plate | |
| Material | Metal, 1.5 mm |
| Color | Silver, matte |
| Dimensions | Diameter:Ø 2 cm |
