Leírás

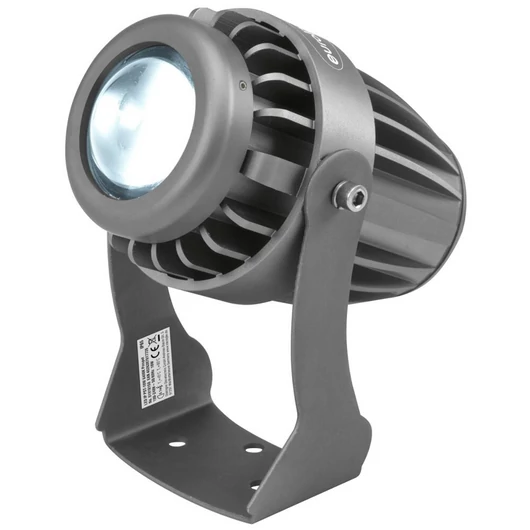

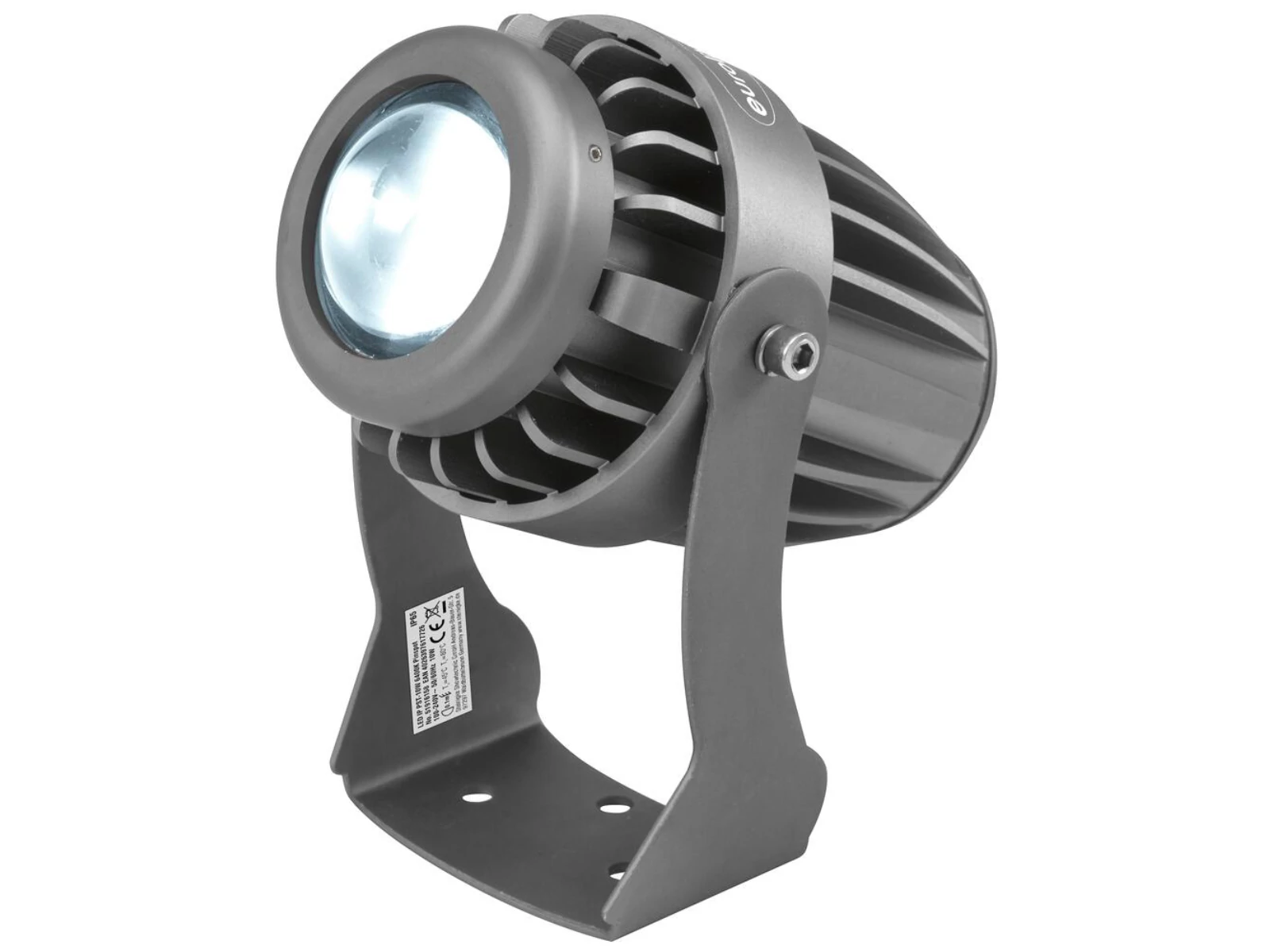

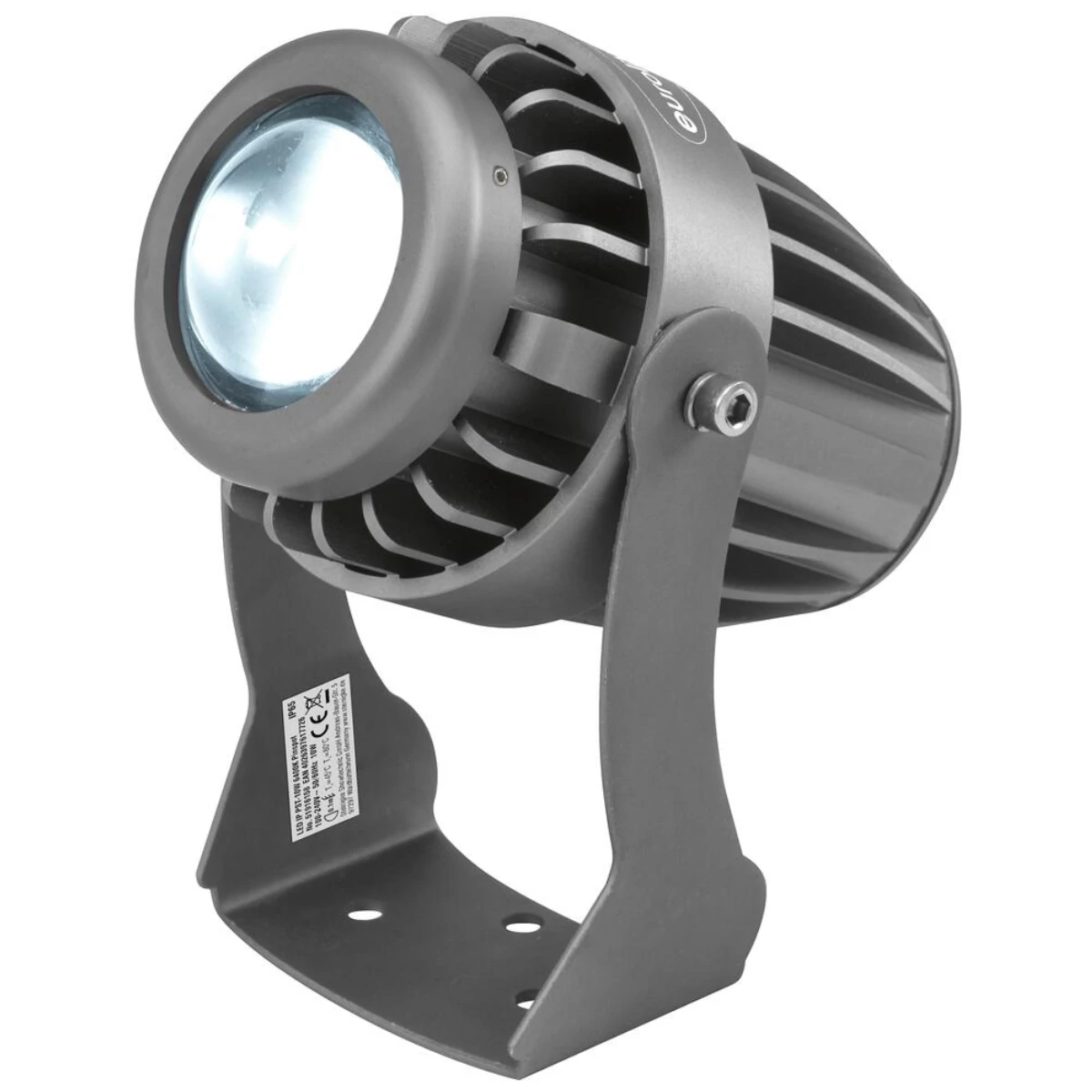

Weather-proof pinspot (IP65) with strong 10 W LED in cold white (CW)
- Compact aluminum housing
- 1 LED 10 W high-power cold white (CW)
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 4°
- With mounting bracket
- Suitable for outdoor use IP65
- For application areas such as: Architecture; clubs/dancing school; decoration; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended
Scope of delivery
- 1 x device
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 10 W |
| IP classification | IP65 |
| Protection class | Protection class I |
| Power connection | Fixed power supply cord with safety plug |
| Cable length | Approx. 0.9 m |
| Lamp type | LED lamp |
| LED type | 1 x 10 W high-power cold white (CW) |
| Cooling | Passive convection cooling |
| Control | Plug and play |
| Beam angle (1/2 peak) | 4° |
| Beam angle (1/10 peak) | 6° |
| Color temperature | 6400K |
| Illuminance in Lux (lx) | 1m:39687 lx, 3m:4446 lx, 6m:1255 lx |
| Luminous flux | 887 lm |
| Housing color | Grey |
| Attachment system | Mounting bracket |
| Material | Aluminum casting |
| Dimensions | Width:10.5 cm |
| Depth | 15 cm |
| Height | 14.7 cm |
| Weight | 0.75 kg |
| Noise classification | Class 0 (no noise at all) |
| Energy efficiency class (A - G) | F |
| EPREL-Nr | 1064813 |
| Mounting bracket | |
| Diameter mounting holes | 3 x Ø6mm |
| Material | Aluminum, 2 mm |
