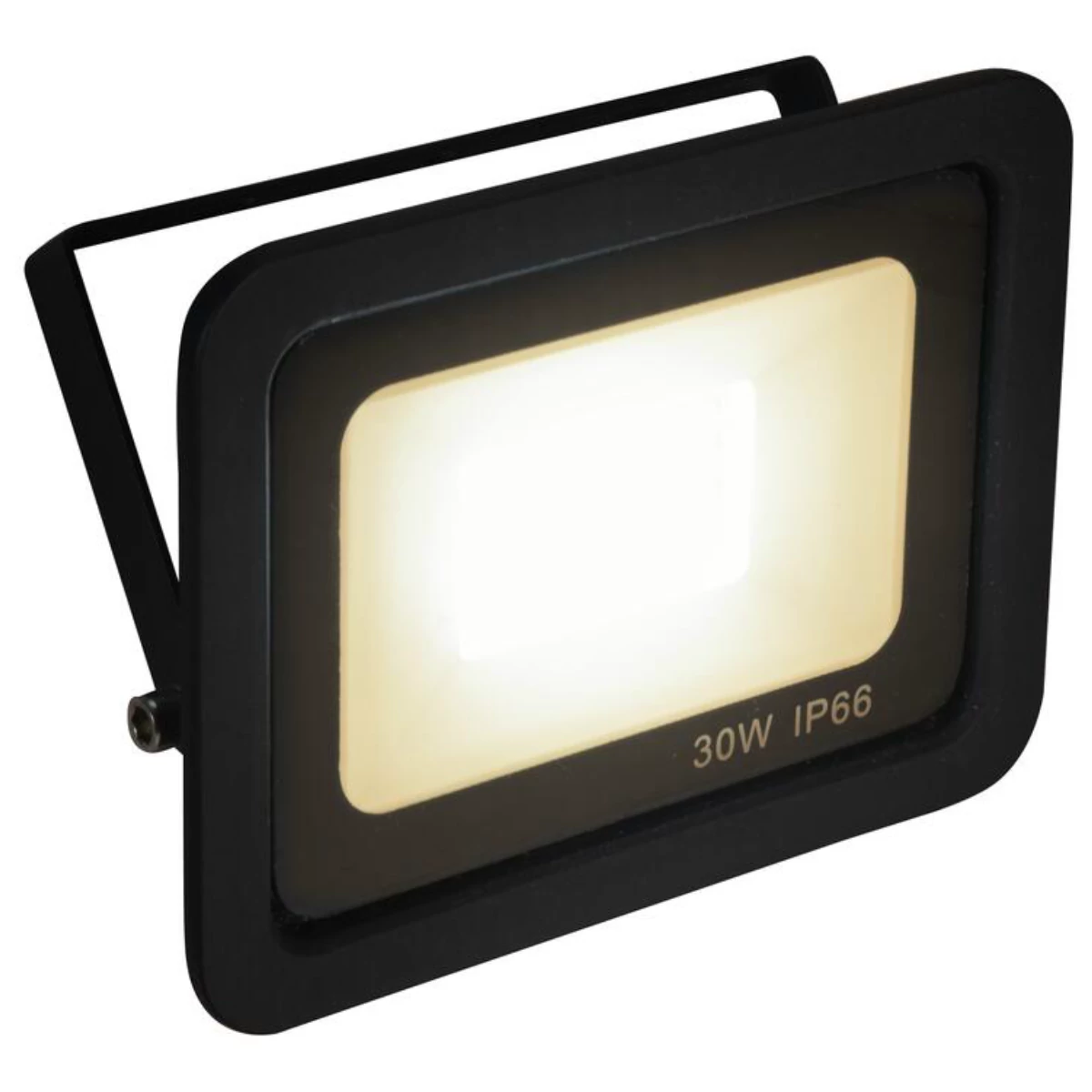

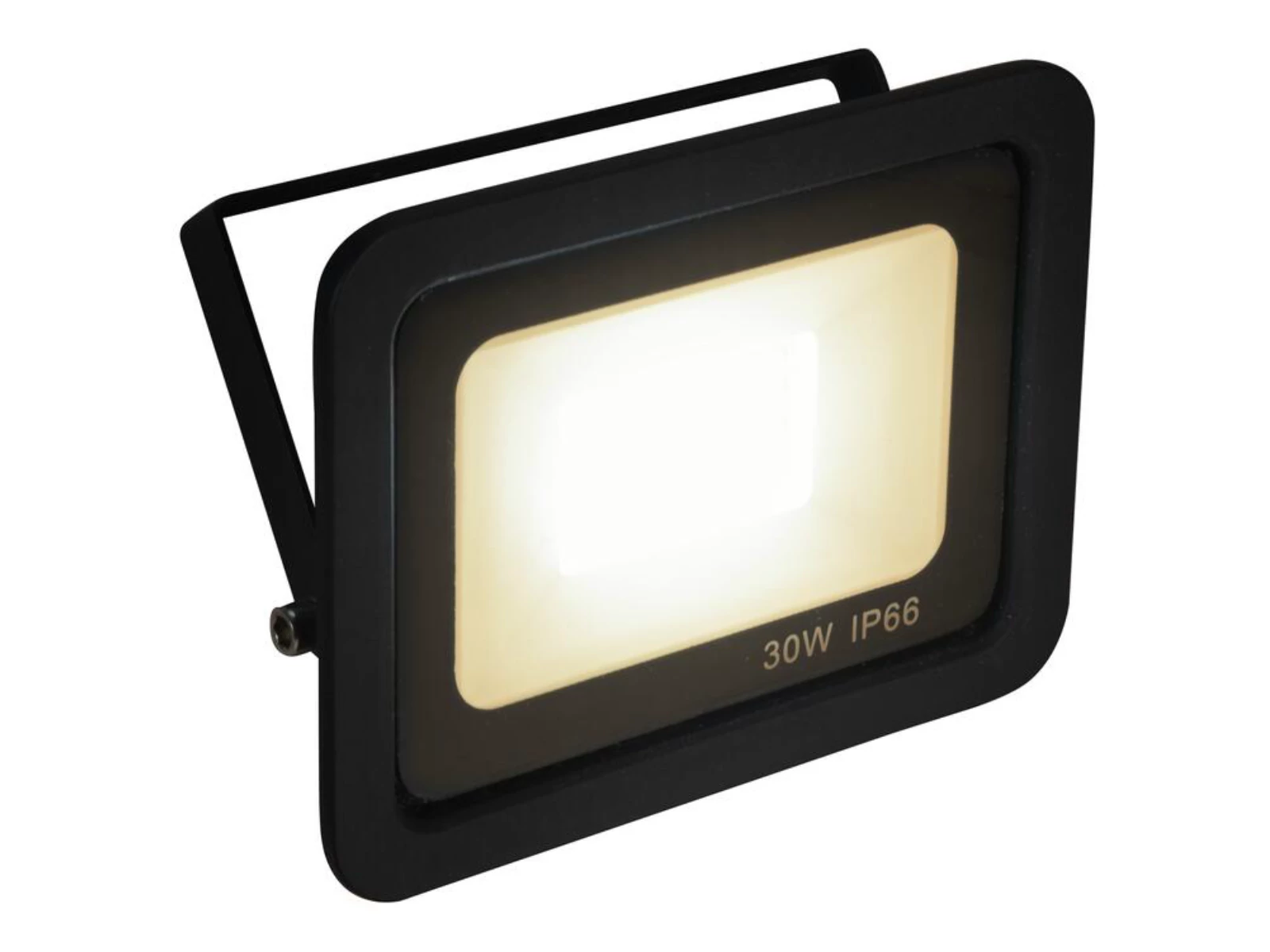

Flat outdoor floodlight (IP66) with white SMD LEDs
- 32 LEDs SMD 2835 warm white (WW)
- The device is cooled by passive convection cooling
- Control via plug and play
- Good color rendering index (CRI)
- With mounting bracket
- Suitable for outdoor use IP66
- Various versions available
- For application areas such as: Architecture; decoration; Trade fair and shop fitting; restaurants, bars and hotels; video and photography; advertisement/Shop window
- Silent operation
- Application possibility: Suspended
Scope of delivery
- 1 x device
- 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 30 W |
| IP classification | IP66 |
| Protection class | Protection class I |
| Power connection | Fixed power supply cord with safety plug |
| Cable construction | 3 x 1.0 mm² H05RN-F |
| Cable length | Approx. 1 m |
| Lamp type | LED lamp |
| LED type | 32 x SMD 2835 warm white (WW) |
| Cooling | Passive convection cooling |
| Control | Plug and play |
| Beam angle (1/2 peak) | 70° |
| Beam angle (1/10 peak) | 120 |
| Color temperature | 3000K |
| Color rendering index (CRI) | 80 Ra |
| Luminous flux | 2652 lm |
| Housing color | Black matte |
| Attachment system | Mounting bracket |
| Material | Aluminum casting |
| Dimensions | Width:15.8 cm |
| Depth | 2.6 cm |
| Height | 14.8 cm |
| Weight | 0.46 kg |
| Noise classification | Class 0 (no noise at all) |
| Energy efficiency class (A - G) | F |
| EPREL-Nr | 963795 |
| Mounting bracket | |
| Diameter mounting holes | 1 x Ø8mm; 2 x Ø6mm |
| Material | Metal, 1.5 mm |
