Leírás

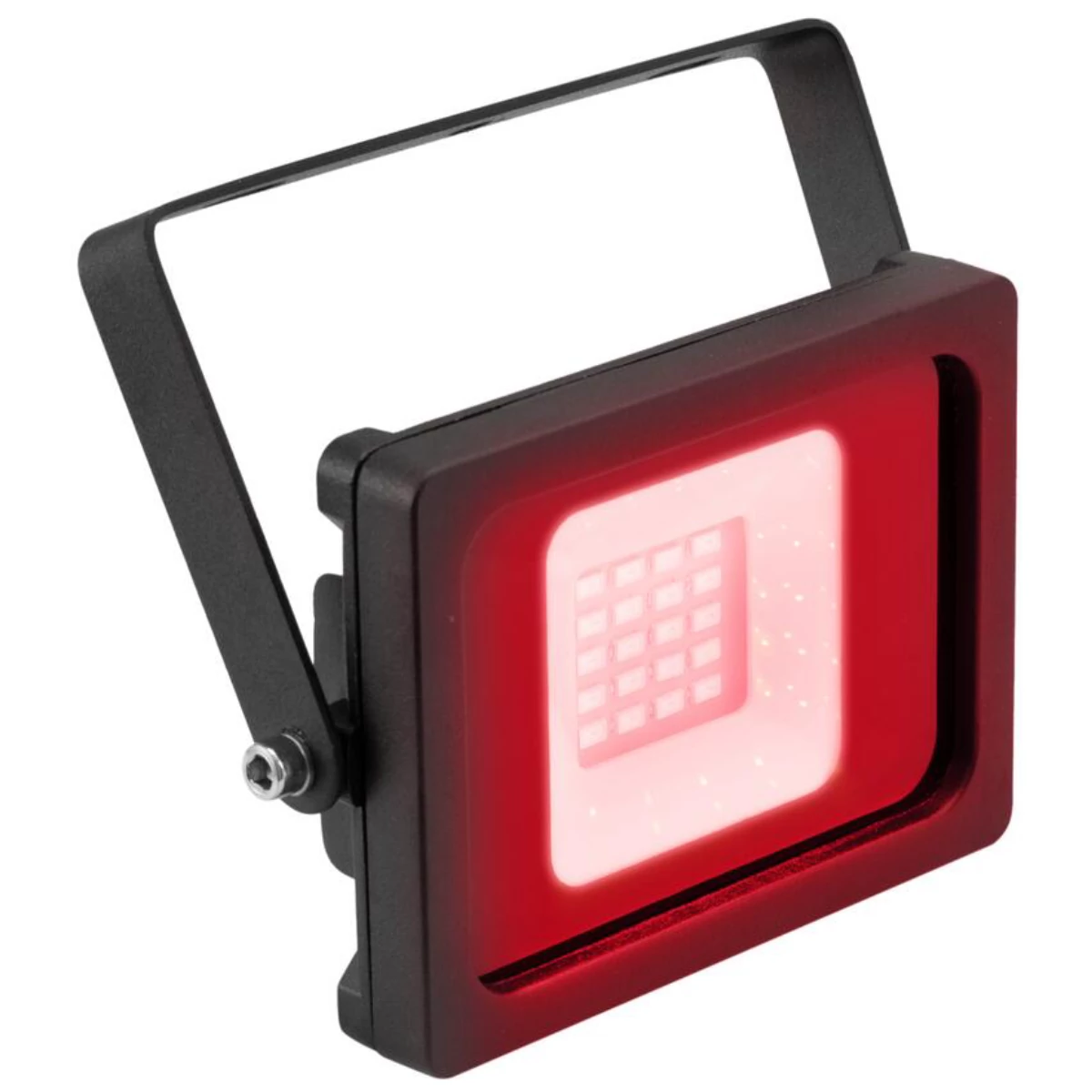

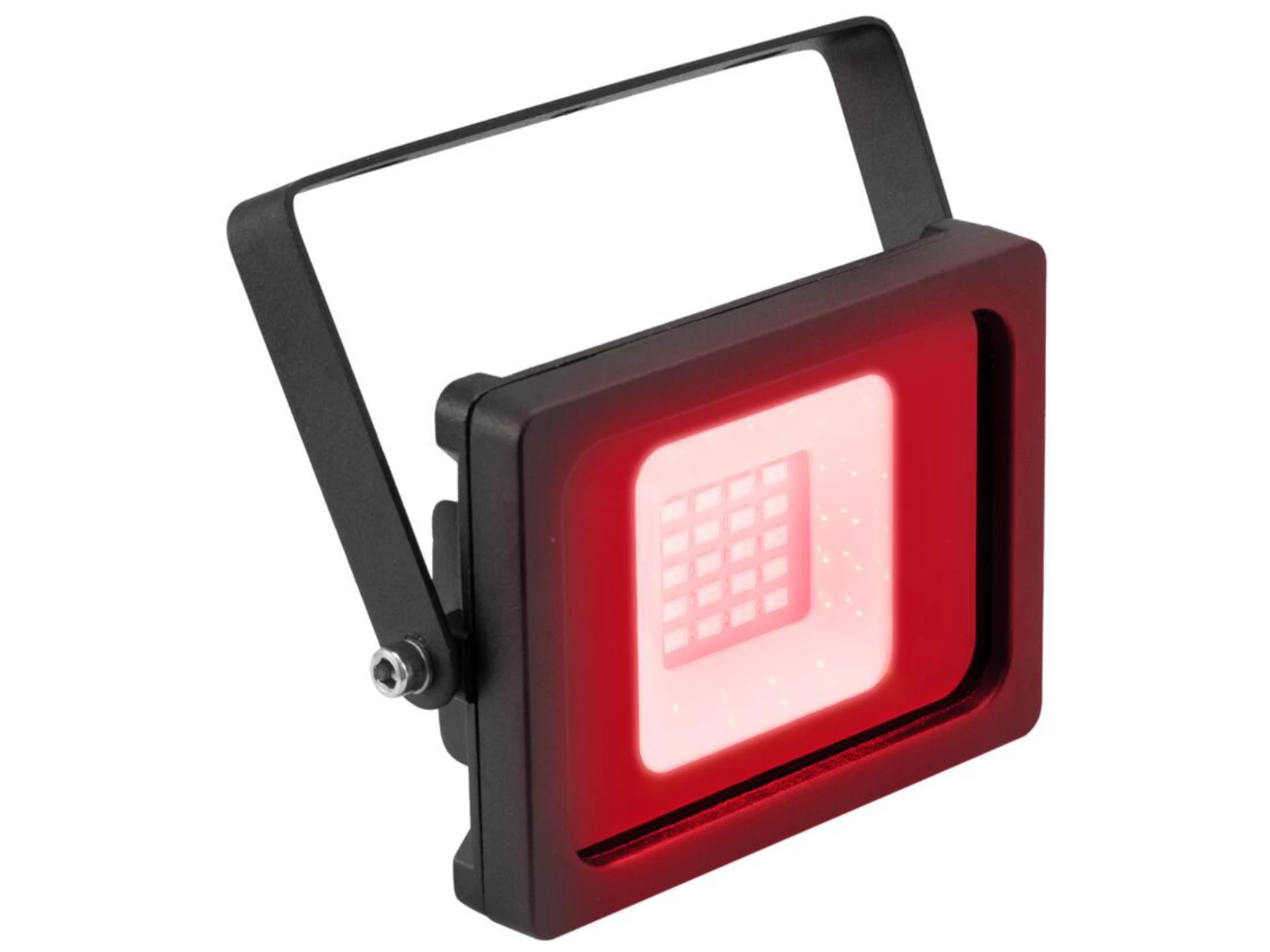

Flat IP65 outdoor floodlight with 20 SMD-LEDs red (R)
- 20 powerful LEDs SMD 5730 red (R)
- The device is cooled by passive convection cooling
- Control via plug and play
- With mounting bracket
- Suitable for outdoor use IP65
- Various versions available
- Silent operation
- For application areas such as: Installation; restaurants, bars and hotels; architecture
- Application possibility: Suspended
Package contents
- 1 x spotlight, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 10 W |
| IP classification | IP65 |
| Protection class | Protection class I |
| Power connection | Fixed power supply cord with safety plug |
| Cable construction | 3 x 1.0 mm² H05RN-F |
| Cable length | Approx. 1 m |
| Lamp type | LED lamp |
| LED type | 20 x SMD 5730 red (R) |
| Cooling | Passive convection cooling |
| Control | Plug and play |
| Beam angle (1/2 peak) | 80° |
| Beam angle (1/10 peak) | 120° |
| Color of light | Red |
| Housing color | Black matte |
| Attachment system | Mounting bracket |
| Material | Aluminum casting |
| Dimensions | Width:13.4 cm |
| Depth | 3.0 cm |
| Height | 12.2 cm |
| Weight | 0.43 kg |
| Noise classification | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes | 3 x Ø6mm |
| Material | Metal, 2 mm |

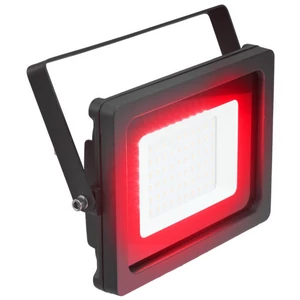

Flat IP65 outdoor floodlight with 60 SMD-LEDs red (R)

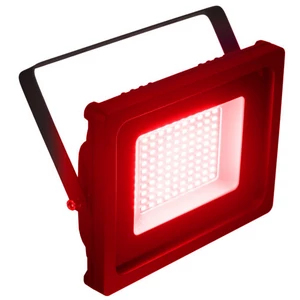

Flat IP65 outdoor floodlight with 100 SMD-LEDs red (R)

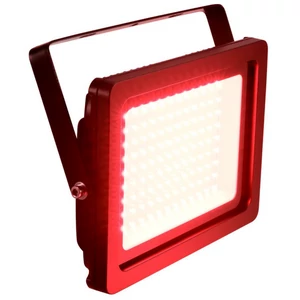

Flat IP65 outdoor floodlight with 108 SMD-LEDs red (R)
