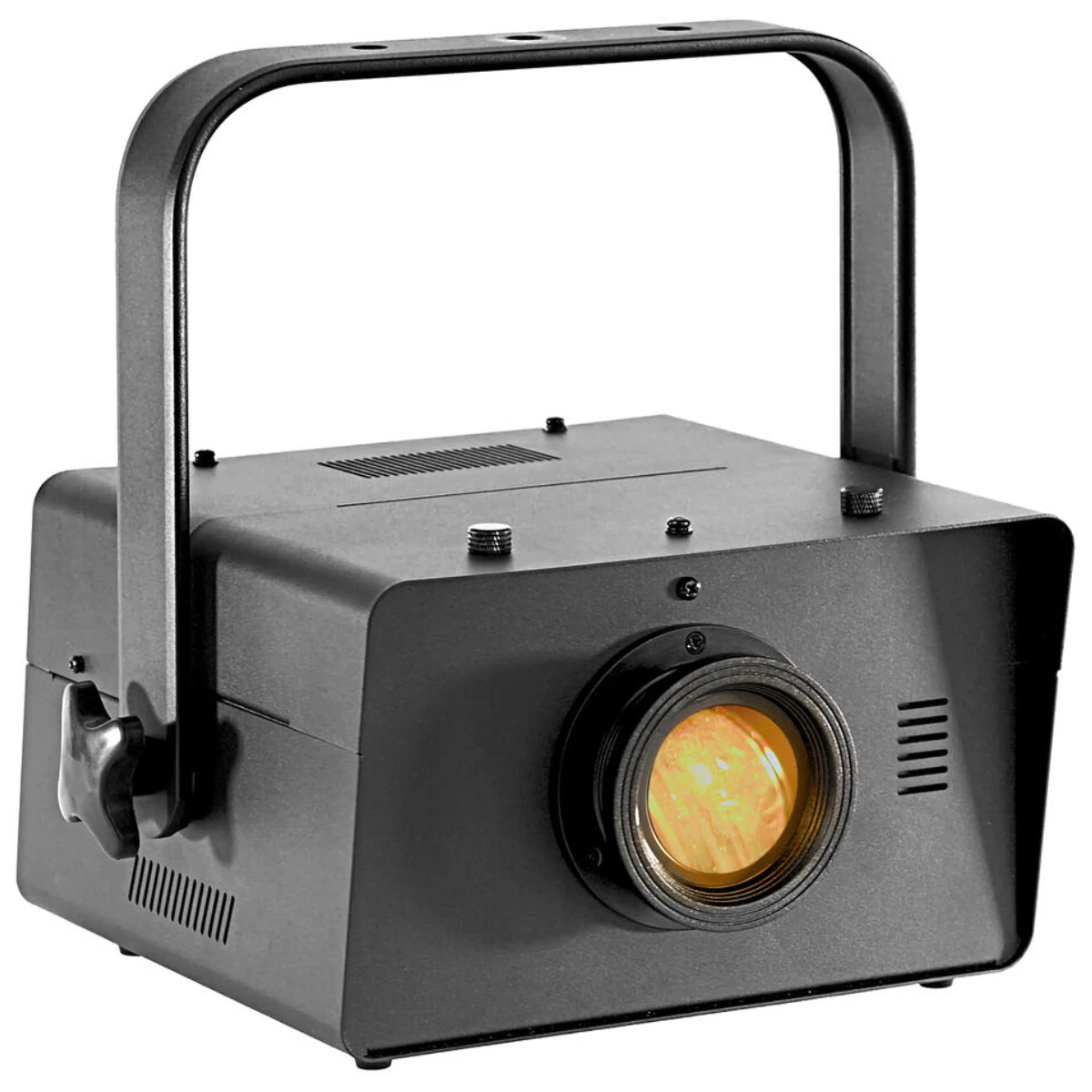

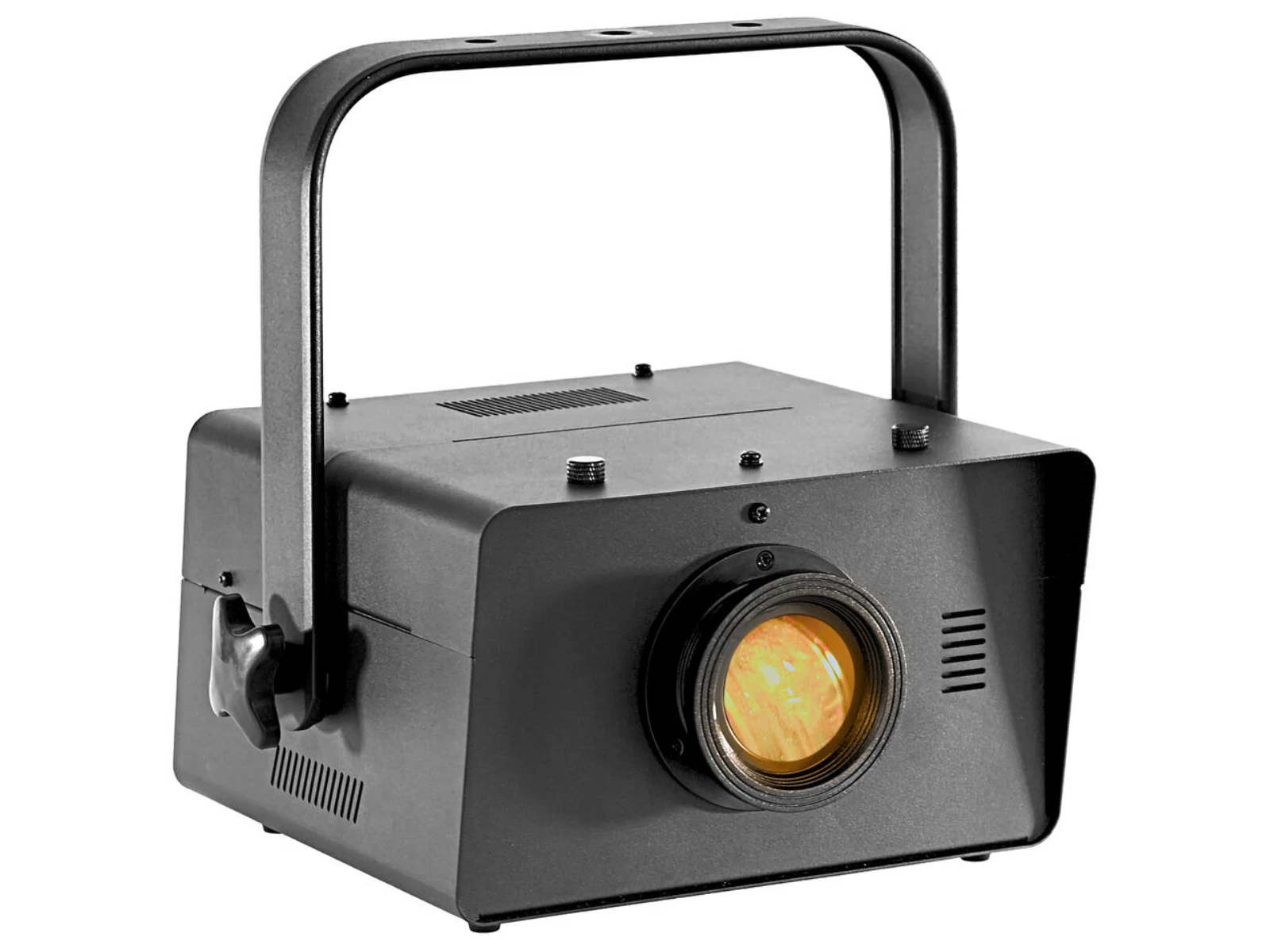

EUROLITE LED EVO-120 QCL Multi Effect Projector

Innovative projection effect with magnetically interchangeable effect wheels
This lighting effect offers exceptionally versatile creative possibilities. It comes with four effect wheels, two of which can be easily inserted using magnetic mounts. The set includes two textured glass wheels, an animation wheel, and a gobo wheel.Combining two textured glass wheels creates the classic water effect. When paired with the animation wheel, it produces a crystal-like effect with fascinating light refractions. The gobo wheel can be used for standard projections or combined with the textured glass or animation wheel to add an extra layer of movement. The included motifs feature hearts, flames, a snowflake, a Halloween pumpkin, as well as a texture for simulating clouds or water.The EVO-120 is powered by a 120 W RGBW LED. Thanks to its silent mode, which enables virtually noiseless operation, this fixture is suitable not only for parties but also for small to mid-sized theater and show stages.

• 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery
• Up to 2 wheels can be easily inserted via magnetic attachment systems
• Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
• 1 LED 120 W COB (chip-on-board) 4in1 QCL RGBW
• Exact 16 bit resolution at Dimmer, color, gobo rotation
• Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
• Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable
• Water effect; gobo effect; crystal effect
• Gobo wheel with static gobos, 5 gobos
• The device is cooled by temperature-controlled fan
• Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
• Flicker-free
• DMX fail mode (blackout; hold)
• With a beam angle of 35°
• With mounting bracket
• Monochrome OLED display
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
• Very quiet working noise
• Application possibility: Suspended; on stand; wall mounting
• Fixtures available for Light Captain

• 1 x light effect
• 1 x power cord
• 1 x user manual
• 4 x effect wheel
