4-point trussing tower complete set

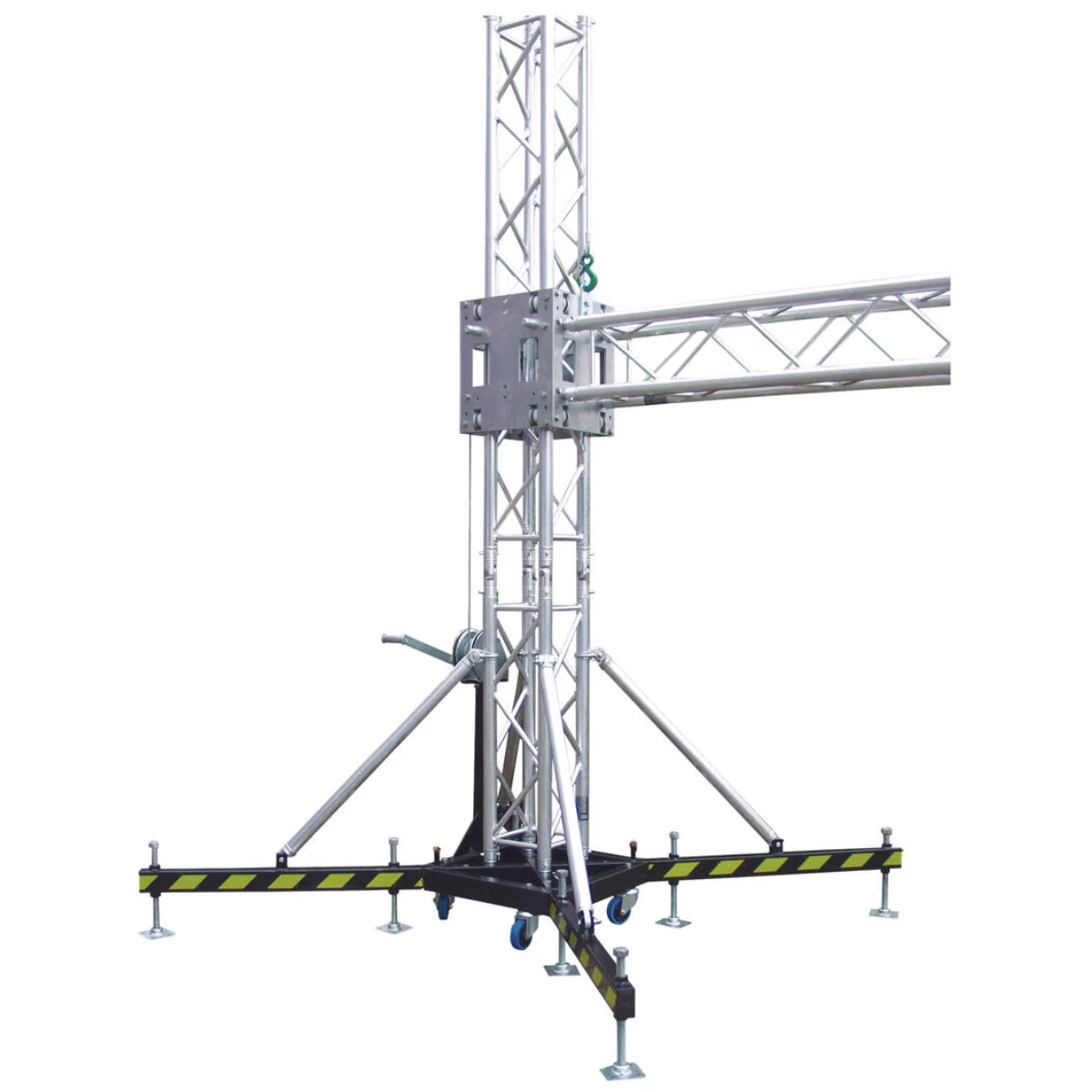

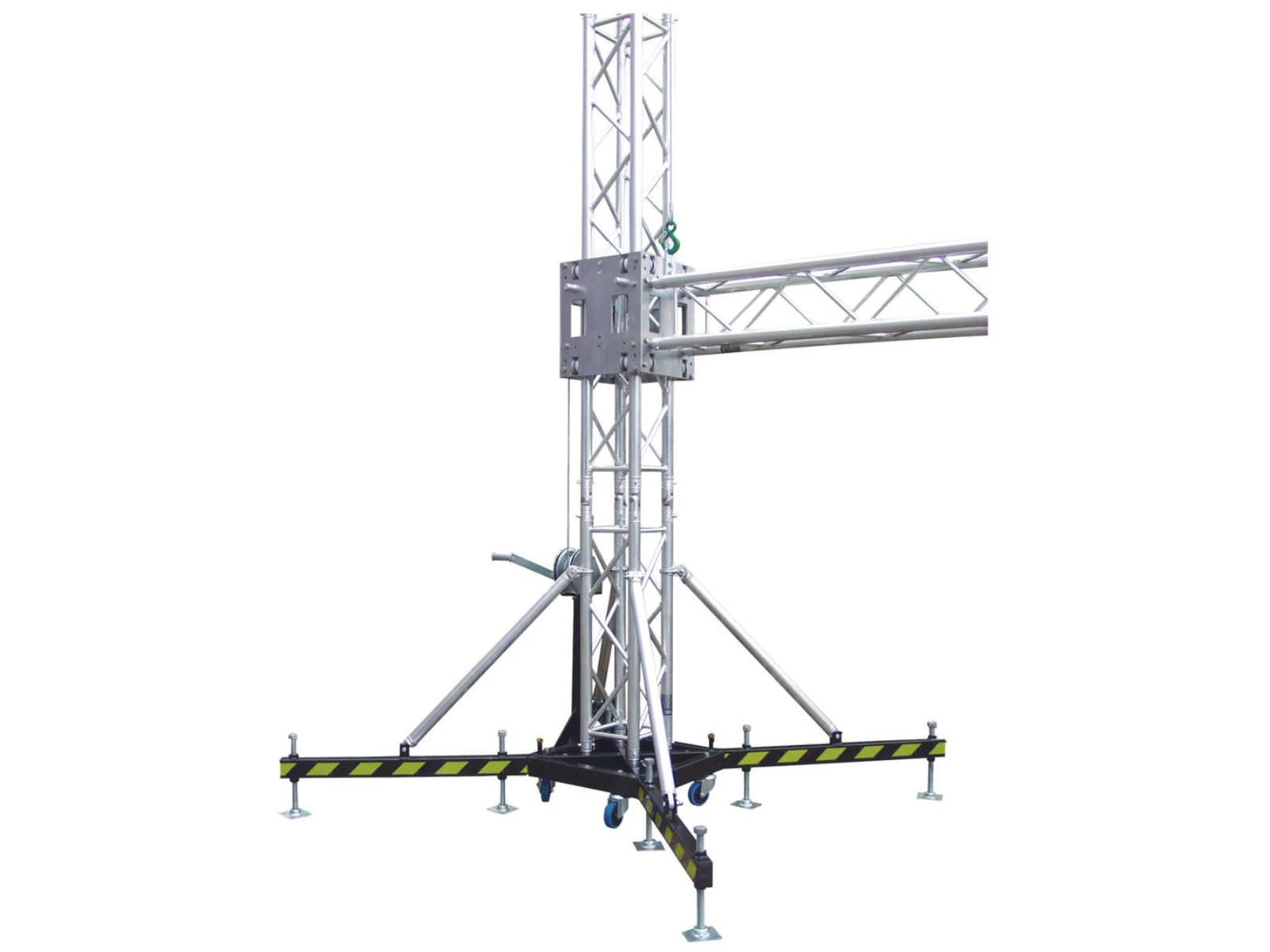

ALUTRUSS Tower System I
4-point trussing tower complete set
- For building ground supports with at least 4 towers
- Base with integrated steel T-bar for mounting the hand winch, No. 60304201
- Adjustable height
- Easy installation
- Trusspipe: 50 mm
- Made in Europe
- The article is delivered pre-assembled
- Suitable for Towertruss TQTR; Quadlock 6082
- Various versions available
- For application areas such as: Stage
- For further information about this product, please refer to the Data Sheet under "Downloads"
ALUTRUSS Tower Outrigger, long
- The article is delivered pre-assembled
- Trusspipe: 50 mm
- Made in Europe
Scope of delivery
1 x ALUTRUSS Tower System I
- 1 x tower
- 8 x half cone
4 x ALUTRUSS Tower Outrigger, long
- 1 x device
Paraméterek
| Corner angle | 60° |
| Weight | 135.30 kg |
| ALUTRUSS Tower System I | |
| Setup | Easy installation |
| Maximum carrying capacity | 1000 kg |
| Height | Maximum:700 cm |
| Trusspipe | 50 mm x 3 mm |
| Welding technique | TIG-welding |
| Welding material | AlMg 5 |
| Alloy | EN-AW 6082 T6 (AlSi1Mg) |
| Material | Aluminum; steel |
| Color | Alu colored |
| Strut diameter x thickness | 20 x 2mm |
| Dimensions | Width:62 cm |
| Depth | 62 cm |
| Height | 107 cm |
| Weight | 92.50 kg |
| ALUTRUSS Tower Outrigger, long | |
| Trusspipe | 50 mm x 2 mm |
| Welding technique | TIG-welding |
| Welding material | AlMg 5 |
| Material | Steel; aluminum |
| Color | Alu colored; black/yellow |
| Dimensions | Length:117 cm |
| Width | 3.5 cm |
| Height | 34 cm |
| Weight | 10.70 kg |
